2 في 1 DB9 RS232 إلى RS485 TTL محول تسلسلي D-Sub 9Pin إلى 5Pin برغي طرفي كتلة RS232 إلى 3.3V/5V محول إشارة الواجهة للأتمتة الصناعية، PLC، الأنظمة المدمجة (DB9 أنثى) in Kuwait

DB9 ذكر

KWD 8.500
ماركة
Plinkwirekb
وزن
40 g
مقاسDB9 ذكر
– 1 +

مميزات خاصة

  • 【2-in-1 Serial Converter】DB9 to 5 Pin Terminal Block Adapter, Easily convert RS232 signals to RS485 (half-duplex) or TTL, which can be switched at will, enabling communication between different serial interfaces and protocols.without external power supply, Plug and Play. No driver installation required.
  • 【Screw 5-Pin Terminal】Versatile 2 In 1 RS232 to RS485 TTL Serial Adapter With clearly labeled 5-Pin Screw Terminal Block, 3.81mm Pitch.
  • 【3.3V and 5V TTL Interfaces】Offers both 3.3V and 5V TTL output, ensuring compatibility with low-voltage systems and embedded devices, providing flexibility for a wide range of applications.
  • 【Two Installation Methods】Each DB9 Serial Port Converter is equipped with Screws and Nuts.Compatible with two locking methods, Front Rivet Nut and Rear Locking Screw, which can be switched at will.(Hex pillar: #4-40, H4.75*11.8mm; Screw: #4-40UNC).
  • 【Application】Industrial 2 In 1 RS232 to RS485 TTL Serial Port Converter, for Industrial automation equipment communication (e.g., PLC and sensor), embedded systems, sensor networks, building control systems, and data acquisition, supporting long-distance communication and multi-device connectivity.
  • 【Custom Cable】We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.

وصف

Specification:

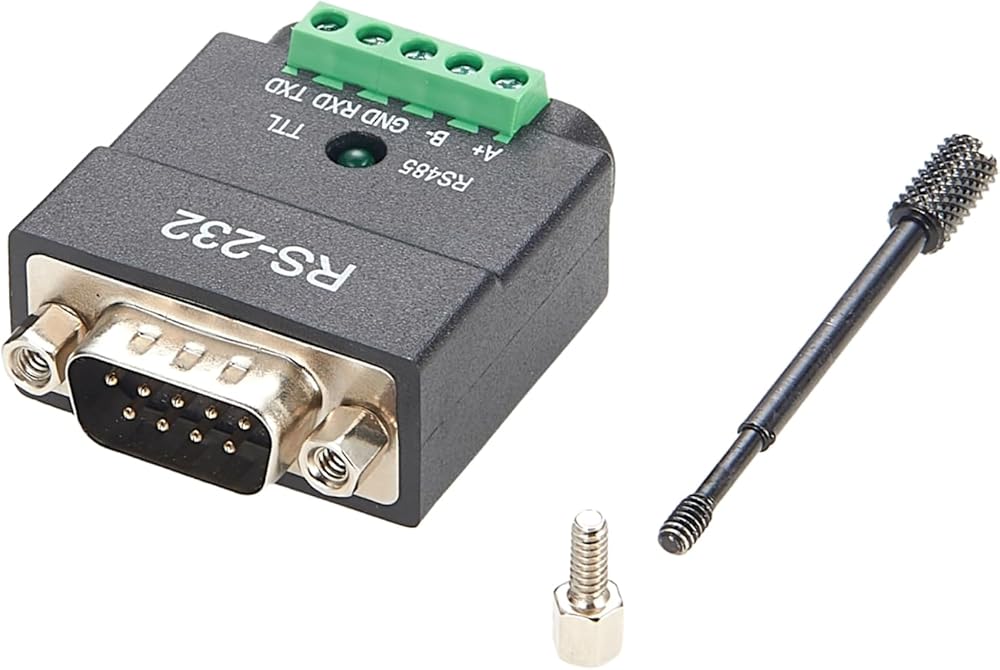

Product Name: DB9 RS232 to RS485 TTL Serial Converter with 5-Pin Terminal Block
Drawing number: PCM-KW-473
Input Connector: DB9 Female
Output Connector: 5 Pin Terminal block, Pitch 3.81mm
Input Signal: RS232
Output signal: RS485, TTL
Pin Assignment (5P Terminal): A+, B-, GND, RXD, TXD
Screw: #4-40UNC
Hex pillar: #4-40, H4.75*11.8mm
Material: Wear-Resistant TPE
