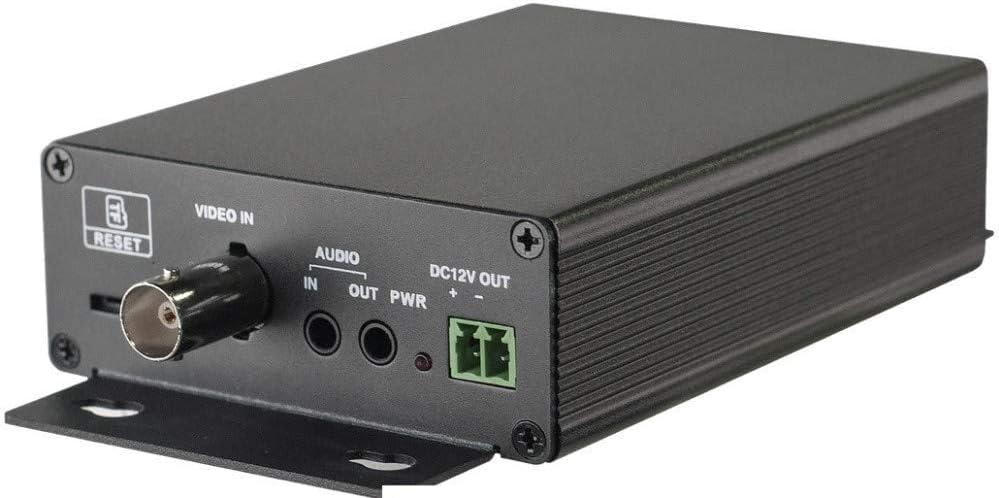

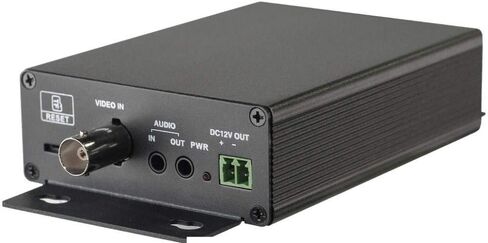

Titanium ED-DVS1401E HD Video Server, 4MP Full Real Time Coding, H.265/H.264 and MJPEG Encoding, AHD/CVBS, Smart Analysis, Alarm Channel In/Out, COC Control, Support ROI Coding, PoE/DC12V
Key Features4MP (2560x1440) full real time coding
H.264, H.265 and MJPEG encoding
Support 4MP AHD/CVBS video access; 2MP TVI/AHD/CVBS video access
PoE/DC12V power supply
1CH alarm input and 1CH alarm output
Support three streams
COC control
Support ROI coding
TVS 6000V lightning protection, surge protection
Smart analysis including line crossing, intrusion, exception detection (optional)
Brand TVT and Comes with No Logo

SpecificationsHD Analog Video Input: 1CH, BNC interface, PAL/NTSC selfadaptive
Audio Input: 3.5 mm interface, share with MIC IN interface
H.264 Compression Standard: Baseline Profile/Main Profile/High Profile
Bit Rate Type: VBR/CBR
Quality: Five levels under VBR; Freely adjustable under CBR
Bit Rate: 32Kbps~16Mbps
Audio Compression: G711A/U
Network: RJ45
Audio: MIC INx1, SPK OUTx1
RS485: Yes
Local Output: 1 BNC output
Remote Monitoring: IE browsing, CMS remote control
Online Connection: Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission
Network Protocol: TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol: ONVIF, GB-T/28181-2011
Image Snap: JPEG encoding, image quality adjustable
Power Output: Max [email protected]
Power Consumption:
Operating Environment: -20°C~55°C, 10%~90% (relative humidity)
Installation: Wall mounting

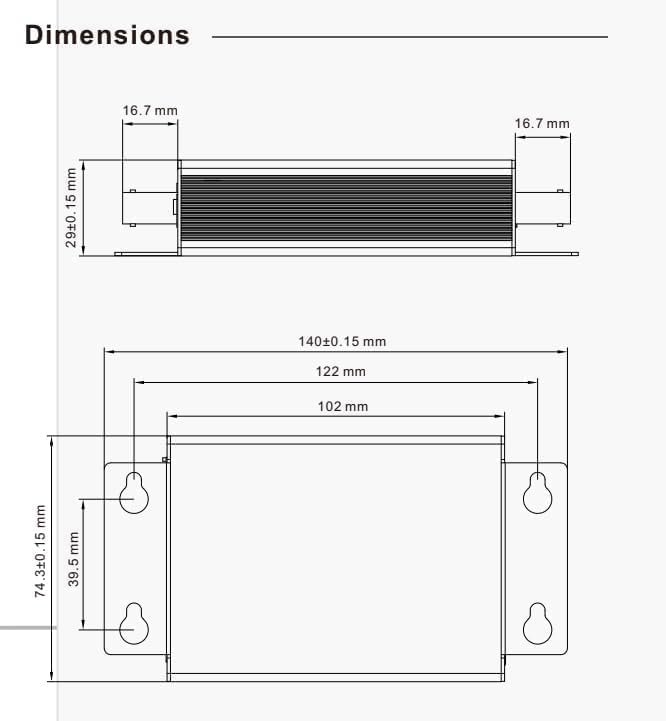

Dimensions: 140x74.3x29mm
Weight: 220g
