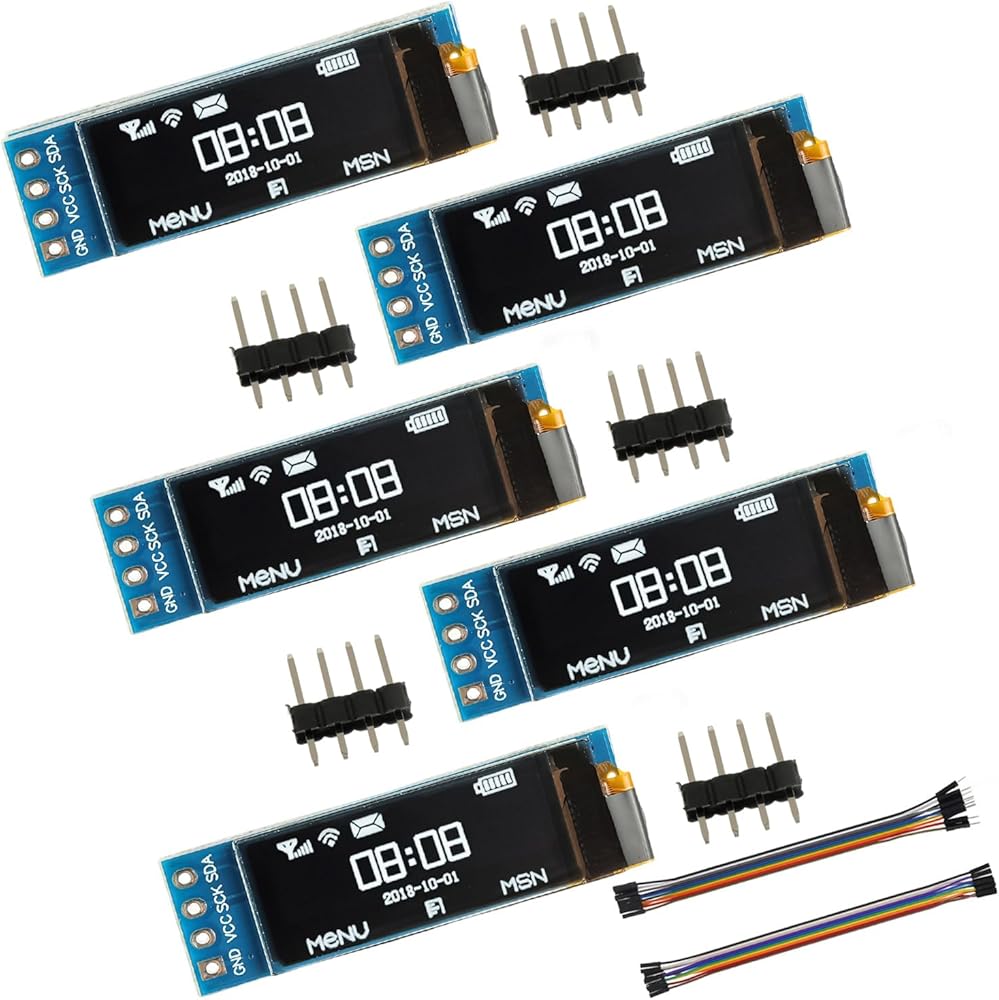

5 Pack 0.91 inch OLED IIC Display Module 128x32 Pixel Mini Self-Luminous Display Screen Board for Arduino Projects Raspberry Pi with Wire(Blue) in Kuwait

WHITE

KWD 6.500
ColorWhite
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Size: 0.91 inches, Resolution: 128 x 32;Viewing angle:>160°;Supported voltage: 3.3V-5V DC,no need for level conversion chips;Power consumption during normal operation: 0.06W;Full screen illumination: 0.08W;Color:Blue
  • Embedded driver IC: SSD1306;Communication: I2C/IIC interface, only requires two I/O ports,Compatible with Arduino nano, R3 board, Raspberry Pi 4B/3B+/3B/2B/Zero,ESP8266, ESP32, STM32, etc.
  • No backlight required, each pixel emits light independently. It has ultra-high contrast, high resolution, bright and clear dots, making it easy to read even in small fonts
  • Graphics and text information can be directly displayed on microcontroller projects, and OLED controllers do not have embedded fonts. Users can create fonts through font generation software
  • Equipped with 20 DuPont wires (10 male-female and 10 female) to increase convenience

Description

EPLZON 0.91 inch OLED IIC Display Module 128x32 Pixel Mini Self-Luminous Display Screen Board

Applications:
MP3, MP4, watch,Head-mounted displays,Meters and other intelligent instruments. Design any pretty patterns for your beloved electronic devices

Specifications:
Module interface:IIC,4PIN
Effective display area:24.5x13(mm)
Module size:36x14(mm)
Field of View:>160°
Pin Definition:GND,VCC,SCL,SDA
Voltage:3.3 V ~ 5V DC
Working Temperature:-40~80 degree
High Resolution:128 x 32 Pixels
Driver IC:SH1106 Displya
Display Type: OLED (Organic Light Emitting Diode
Energy Consumption (Normally): 0.06W
Drive Duty: 1/64 Duty

Package include:
5PCS * 1.3 Inch Disyplay Module
10PCS* Female to Female Dupont Wire
10PCS* Male to Female Dupont Wire
