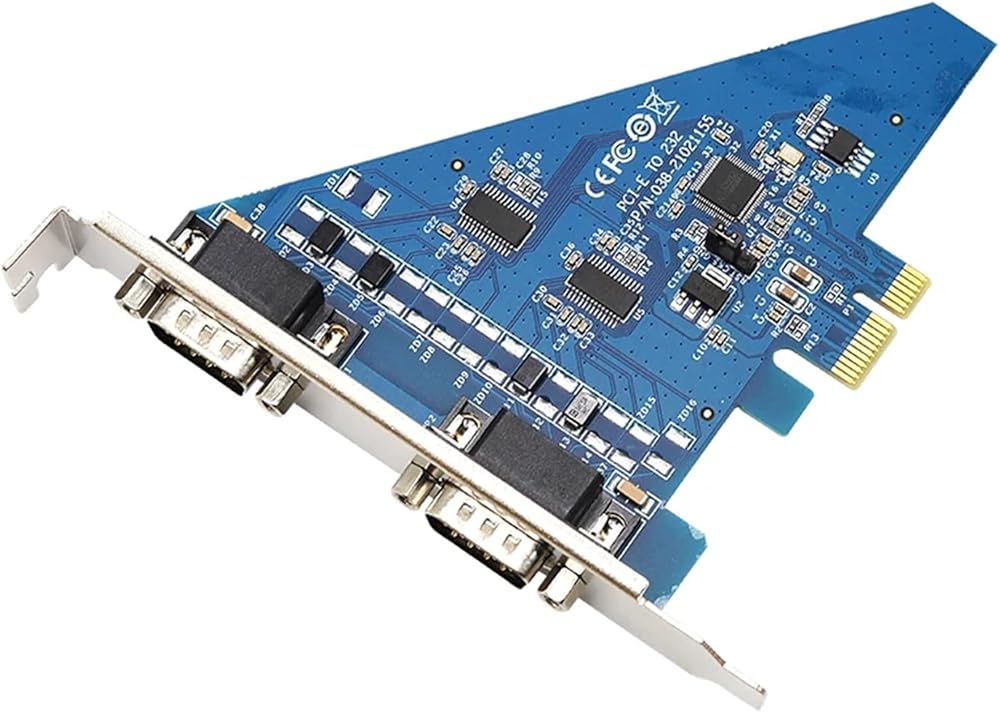

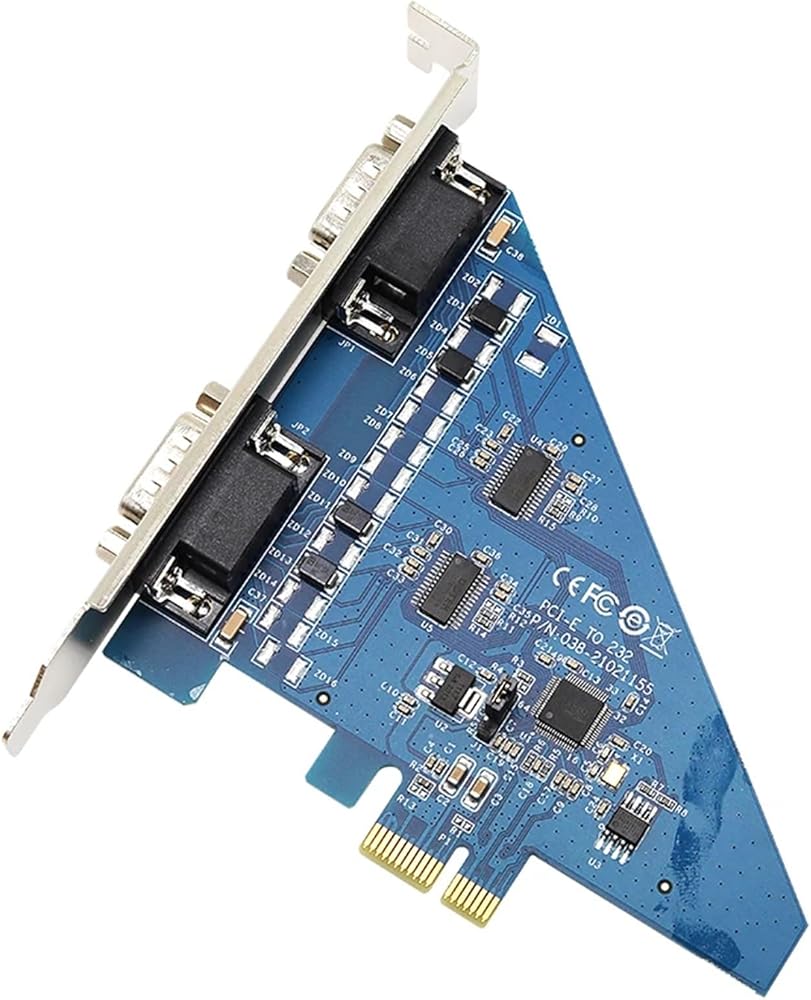

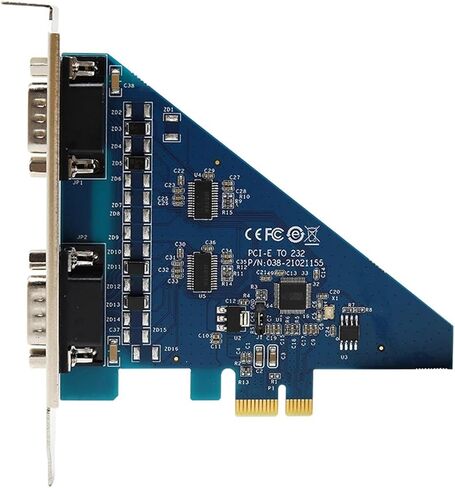

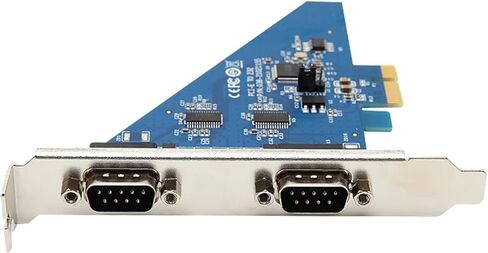

1PCS PCI-E to RS-232 High Speed Serial Card 2 Ports RS232 to PCIE Converter DB9 COM Adapter UT-7912
UT-7912 is a PCI-E to 2 ports RS-232 serial card, which can convert single-ended PCI-E signals to RS-232 signals, with a fast transient suppression protector, this protector is designed to protect the RS-232 interface, using Today's advanced TVS tube, under normal circumstances, the TVS tube is in a high impedance state. When both ends of the TVS tube are subjected to an instantaneous high-energy shock, it can reduce the impedance at both ends of the TVS tube at a very high speed, absorb a large current, and thus the voltage across it is clamped at a predetermined value to protect subsequent circuit components from being damaged by transient high voltage shocks. This protector can effectively suppress and ESD, provide TX/RX 600W surge protection, as well as surge and transient overvoltage generated on the line due to various reasons, and the extremely small inter-electrode capacitance ensures high-speed transmission of RS-232.
UT-7912 Details
UT-7912 Parameters
Hardware interface:
Connection type: DB9 male x 2
Bus: PCI-E
Signal:
RS-232:DCD,RXD,TXD,DTR,GND,RTS,CTS,RI
Transmission rate: 300bps-921.6Kbps
Data bits: 5, 6, 7, 8
Stop bit: 1, 2
Check bit: support odd, even, no check, blank 0, flag 1
Flow control: rts/cts xon/xoff
Working temperature: -40 ~ 85
Interface protection: surge protection of 600W RS-232 interface signal line
Support system: WIN 98/2000/2003/XP/VISTA/2008/7/2012/8/81/2016/10/11/2019/NT4.0/ Linux
UT-7912 Application
==========
Hign-concerned Chemical : none
Package : Yes
Model Number : UT-7912
Type : IDE Cables
Package : Yes
Model Number : UT-7912
Type : PCI-E Riser
