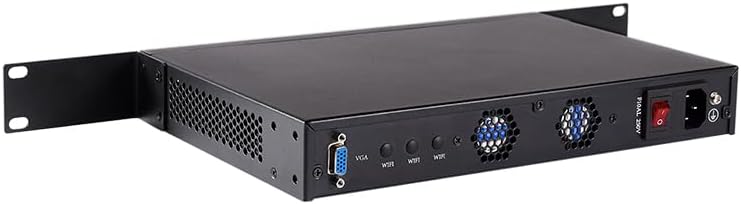

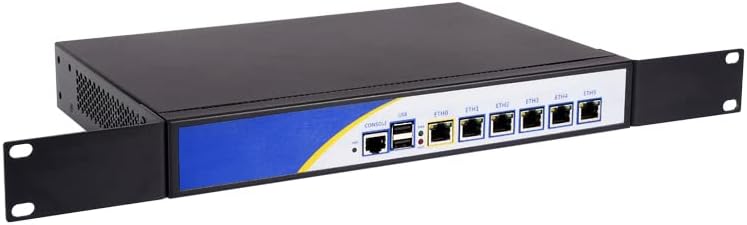

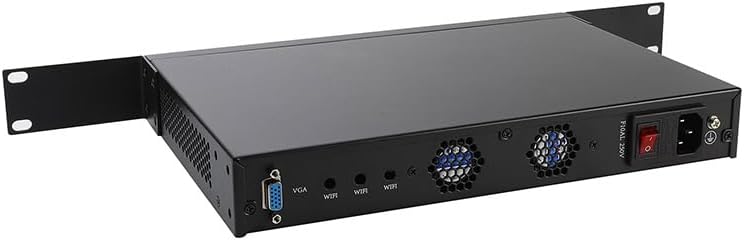

Wintertion1U Rackmount Firewall, VPN, Network Security Appliance, Router PC, Atom D525, 6 Gigabit LAN, 2 x USB, COM, VGA, Fan, 0 RAM, 0 Storage, (13/Desktop / 6 LAN, 4G RAM 64G SSD) in Kuwait Wintertion1U Rackmount Firewall, VPN, Network Security Appliance, Router PC, Atom D525, 6 Gigabit LAN, 2 x USB, COM, VGA, Fan, 0 RAM, 0 Storage, (13/Desktop / 6 LAN, 4G RAM 64G SSD) in Kuwait Wintertion1U Rackmount Firewall, VPN, Network Security Appliance, Router PC, Atom D525, 6 Gigabit LAN, 2 x USB, COM, VGA, Fan, 0 RAM, 0 Storage, (13/Desktop / 6 LAN, 4G RAM 64G SSD) in Kuwait

13/Desktop / 6 LAN 2G RAM 64G SSD

KWD 144

Brand
Wintertion
Category
Network Routers
Weight
3.5 kg
Color13/Desktop / 6 LAN
Size2G RAM 64G SSD
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

  • Processor Compatibility: Equipped with Intel Atom D525 processor, compatible with many FreeBSD based router systems, Linux distros, or Windows OS supported, easy configuration and management
  • Power and Dimensions: 13-19 inches 1U, 50W power, with power cord included, make sure to use big brand memory and SSD/HDD with quality assurance
  • Barebone System Configuration: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
  • Connectivity Interfaces: Designed with 6 x Intel gigabit LAN ports, COM port, VGA port, 2 x USB ports, size at 310 x 210 x 44mm
  • Cooling and Reliability: Original industry network motherboard with low power consumption, low heat generation, uses dedicated turbo silent cooling fan to ensure long-term operation
  • Rackmount Design: 1U rackmount chassis with adjustable mounting bracket ears, wall-mountable option, and foot pads for versatile installation configurations
  • Network Performance: Features Intel 82574L Gigabit Ethernet controllers with WAN-LAN throughput between 200 Mbps and 250 Mbps for reliable network security applications

Description

Feel free to inquire. Please note that this product is only the basic configuration. To complete this system, additional components such as system memory, storage drives, and an operating system are required. This model, D525, has 4 and 6 network ports. Please choose accordingly. Model: RS01 Central Processing Unit: Intel Atom processor D525, 1MB cache, 1.80 GHz. AES-NI Support Feature: Not supported Chipset: Intel 82801JIR and Intel ICH8M single-chipset. Memory: 1 x Sodimm DDR3, 1333MHz, maximum 4GB memory. Storage: 1 mSATA SSD, 1 2.5-inch SATA SSD/HDD. Interfaces: console, 2 USB ports, 6 LAN ports, VGA, power switch. Chassis: 1U cabinet, rackable design, with mounting bracket ears, wall-mountable, and foot pads. Network card: 6 x Intel 82574L/10/100/1000m Ethernet controllers; actual test throughput exceeds 1000m/s. WAN-LAN Throughput: The transfer speed from local area networks to the WAN via a 1-gigabit network is between 200 Mbps and 250 Mbps. Cooling system: with fan. Power: 50W, 12V, 4.2A, 110-240V, 50/60Hz. Dimensions: 31 x 21 x 44cm Weight: 3.5 kg Packing list: firewall equipment, adjustable earpieces, power cord, warranty card. System compatibility: It supports any router system based on FreeBSD, Linux distributions, or win.os. Compatibility: Compatible with pfSense, Untangle, Opnsense, and other popular open-source software solutions for firewalls. 4-12 LAN/WAN ports, various processor models, mini versions, 1U/2U rack-mountable. All of these products are available for purchase at our store. Please bookmark the Wintertion store. If you need customization services or have any other requirements, we would be happy to assist you. Please feel free to contact us for a prompt response.
