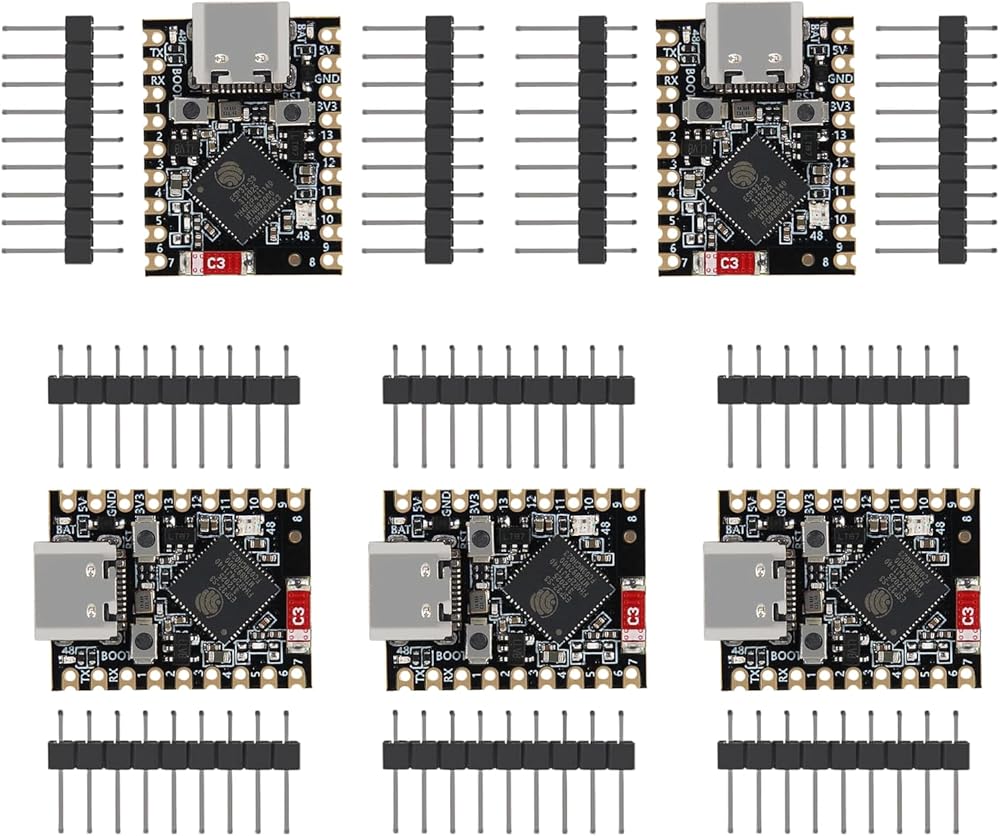

5 قطع ESP32-S3 لوحة Supermini Type-C، لوحة ESP32 S3 Dev مع معالج RISC-V ثنائي النواة بسرعة 160 ميجا هرتز، واي فاي 2.4 جيجا هرتز + بلوتوث 5.0، فلاش مدمج 4 ميجا بايت لإنترنت الأشياء الذي يمكن ارتداؤه، والمنازل الذكية والأردوينو in Kuwait

5 قطع ESP32-S3 لوحة Supermini Type-C، لوحة ESP32 S3 Dev مع معالج RISC-V ثنائي النواة بسرعة 160 ميجا هرتز، واي فاي 2.4 جيجا هرتز + بلوتوث 5.0، فلاش مدمج 4 ميجا بايت لإنترنت الأشياء الذي يمكن ارتداؤه، والمنازل الذكية والأردوينو

KWD 8
اللون5 قطعة
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • Powerful Core & Wireless Connectivity: Equipped with ESP32-S3 32‑bit RISC‑V single‑core processor running up to 160 MHz. Supports 2.4 GHz Wi‑Fi (802.11 b/g/n) with Station, SoftAP, SoftAP+Station and promiscuous modes, plus Bluetooth 5.0 for seamless IoT and smart device communication.
  • Ultra-Low Power Consumption: Deep‑sleep current as low as 43 µA, making it ideal for battery‑powered wearables, remote sensors, and portable devices that demand long operation on a single charge.
  • Rich On‑Board Resources & Interfaces: Comes with 400 KB SRAM, 384 KB ROM, built‑in 4 MB Flash, and multiple interfaces: 1×I²C, 1×SPI, 2×UART, 11×GPIO (PWM), 4×ADC. On‑board RGB and blue LED (shared GPIO48) for visual feedback and debugging.
  • Compact Size & Robust Security: Ultra‑small form factor (22.52 × 18 mm) – as small as a thumb – fits easily into wearables and space‑constrained projects. Built‑in hardware crypto accelerator supports AES‑128/256, hash, RSA, HMAC, digital signature and secure boot for reliable data protection.
  • Flexible Power Options & Easy Charging: Powered via USB Type‑C, or connect an external 3.3–6 V supply to the B+ / B‑ pads on the back of the board. Battery can also be charged through the USB port. Compatible with Arduino IDE (driver installation may be required for COM port detection). Note: Avoid shorting positive and negative pads during soldering to prevent damage.

وصف

Powerful CPU: ESP32-S3, 32-bit RiSC-V single-core processor, running at up to 160 MHz
WiFi: 802.11b/g/n protocol, 2.4GhHz, support Station mode, SoftAP mode,
SoftAP+Station mode,hybrid mode
Bluetooth: Bluetooth 5.0
Ultra-low power consumption: deep sleep power consumption of about 43μA
Rich board resources: 400KB SRAM, 384KB ROM built-in 4Mflash.
Chip model: ESP32S3FH4R2
Ultra-small size: As small as the thumb (22.52x18mm) classic shape
Rich interface: 1xI2C,1xSPI,2xUART,11xGPI0(PWM),4xADC
Onboard RGB,blue LED: common GPl048 pin
