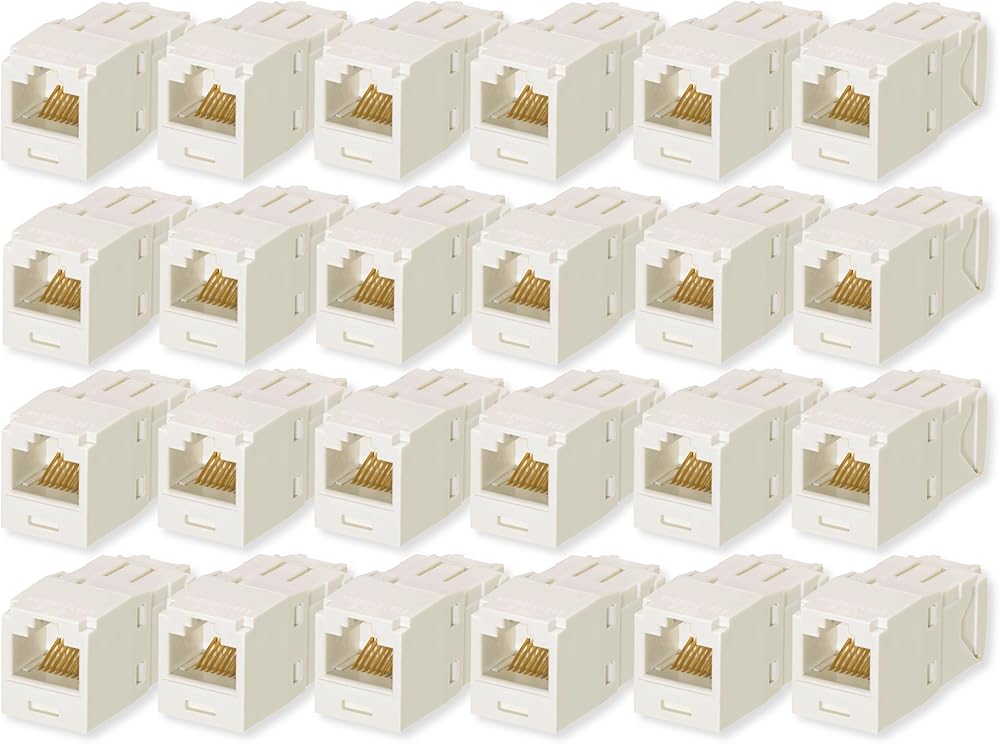

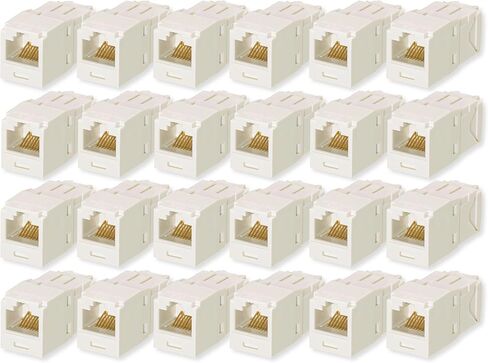

CJ688TGIW Pack of 24 Category 6 TX6 PLUS Mini-Com UTP Jack Modules, TG Style, Toolless, RJ45 Ethernet High Performance Network Module, T568A/T568B Wiring
The CJ688TGIW Mini-Com TX6 PLUS UTP Jack Module delivers category 6 network performance in a toolless, easy-to-install form factor. With universal T568A/T568B compatibility, durable gold-plated contacts, and robust polycarbonate housing, it sets the standard for reliable, high-speed ethernet. Designed for effortless integration in commercial and enterprise networks.
Key FeaturesPack of 24 jack modules
Cat6 performance for GbE applications
TG style toolless termination for fast setup
Universal T568A and T568B wiring compatibility
Gold-plated phosphor bronze contacts for signal clarity
8-position, 8-wire RJ45 modular jack design
High heat resistance from -10°C to 65°C
RoHS compliant for safety and sustainability
Configurable with Mini-Com patch panels and accessories
Accepts 22-26 AWG solid or stranded cable
Compact module size for versatile installations
SpecificationsPerformance Level: Category 6
Connector Type: Jack Module - Standard
Termination Style: TG Style
Body Material: Polycarbonate
Contact Material: Plated phosphor bronze
Shield Type: Unshielded (UTP)
Maximum Operating Temperature (°F): 167
Minimum Operating Temperature (°F): 14
Maximum Storage Temperature (°F): 167
Minimum Storage Temperature (°F): -40
Resistance Properties: Heat resistant
Overall Dimensions (HxWxL): 0.71 x 0.62 x 1.5 inches
