Select high-quality electronic components such as solid-state capacitors, fully enclosed inductors, etc., undergo strict aging testing, are resistant to high temperatures and humidity, have a long service life, and reduce the risk of motherboard failure.
Equipped with multiple electrostatic protection circuits, it effectively prevents static electricity from causing damage to motherboard hardware. Even when plugging and unplugging devices in a dry environment, there is no need to worry about static electricity issues.
Chipsets
Chipset Intel B85
Onboard Video
Onboard Video Chipset Integrated Graphics Processor - Intel HD Graphics support:1. 1 x D-Sub port, supporting a maximum resolution of 1920x12002. 1 x DVI-D port, supporting a maximum resolution of 1920x1200* The DVI-D port does not support D-Sub connection by adapter.3. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz* Support for HDMI 1.4a version.4. Maximum shared memory of 1 GB
Memory
Number of Memory Slots 4 × 240Pin
Memory Standard DDR3 1600/1333, non-ECC
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express x1 2 x PCI Express x1 slots(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
Storage Devices
SATA 3Gb/s 2 x SATA 3Gb/s connectors (SATA2 4/5)
SATA 6Gb/s 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3)
Onboard Audio
Audio Channels 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Onboard LAN
LAN Chipset Realtek GbE
Max LAN Speed 10/100/1000Mbps

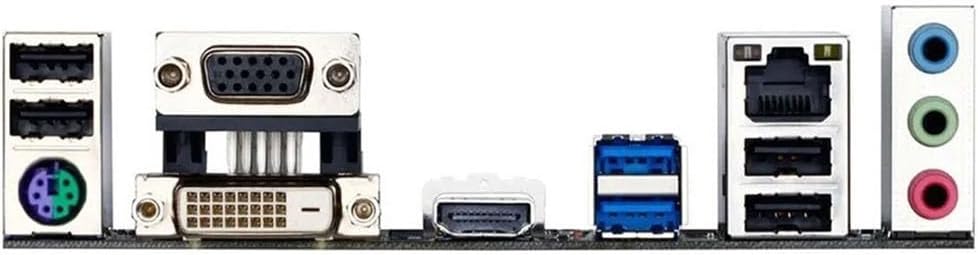

Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
Video Ports 1 x D-Sub 1 x DVI-D
HDMI 1 x HDMI
RJ45 1 x RJ45
USB 3.0 2 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 x audio jacks (Line In, Line Out, Mic In)
Internal I/O Connectors
Onboard USB 1 x USB 3.0/2.0 header2 x USB 2.0/1.1 headers
Other Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header1 x serial port header1 x parallel port header1 x Clear CMOS jumper
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 8.9" x 7.6"
Power Pin 24 Pin
Features
==========
RAID Supported : No
Processor compatibility : Intel 0thers
Usage Scenario : Enthusiast & Overclocking,Gaming,Audio & Video
Back I/O Ports : 1x RJ45,Disply Port,HDMI 1.4,DVI-D
Onboard LAN : 1x RJ45
Storage Interface Type : SATA
Number of PCI : 2
PCI - E standards : PCI - E 3.0
Support Memory Type : DDR3
Quality Certification : ce,UL
Maximum Ram Capacity : 32 GB
Form Factor : Micro-ATX
Chipset Manufacturer : Intel
Chipset : Intel B85
Application : Desktop
Socket Type : LGA1150
Certification : CE
