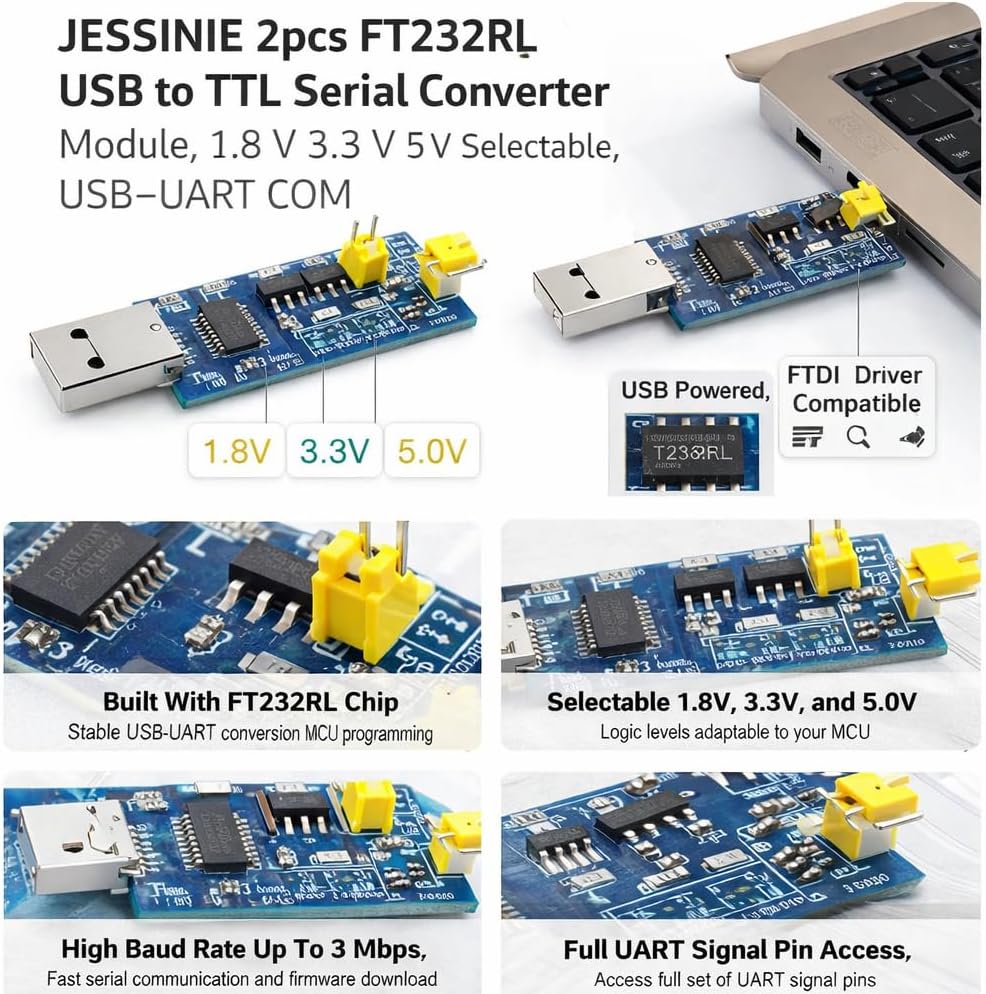

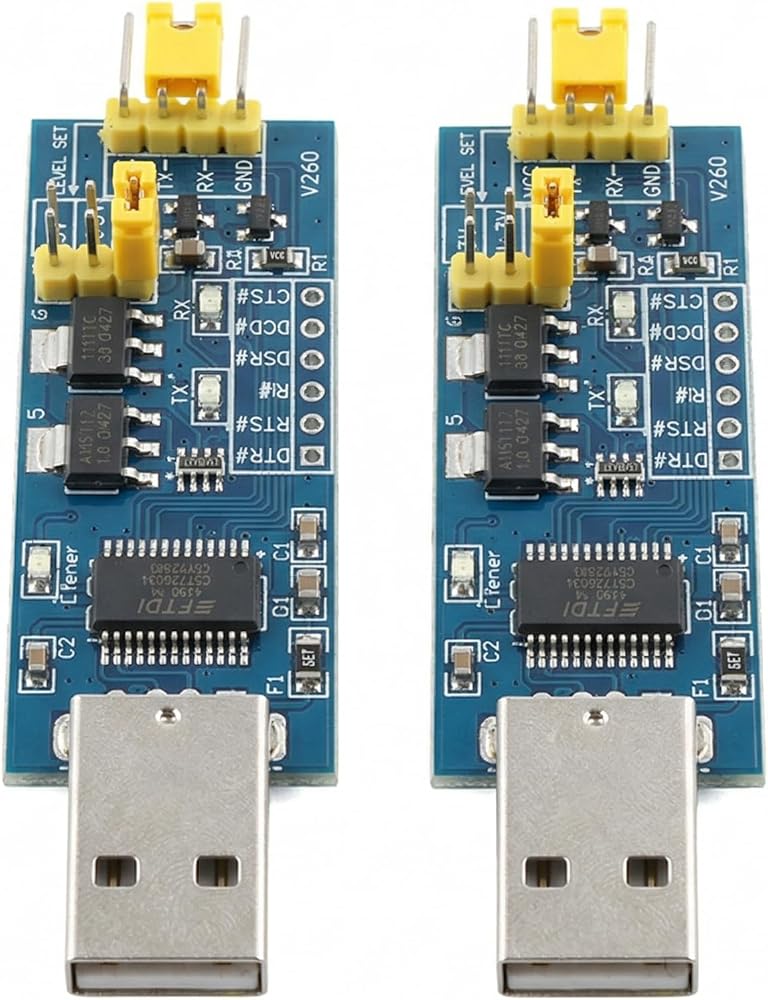

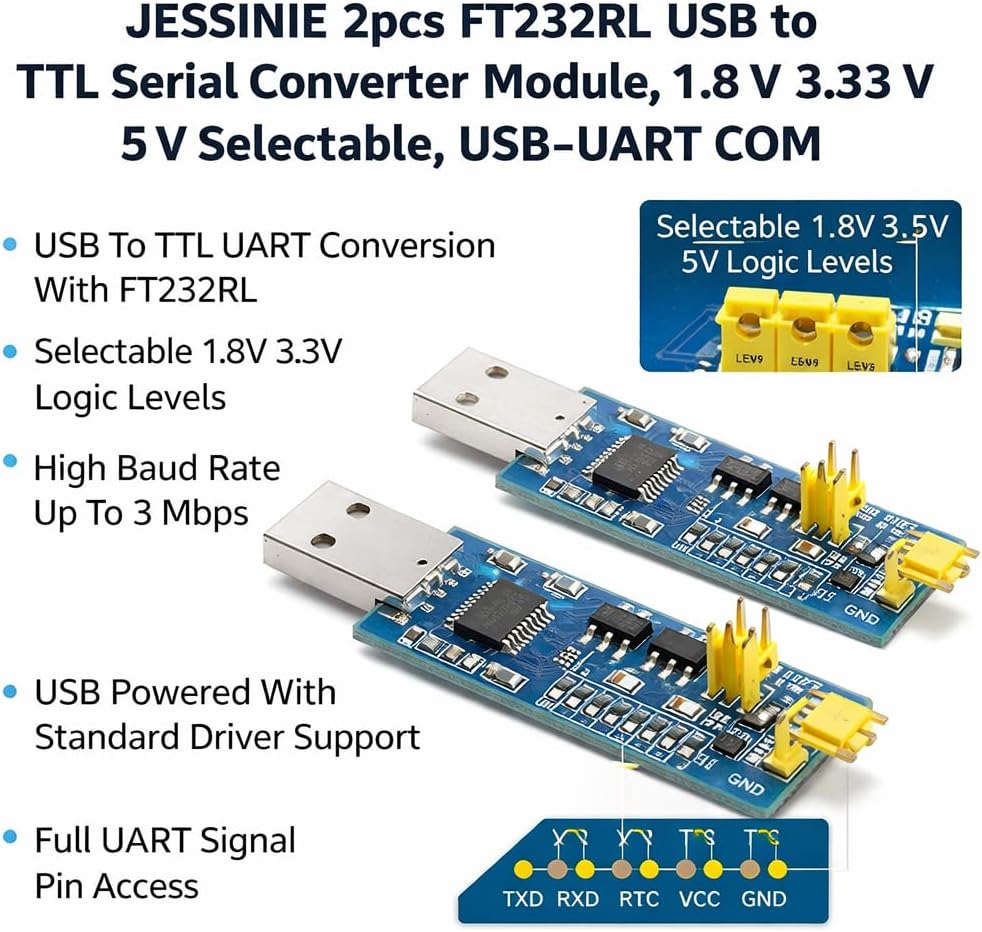

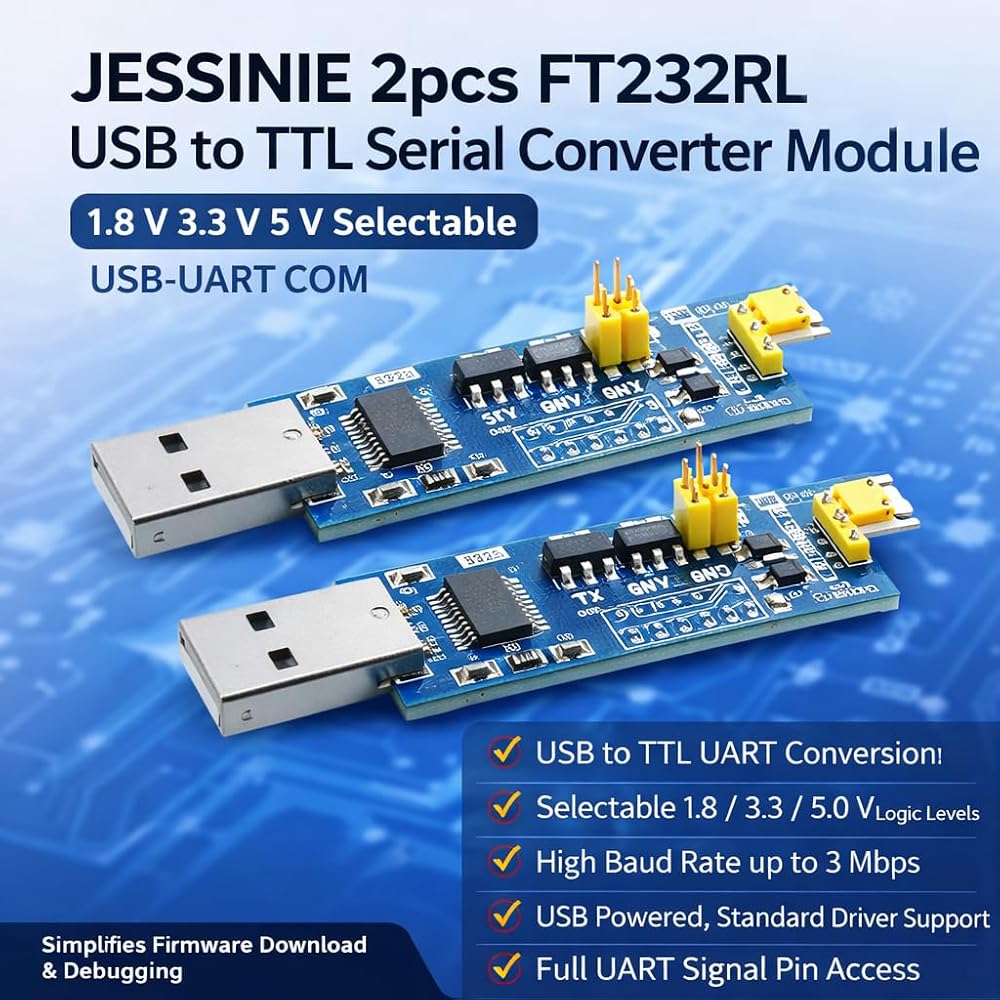

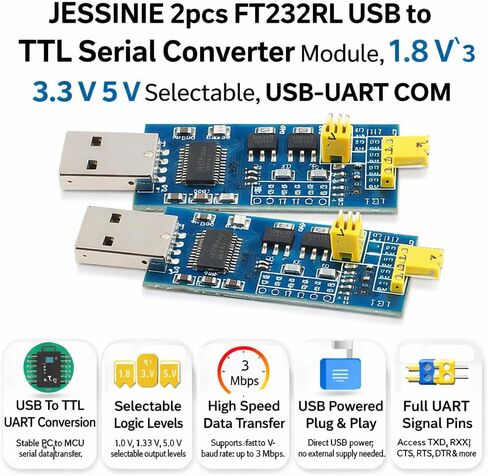

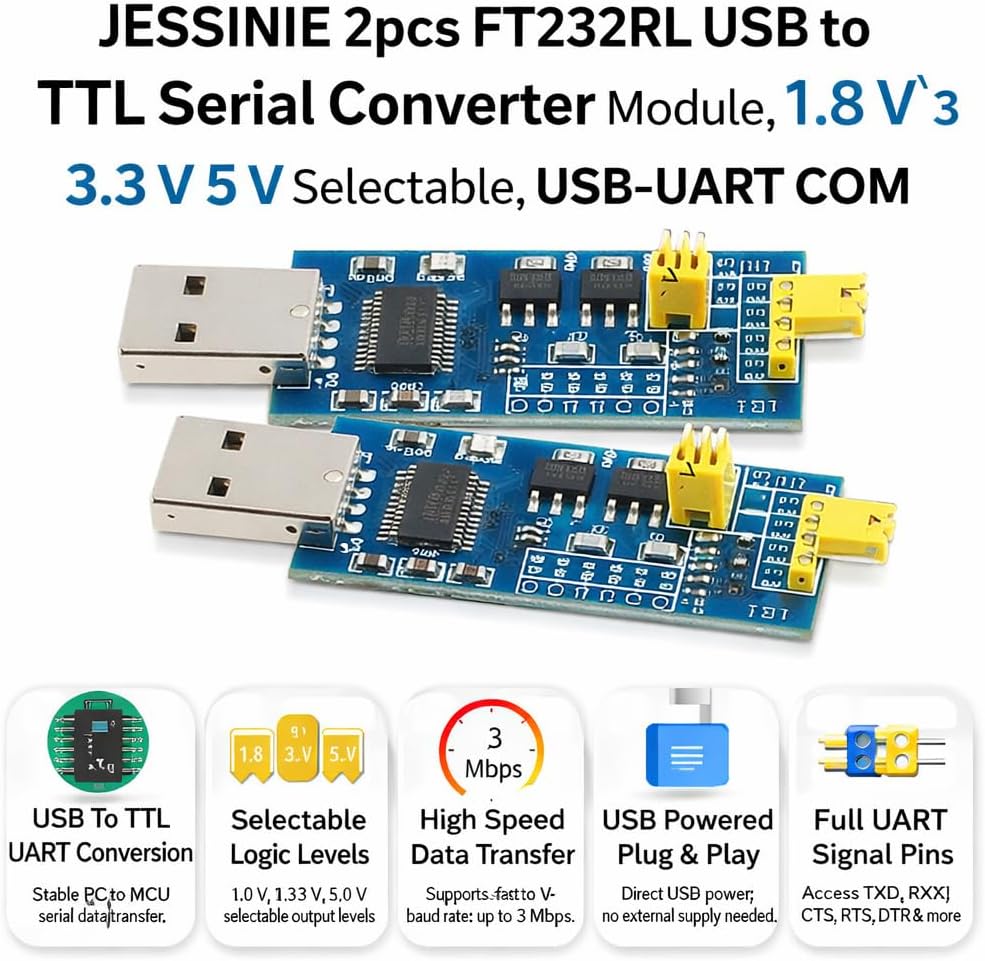

2pcs FT232RL USB to TTL Serial Converter Module, 1.8 V 3.3 V 5 V Selectable, USB‑UART COM

KWD 4.500
Brand
JESSINIE
Weight
50 g
– 1 +

Special Features

  • 【USB To TTL UART Conversion With FT232RL】 Built around the FT232RL USB‑UART controller; converts USB 2.0 full‑speed signals to stable TTL serial data; supports reliable COM communication; simplifies firmware download, debugging, and data exchange between PC and MCU systems
  • 【Selectable 1.8 V 3.3 V And 5.0 V Logic Levels】 Onboard level selection supports 1.8 V, 3.3 V, and 5.0 V TTL; adapts to different MCU I O standards; reduces risk of voltage mismatch; allows one module to serve multiple development and programming scenarios
  • 【High Baud Rate Up To 3 Mbps】 Supports serial communication speeds up to 3 Mbps; ensures responsive data transfer; suitable for fast firmware flashing and real‑time logging; maintains stable signal timing for demanding UART communication tasks
  • 【USB Powered With Standard Driver Support】 Powered directly from the USB port; no external supply required for basic use; compatible with standard FTDI drivers on major operating systems; enables quick setup and plug‑and‑use operation during development work
  • 【Full UART Signal Pin Access】 Exposes TXD, RXD, CTS, RTS, DTR, VCC, and GND pins; supports hardware flow control and reset signaling; improves integration flexibility; compatible with for Arduino and other TTL‑level microcontroller platforms

Description

Product Overview
USB to TTL Serial Converter Module based on FT232RL, supporting selectable 1.8V, 3.3V, and 5V logic levels. Designed for MCU programming, firmware download, and serial communication. Provides stable USB‑UART conversion for development and debugging.

1. Product Parameters
Main IC: FT232RL
Function: USB to TTL UART converter
USB Standard: USB 2.0 Full Speed
Logic Level Options: 1.8 V / 3.3 V / 5.0 V selectable
Baud Rate: Up to 3 Mbps
Output Interface: TTL UART
Power Supply: USB powered
Driver Support: FTDI drivers
Operating Temperature: −40 °C to +85 °C
2. Pin Function Description
VCC (IN+): DC power output / logic level supply
GND: Power ground
TXD: UART transmit output
RXD: UART receive input
CTS: Clear to send input
RTS: Request to send output
DTR: Data terminal ready output
3. Common Questions & Answers (FAQ)
Q1: What is this module mainly used for?
A1: It is used for USB‑to‑TTL serial communication and MCU programming.

Q2: Which logic voltage levels are supported?
A2: It supports 1.8V, 3.3V, and 5V selectable levels.

Q3: Does it require drivers on the PC?
A3: Yes, standard FT232RL drivers are required.

Q4: Can it power the target device?
A4: It can supply limited current for small circuits.

Q5: Is it compatible with common microcontrollers?
A5: Yes, it works with most TTL‑level UART devices.
