3.7V to 5V/8V/9V/12V, the default is 12V

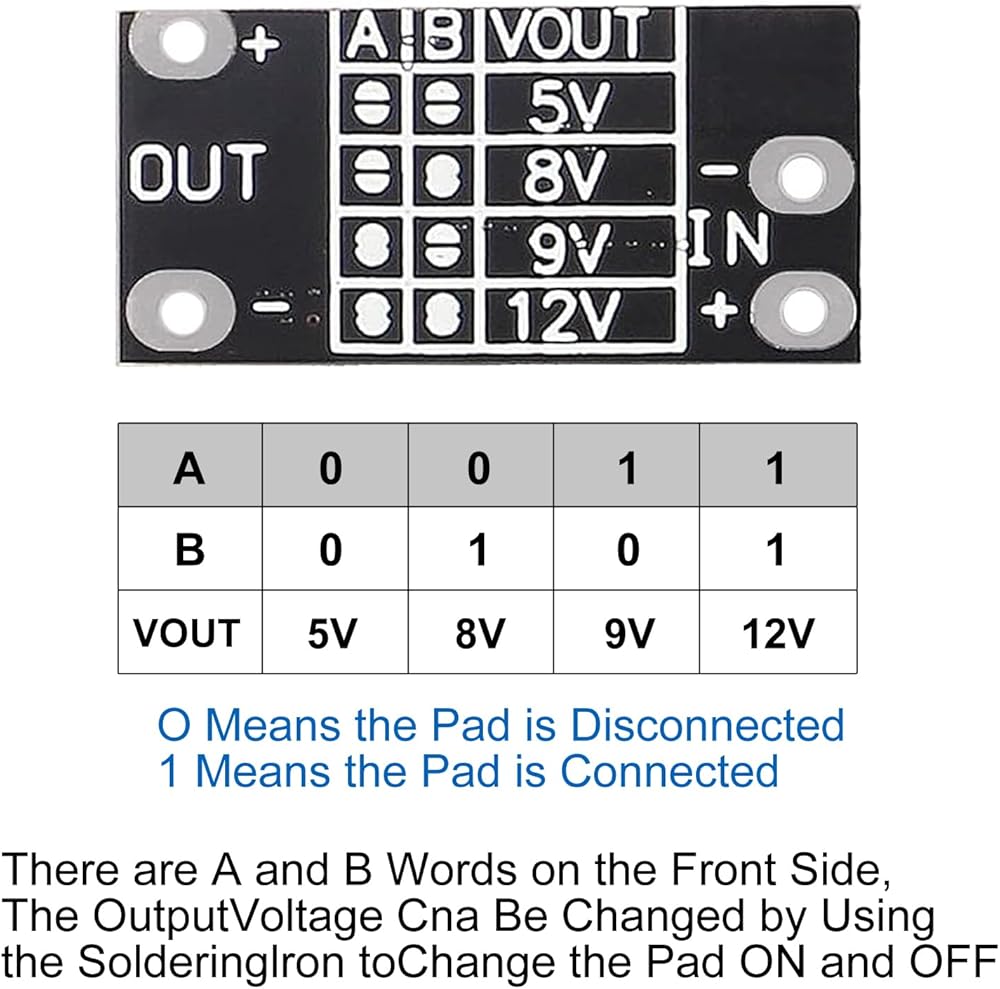

The front side of the PCB can be seen with the words A and B, the output voltage can be changed by using the soldering iron to change the pad on and off

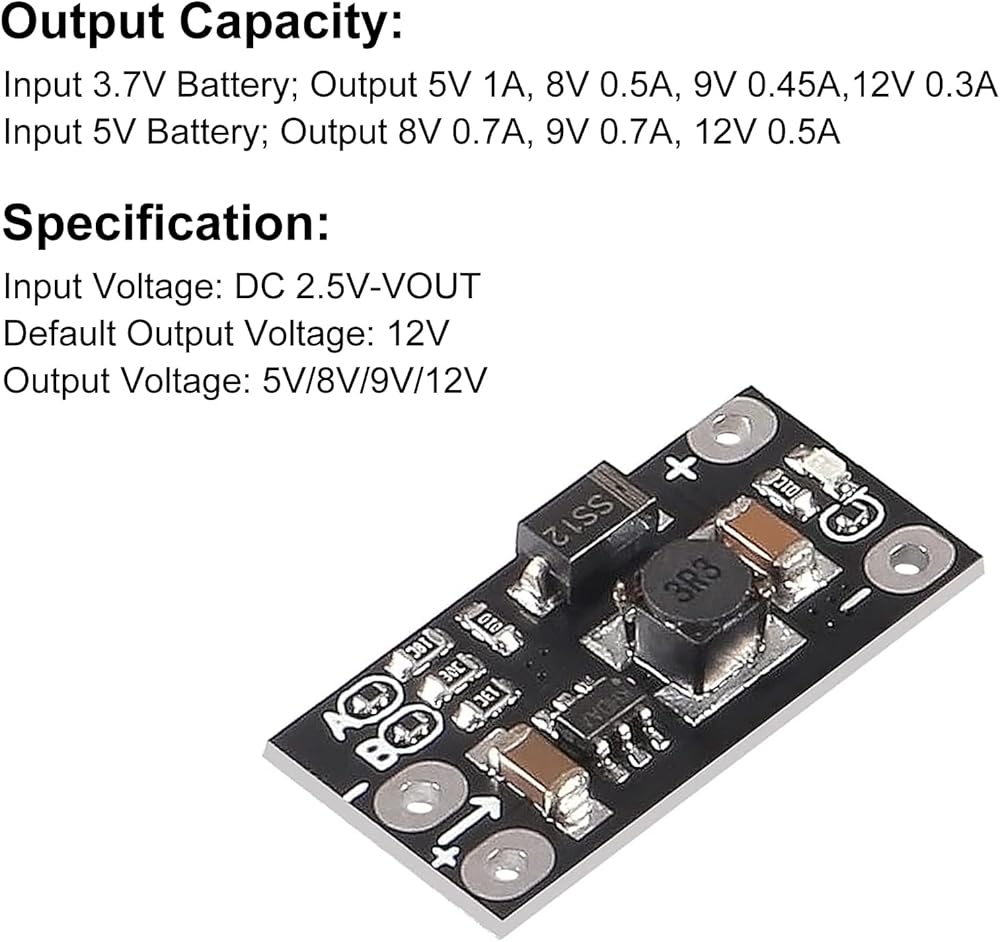

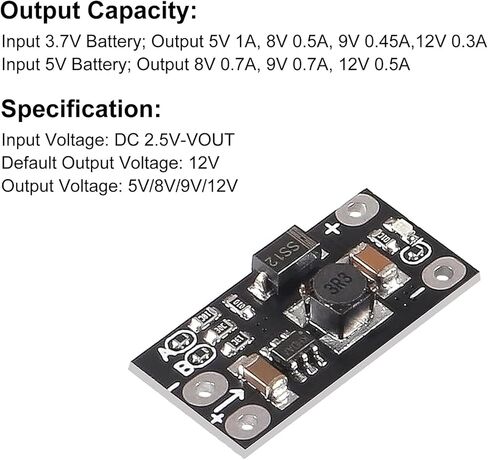

Basic parameters The output voltage can be set to 5V/8V/9V/12V, the default is 12V Input voltage range: 2.5V~VOUT-0.5V

Output performance: Take 3.7V lithium battery input as an example, it can output 5V1.2A, 8V0.7A, 9V0.6A, 12V0.5A.

Make sure that the input current and output current do not exceed 1.5A. Voltage setting description The front side of the PCB can be seen with the words A and B.

Package include:

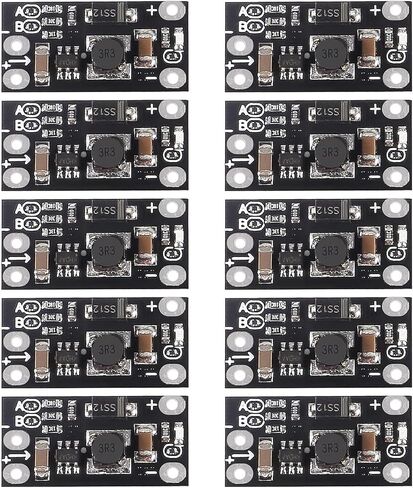

10 x Multi-function step up board
