قطعة واحدة من عدسة الأشعة تحت الحمراء فلوريد الكالسيوم (CaF2) للتطبيقات البصرية عالية الطاقة - نفاذية استثنائية من 0.13 ميكرومتر إلى 9.0 ميكرومتر (D10 × 1 مم) in Kuwait

D25 × 1 مم

KWD 19
ماركة
LQQIQIILII
وزن
50 g
مقاسD25 × 1 مم
– 1 +

مميزات خاصة

  • Exceptional transmittance range from 0.13μm to 9.0μm, making it ideal for a variety of high-energy optical applications.
  • Manufactured from high-purity calcium oxide single crystal, ensuring superior optical clarity and minimal impurities for optimal performance.
  • Transmittance exceeds 90% in the critical range of 0.3μm to 7μm, perfect for high-energy machine optics and excimer machine systems.
  • Robust devise with a melting point of 1360℃, making it suitable for demanding applications in harsh environments.
  • Available in multiple specifications (D10/15/20/25/30/40/50/60/80/100/150) to meet diverse project requirements in advanced machine technology.

وصف

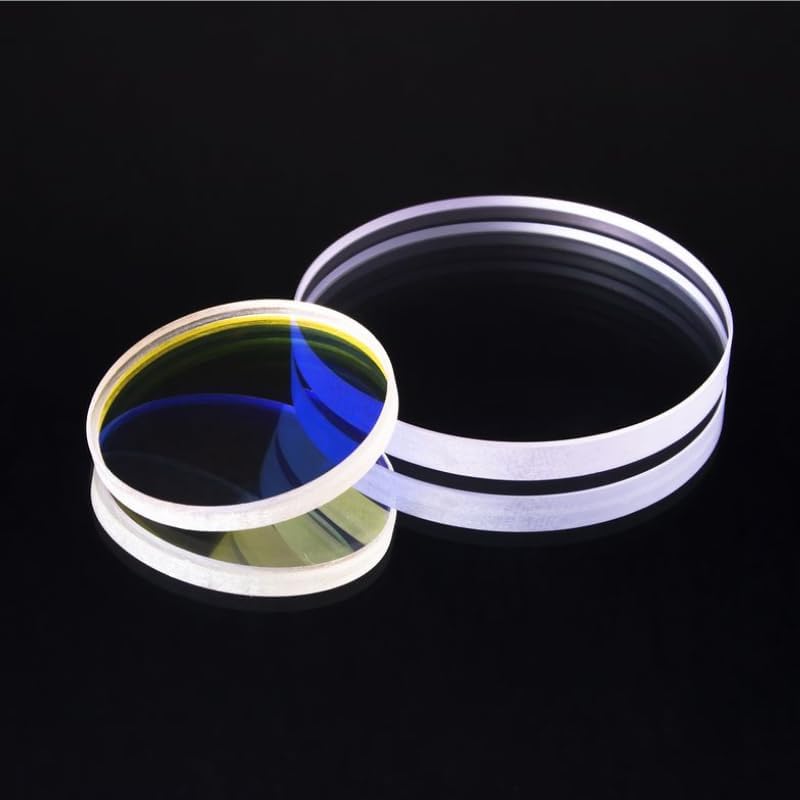

Calcium fluoride window lens
Material: calcium oxide single crystal
Specification: D10/15/20/25/30/40/50/60/80/100/150
Transmission range (μm): 0.13~9.0
Transmittance: >90% (0.3~7μm, 3mm)
Refractive index (5μm): 1.39908
Expansion coefficient (℃-1): 18.85×10-6
Gram's hardness (kg/mm2): 158.3 (100)
Elasticity coefficient: C11=164; C12=53; C44=33.7
Young's modulus (Gpa): 75.79
Poisson's ratio: 0.28
Solubility (g/100gH2O-20℃): 0.0017
Solubility surface: (111)
Density (g/cm3): 3.18
Melting point (℃): 1360
Application fields: High-energy machine optics, Excimer lasers
Calcium fluoride (CaF2) has a high transmittance in the ultraviolet to mid-infrared (250nm~7um) so it is widely used in the manufacture of prisms, windows and lenses, etc. In some applications with a wide spectral range it can be used directly without coating, especially its small absorption and high machine smell value make it ideal for excimer machine optical systems.
