Overview

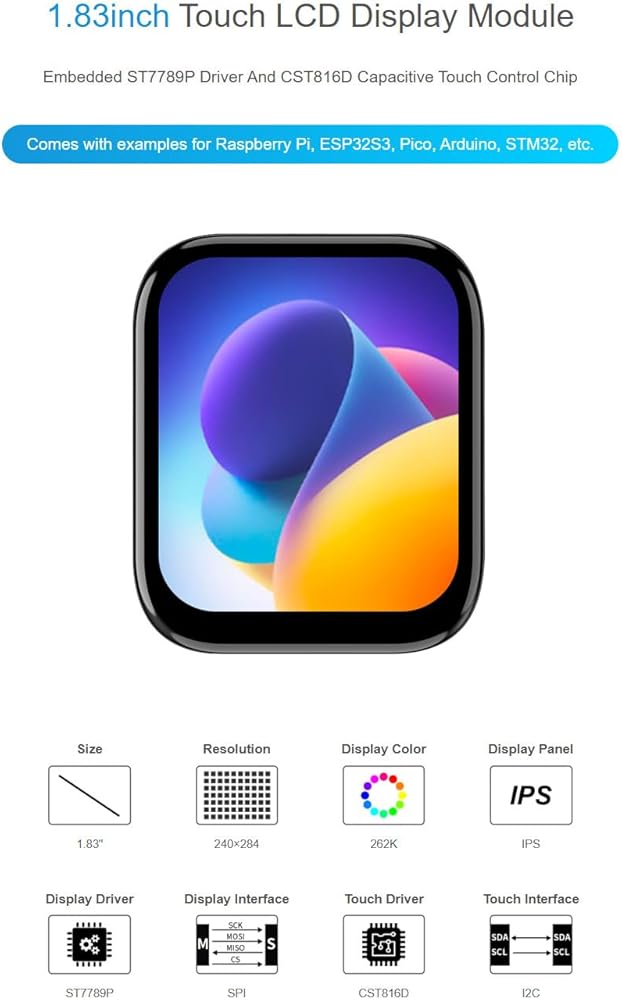

Upgrade your embedded UI projects with this 1.83 inch touch LCD display module, featuring a crisp 240x284 resolution, bright IPS TFT LCD panel, and 262K color output for clear, colorful graphics.
This micro LCD display is designed for makers and developers who need a compact SPI TFT LCD module with responsive touch input.

The display uses the integrated ST7789P driver with SPI communication for efficient screen control, while the touch function is handled by the onboard CST816D capacitive touch controller over I2C.

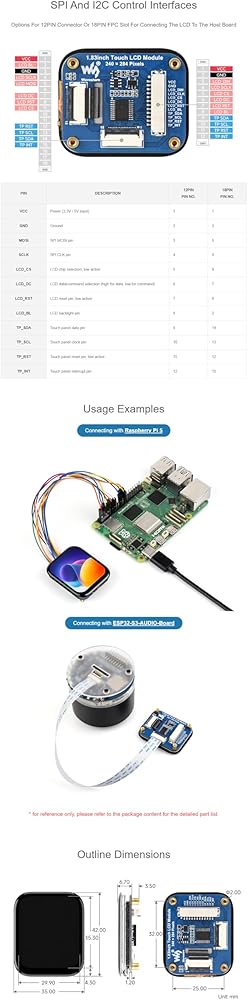

Using SPI + I2C helps minimize required IO pins, making it easier to connect to popular development boards and microcontrollers.

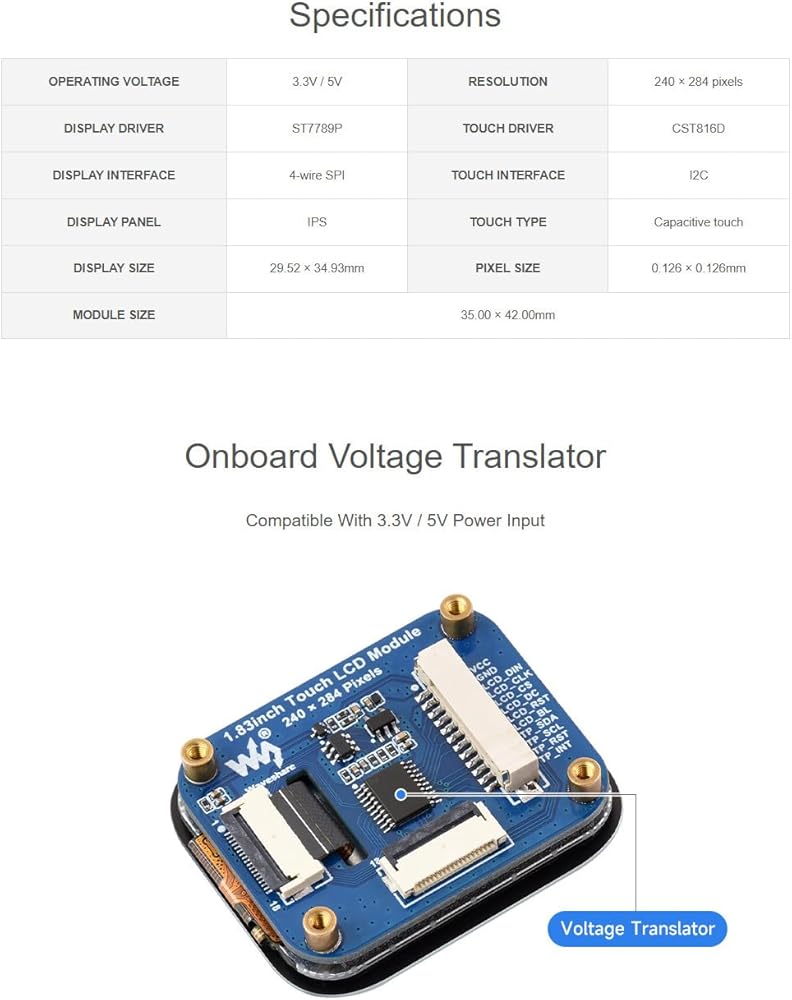

For wider compatibility, the module includes an onboard voltage translator and supports 3.3V/5V power input, helping simplify integration across different platforms. It supports projects for Raspberry Pi
and for Raspberry Pi Pico, and is compatible with Arduino, STM32, and ESP32S3 for quick prototyping and coding.

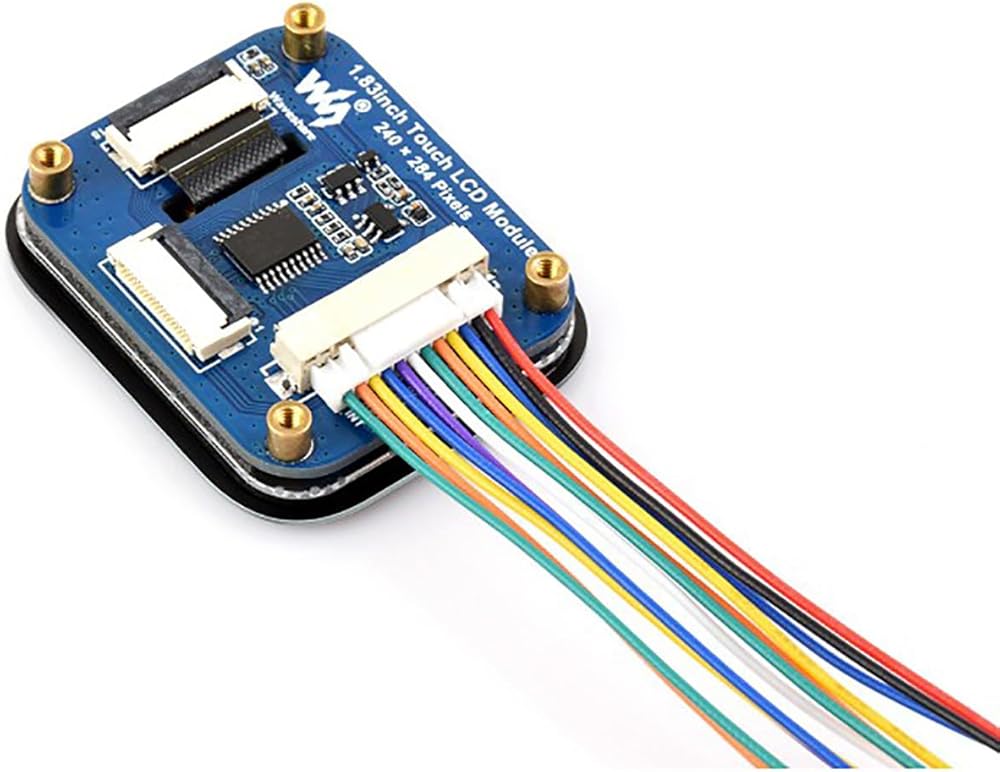

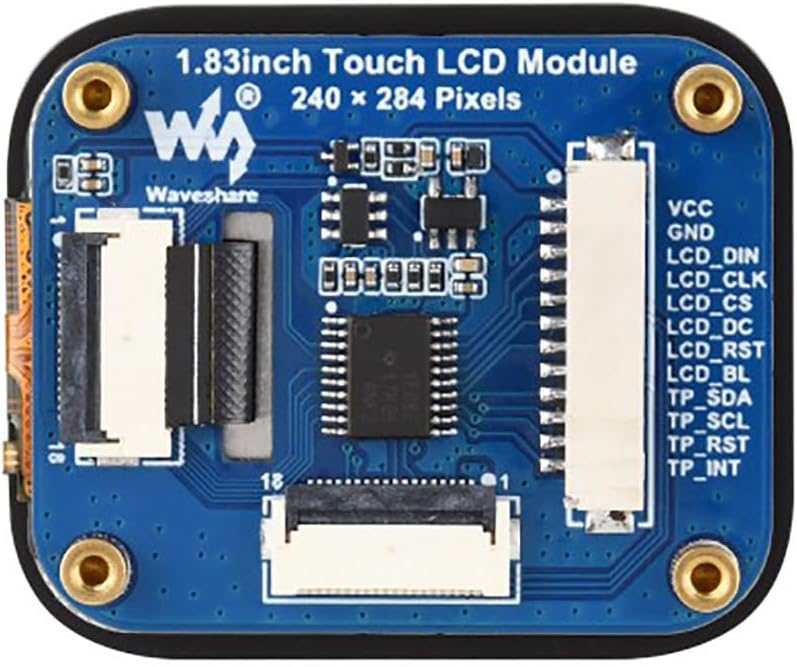

Two connection options are provided—12PIN connector or 18PIN FPC slot—so you can choose the best wiring method for your enclosure design. Online development resources and examples are available
to help you start building dashboards, menus, data monitors, and interactive control panels with this 1.83 inch SPI touch LCD module.

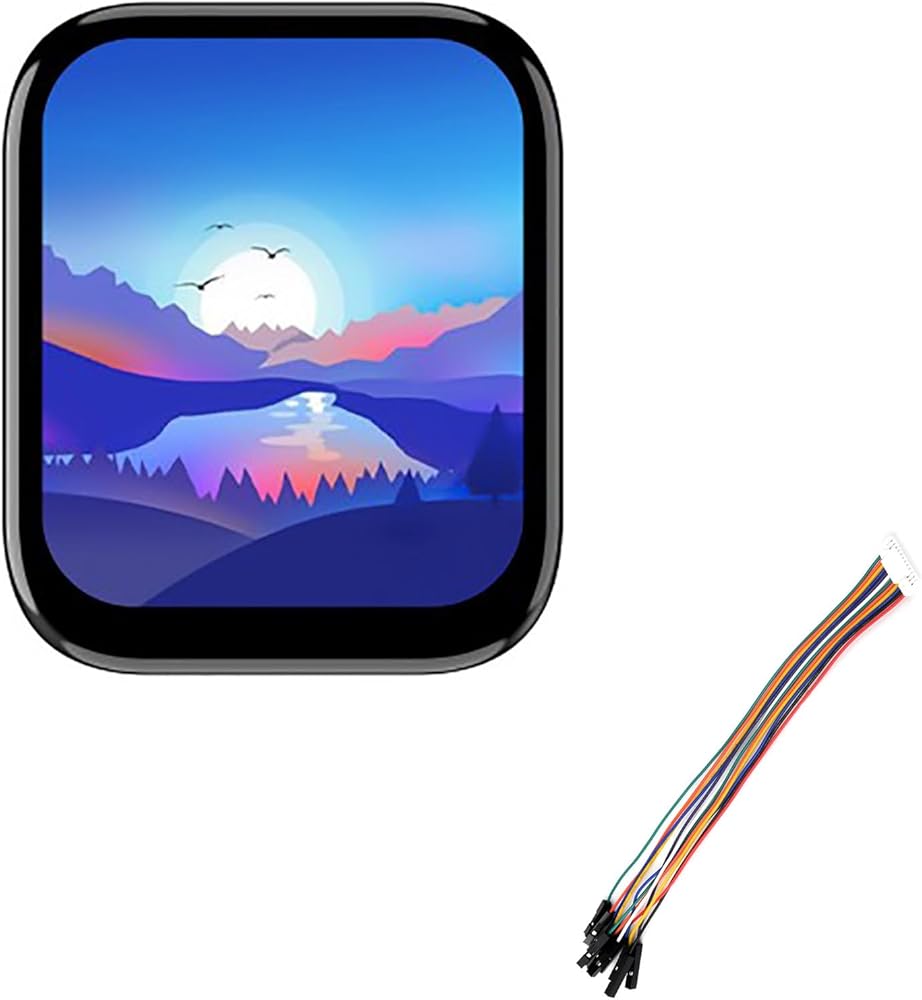

Part List

1. 1.83inch Touch LCD Module x1
2. GH1.25 12Pin cable x1
