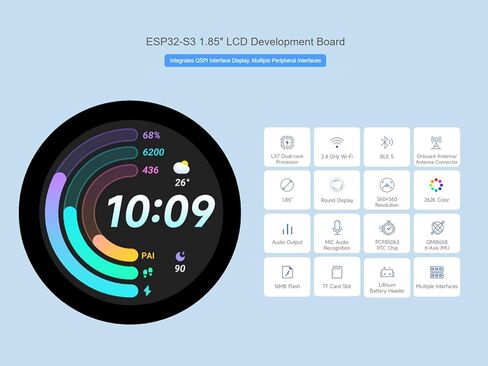

ESP32-S3 1.85inch LCD Display Development Board, 360×360 Pixel 262K Color Round LCD with ESP32-S3, Supports Wi-Fi & Bluetooth 5, Onboard Audio Decoder, Microphone, 6-Axis Sensor etc.

KWD 14.500
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

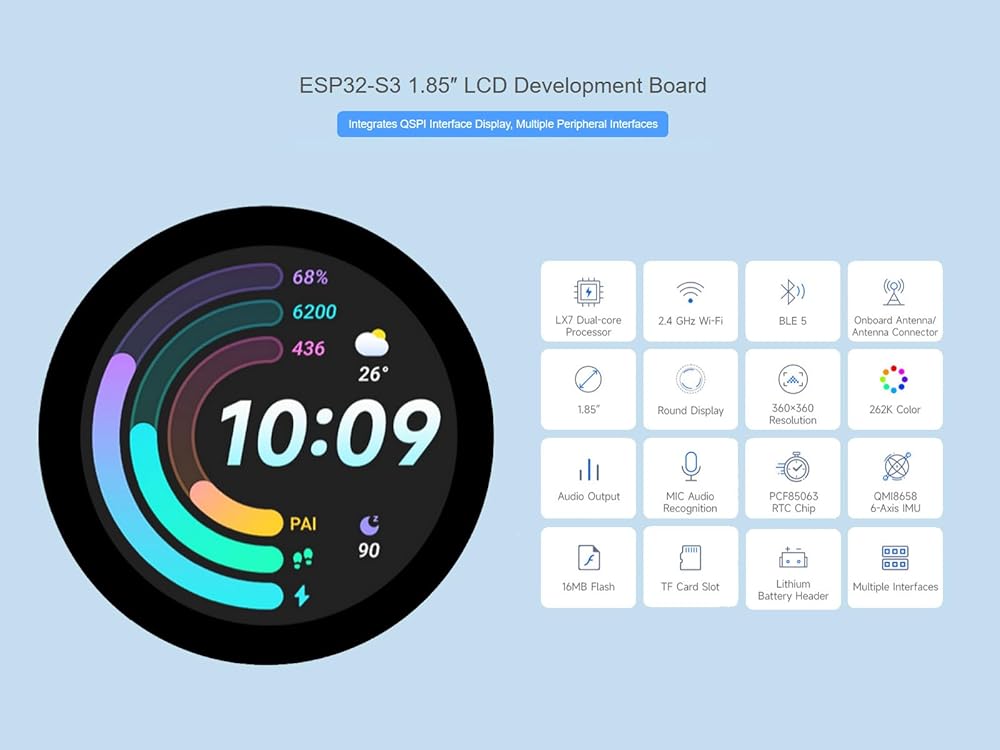

  • ESP32-S3 1.85inch round LCD display development board, equipped with high-performance 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built-in 512KB Static Random-Access Memory and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
  • ESP32-S3 microcontroller development board with onboard 1.85inch round LCD, 360×360 resolution 262K color IPS display panel, wide viewing angle

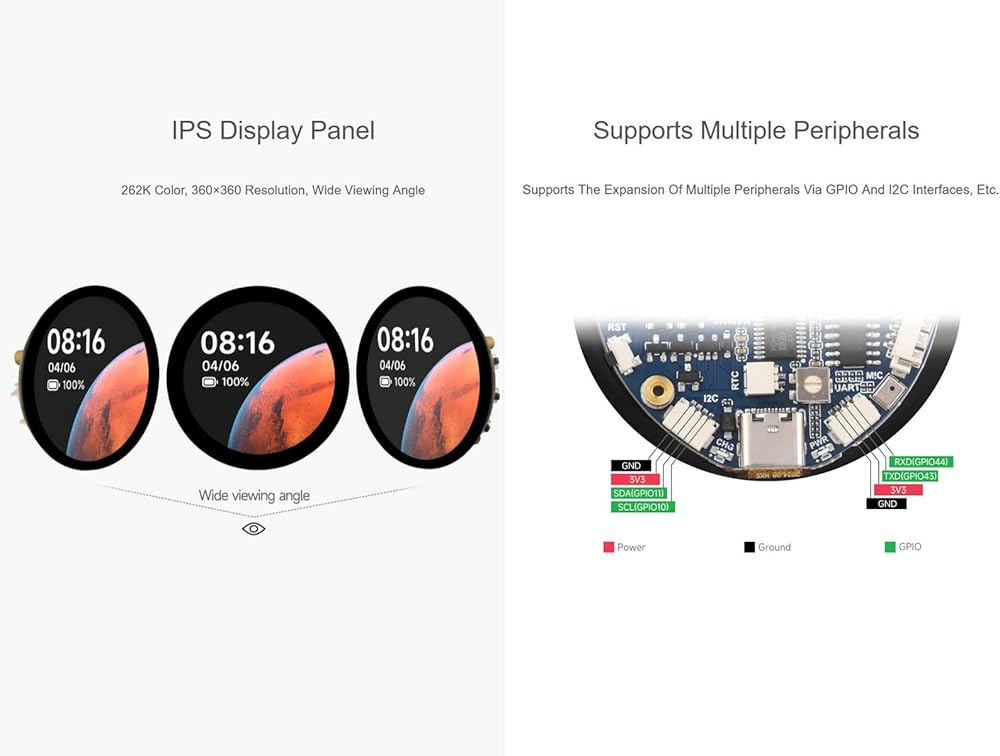

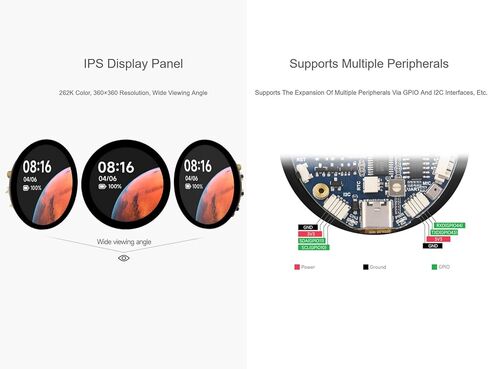

  • Supports the expansion of multiple peripherals via GPIO and I2C interfaces, etc.

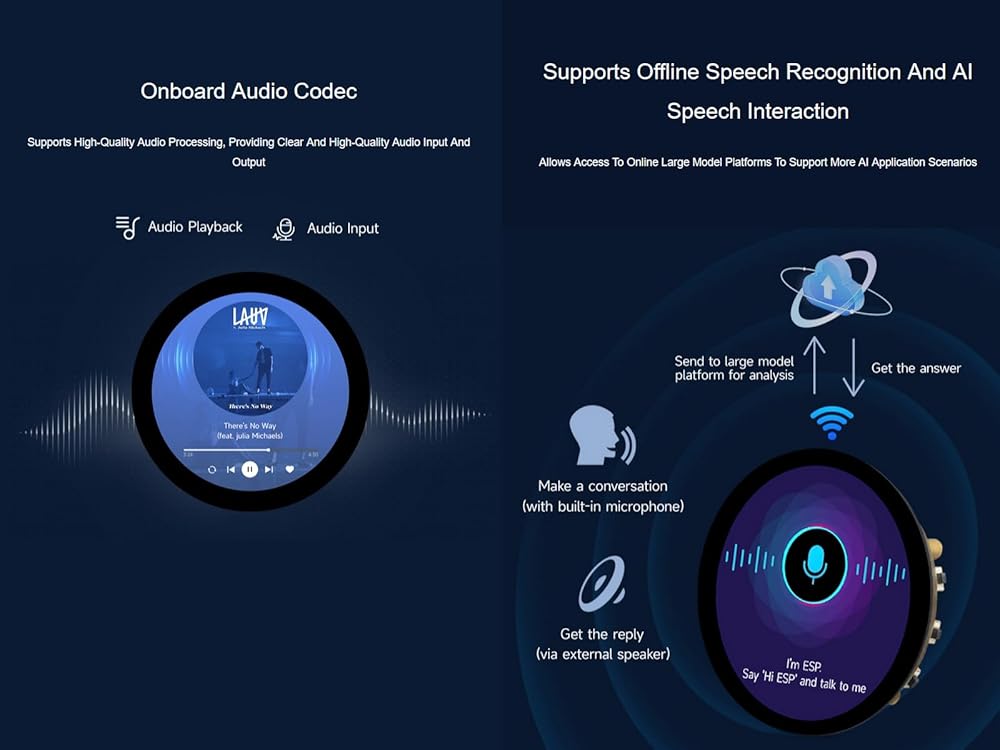

  • Onboard audio decoder, supports high-quality audio processing, providing clear and high-quality audio input and output. Supports Offline Speech recognition and AI Speech Interaction, allows access to online large model platforms to support more AI application scenarios
  • Onboard Microphone, QMI8658 6-axis sensor, RTC sensor, TF card slot, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Description

Overview

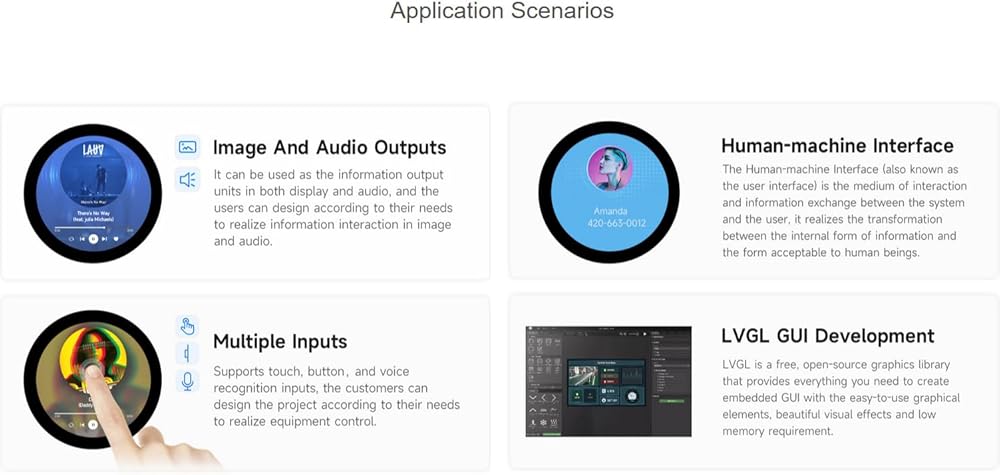

ESP32-S3-LCD-1.85 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.85inch LCD display which can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

Features
Equipped with high-performance 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB Static Random-Access Memory and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 1.85inch LCD display, 360×360 resolution, 262K color
Adapting UART, I2C and some IO interfaces

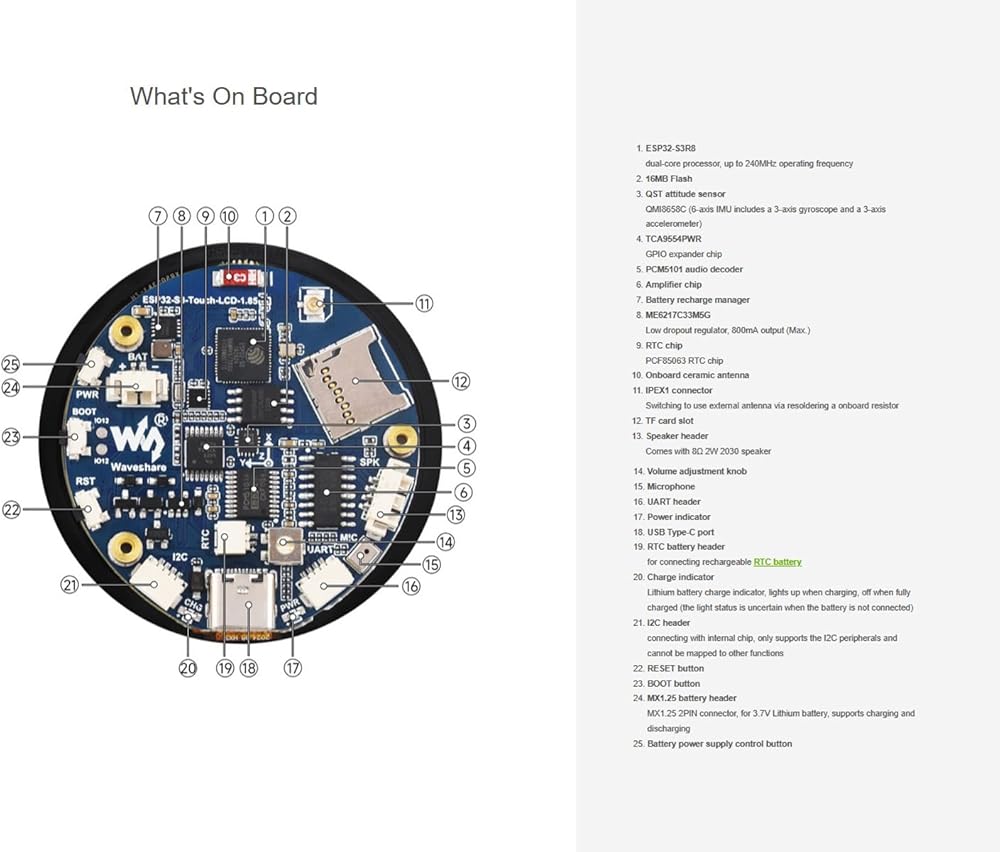

Onboard audio decoder, Microphone, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

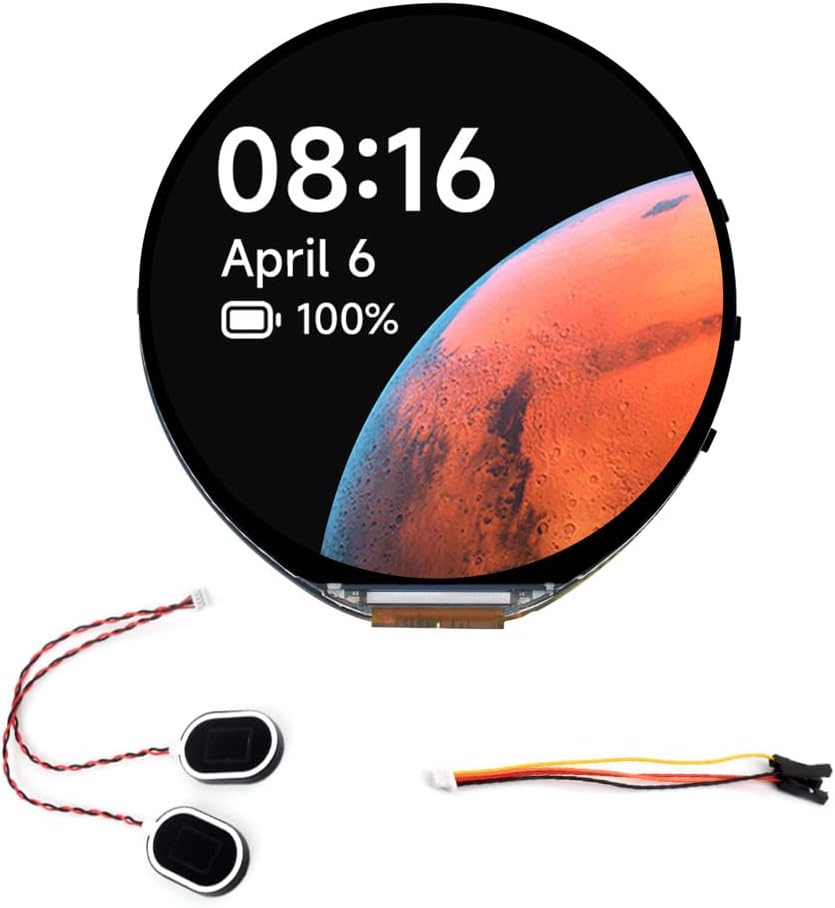

Package Content
ESP32-S3-LCD-1.85 x1
2030 8Ω 2W speaker ×1
SH1.0 4PIN cable ~100mm ×2

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
