Product Features:

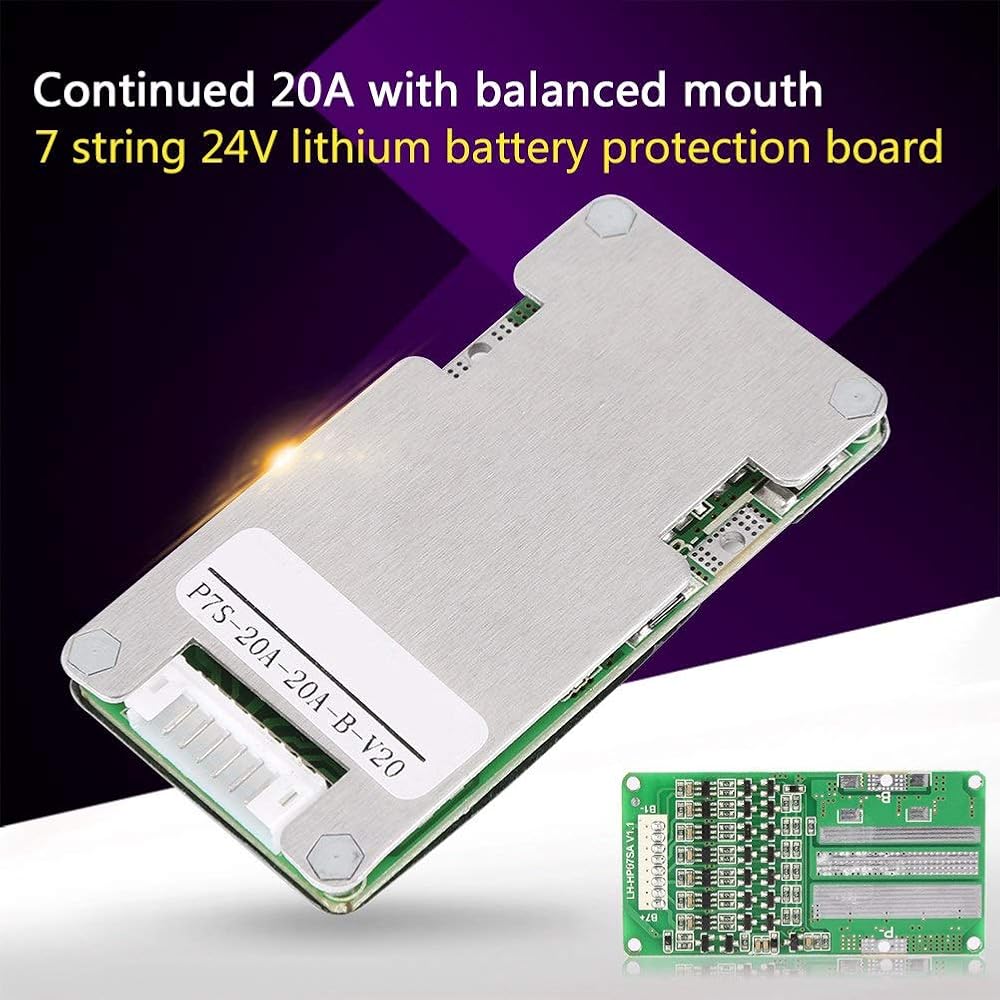

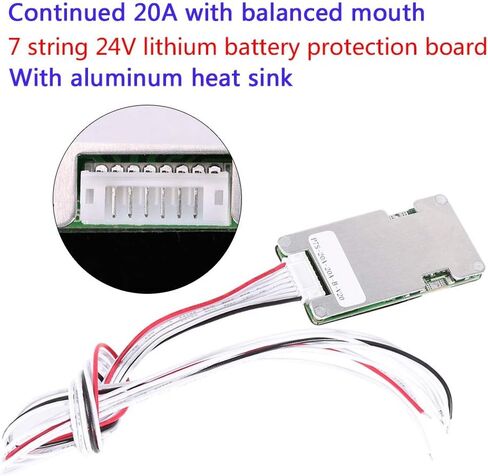

The protection board is suitable for 3.6V/3.7V batteries of the 18650 Li-Ion.
Various stable protection functions for charging and discharging, such as B. precise overcharge protection, overdischarge protection, overcurrent protection, and short circuit protection.
The balanced processing of the basic equipment of the batteries, suitable balanced current, appropriate heat development does not affect the performance of the battery block.

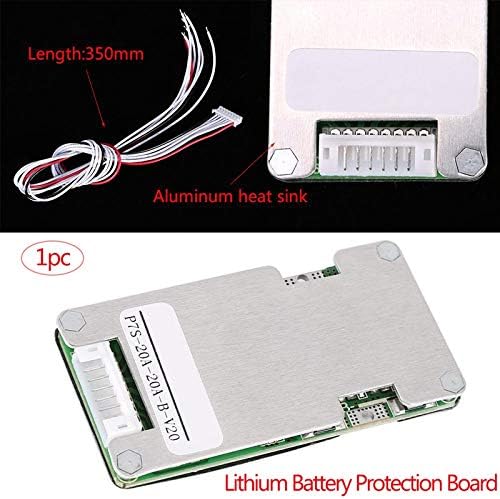

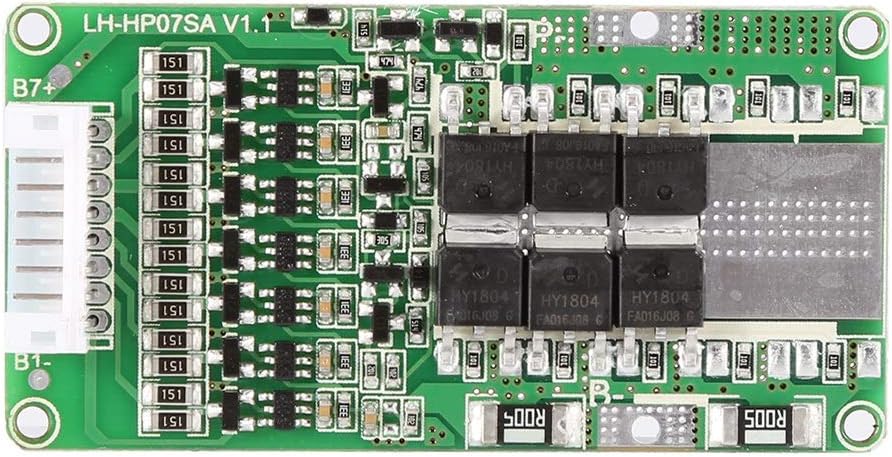

It has an aluminum foil that would improve the heat dissipation of the MOS pipe and extend the life of the MOS tube.
Low power consumption while sleeping, can save energy.

Product Features:

Typical smallest notes on the device
Operating voltage:
Normal circuit operation range 29.75V
rest_current
20 50μA, single battery voltage 3.6V.
Operating Temperature: -20 ℃
+70℃ Normal Operating Temperature
Relative Humidity

90%
No condensation
Storage temperature -40 °C.
+85 humidity below 90%, no condensation.
Height:

4000 meters
Charging voltage:

DC 29.75V
Function Test Item Symbol Condition Test Minimum Typical Maximum
Overload protection, voltage Vc1 when load 4200 4 250 4 300V
Delay time Tc1/10 1000 1700 mS
Release voltage Vc2/4.150 4.190 4.240V
Normal Ioc charging current/

20 Amps
Starting Voltage Leveling Function
/4150 4 200 4.250V
levelling current
/20
35mA
Overdischarge protection, voltage Vd1 when discharged from 2700 2800 2900 V
Delay time Td1/10,200,500mS
Release voltage Vd2/2900 3000 3100V
Recovery status/load separation
