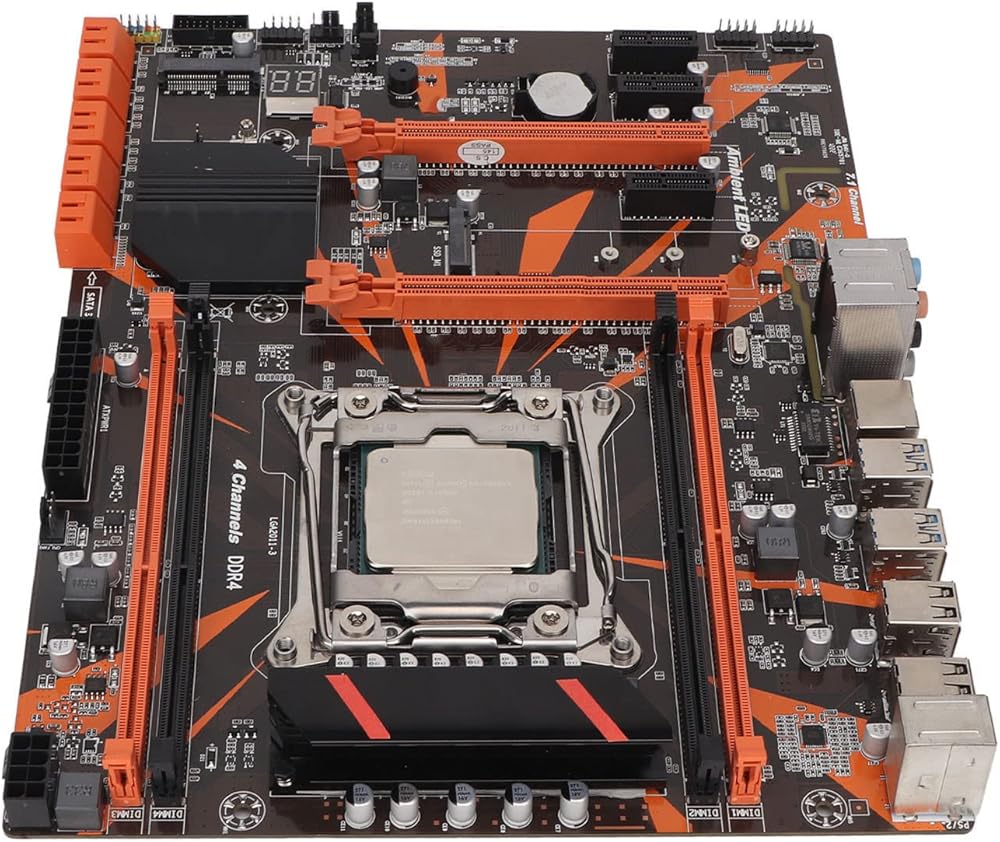

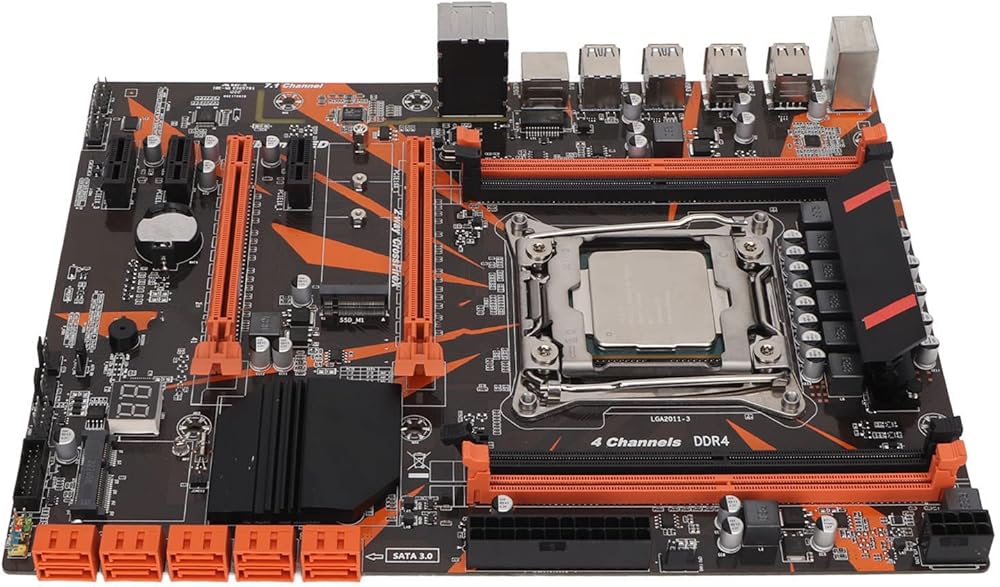

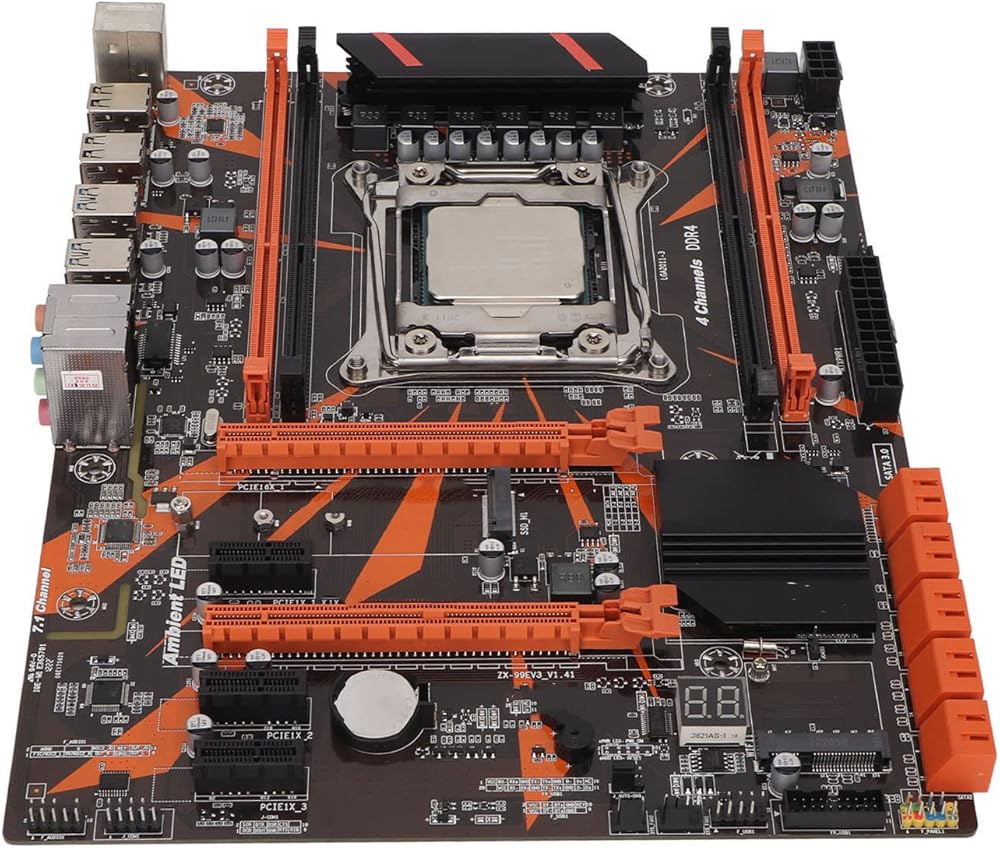

Spec:
Item Type: Desktop Motherboard
Material: Printed Circuit Board
Motherboard Chip:
Integrated Chip: Sound Card, Network Card
Chipset:
Network Card Chip: Integrated Gigabit Network Card
Audio Chip: Integrated 6 Channel Audio Chip
CPU Specification:
CPU Slot: LGA 2011 V3
Supported CPU Quantity: 1
Supported CPU Type: for E5 V3/V4, for i7 58xx/68xx Series(E5 2620 V3 CPU Included)
Memory Specifications:

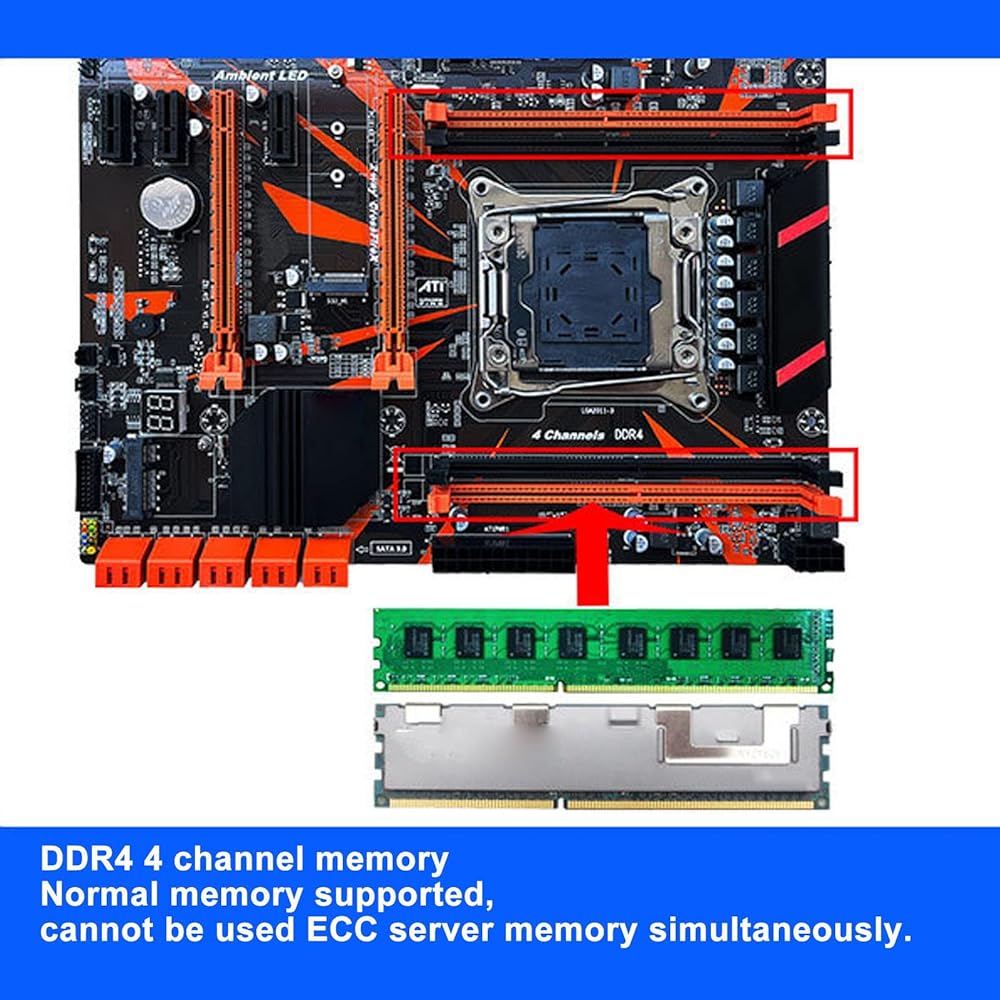

Memory Type: DDR4 2666/2400/2133MHz
Memory Slot: 4xDDR4 DIMM Maximum 128G

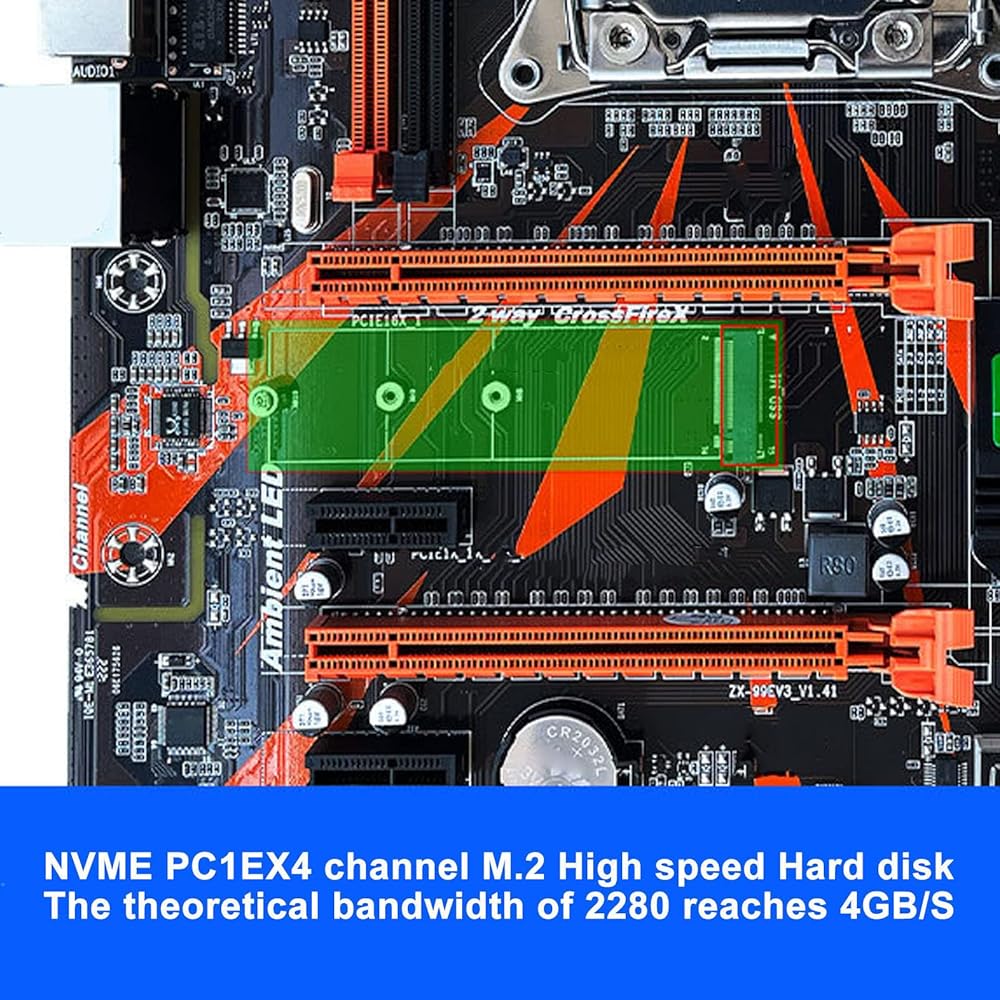

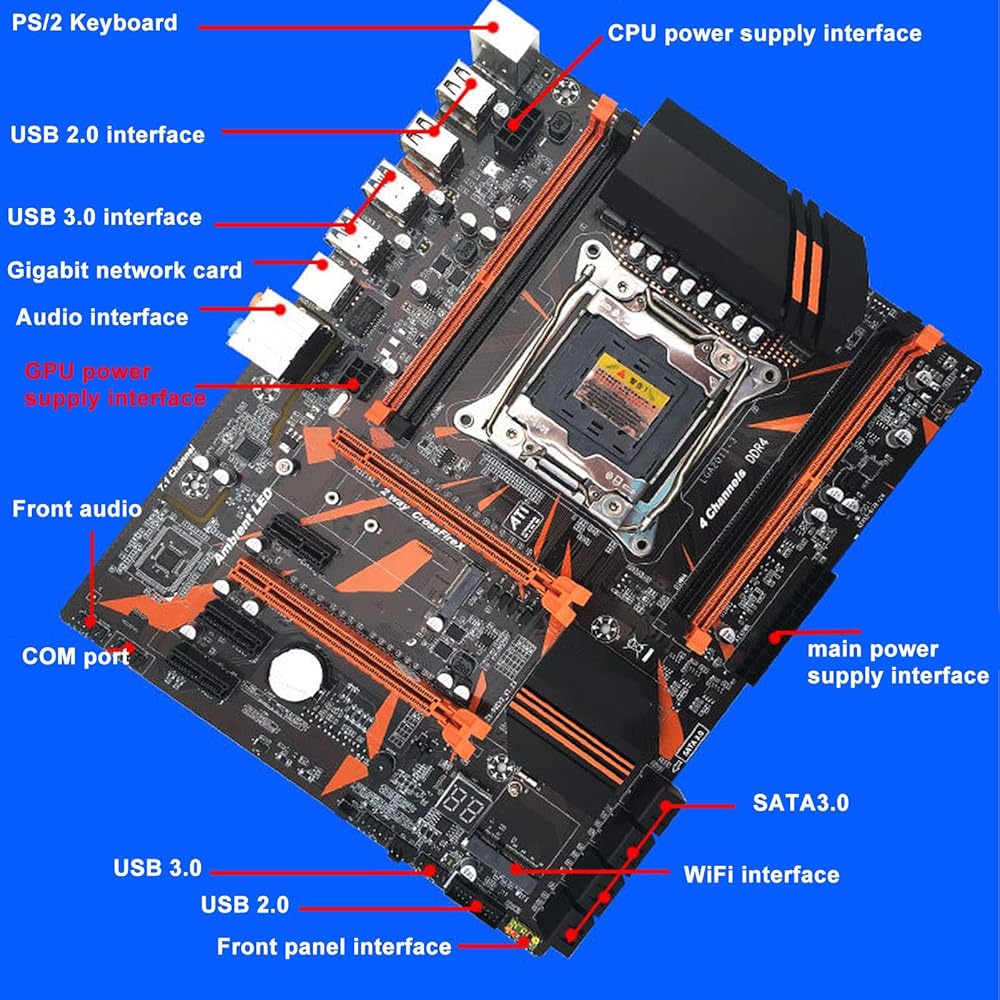

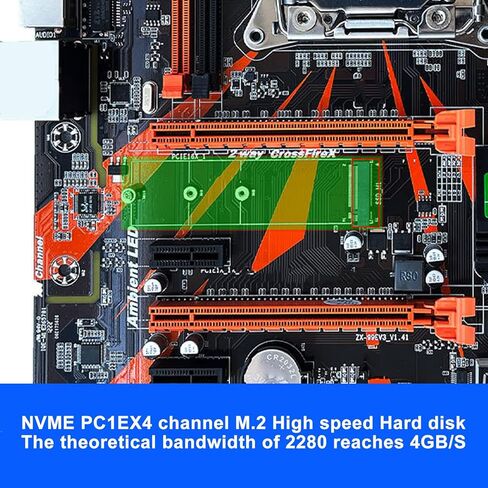

Extension Slot: 2 x PCIe X16 GPU Slot, 3 x PCIe X1 Slot, 1 Group of USB3.0 Pin, 1 Group of USB2.0 Pin, 1 x Module face, 8 x SATA3.0 face, 1 x NVME M.2 face(PCIE)

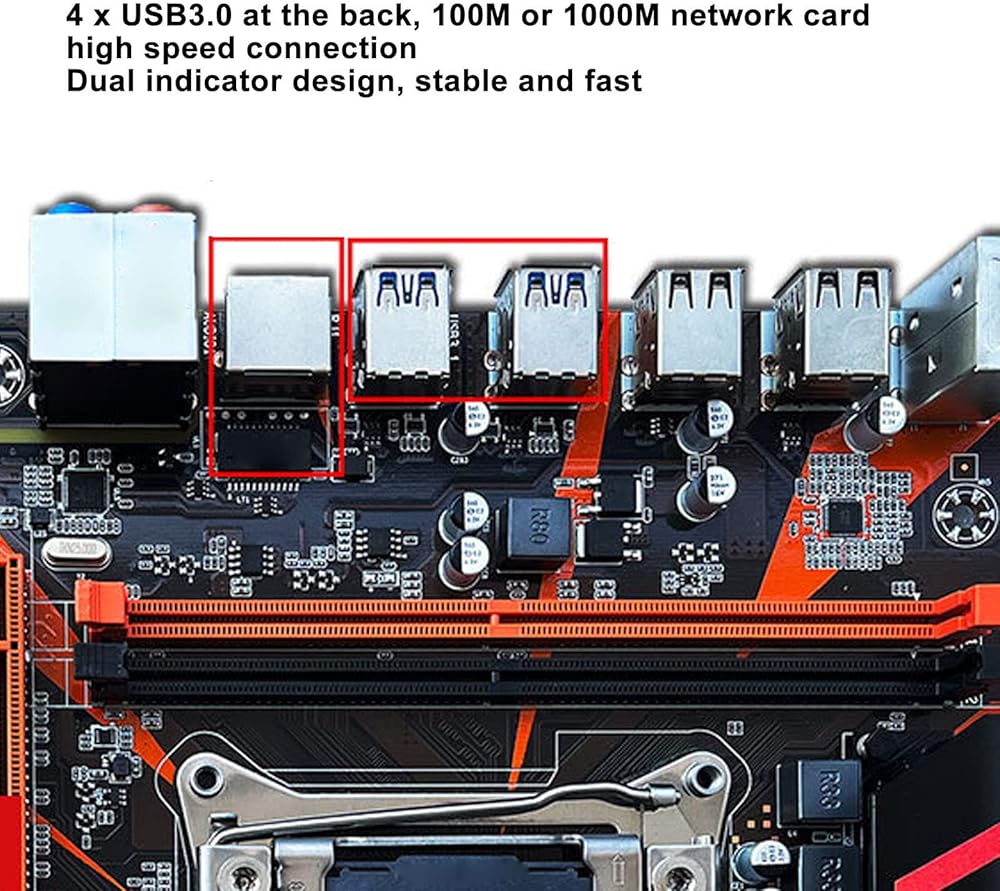

I/O face: PS/2 face, PS/2 Keyboard Universal face, 1 x RJ45 Network face, 4 x USB 3.0, 4 x USB 2.0, Audio face
Battery Type: Lithium Manganese Battery
Battery Model: CR2032L
Battery Capacity: 140mAh (Battery Included)

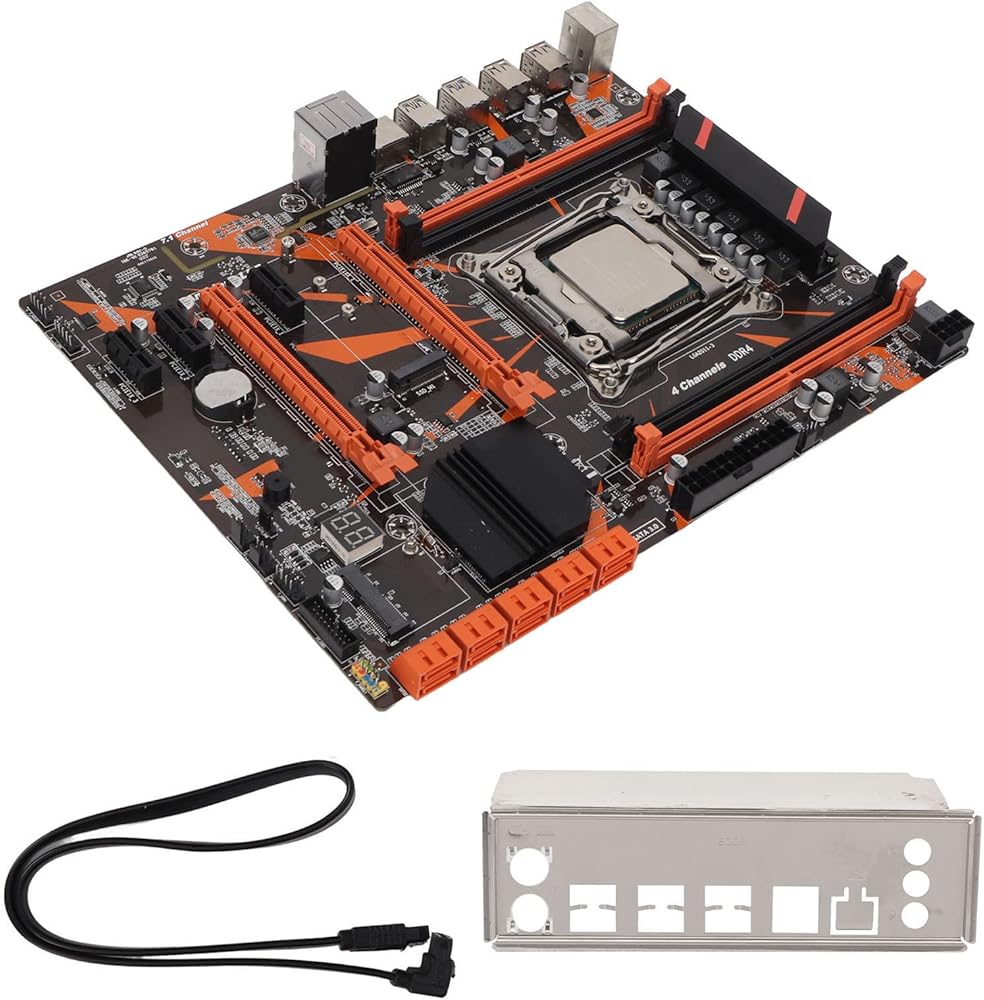

packing list:
1 xDesktop Motherboard
1 x Baffle
1 x SATA Cable
Note: With NVME M.2 hard disk, you need to set the partition type of the hard disk to GUID in order to recognize it properly.
