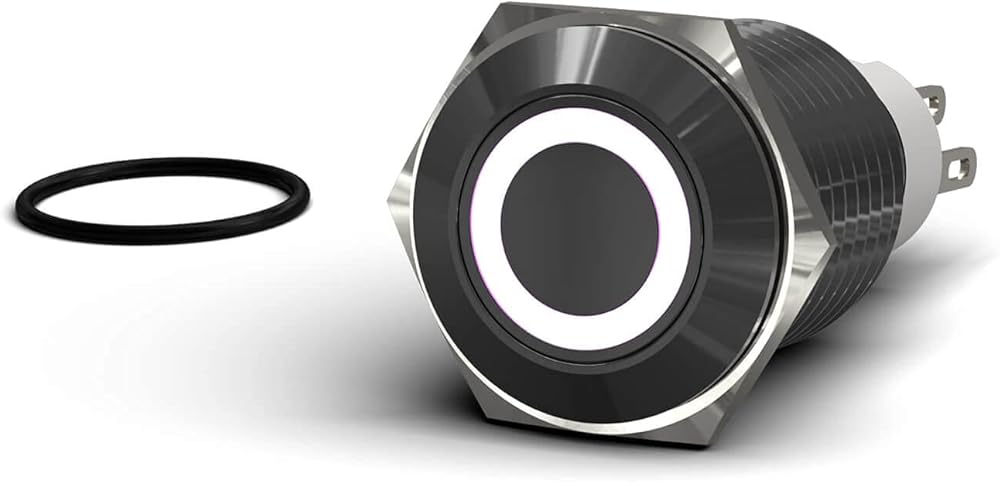

The Black Aluminum Momentary Vandal Resistant Switch momentarily depresses and bounces back when pressed. Easy to install and will fit on a regular 5.25 drive cover or wherever you chose.
FeaturesAvailable in always on Illuminated (Dot and Ring Style LED) and Non-Illuminated
Size: 16mm diameter
S.P. Push to Make (Latching)
Daylight LEDs (in Illuminated version)
LED Terminals (in Illuminated version)
Front Panel Mounting
Switch harnesses with motherboard headers sold separately
SpecificationsMount Hole: 15.75mm
Switch Structure: No. 3
Current: 5 A Maximum
24V DC contact rating (for switch, not LED)
LED Voltage: 3.3V , 5V, 12V
LED Lifetime: 1,000,000 hours
Switch Depression Lifetime: 50,000 cycles
Connection Material: Silver
Parts Included1x Vandal switch with sealing ring and mount nut
1x Wiring diagram
Warnings *Please be very careful with the power you apply to the LED - Returns will not be accepted on switches that have a burnt out LED. Max Voltage is 12V!Not responsible for any hardware damage. Use at your own risk.
