SPECIFICATIONS
Processor: 10th Generation Core i7 Processors i7-10510U
CPU Specifications: 4 Cores, 8 Threads, 1.80 GHz Base Frequency, 4.90 GHz Burst Frequency, 8 MB Cache, 15W TDP.
Processor Graphics: UHD Graphics for 10th Gen. Processors, Support 4K at 60Hz, 300MHz Graphics Base Frequency, Max Resolution: 4096x2304@24Hz(HD).
Memory: Max Memory Size (dependent on memory type) 64GB; DDR4 SODIMM Memory Types; Two Memory Channels.
Storage: 1x mSATA SSD, 1x M.2 NVME 2280 ( PCIe ), 1x 2.5 inch HDD/SSD.
Other Function: Watch dog, one key restore, non-disk booting, wake up on LAN, automatically power on after power restore.
Construction: Fanless passive cooling
Weight: 2.2KG
Size: 249 x 150 x 86 mm
Input: AC100-240V
Output: DC12V-5A

CONNECTORS

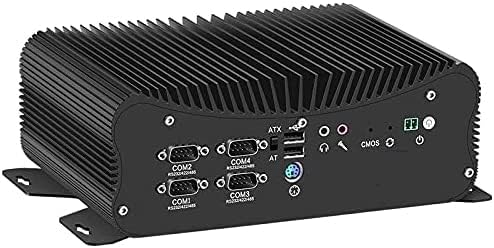

Front-Panel:
1xSwitch Extend Pin
1xAT/ATX
4xCOM (RS485/422/232)
1xPS/2 (support keybaord and mouse)
2xUSB2.0
1xMIC/SPK
1xClear CMOS Button
1xPower Switch

Back-Panel:
14xGPIO (7 input, 7 output)
2xCOM (RS232)
2xLAN
1x3 Pin Phoenix
4xUSB 3.0
1xHD
1xVGA
2xAntennas

PACKAGE CONTENT
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, Antennas, 1xHD cable, 1xSATA Cable, 1xUser Manual.
