مميزات خاصة

[UNIVERSAL COMPATIBILITY] Designed for maximum versatility, this diagnostic card supports PCIE, mini PCIE, and LPC interfaces, making it compatible with virtually all modern motherboards. Whether you're working on desktop PCs or laptops, this tool provides reliable detection across multiple platforms. The included adapter cards ensure seamless connectivity with various port types.
[ADVANCED DIAGNOSTIC FEATURES] Experience professional-grade troubleshooting with built-in support for COM DEBUG, UART1, JDP, and SPI protocols. The card automatically recognizes power modules and provides accurate error code readings through its high-resolution display. Multiple LED indicators give real-time status updates on CPU, memory, graphics, and other critical components.
[PRECISION ENGINEERED PERFORMANCE] Engineered for technicians, this diagnostic card features exceptional signal recognition with stable, high-speed processing. The advanced circuitry ensures minimal interference and maximum accuracy when identifying motherboard issues. Special attention has been paid to heat dissipation and signal integrity for prolonged diagnostic sessions.
[COMPREHENSIVE STATUS MONITORING] Monitor every aspect of your motherboard's health through the multi-channel LED display system. Clear visual indicators show power supply status, memory module functionality, graphics card operation, and Southbridge conditions. The intuitive interface makes it easy to identify and isolate hardware faults quickly and efficiently.
[COMPLETE PROFESSIONAL KIT] This all-inclusive package contains everything needed for motherboard diagnostics: the main diagnostic card, laptop adapter card, high-quality connection cables, and durable ribbon cables. The toolset is designed for both workshop and field use, with compact storage and easy-to-follow instructions for quick setup and operation.

وصف

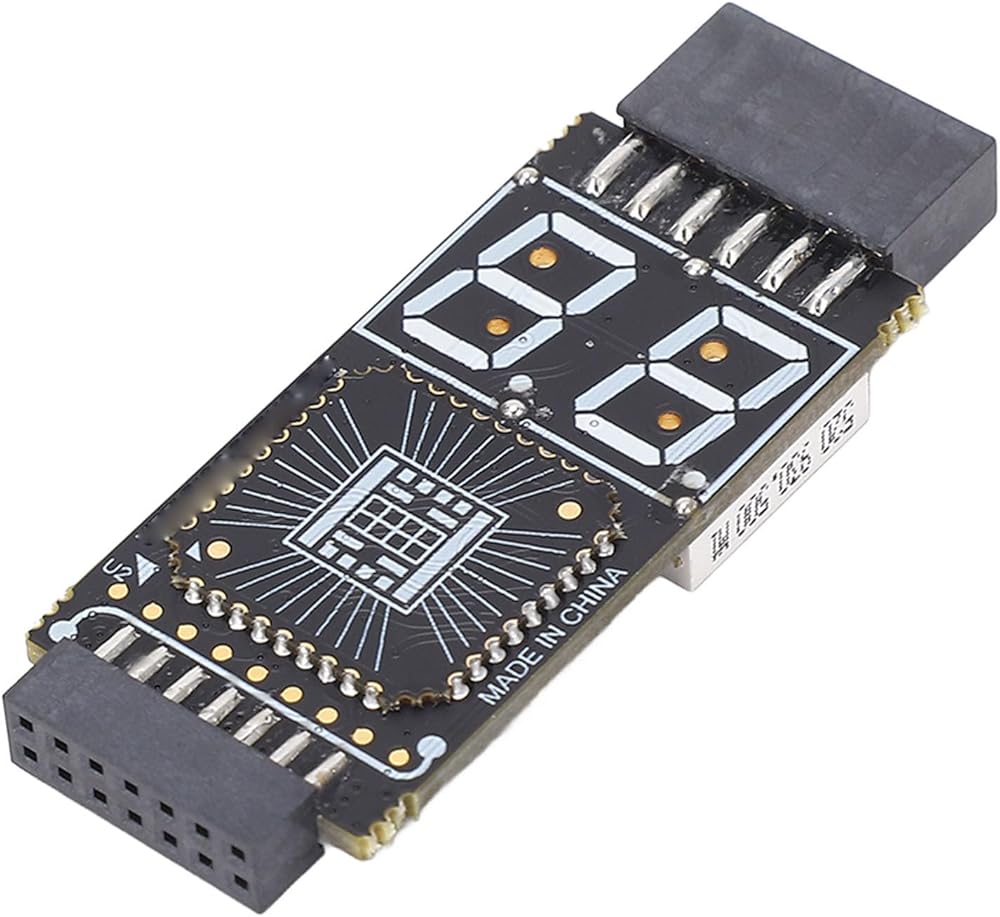

Item Type: Motherboard Diagnostic Card
Product Color: Black
Product Interface: PCIE, LPC

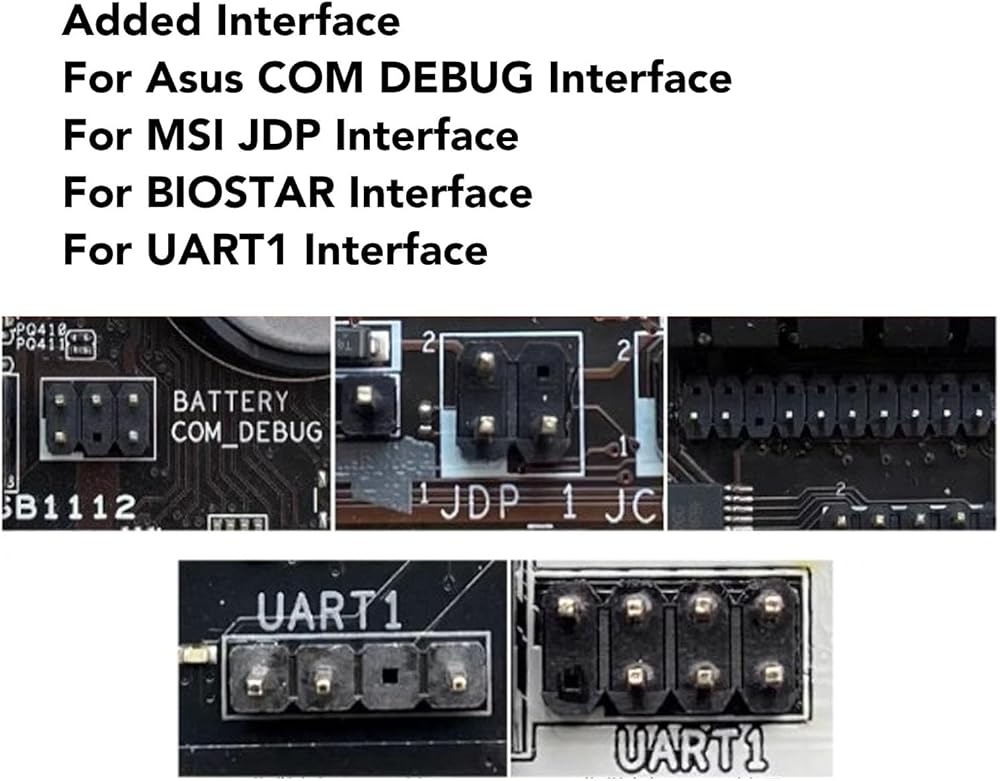

Support Brand: Suitable for COM DEBUG, for UART1, for JDP, for SPI, etc.
Diagnostic Card Settings:
1. LPC1 shared high speed channel, connect the 2.0 small pin LPC port and 2.0 module on the mainboard (The module expansion LPC3 port can connect to the laptop MINI PCIE conversion card, A DEBUG conversion card, notebook DEBUG CON, EC DEBUG).
2. LPC2 shared high speed channel, connect motherboard 2.54 large pin LPC interface, for COM DEBUG, for UART1, for JDP, for SPl.
3. DP decimal point, CLK signal display.
4. DP decimal point, FRAME frame signal display.

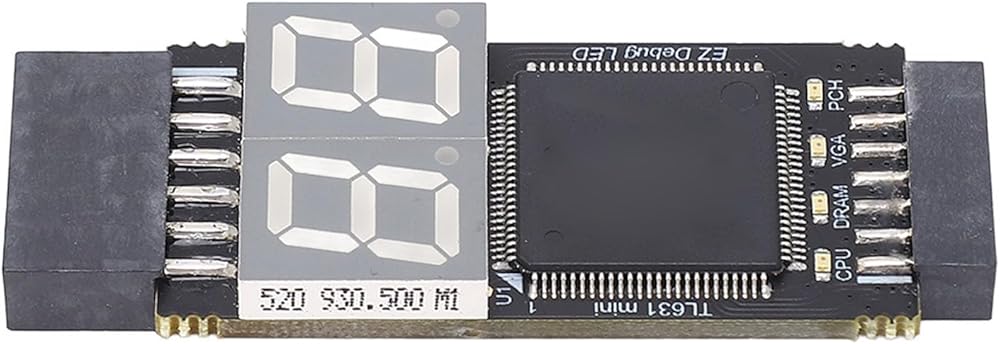

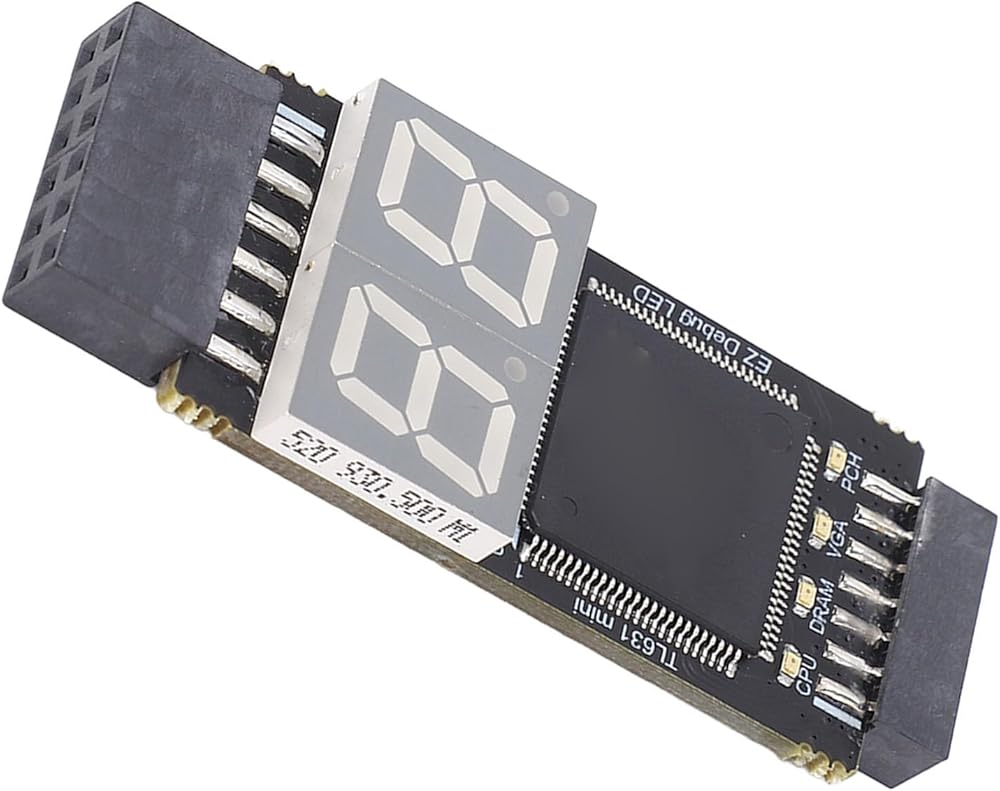

5. CPU indicator to check whether the CPU module is normal.
6. DRAM memory indicator to check whether the memory module is normal.
7. VGA graphics card indicator to check whether the graphics card module is normal.
8. PCH Southbridge indicator to check whether the Southbridge module is normal.
9. The white horizontal line is the first needle of LPC1.
10. The white horizontal line is the first needle of LPC2.
11. DP decimal point, CLK signal display.

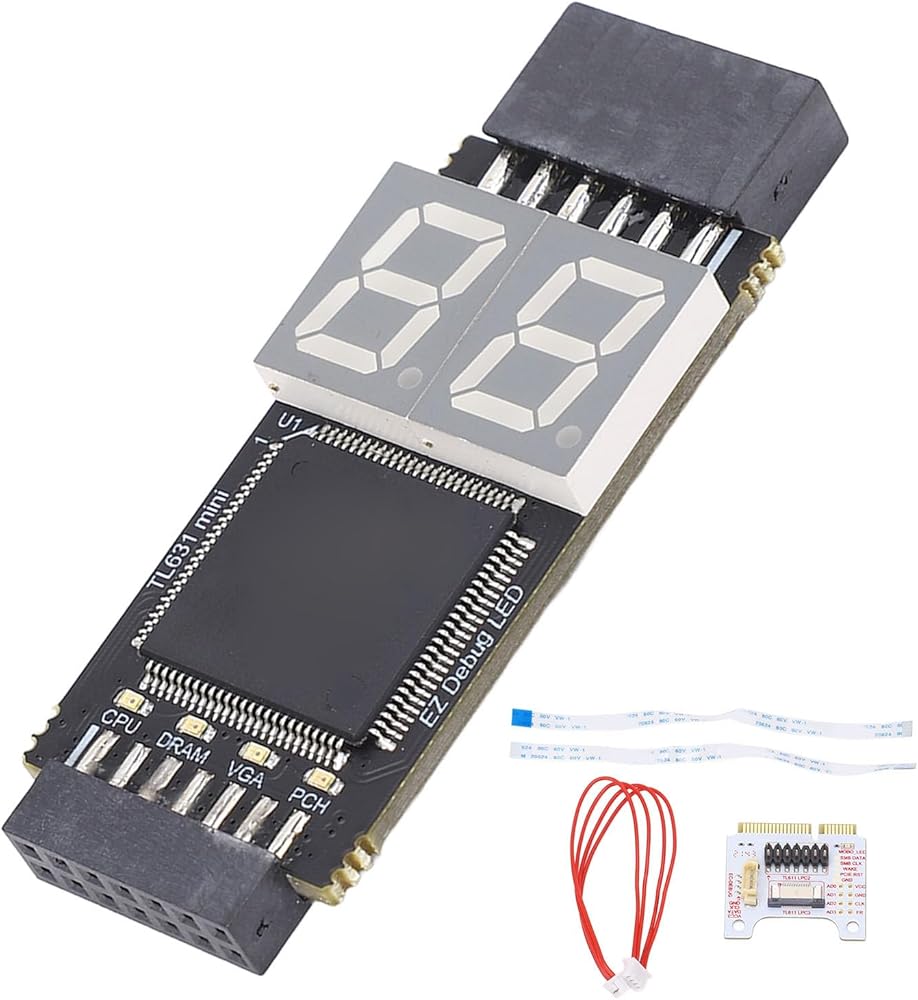

Package List：
1 x Diagnostic Card
1 x Connection Cable
1 x Adapter Card
2 x Ribbon Cable
