CAN HAT Single-Channel CAN Bus Transceiver Module, SN65HVD230, ISO11898, 1Mbps, 120Ω Termination Select, Low-Power Standby 370µA, Slope Control EMI/RFI Reduction, Open-Source Demo for STM32

KWD 5
Brand
WatangTech
Weight
6 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

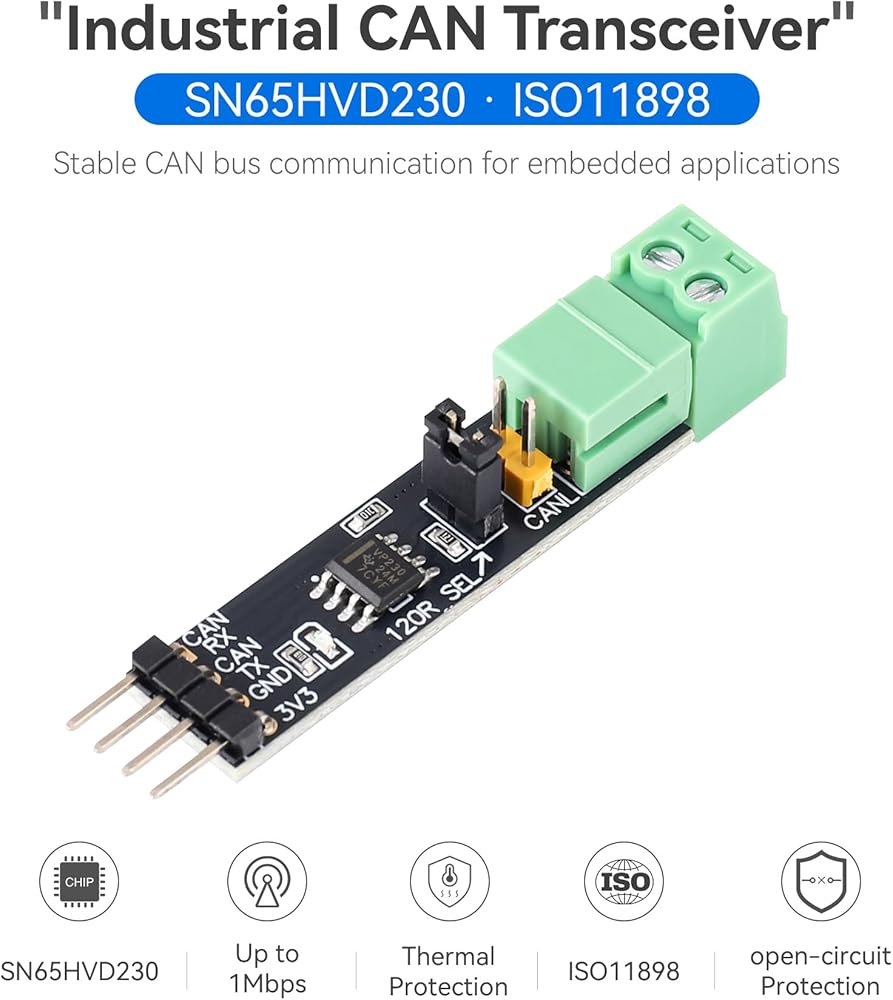

  • ISO11898 Compliant CAN Transceiver: Fully compatible with ISO11898 CAN standard, built on SN65HVD230 transceiver circuit.

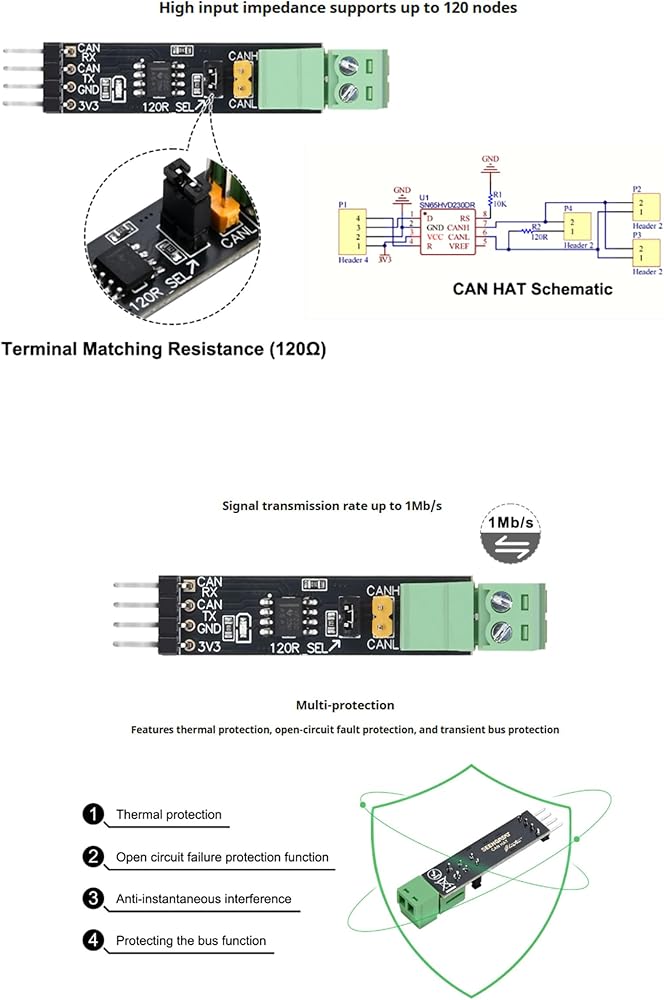

  • Up to 1Mb/s & 120 Nodes: Supports CAN signal rate up to 1Mb/s; high input impedance allows up to 120 nodes on the bus.
  • Low-Power Standby: Typical standby current is 370µA, ideal for low-power applications.

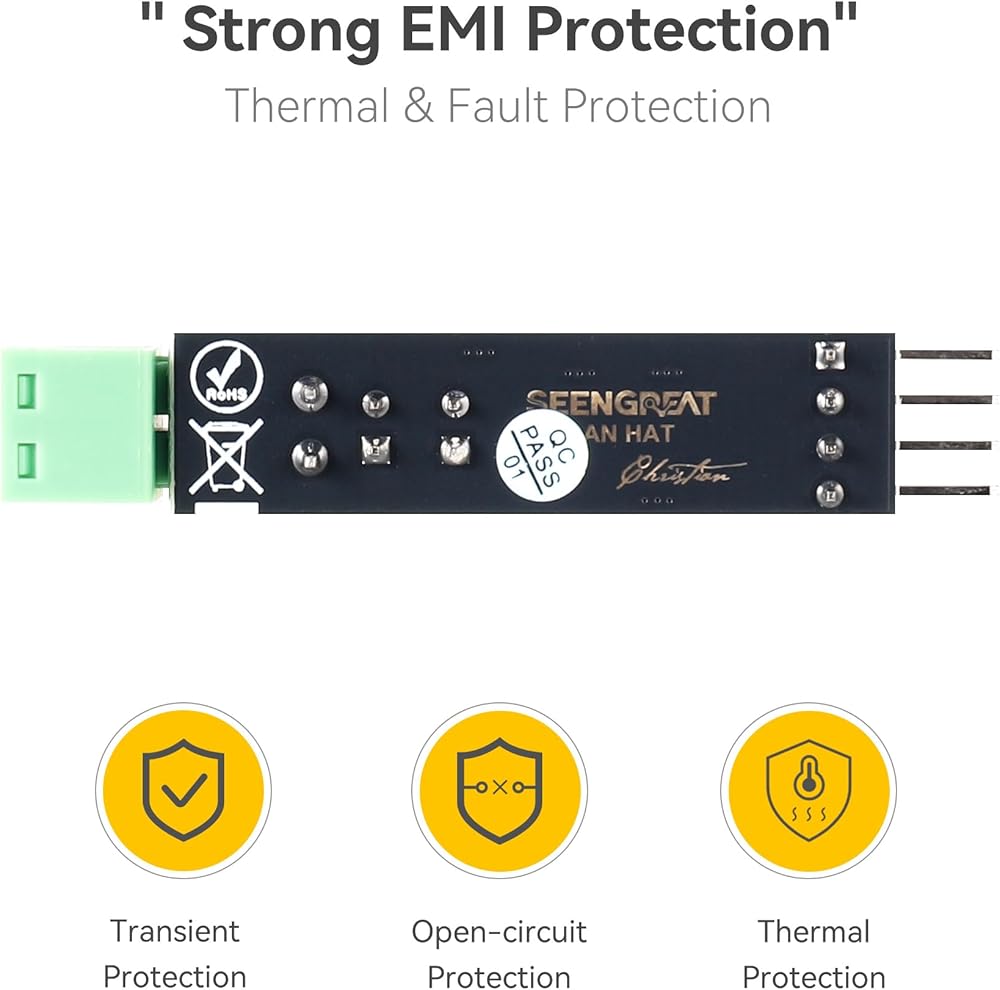

  • Protection & Strong EMI Immunity: Thermal protection, open-circuit failure protection, anti-transient interference, and differential receiver designed for wide common-mode/EMI robustness; slope control helps reduce RFI.

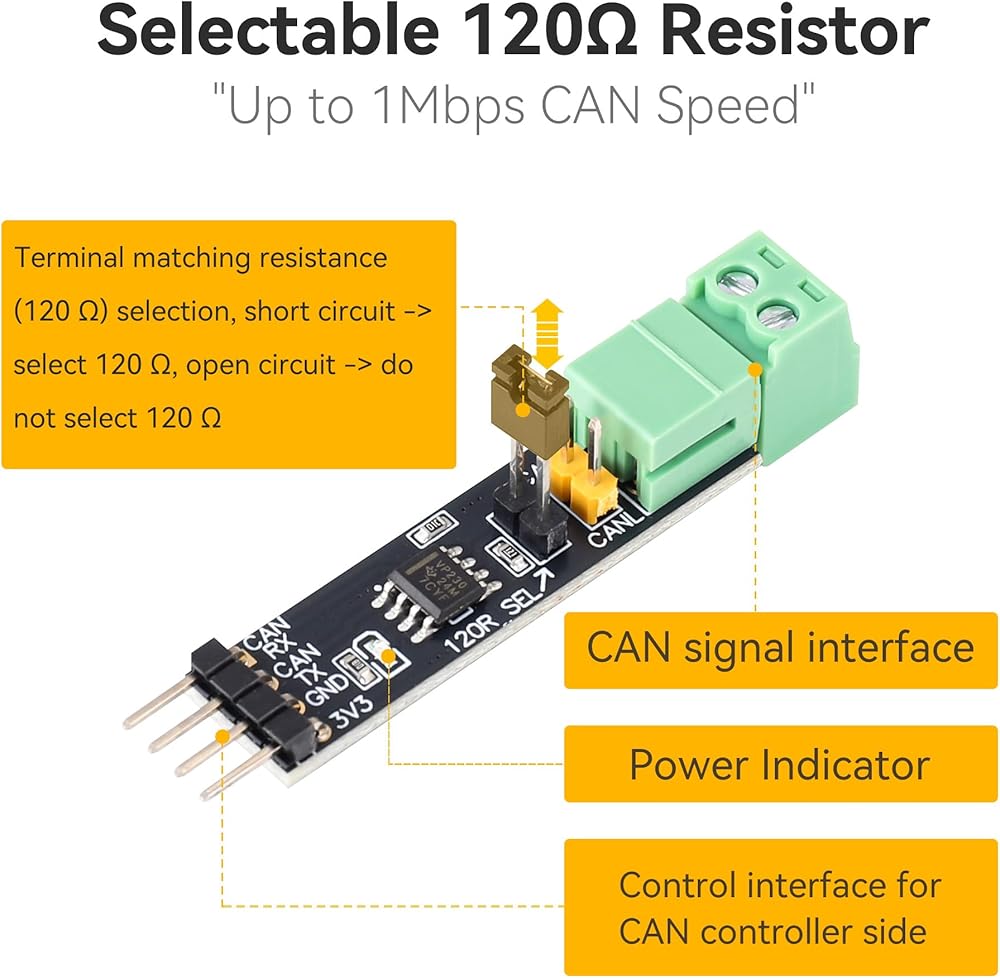

  • 120Ω Termination Select + Power LED: Selectable 120Ω terminal matching resistor (short = enable / open = disable) plus power indicator; includes STM32 demo code for quick start.
