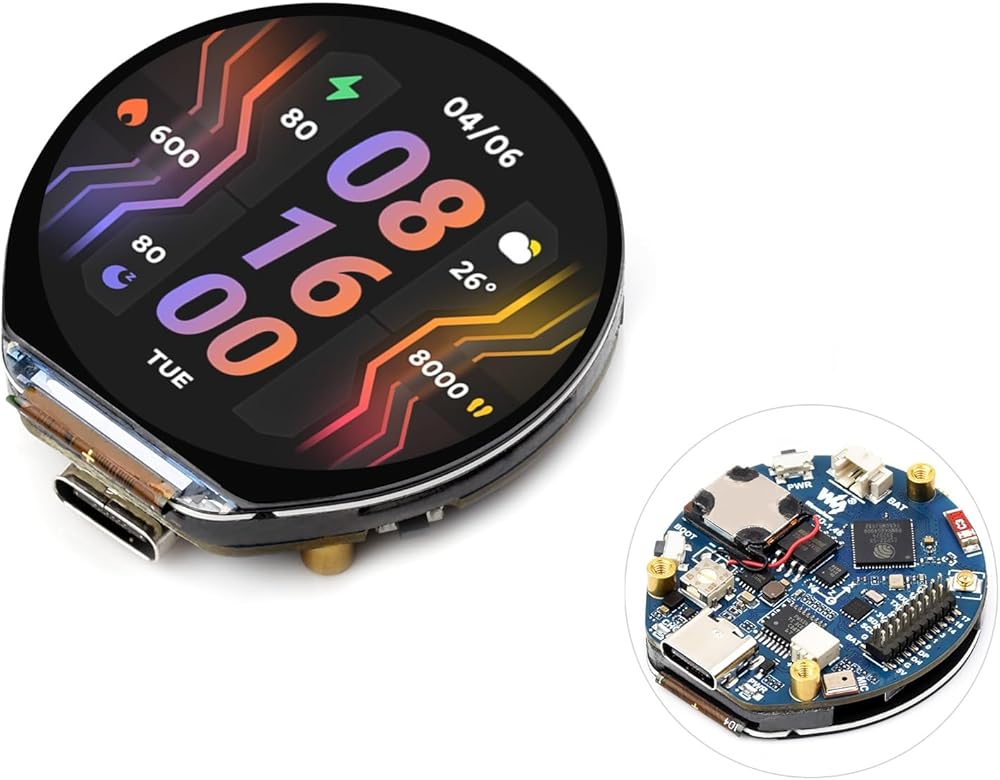

ESP32-S3 1.46inch Round Display Development Board, 412×412, Supports WiFi & Bluetooth, Accelerometer And Gyroscope Sensor, Onboard Speaker And Microphone, ESP32 With Display

Features
ESP32-S3-Touch-LCD-1.46 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and
PSRAM. Onboard 1.46inch LCD display which can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, it is suitable for the
quick development of the HMI and other ESP32-S3 applications.

Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard Type-C port, more convenient, better device compatibility
Onboard 1.46inch LCD display, 412×412 resolution, 16.7M color

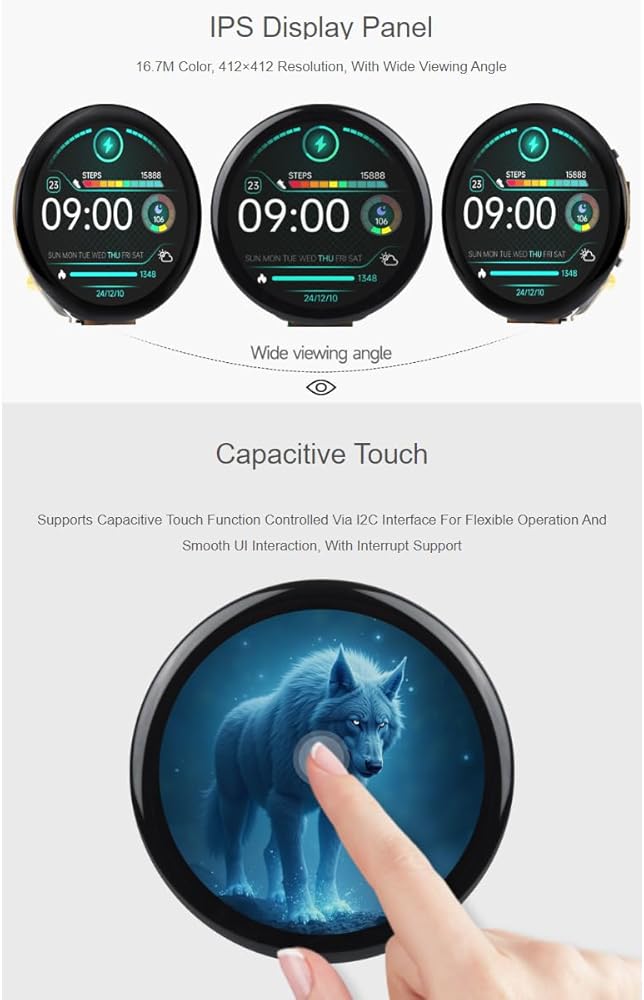

Supports touch function controlled via I2C interface, with interrupt support
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip with reserved RTC battery header (supports charging) for RTC function requirement
Onboard programmable PWM and BOOT buttons for easy custom function development
Onboard 3.7V MX1.25 lithium battery recharge/discharge header
Onboard TF card slot for extended storage and fast data transfer, flexible for data recording and media playback, simplifying circuit design
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

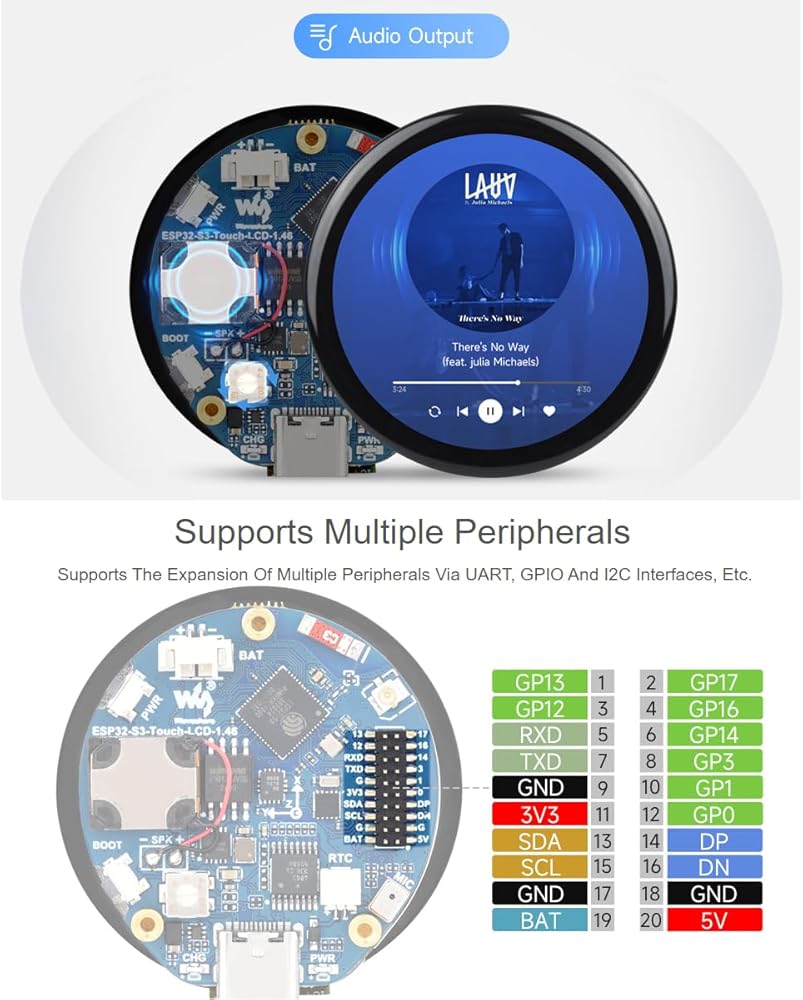

Adapting multiple GPIO pins which can be mapped to various function interfaces, making it convenient for customers to customize and develop

Package Content
ESP32-S3-Touch-LCD-1.46 x1
