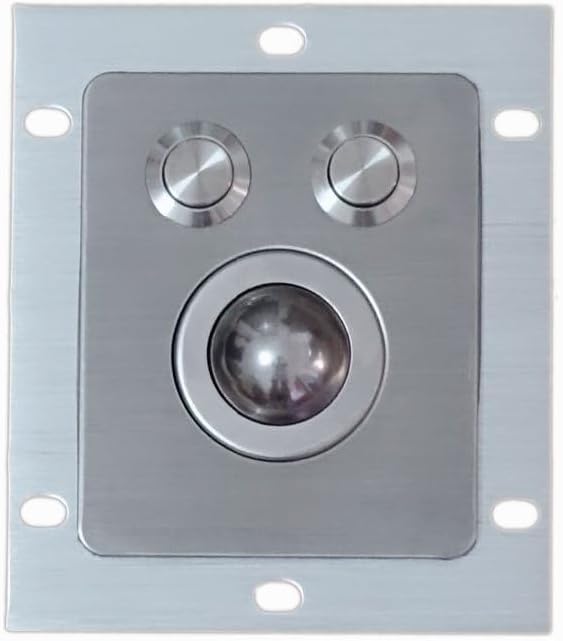

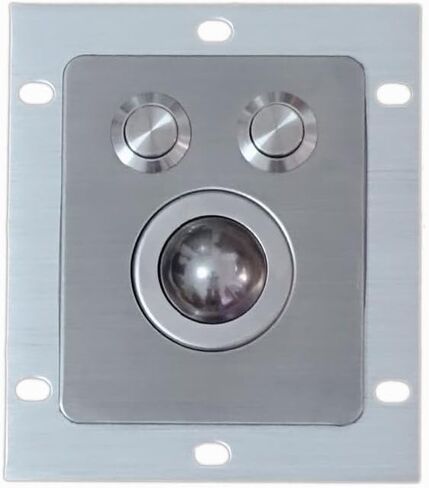

Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
Available 25mm diameter Stainless steel for smooth, quick and durable operation and precise cursor positioning.
Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
no metal bearings inside, operation is very smooth, and easy without any noise.
وصف
MECHANICAL DATA:
Key:2 keys, super quality brushed stainless steel
Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
Key travel: 0.45mm
Tracker ball: 25mm diameter, Resolution 800 dpi.
Switch life: more than 10 million of operations.
Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 1.2 N +/-0.1N for key 14.0mm x 28.0mm (pressure point)
Front Plate: Super quality brushed stainless steel
Actuatorkeys materials stainless steel
G.W. 1.20KGs
Dimensions:67.0mm x 82.0mm (front panel)
ELECTRICAL DATA:
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
Emission:EN 50081-1
Immunity: EN 50082-1
Lifespan:> 5 years
Contact Material: Carbon on Gold
ENVIRONMENTAL ADAPTABILITY:
Operating temperature:-20°C to +60°C
Storage temperature: -30°C to +70°C
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40°C: 21 days, IEC 60512-6
Dry heat test at + 85°C: 10 days, IEC 60512-6
RELIABILITY:
Protection Level: IP67 fully sealed
Vandal resistant IK09
Key Lifespan >10 million actuations
MTBF >50000H
MTTR
