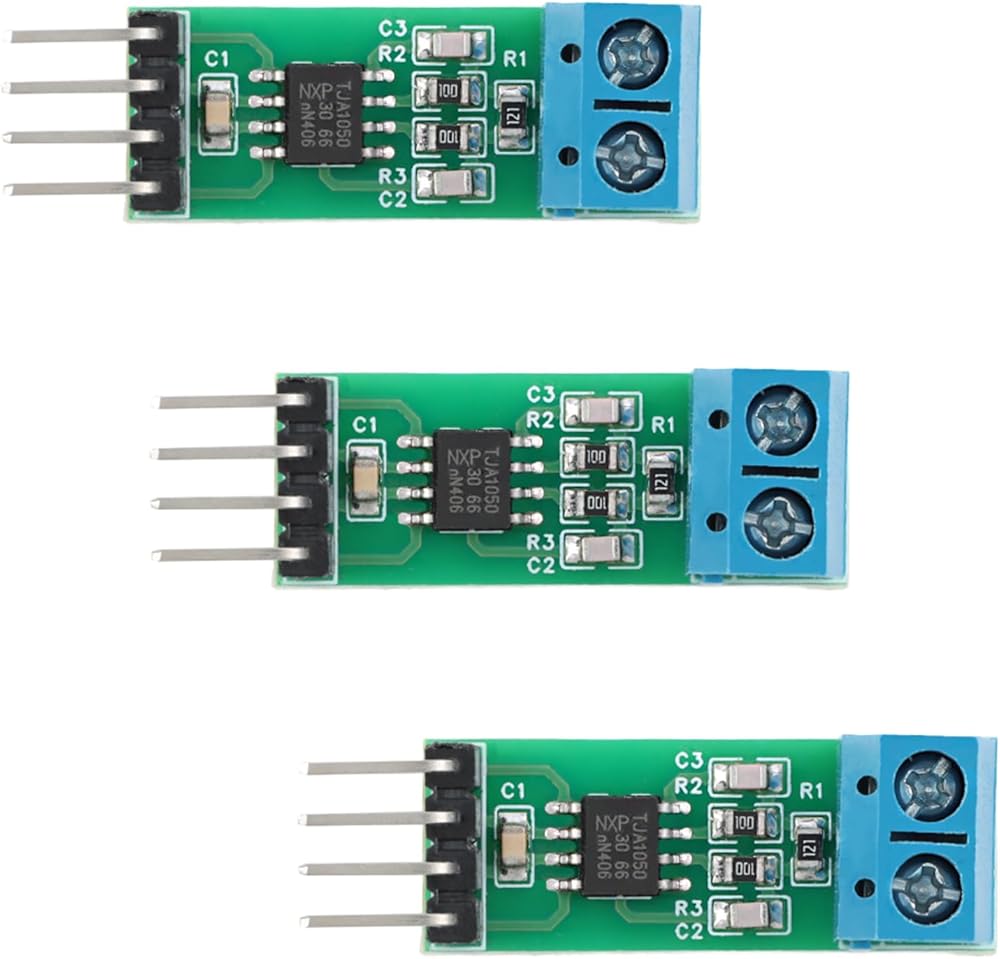

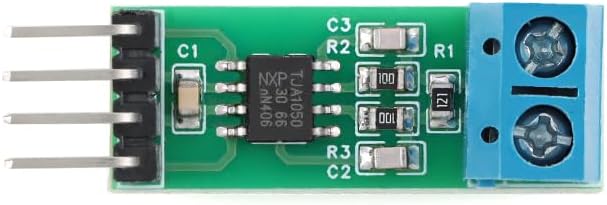

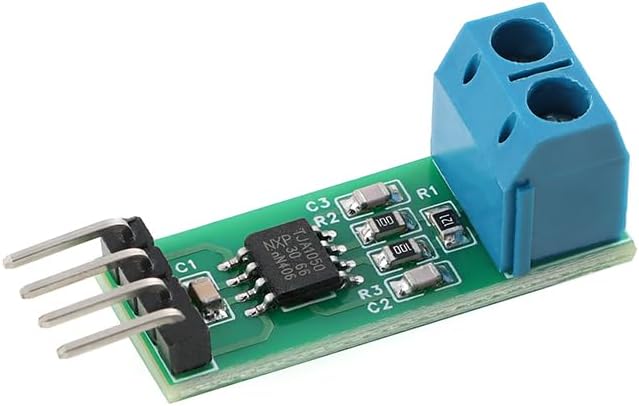

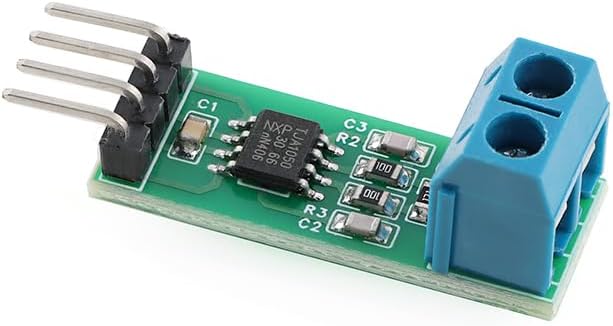

【High-Speed CAN Transceiver Module】1Mbps communication rate; 4.75V to 5.25V operating voltage; compatible with 3.3V and 5V microcontrollers; Suitable for automotive and industrial applications.
【Low Power Consumption】70mA active mode; 10µA sleep mode; energy-efficient design reduces power usage in embedded systems; supports long-term operation in battery-powered devices.
【Robust ESD Protection】±6kV human body model protection; enhanced immunity to static damage; reliable performance in harsh Settings; suitable for outdoor and industrial use.
【Wide Operating Temperature Range】-40°C to +125°C; stable performance across extreme temperatures; ensures consistent operation in diverse conditions; no performance degradation under stress.
【Easy Integration & Compatibility】SO8 surface mount package; compatible with LabVIEW, MATLAB, and STM32; includes clear documentation; supports SPI and I2C interfaces for seamless system design.

Key Parameters:

Input Voltage: 4.75V-5.25V DC (5V System Compatible)

Communication Rate: Up to 1 Mbps (ISO 11898-2 Standard)

Quiescent Current: ≤70 mA (Active Mode), ≤10 µA (Sleep Mode)

Node Capacity: Supports ≥110 Nodes (Large Network Support)

ESD Protection: ±8 kV (Bus Pins, per IEC 61000-4-2)

Operating Temperature: -40°C to +125°C (Industrial/Automotive Grade)

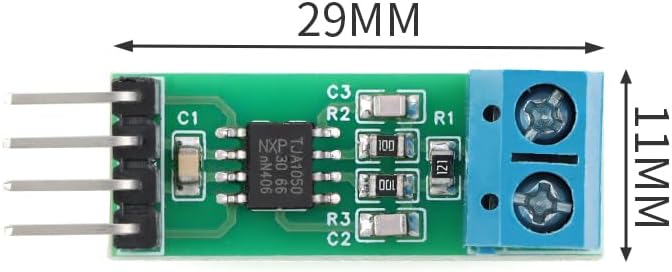

Package: SO8 (Surface-Mount, PCB-Friendly)

Pin Functions (Hardware Interface Standard):

VCC: Power Supply (4.75V-5.25V DC)

GND: Ground

TXD: Transmit Data Input (Connects to Microcontroller CAN_TX)

RXD: Receive Data Output (Connects to Microcontroller CAN_RX)

CANH: CAN High-Level Bus Line (Differential Signal +)

CANL: CAN Low-Level Bus Line (Differential Signal -)

S: Sleep Mode Control (Low-Level Activates Power Saving)

FAQ:

1.
Q: Communication fails or has errors?

→ A: Ensure 120Ω terminal resistors are installed on CANH/CANL ends; verify baud rate ≤1 Mbps.

2.
Q: Module overheats?

→ A: Check for bus shorts (CANH/CANL to GND/VCC); ensure power voltage ≤5.25V.

3.
Q: Sleep mode won't wake?

→ A: Toggle S pin (low→high) or activate bus communication.

4.
Q: Unstable long-distance communication?

→ A: Reduce baud rate (e.g., ≤500 kbps); use shielded twisted-pair cables.

5.
Q: Compatible with 3.3V microcontrollers?

→ A: Yes, TXD/RXD logic levels support 3.3V/5V inputs.
