مميزات خاصة

❃❃Powerful Performance: The SuperMini ESP32-S3 Development Board features an ESP32-S3 32-bit RISC-V CPU running at 160 MHz, delivering outstanding computational capabilities for your IoT projects, from sensor applications to complex algorithms
❃❃The the SuperMini ESP32-S3 With a super compact size of just 22.52x18mm, It is equipped with rich interfaces, with 11 digital I/Os that can be used as PWM pins and 4 analog I/Os that can be used as ADC pins. It supports four serial interfaces such as UART, I2C and SPI. There is also a small reset button and a bootloader mode button on the board
❃❃ESP32-s3 mini Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE); and The power consumption in deep sleep mode is only 43μA. Combined with external battery power supply (3.3~6V) and charging function, it is optimized for long-life IoT devices and wearable applications
❃❃Equipped with ESP32-S3 chip, equipped with 32-bit RISC-V single-core processor (160MHz) and floating-point unit (FPU), it supports complex computing tasks and is suitable for high-real-time IoT scenarios. Based on the above features, ESP32S3 SuperMini is positioned as a high-performance, low-power, and cost-effective IoT mini development board, suitable for low-power IoT applications and wireless wearable applications

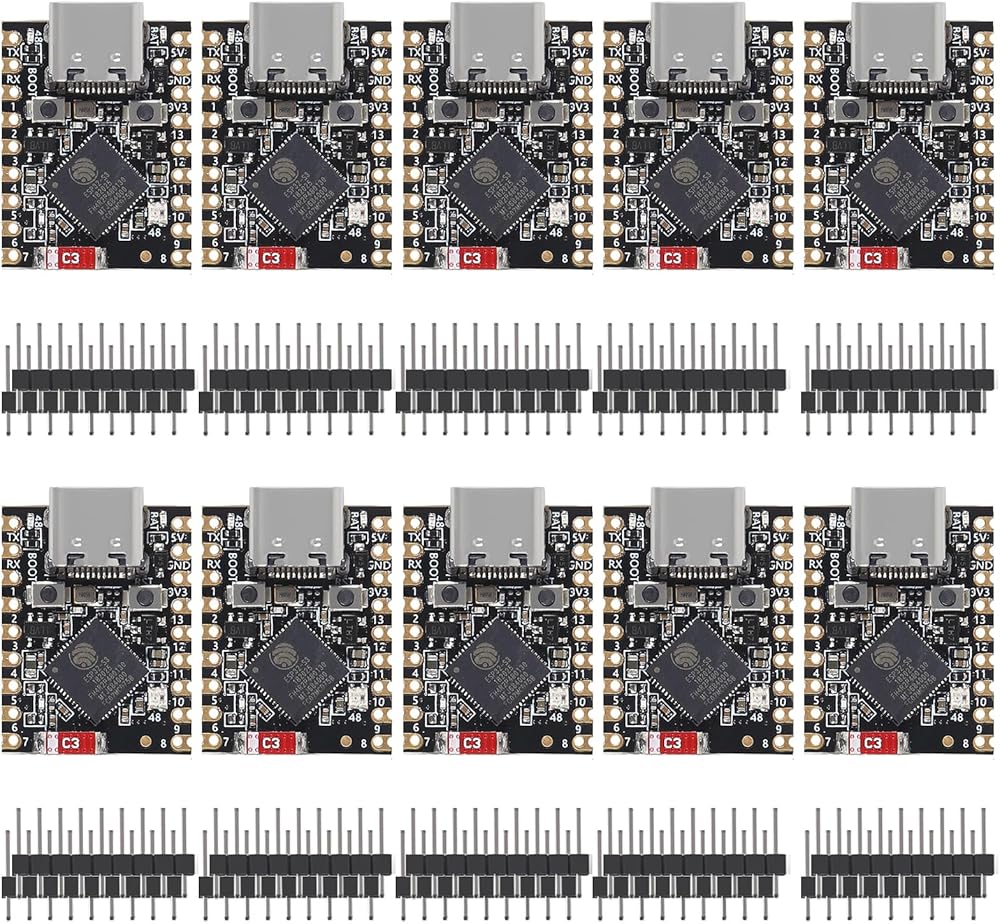

❃❃Package: 10pcs Type-C Supermini ESP32-S3 Development Board

وصف

Product Features
Powerful CPU:ESP32-S3, 32-bit RISC-V single-core processor, running frequency up to 160 MHz
WiFi:802.11b/g/n protocol, 2.4GhHz, supports Station mode, SoftAP mode, SoftAP+Station mode, mixed mode
Blue tooth:BLE 5.0
Ultra-low power consumption: deep sleep power consumption is about 43μA
Rich board resources: 400KB SRAM, 384KB ROM built-in 4Mflash.
Chip model: ESP32S3FH4R2
Ultra-small size: as small as a thumb (22.52x18mm) Classic shape, suitable for wearable devices and small projects
Reliable security features:support AES-128/256, hash, RSA, HMAC, digital signature and secure boot encryption hardware accelerator

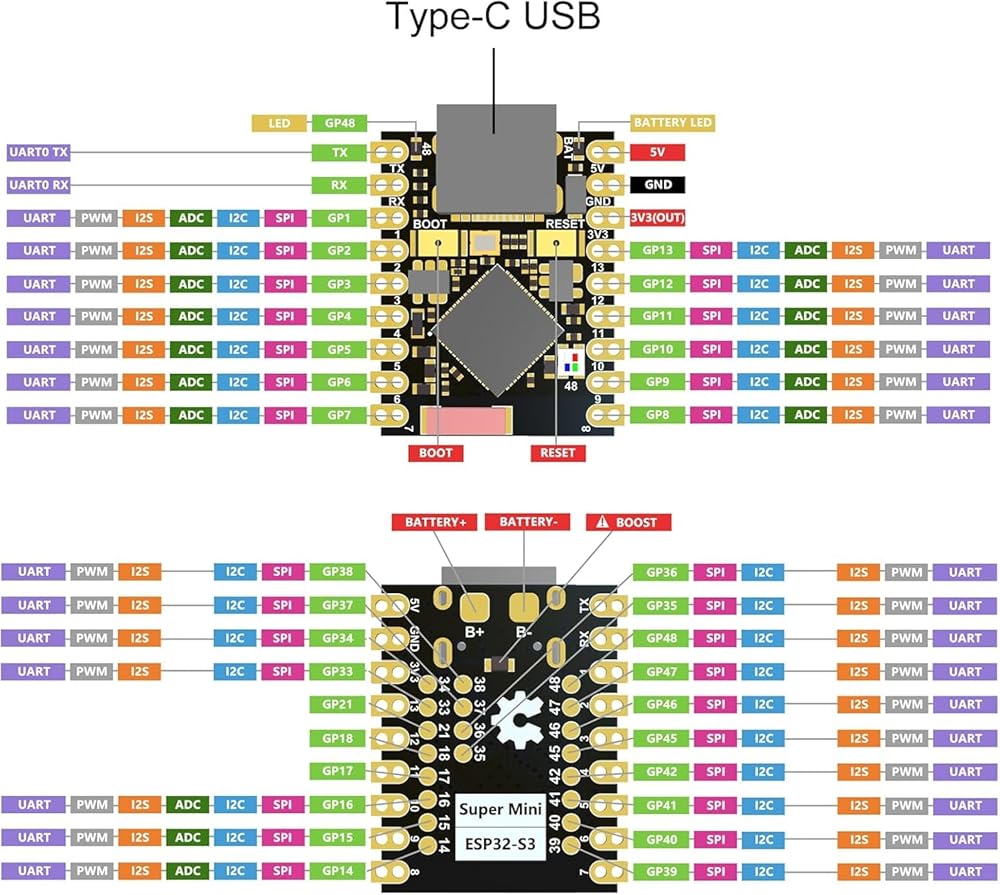

Rich interfaces:1xI2C, 1xSPI, 2xUART, 11xGPIO (PWM), 4xADC
Onboard RGB, blue LED: public GPIO48 pin

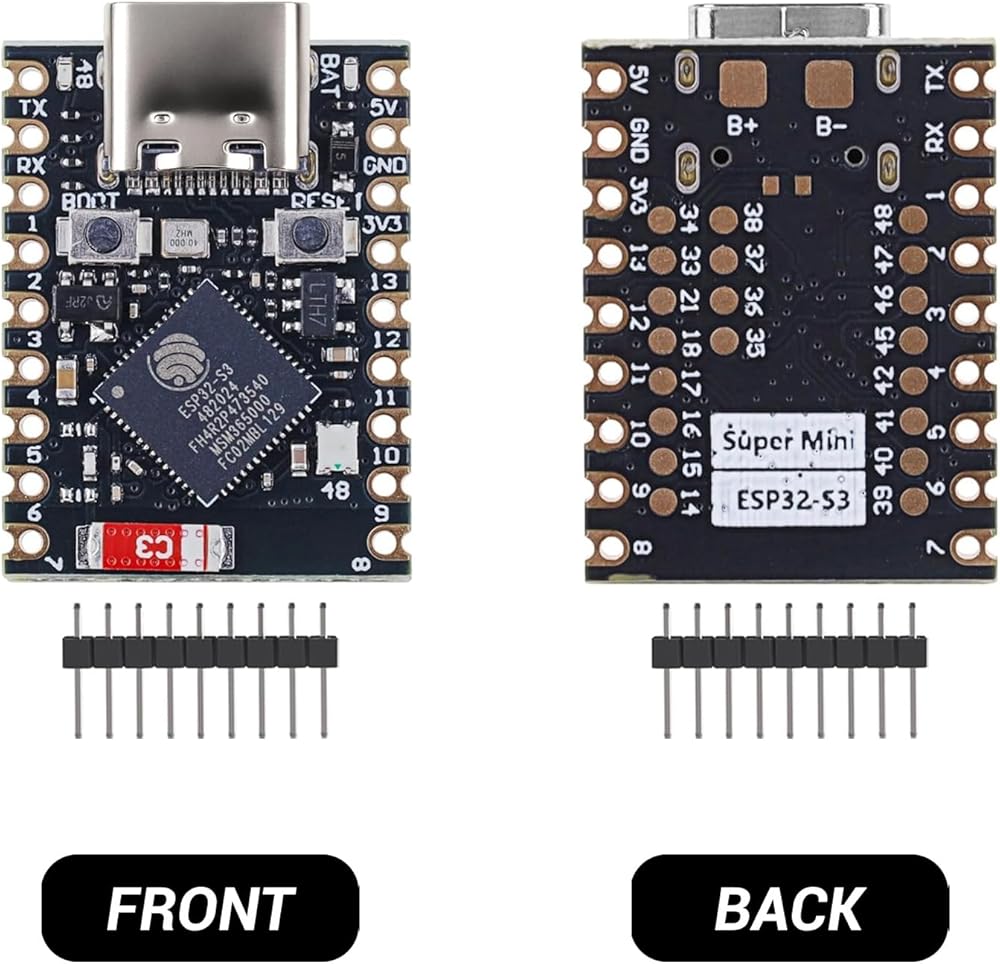

External power supply:If external power supply is required, just connect the external power supply + level to the B+ position on the back of the board, and the negative pole to the B- on the back. (Supports 3.3~6V power supply). The battery can be charged by connecting USB.
Note: Be careful not to short-circuit the positive and negative poles when welding, which will burn the battery and the device
Package: 10PCS Esp32 s3 mini Development Board
