مميزات خاصة

HIGH-QUALITY MATERIALS & DURABLE: CC1101 supports a wide supply voltage range of 1.8V to 3.6VDC, ensuring compatibility with different power sources. Instantaneous maximum working current: <30mA; Maximum transmit power: 10mW (+10dBm).
FREQUENCY RANGE: Default frequency is 433MHz and comes with a 433MHz antenna. It could operate in the 315/433/868/915 MHz ISM/SRD band with the correct antenna and it supports various wireless protocols and standards.
LOW POWER CONSUMPTION: Engineered for battery-powered ecosystems, it integrates intelligent low-power modes to maximize battery longevity, ensuring seamless operation in energy-constrained environments.
EASY INTEGRATION: Boasting a miniature form factor and simple interface, the CC1101 transceiver module enables effortless integration into a diverse range of electronic devices, streamlining deployment for space-constrained and rapid-prototyping applications.
WIDELY USED: This wireless transceiver module stands out as the optimal solution for applications demanding reliable wireless connectivity. Tailored for IoT devices, remote control systems, wireless sensor networks, and it combines high-performance transmission with seamless integration.

وصف

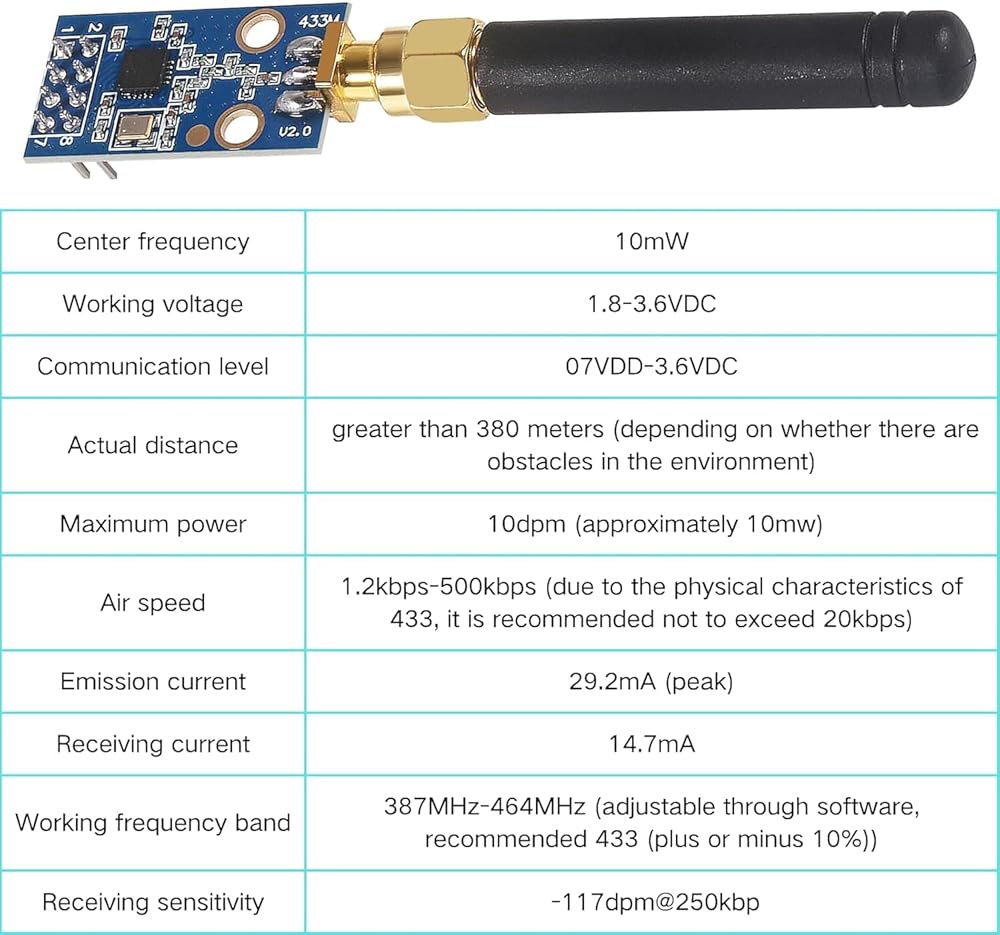

1.CC1101Workingfrequency:387-464 MHzand 779-928 MHz.Working voltage: DC1.8V-3.6V.Defaultworkingfrequency:433Mhz
2.Default working frequency:433Mhz.Receiver sensitivity-110dBm,1200 baud
3.Maximum instantaneous working current:
4.The minimum operating speed is 1.2kbps, the maximum is 500kbps
5.Independent 64-byte RX and TX data FlFO buffer. Built-in hardware CRCerror detection to ensure reliable data transmission
6. Built-in hardware CRC error detection to ensure reliable data transmission. Support 2-FSK, GFSK and MSK modulation; RSSI signal strength detection and carrier sensing functions Low power consumption.
7. Mailing address (256) Working frequency can be programmed via SPl
8. Programmable output power, supporting all frequencies up to +10 dBm
9. WOR function can be set to standby, proportional receiving state timing switch machine time, reduce power consumption.
I0. Fast frequency synthesizer with proper frequency hopping system
