Features :
Automated split to highest resolution, supports EDID/CEC.
Support highest video resolution 1920x1080P / 60 Hz ; 3840x2160 / 30 Hz.
Support Blu-ray, full HD/ HD 3D performance.
Support 3.4Gbps data rate and tmds clock up to 340 MHz.
Support AWG26 HDMI standard cable, input up to 15 metres, output up to 25 metres(resolution ≤1080p).
Support AWG26 HDMI standard cable, input up to 12 metres, output up to 15 metres(resolution:4k).
Support audio format: DTS-HD/ Dolby-trueHD/ DTS/ Dolby-AC3/ DSD.
Specifications :

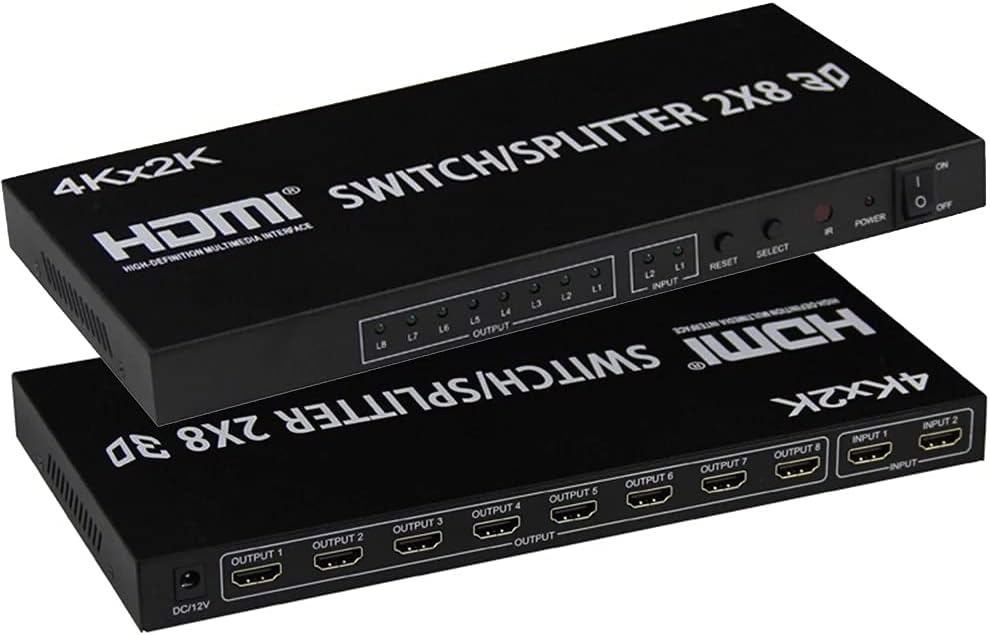

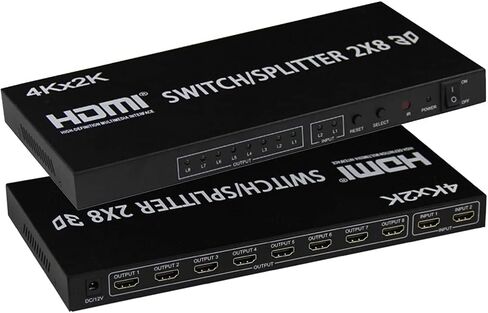

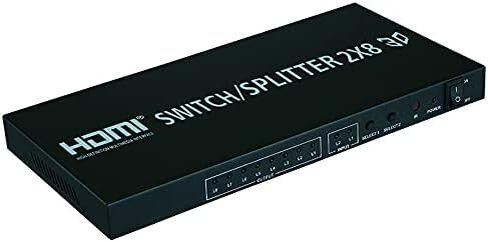

HDMI Input Port: 2
HDMI Ouput Port: 8
Max working current: 500mA
Power adapter Input format: AC (50HZ, 60HZ) 100V-240V
Power adapter Input format: DC5V/1A
Operating Temperature range: (-15 to +55)
Dimension (L x W x H) : 276 x 135 x 24 (mm) / 8.3 x 4.1 x 0.7 (inch)
Package Weight: 970g

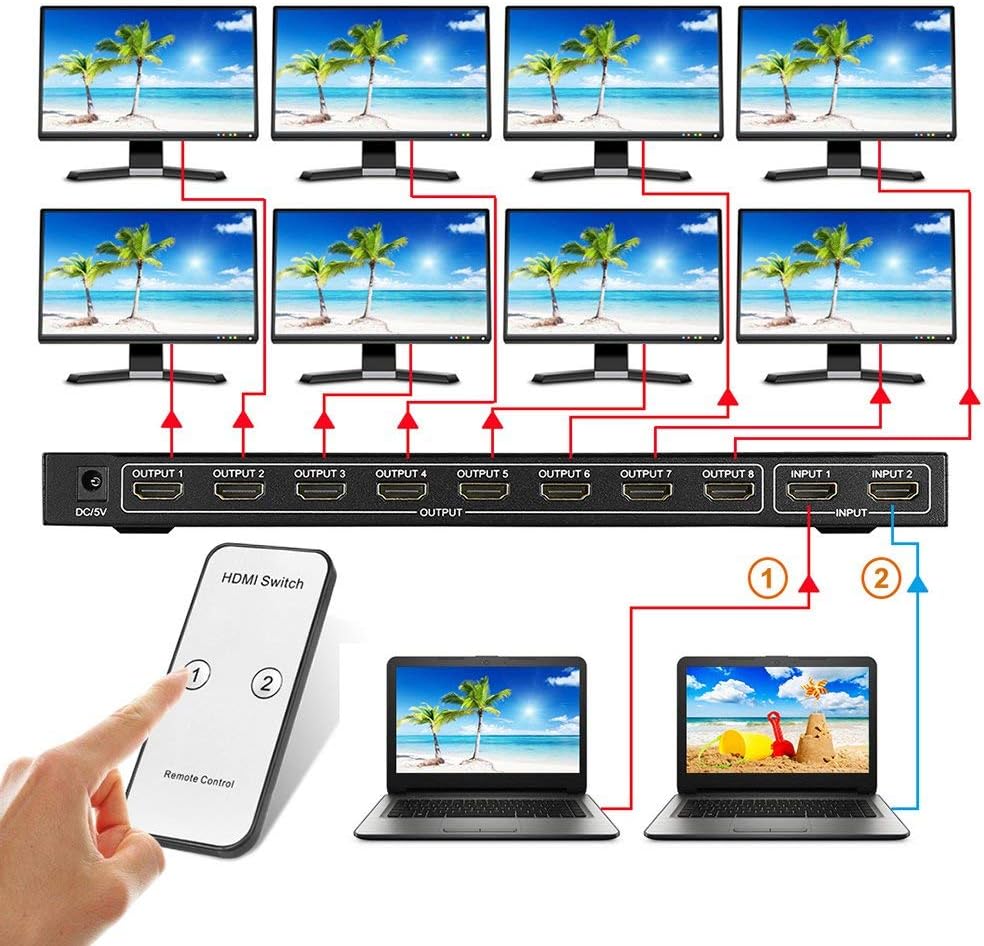

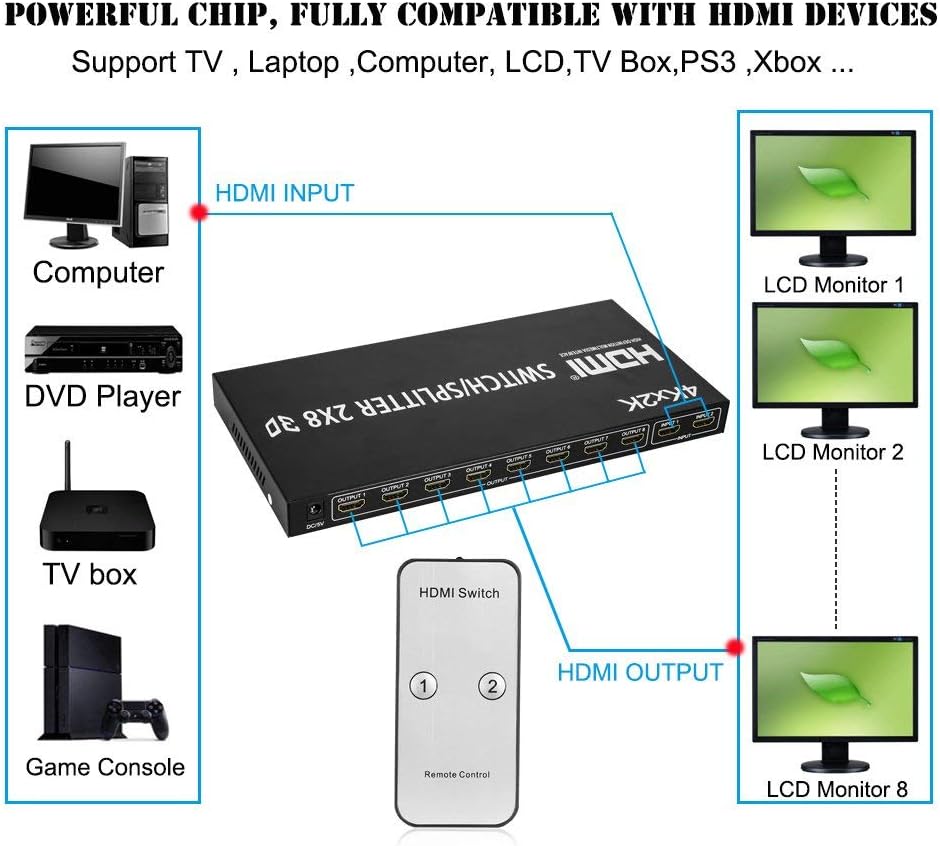

Operating and Connecting:
1: Connect HDMI source device and HDMI Switcher/Splitter input with two HDMI cables.
2: Connect display and HDMI Switcher/Splitter output with two HDMI cables.
3: Connect 5V/1Apower adapter to the HDMI Switcher/Splitter.

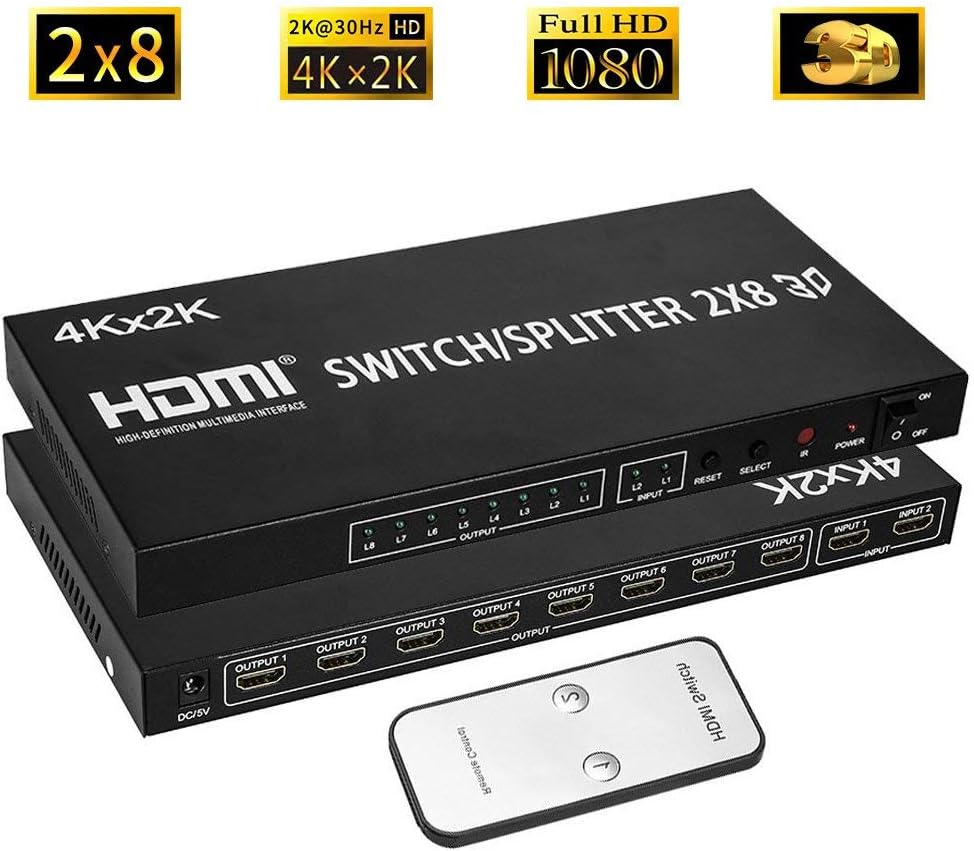

The Package includes:

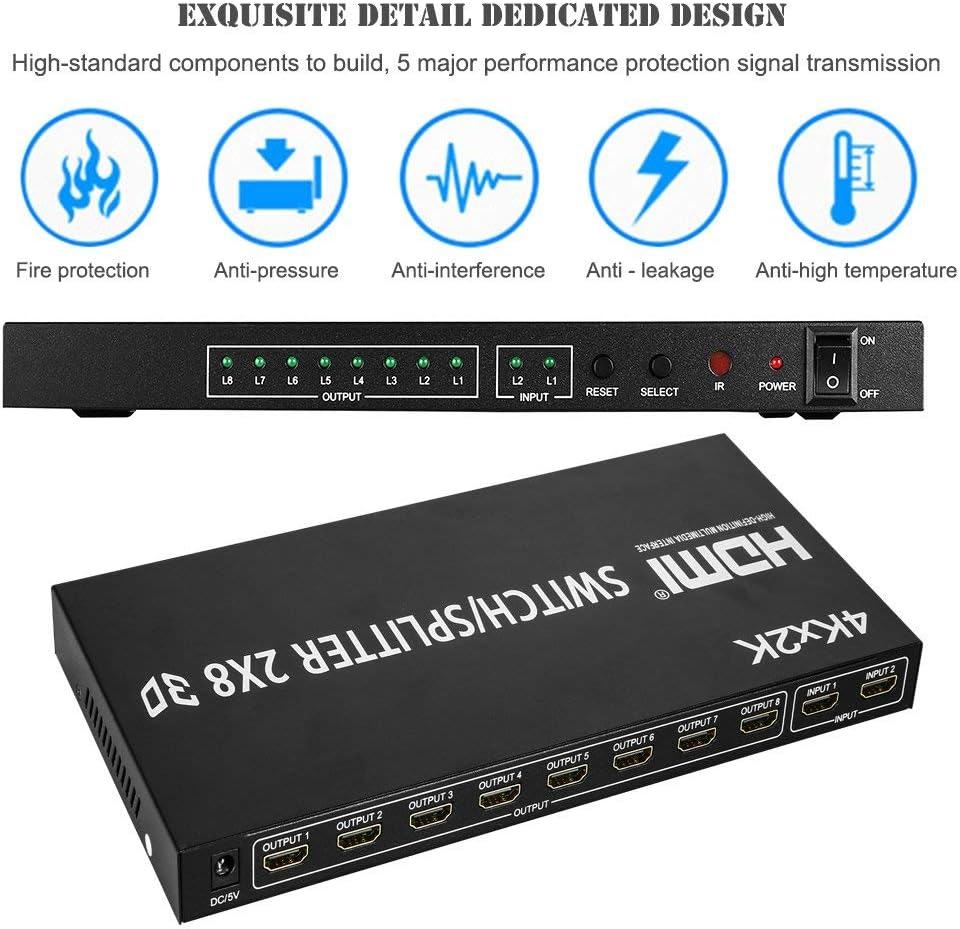

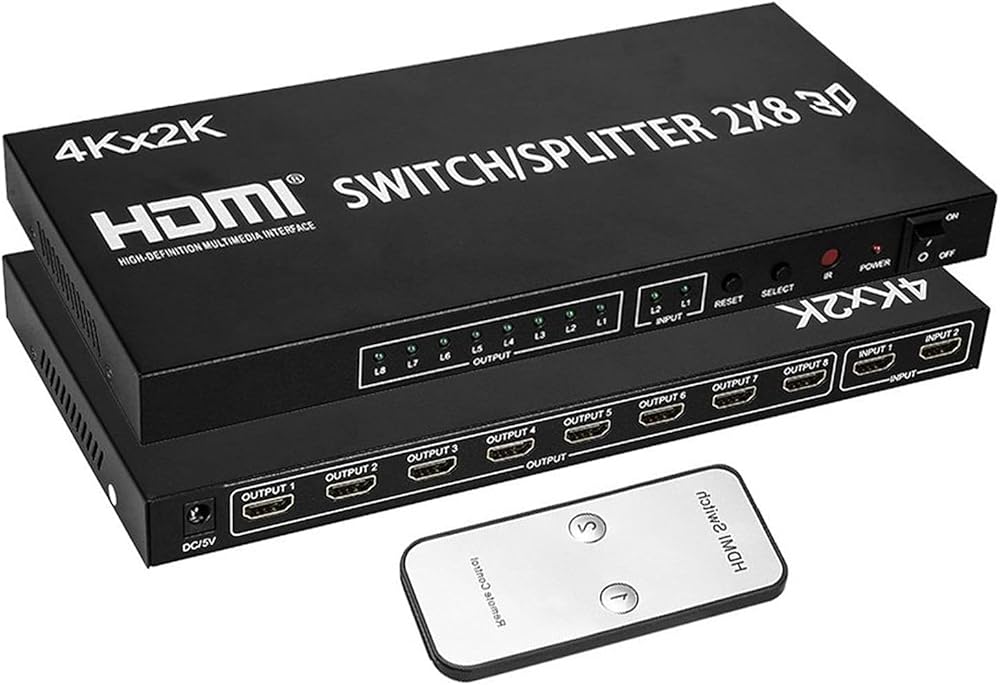

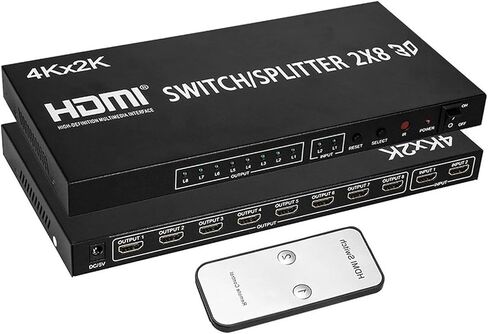

1. 2X8 HDMI Switcher/Splitter
2. IR Remote Control (with battery)
3. 5V DC Power adapter
4. User Manual
