Network Adapters
XIC PE482

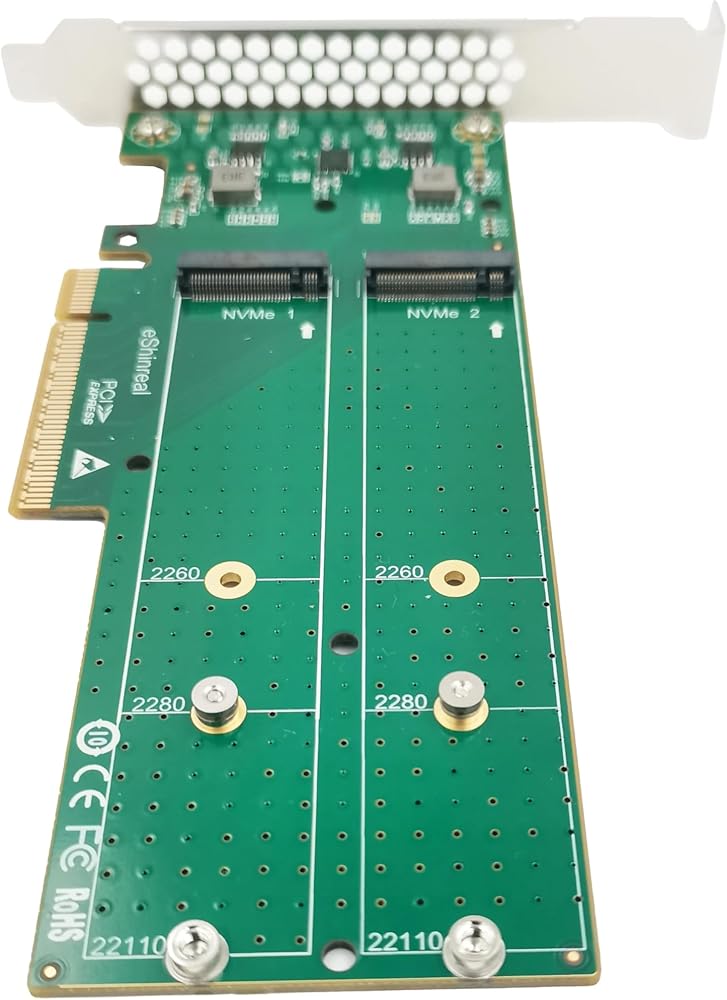

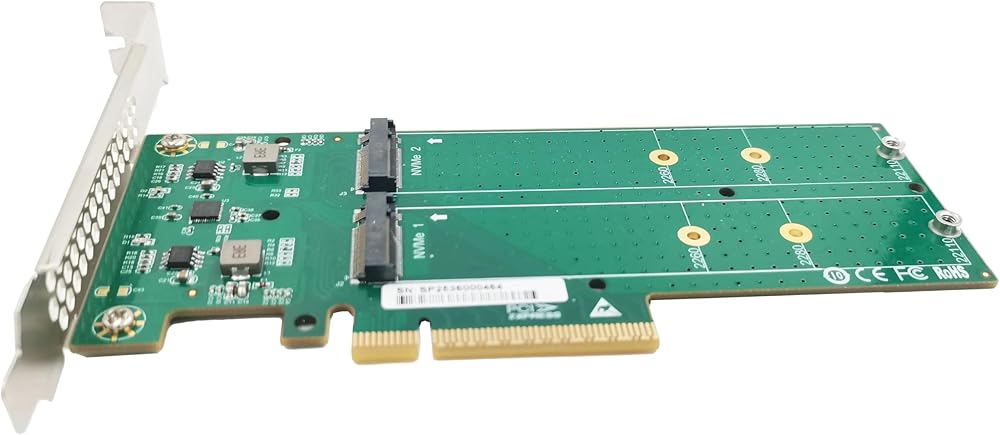

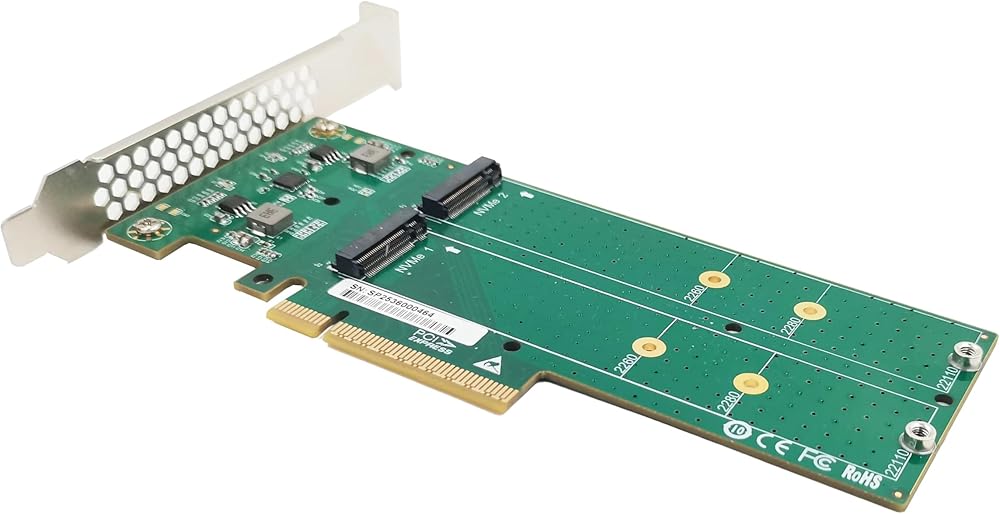

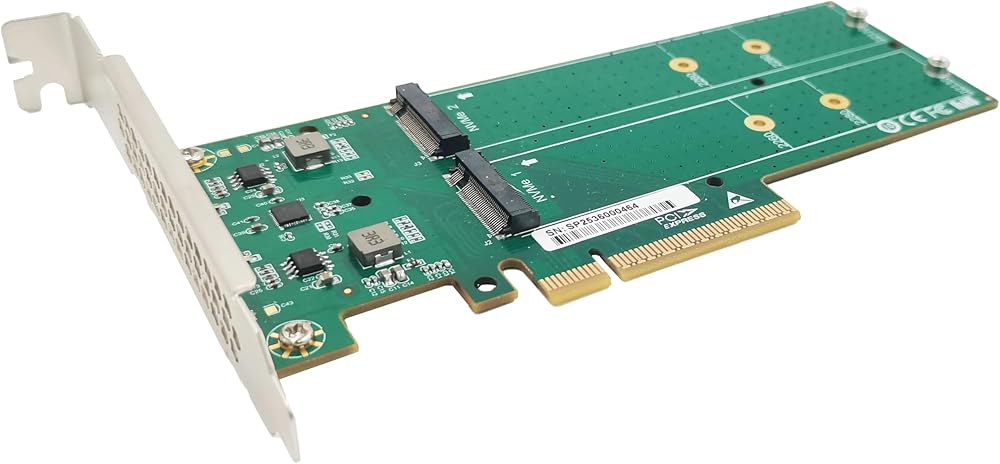

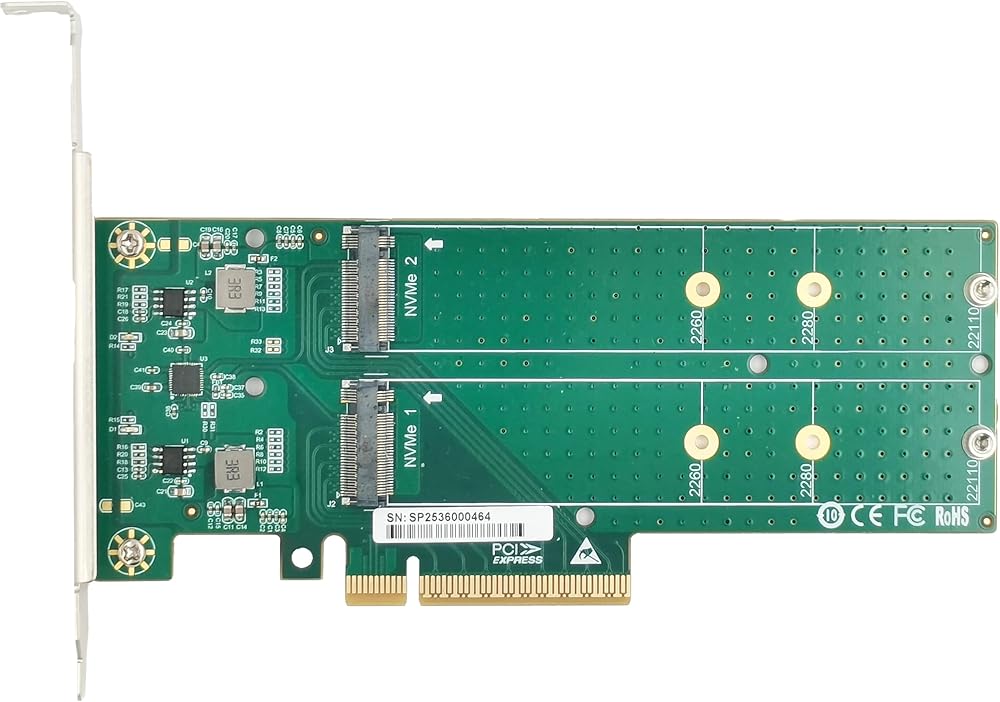

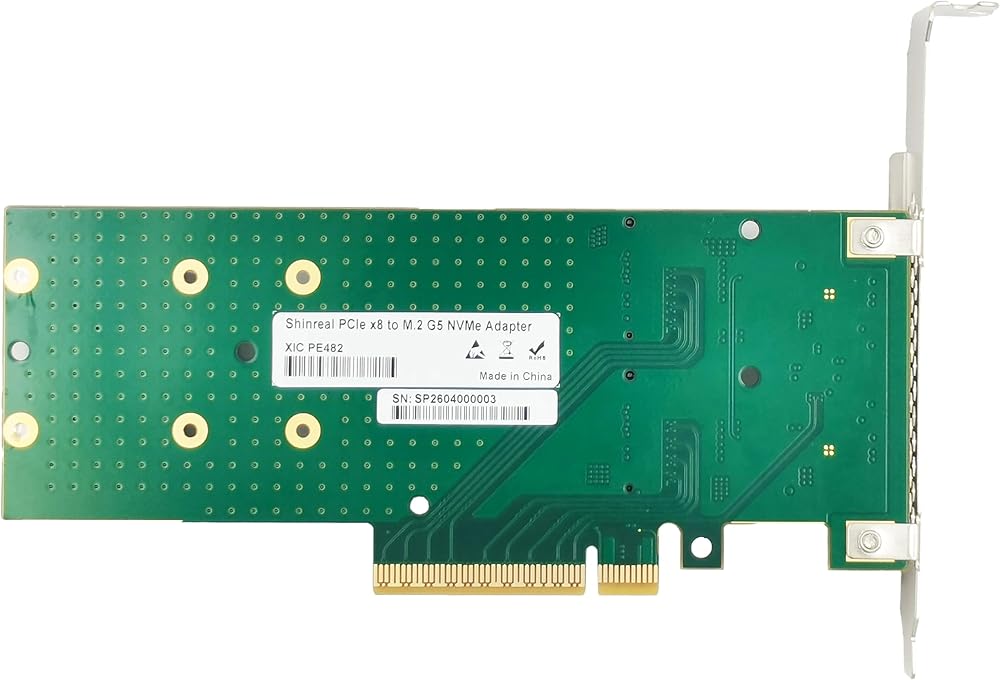

PCIe x8 to 2-Port M.2 NVMe Adapter
Product Model:XIC PE482Product Name: PCIe x8to 2PortM.2 NVMe SSDs Adapter
Interface Type:2*M.2 M-keyConnectors
Support Equipment:2*M.2 NVMe SSD
Host Bus Type:PCIex8Ps. Motherboards BIOS needs to have PCIe Bifurcation Mode Support
XIC PE4822 Ports M.2Card is a great storage solution for any workstation with PCIe x8 bandwidth. It has twoM.2 M-keyconnectors to accept twoM.2 NVMe SSD Drives, So each M.2 SSD Drives has dedicated PCIe 4.0 x4 bus bandwidth. It allows user to add dualM.2 NVMe into any PCIe x8slot to achieve their full potential bandwidth.
Features:
Supports 2PCIe M.2 NVMe SSDs.
Compatible with PCIe Gen5, Gen4, Gen3.
Comes witha full-profile bracket (preinstalled), and also includes a low-profile bracket for a small form-factor computer.
Computer with PCI Express Slot (x8) support PCIe Bifurcation mode.
A heatsink must be installed when installing a PCIe Gen5 SSD.
Operating on PCIe Gen4 is the most stable.
Please kindly verify with your mainboard manufacture to make sure the motherboard BIOS support Bifurcation for the PCI Express you are using.
Advantages
Upgrade your data center or enterprise-level applications with M.2 NVMe SSD capability
Utilize the advanced performance of a PCIe NVMe M.2SSD for intensive data workloads - ideal for numerous professionals from architects to medical professionals
Work with large files more efficiently for audio/video production and editing
Dimension drawing
HARDWARE
Model
XIC PE482
Bus Type
PCI ExpressGen4
Compatible Device Types
M.2 PCIe4.0NVMe SSD
CONNECTOS(S)
Device Connector
2*M.2 G5 ( 75Pin,x4 PCIeG5)
Host Connector
PCI Express x8 goldfinger
ENVIRONMENTAL
Humidity
15% ~ 90%
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-25°C to 70°C (-13°F to 158°F)
PHYSICAL CHARACTERISTICS
Product Dimension
162mm x 68.9mm
Product Weight
63g
PACKAGING INFORMATION
Package size
240mm x 150mm x 30mm
Shipping Weight
160g
WHAT'S IN THE BOX
Included in Package
1 *PCIe x16 to Dual M.2 NVMeSSDsAdapter
1 *low-profile bracket
1 *full-profile bracket (installed)
Remark: Please kindly Note this card requires PCIe Bifurcation on the motherboard to support twoM.2 NVMe hard drives, and BIOS supports PCIe Slot bifurcation.
==========
High-concerned chemical : None
Model Number : XIC PE482
Interface : PCI
Package : Yes
Function : 2 in 1
Interface Type : NGFF,PCI Express
Origin : Mainland
Installation : Internal
Type : PCI-E To M.2 Card
