ProductDescription

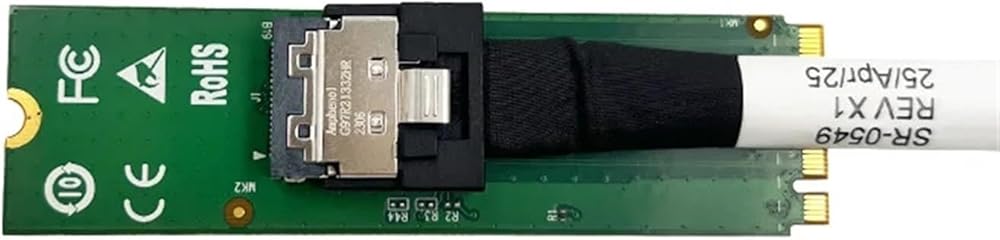

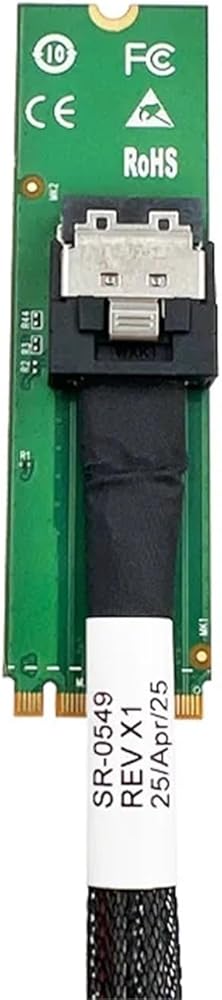

24MC-U.2 converts the PCIe M.2 M Key on the mainboard to the MCIO 4I connector.It can connect your U.2 SSD through the supplied MCIO 4i to SFF-8639 cable. Make the M.2 NVMe interface on the motherboard fully utilized and no longer idle.
Features
Support 1 PCIe devices or NVMe SSDs
Compatible with PCIe Gen5, Gen4, Gen3
Directly connected to U.2 NVMe SSD by MCIO 4ito SFF-8639 cable
Compatible with 2280 M.2 standard sizes
Build in MCIO4i connector , pin-out defined by SFF-9402
Operating system support
The adapter does not require a driver for operation orcommunication to attached NVMe drives.The drives are presented nativelyto the host and use the native NVMedrivers.
Dimension drawing
Parameters
HARDWARE
Model
XIC 24MC
Number of Device
1internal
Bus Type
PCI Express4.0
Interface
MCIO4I
CONNECTOR(S)
Device Connector
1*MCIO (38Pin, x4PCIe Gen 5)
Host ConnectorType
M.2 M key
ENVIRONMENTAL
Humidity
15% ~ 90%
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-25°C to 70°C (-13°F to 158°F)
PHYSICAL CHARACTERISTICS
Dimension
22mm x 80mm
Product Weight
10g

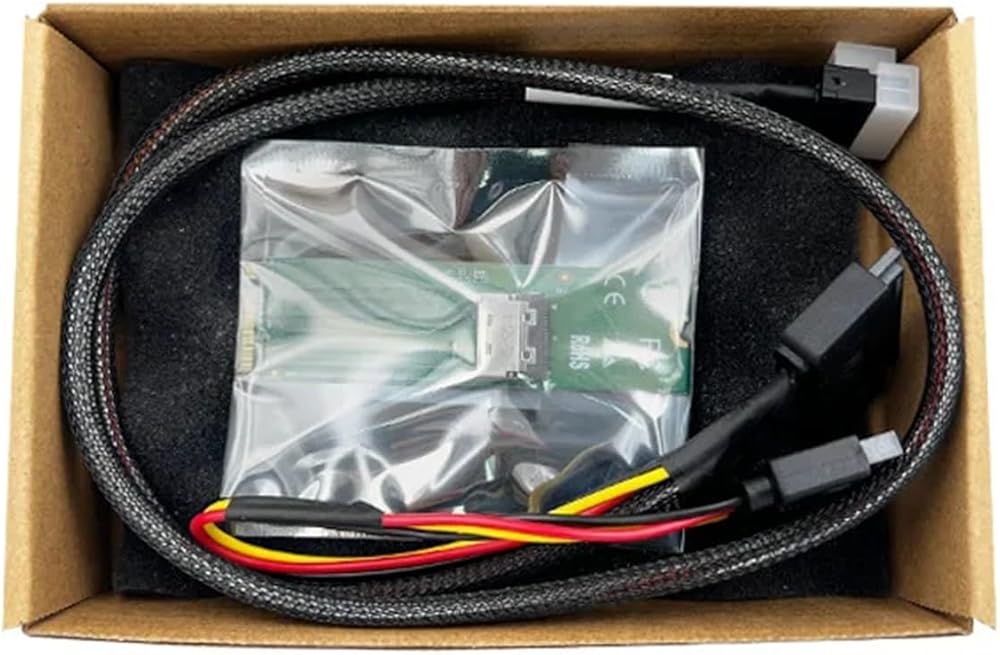

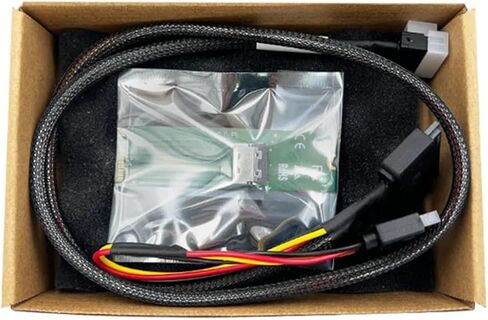

WHAT'S IN THE BOX
Included in Package
1 - M.2to MCIO4iNVMe Adapter

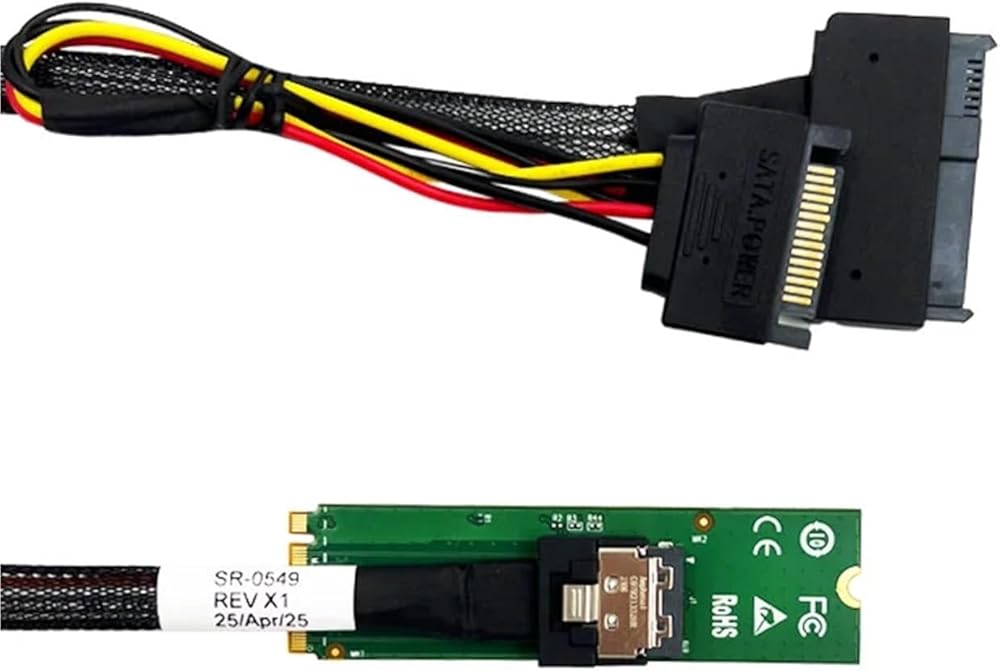

1 - MCIO4ito U.2 NVMe Cable
==========
High-concerned chemical : None
Model Number : 24MC-U.2
Package : Yes
Function : Single
Interface Type : NGFF
Origin : Mainland
Installation : Internal
Type : Add On Cards
