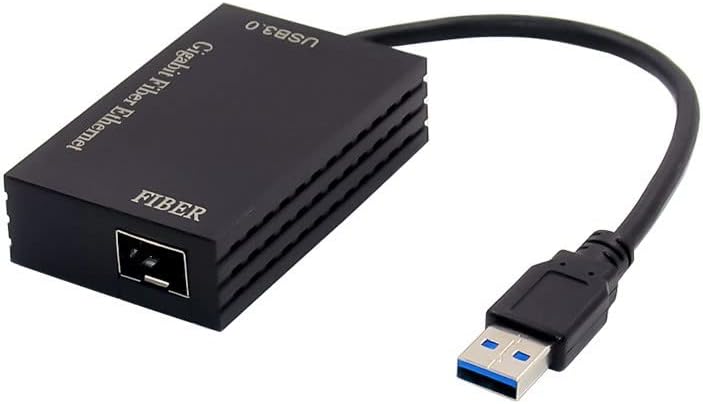

USB 3.0 Gigabit Fiber Ethernet Adapter
Descrition :
The USB 3.0 Gigabit SFP Fiber Network adapter used an controller RTL8153, Which is features USB3.0 to provide higher bandwidth and improved protocols for data exchange between the host and the device. USB3.0 also offers more advanced power management features for energy saving. The RTL8153 supports IEEE802.3az-2010, also known as Energy Efficient Ethernet (EEE), and it is fully compliant with Microsoft NDIS5, NDIS6(IPv4,IPv6,TCP,UDP)checksum features ,and supports IEEE802 IP layer 2 priority encoding and IEEE802.1Q Virtual bridged Local Area network(VLAN). It is suitable for desktop, workstation, server, communication platforms etc.
Features :
Hardware
Integrated 10/100/1000M transceiver
Auto-Negotiation with Next Page capability
Supports USB 3.0, 2.0, and 1.1
Supports CDC-ECM
Supports LPM (Link Power Management)
XTAL-Less Wake-On-LAN
Supports power down/link down power saving
Transmit/Receive on-chip buffer support
EEPROM Interface
Embedded OTP memory can replace external EEPROM
Built-in switching regulator and LDO regulator
Supports Customizable LEDs
Supports hardware CRC (Cyclic Redundancy Check) function
Software Offload :
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation
Task-offload (Large send v1and Large send v2) support
Supports jumbo frame to 9K bytes
IEEE :
Supports Full Duplex flow control (IEEE 802.3x)
Fully compatible with IEEE 802.3 and IEEE 802.3u
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Supports IEEE 802.3az-2010 (EEE)
PN # GR-SFP-1963
