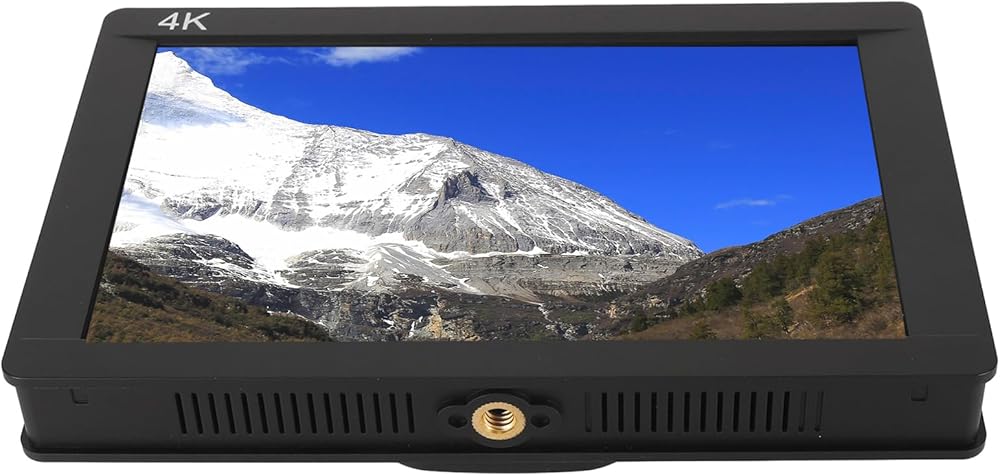

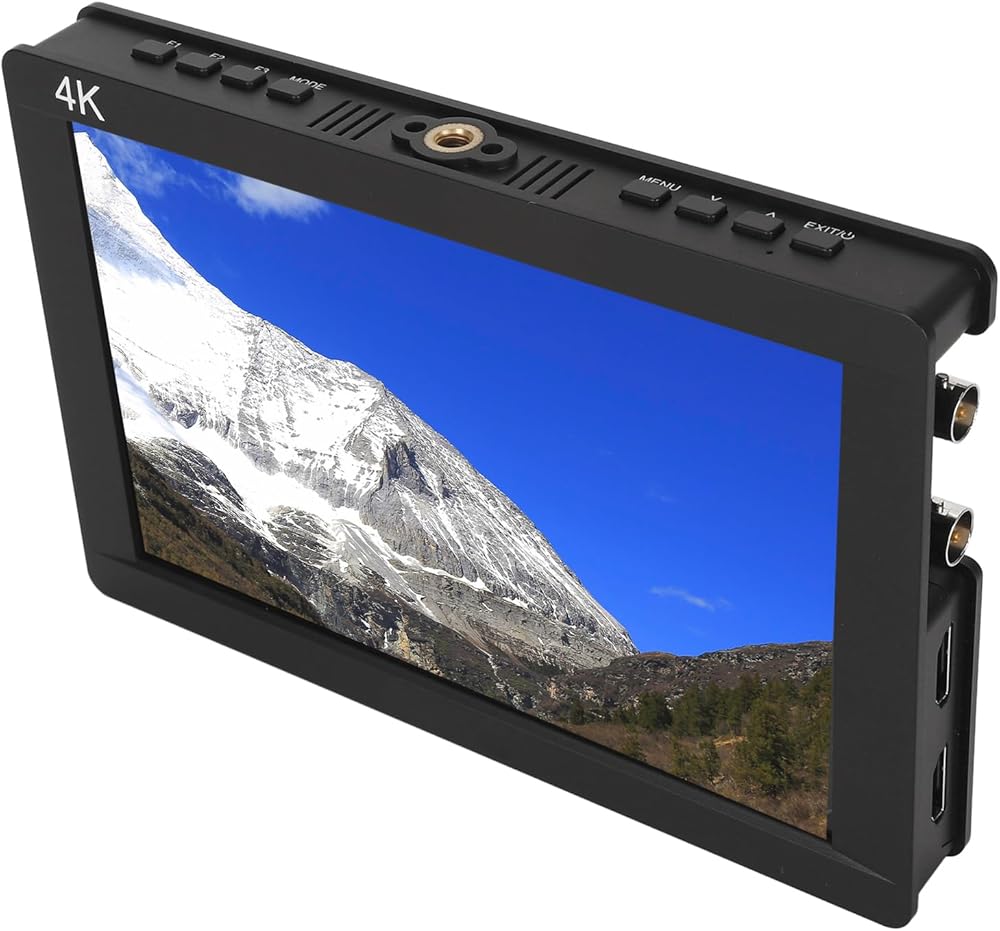

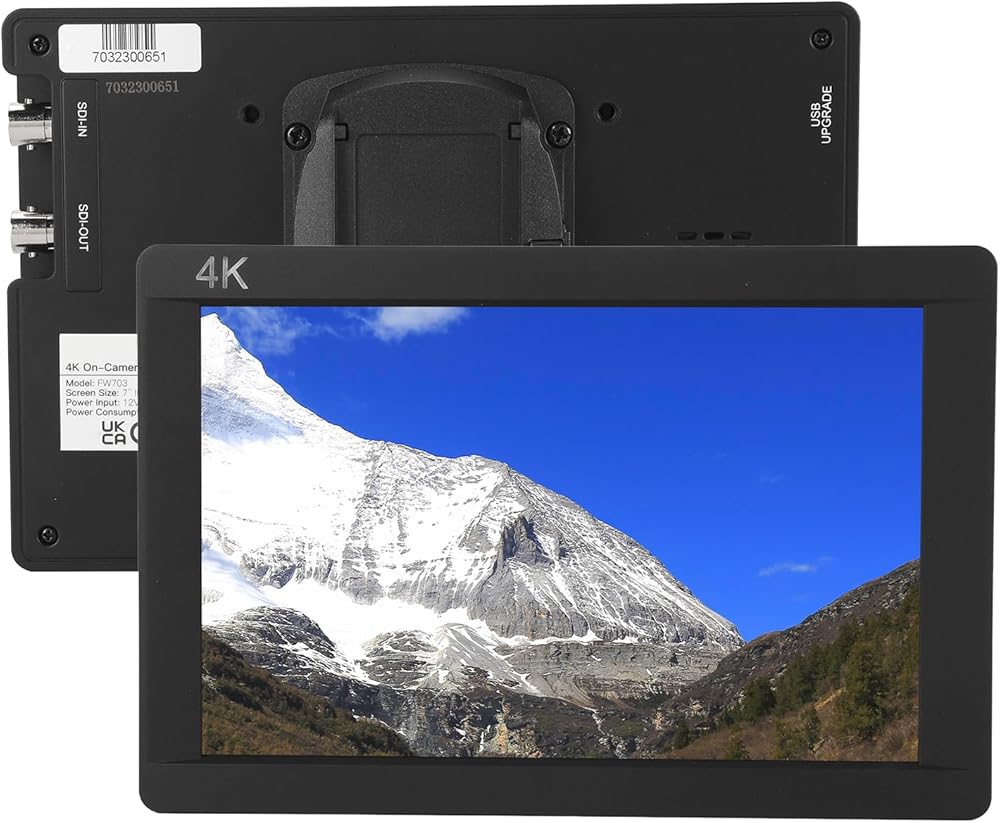

1. 7 Inch Camera Field Touch Screen Display: 7 inch IPS screen 3G SDI 4K HD Multimedia Interface camera field display, full HD 1920x1200 high resolution, high brightness: 450cd/m2, high contrast ratio: 1200:1, aspect ratio 16:10 160 degree wide viewing angle.
2. More Auxiliary Functions: FW703 integrates professional functions such as histogram, embedded sound, false color, exposure, check field, nine frames, and zoom to help users accurately expose and focus when , producing and playing movies, videos.
3. Color Calibration Technology: Professional Rec.709 HD color standard and color calibration technology, together with the factory professional instrument calibration, can efficiently achieve display calibration, easy to get accurate color reproduction, color is not distorted, and the video presents the real image.
4. Compact Design: FW703 includes 3G SDI and 4K HD Multimedia Interface inputs and outputs, USB upgrade, 3.5mm headphone slot, and built in speakers. Its SDI port supports SD, HD, and 3G formats up to 1080p 60Hz, and the HD Multimedia Interface port supports up to 4K 2160p 30Hz, supporting almost all signal formats.
5. LUT Loading Function: 7 inch camera field display makes the color calibration of pre easier and more intuitive, optimizes the workflow and provides work efficiency. You can either use the 4 built in LUTs or customize the upload of .cube files.

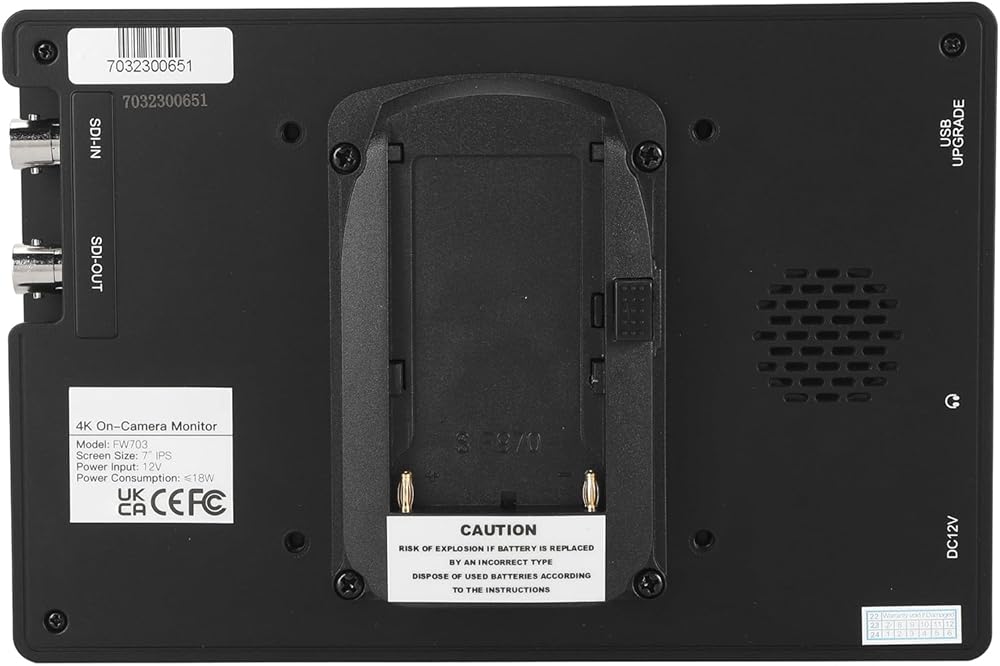

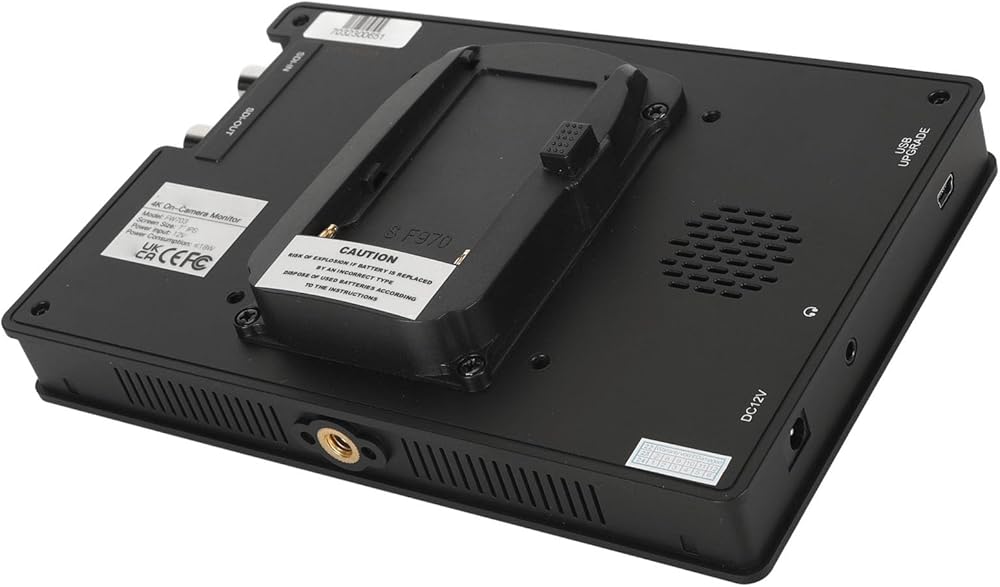

6. 12V DC Power Hole: FW703 display has a 12V DC power hole, which can support 12V 1.5A power adapter power supply, and can also be directly installed with battery power supply, which supports for F970, for D28S for D54, for LP E6, and for U60 for a wide range of battery snap on boards to choose from.

Spec:
Item Type: 7 Inch Camera Field Display
Material: ABS, LCD
Model: FW703 V2
Screen Size: 7 inch IPS touchscreen
Resolution: 1920x1200 pixels
Aspect Ratio: 16:10
Brightness: 450cd/m²
Contrast Ratio: 1200:1
Backlight: LED
Viewing Angle: 80 degrees, 80 degrees (L/R) 80 degrees, 80 degrees (U/D)
Input: SDI, HD Multimedia Interface
Output: SDI, HD Multimedia Interface
Sound: 3.5mm Stereo Headphone, Speaker
SDI Support: 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF), downward compatible
HD Multimedia Interface Support: 4K UHD 3840×2160p (30/29.97/25/24/23.98), 4096×2160p (24Hz), downward compatible
Battery: Compatible with for F970, for F960, for F950, for F930, for for F750 series (not included)
Input Voltage: DC 6.5-24V
Power Consumption: ≤9W

How to Use:
Simply install and it is ready to use!

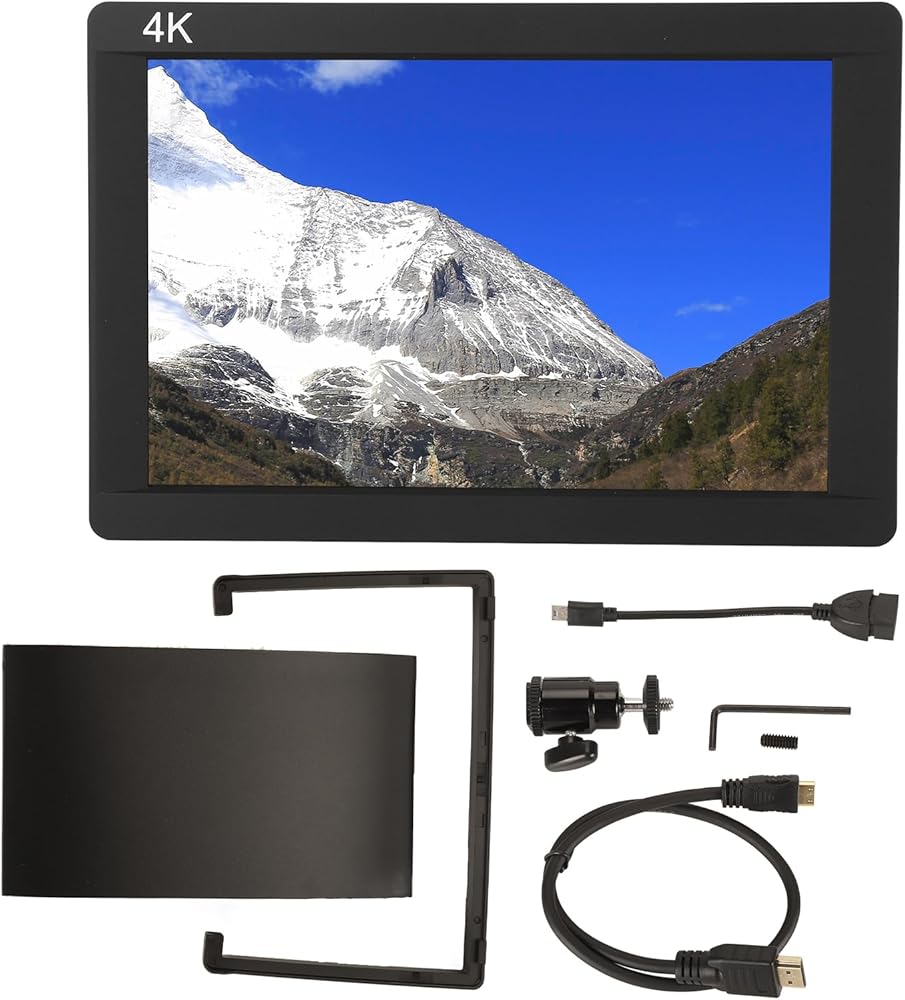

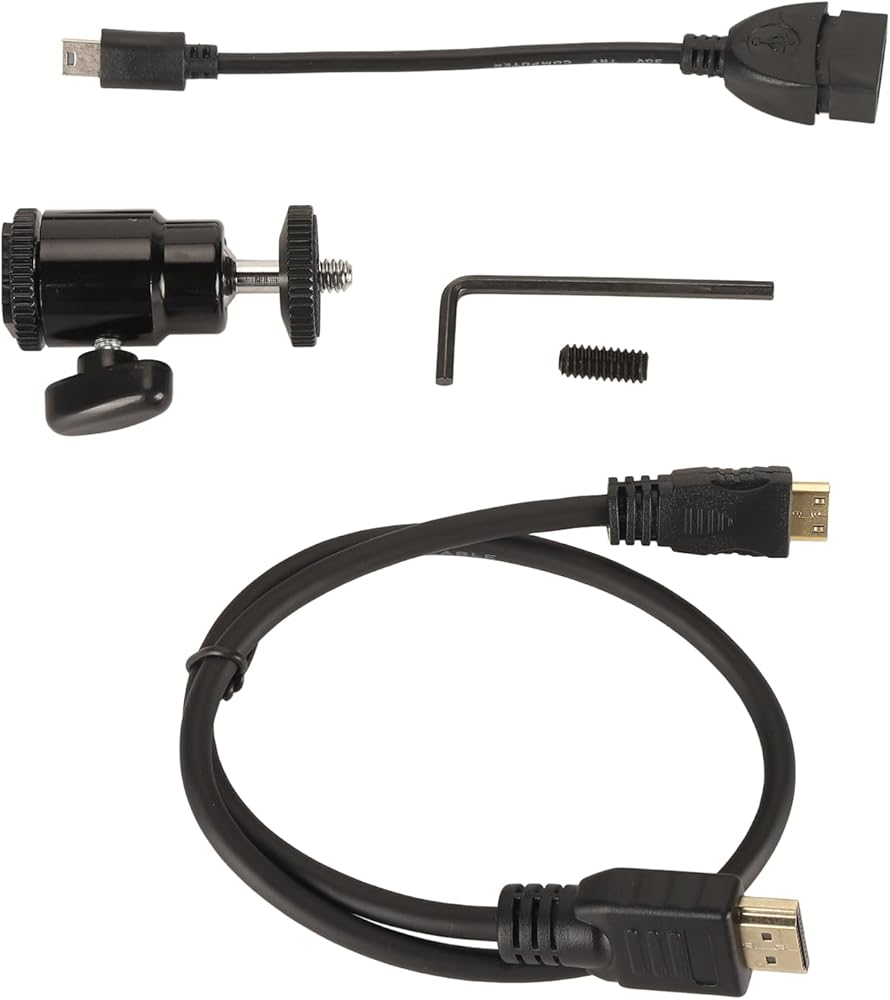

PackageList:
1 x 7 Inch Camera Field Display
1 x Mini HD Multimedia Interface Cable
1 x Sunshade Set (2 pieces)
1 x Small Head
1 x Mini USB to USB Cable
1 x Hex Key
1 x Screw
1 x Instruction Manual

Note:

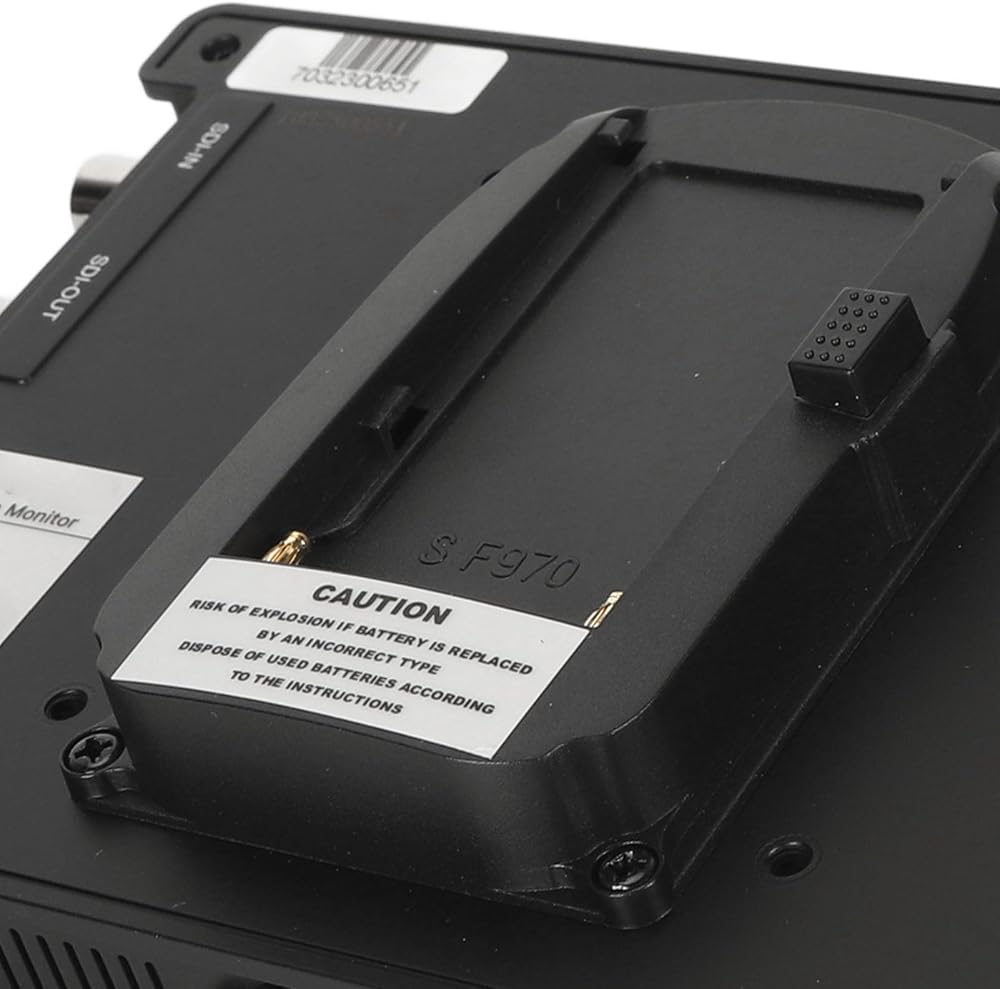

Note: The shipment includes only F970 battery plate, power adapter and other of battery plates are not included.
