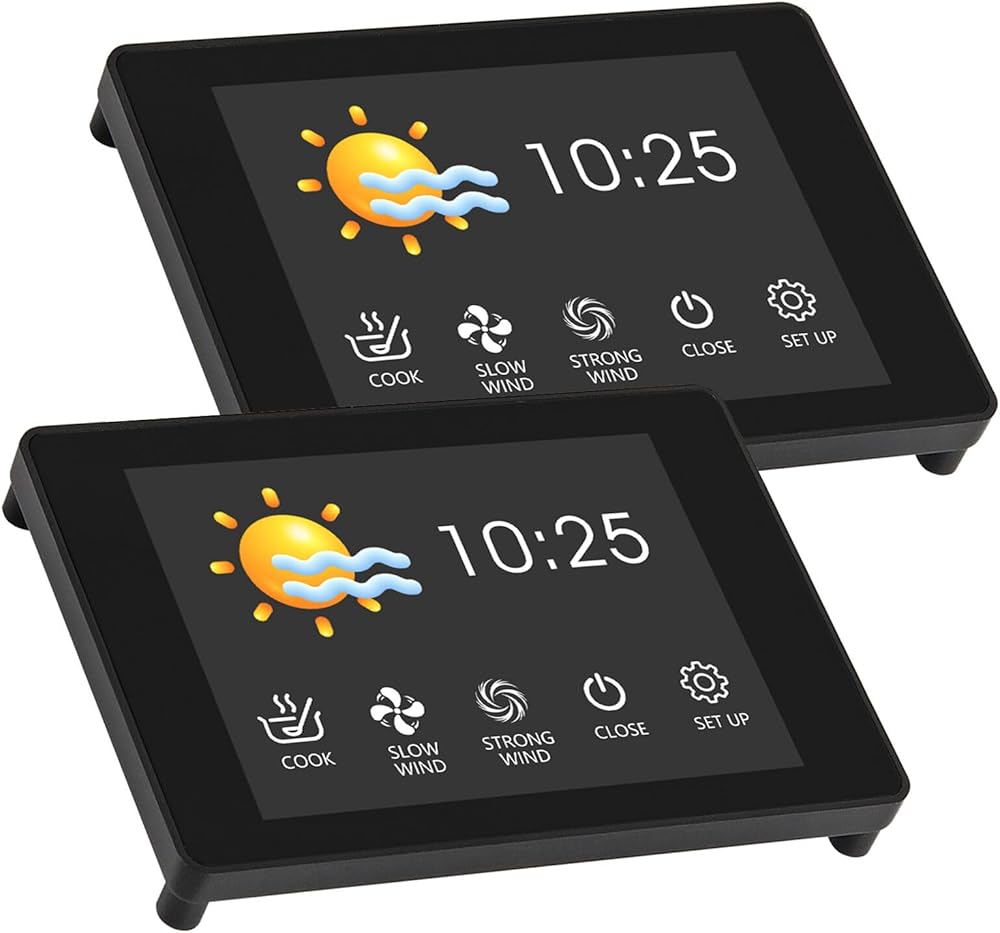

ESP32-S3 Touchscreen Module: 2.8-inch touch serial screen ESP32-S3R8 main control ST7789T3 driver Support communication interface RS485/WiFi/Bluetooth
2.8-inch Touch Serial Display, developed based on the ESP32-S3 chip, features a 2.8-inch touchscreen with integrated WiFi and Bluetooth functionality, supporting serial port control. Equipped with an integrated black embedded mounting bracket for easy installation and a sleek, minimalist appearance, it is suitable for smart appliances, smart home systems, industrial instruments, and other applications.
The esp32 s3 Screen Features a 240x320 resolution color screen with 262K color depth (RGB666), capacitive touch, and wide viewing angles for a smooth interactive experience
Driver IC:ST7789P3;Touch Chip IC: FT6336U;The esp32-s3 Screen is widely used in energy storage charging equipment, kitchen appliances (such as air fryers, ovens), household appliances (water heaters, washing machines), industrial control products, water quality detectors and other intelligent devices, as well as various scenarios that require LCD color screen display. It is an ideal choice for upgrading traditional segment code screens or black - and - white screens
High Performance & Low Power Consumption: Equipped with a highly integrated ESP32 - S3 R2 module, it achieves energy - saving and efficient operation through a low - power design
Diverse Connection Capabilities: Integrates Wi - Fi and Bluetooth (BLE) wireless connection functions, supports RS485 interface, and can customize the serial port through an expansion interface to meet diverse connection needs

وصف

Specification：
System - on - Chip: ESP32 - S3 Module
Central Processing Unit:Xtensa Dual - core 32 - bit LX7 Microprocessor
Connection Method :2.4GHz Wi - Fi (802.11 b/g/n) and Bluetooth5 (LE) Module
Display Screen:2.8 - inch, 320×240 LCD Display
Driver IC Model:ST7789P3
Touch Chip IC:FT6336U
Viewing Direction:Full View Angle
Interface:MCU8080 8 - bit Interface
Type:G + F
Power Supply:DC 5V/1A
Operating Temperature: - 20℃ to +70℃
Hardware Overview:
ESP32 - S3 Module (Model: WT32 - S3 - WROOM - N8R2)
LCD 8080 Interface
USB Interface
RS485 Interface
Expansion IO Interface
Debugging Interface
Package:
2.8 - inch Development Board*1
