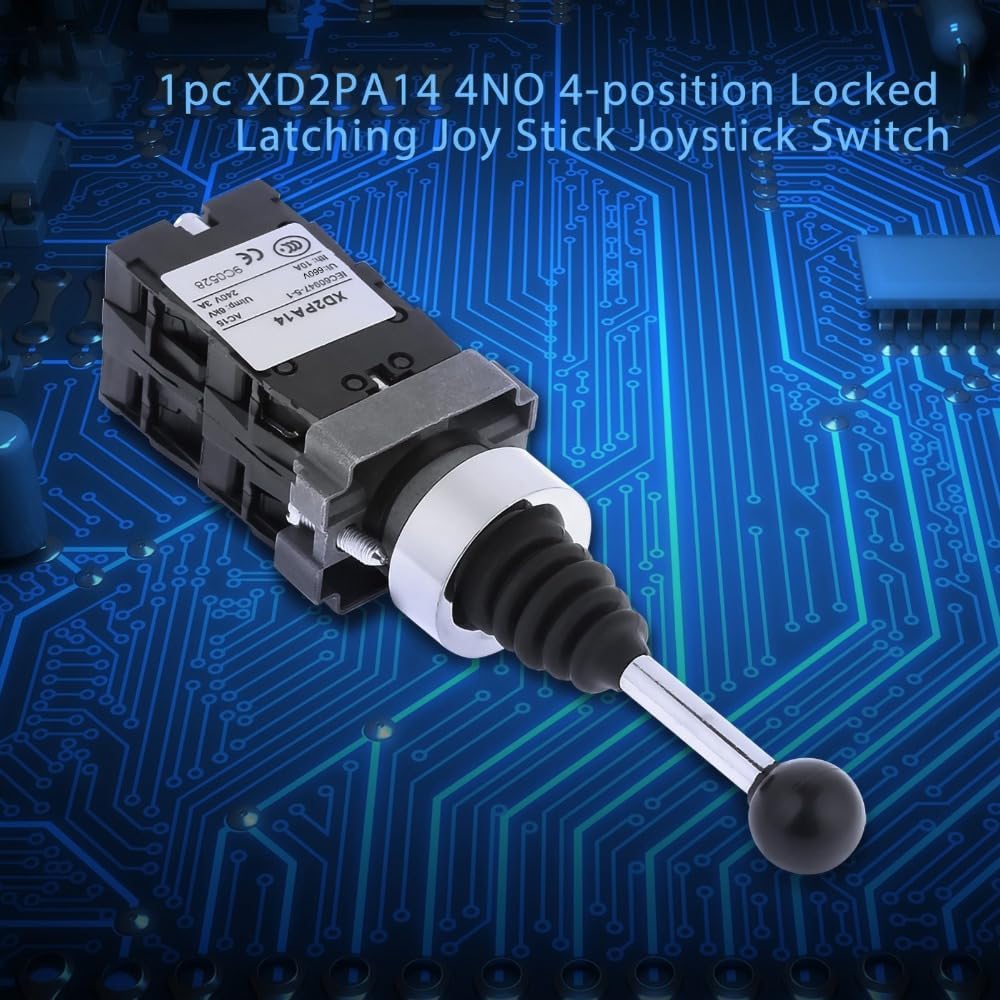

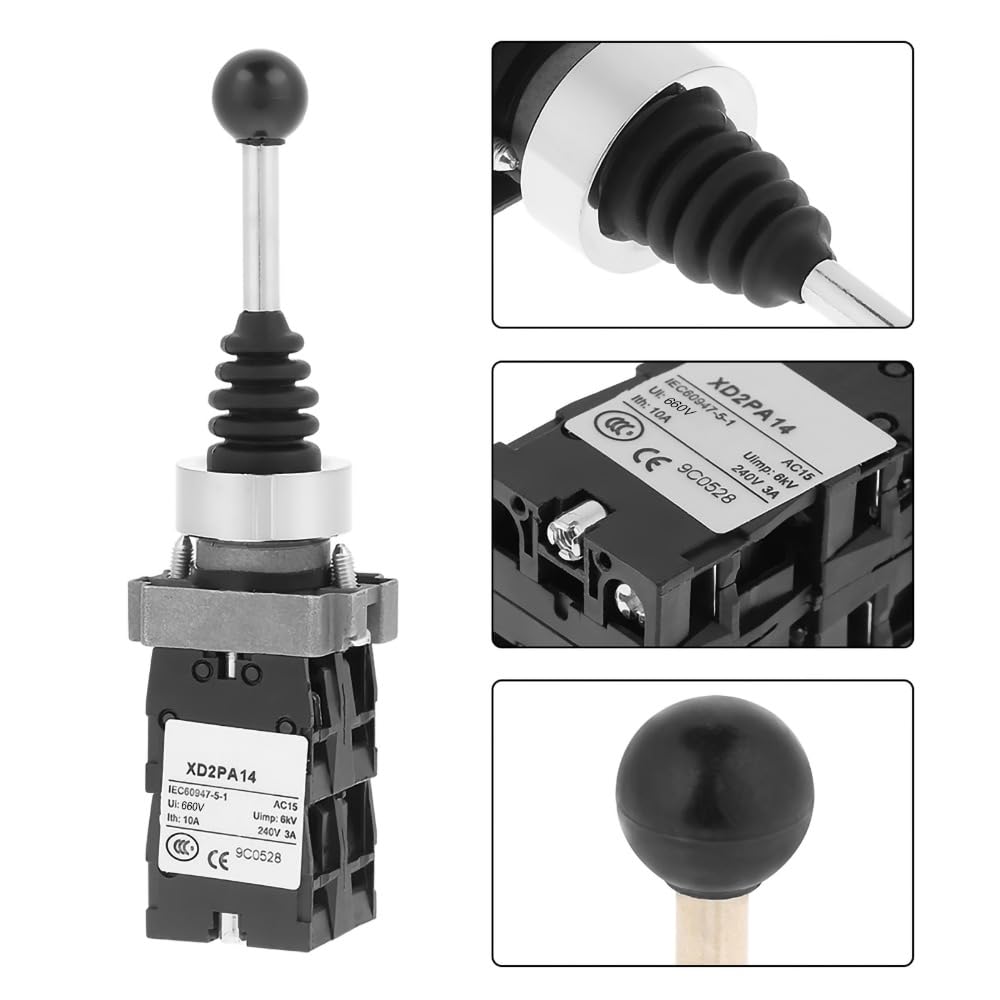

XD2PA14 latching joystick switch delivers reliable 4-position control for industrial electrical systems. This 4NO touch switch operates magnetic starters, contactors, and relays with precision. The protective rubber sleeve ensures resistance against water, oil, and dust ingress (IP40 rated), making it suitable for demanding environments
Ideal for control panels, this joystick supports both AC 50Hz and DC circuits. Its 22mm mounting hole facilitates easy installation. With a mechanical life of 50,000 cycles and 10A thermal current rating, it offers enduring performance. The black housing maintains a professional appearance
Specifications:
Model: XD2PA14

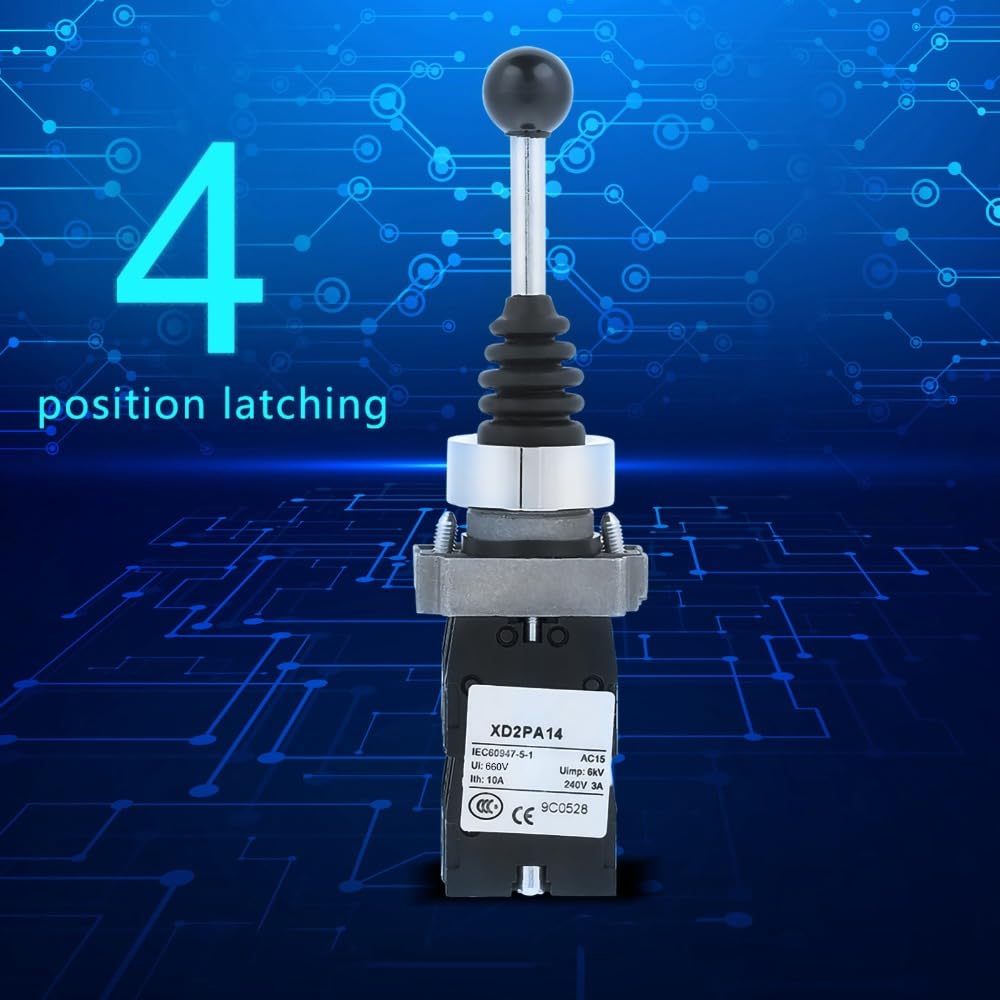

Type: 4-position latching
Tocuhs: 4NO
Mounting Hole Diameter: 22mm(0.87in)
Maximum Withstand Voltage: 3000V, AC 50Hz
Rated Isolation Voltage(Ui): 660V
Thermal Current Rating (Ith): 10A
Rated Impulse Withstand Voltage(Uimp): 6Kv
Mechanical Life: 50, 000times
Color: Black
IP Rating: IP40

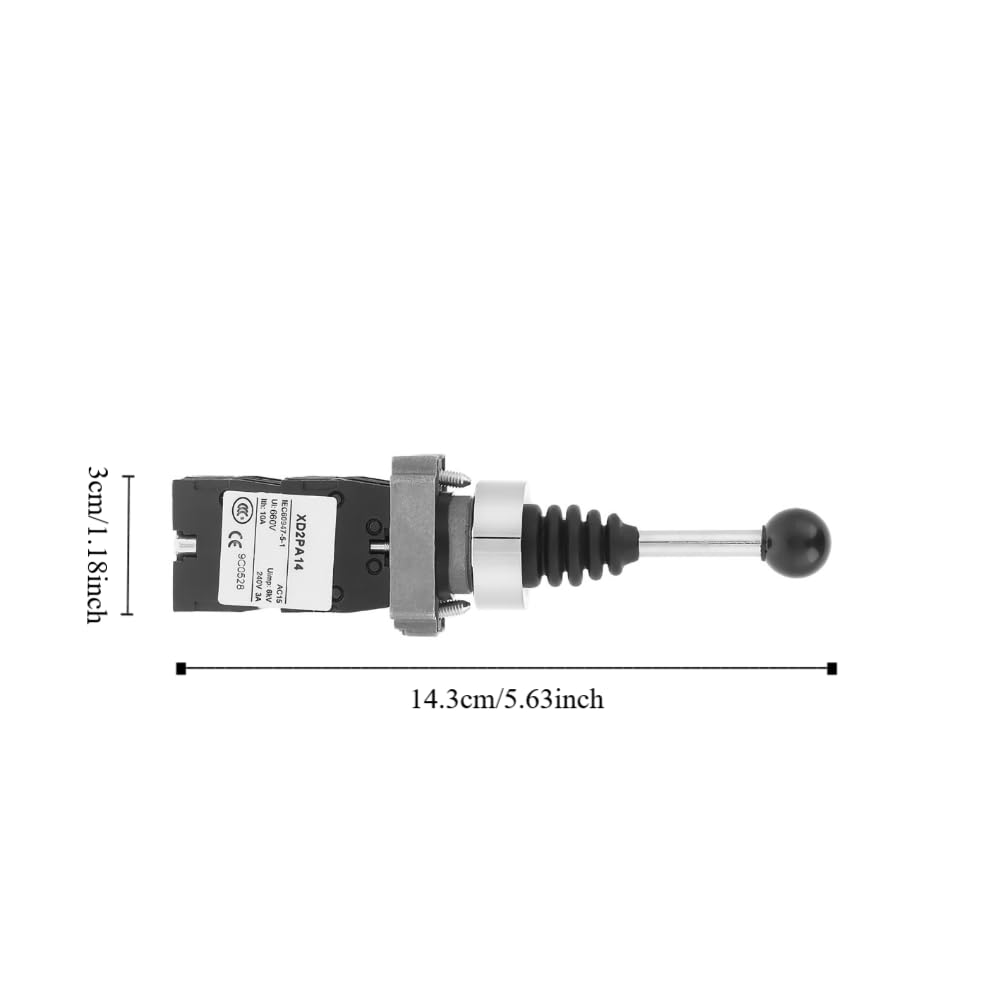

Size: 14.3*3cm(5.63*1.18in)
Package Includes:
1 x Joystick Switch
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding
