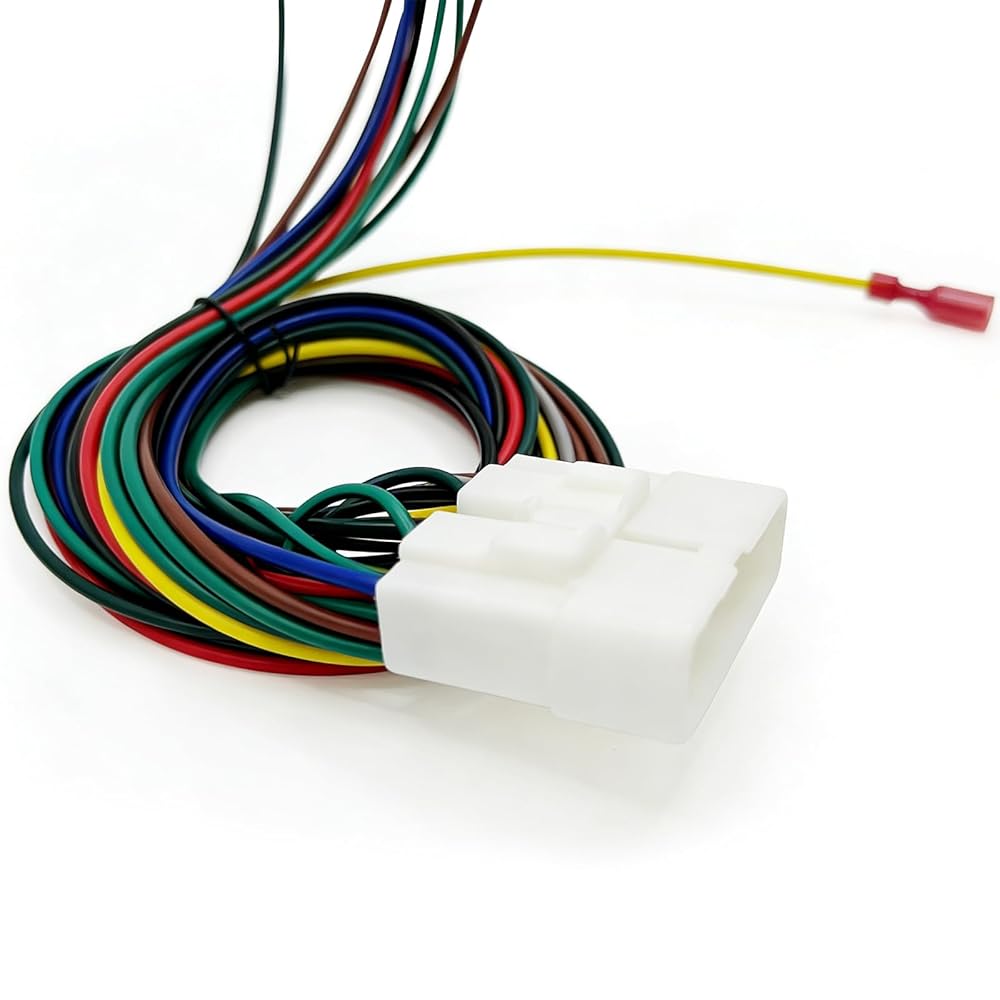

RicoRich سلك تسخير أمبير محول تجاوز لكزس IS300 2001-2005، ما بعد البيع راديو ستيريو موصل التوصيل، متعدد الألوان

KWD 9.500
– 1 +

مميزات خاصة

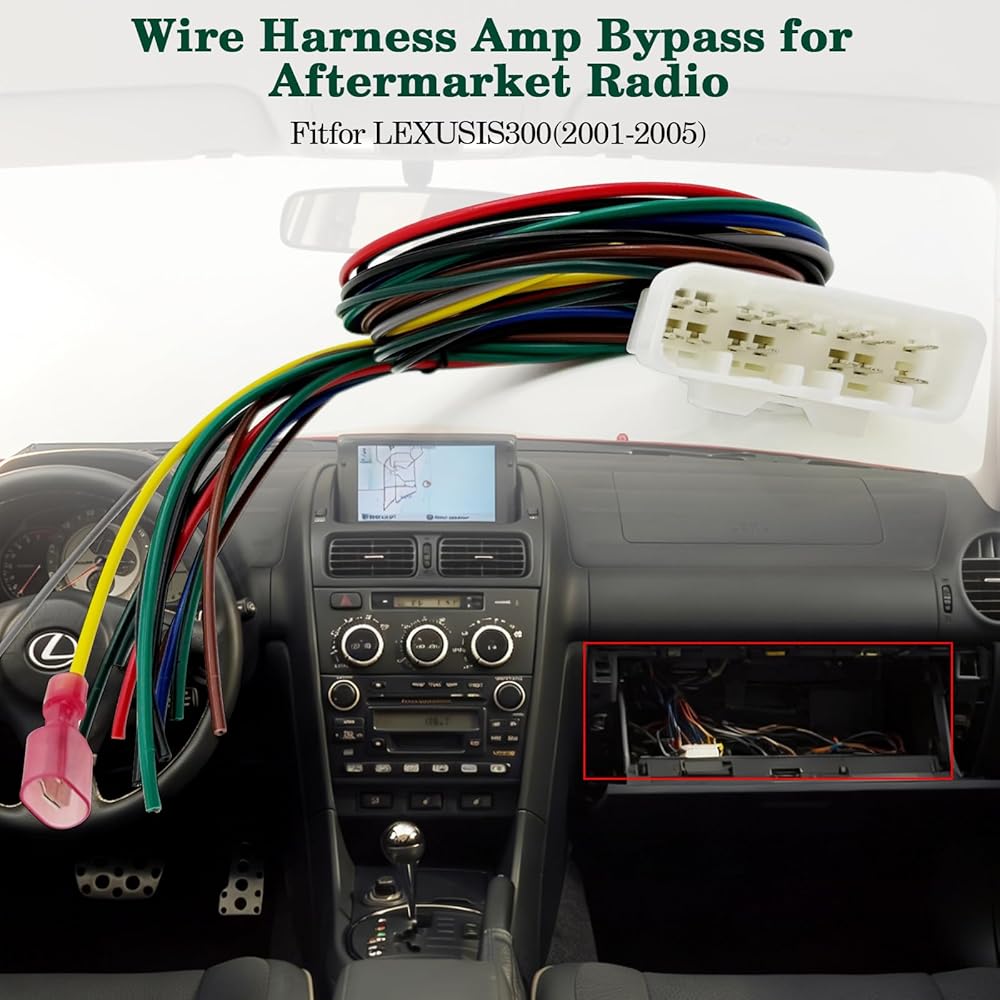

  • VEHICLE COMPATIBILITY: Specifically designed wire harness adapter for Lexus IS300 models from 2001 to 2005, ensuring perfect fit and compatibility with aftermarket radio installations
  • AMP BYPASS FUNCTION: Suit for original Pioneer car amplifier with 16pin , NOT For Mark Levinson Allows you to bypass the factory amplifier system when installing an aftermarket stereo, enabling direct connection to your vehicle's speaker system

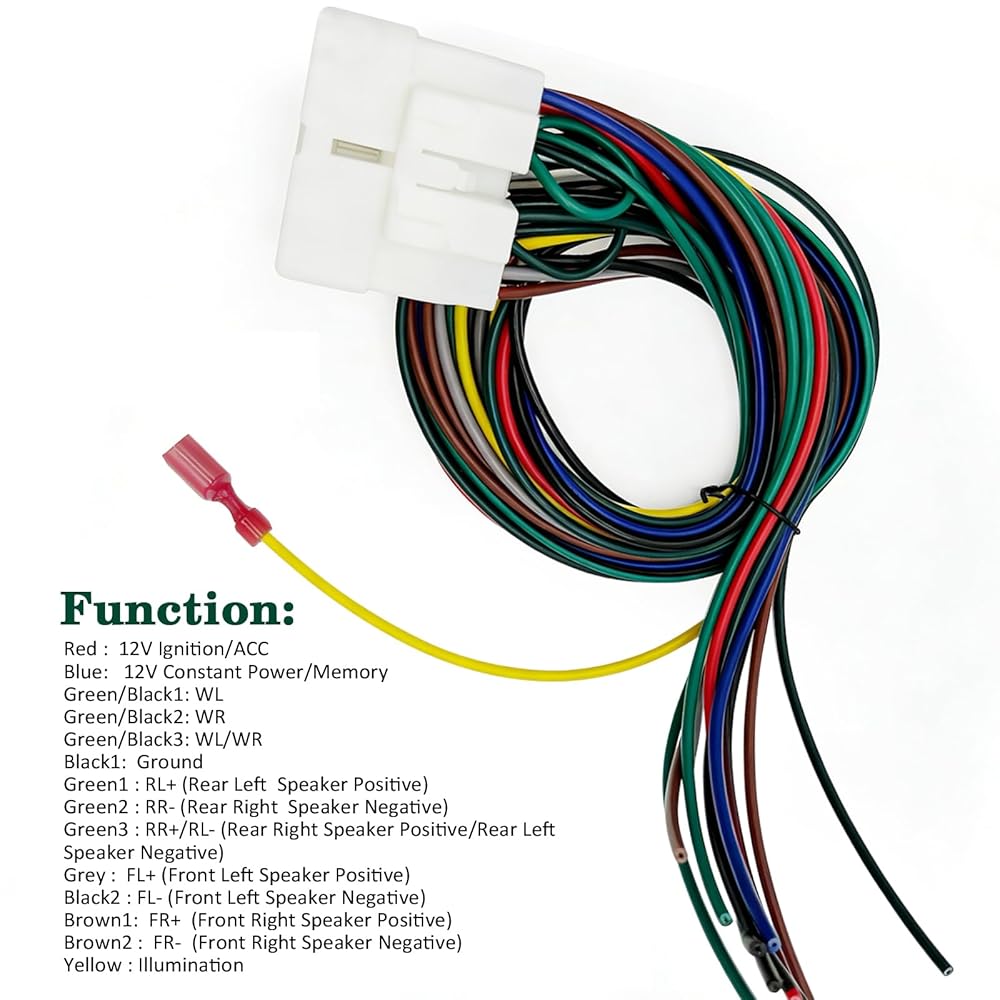

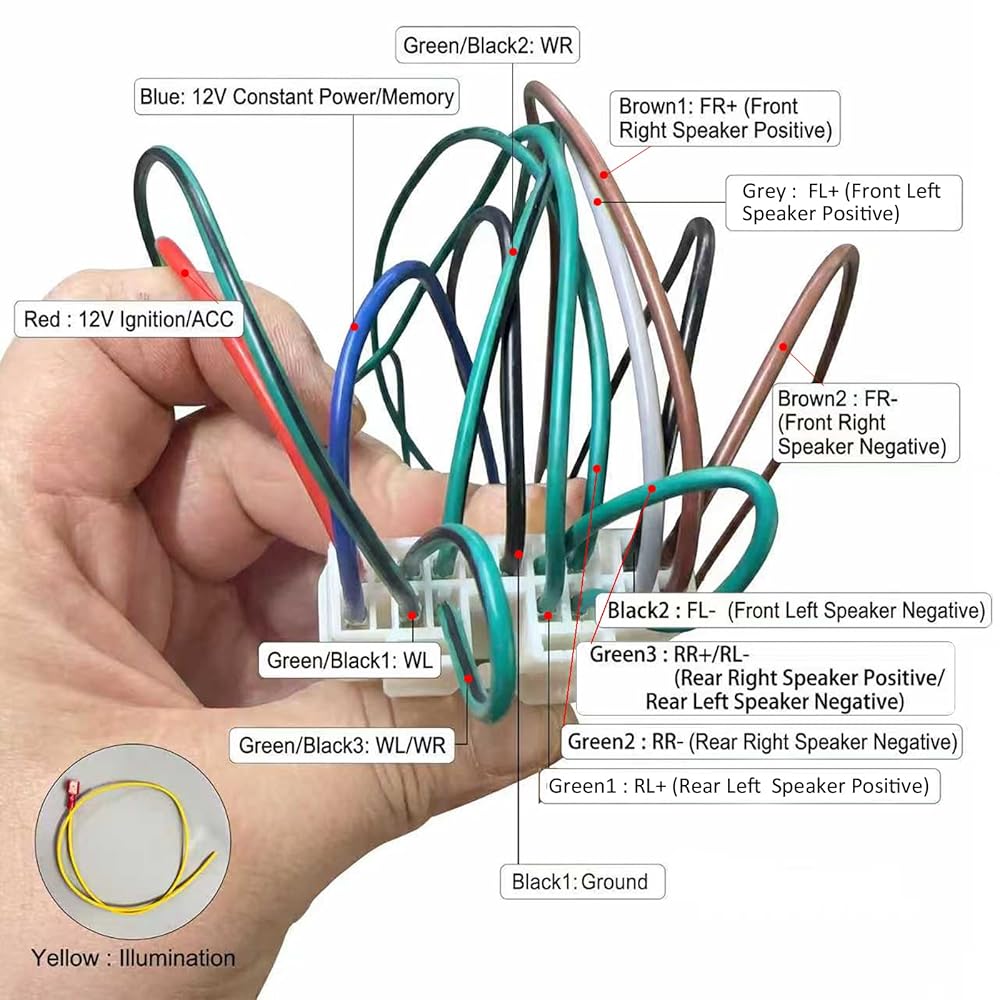

  • COLOR-CODED WIRING: Features multicolor wires with function-specific color coding for simple and straightforward installation without cutting factory wiring or connectors. Red 12V Ignition/ACC Blue 12V Constant Power/Memory Black1 Ground Yellow Illumination Green/Black1 WL Green/Black2 WR Green/Black3 WL/WR Green1 RL+ Green2 RR- Green3 RR+/RL- Grey FL+ Black2 FL- Brown1 FR+ Brown2 FR-

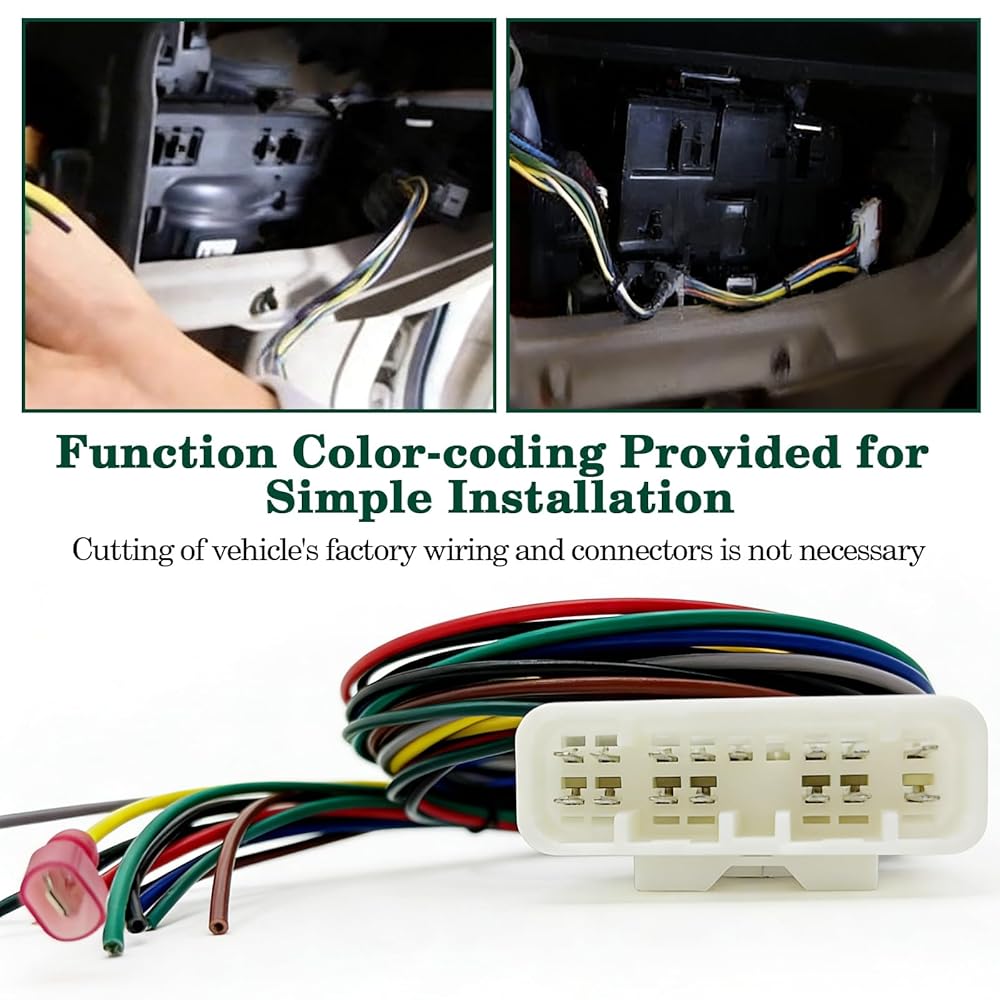

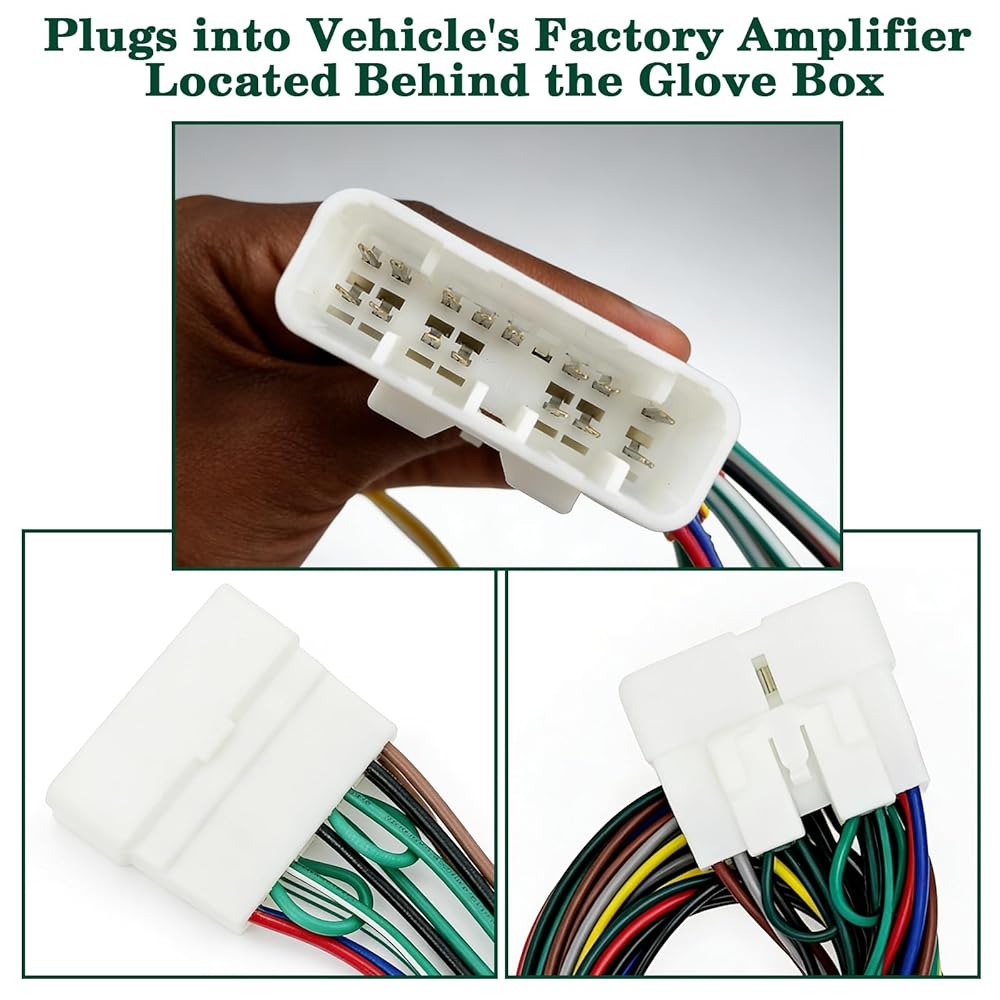

  • PLUG-AND-PLAY DESIGN: Comes with pre-installed factory-style connector plug that directly connects to your vehicle's existing harness, eliminating the need to splice or modify original wiring
  • COMPLETE WIRING SOLUTION: Includes all necessary wires for power, ground, speakers, and accessories to fully integrate your new aftermarket radio with your Lexus IS300's audio system

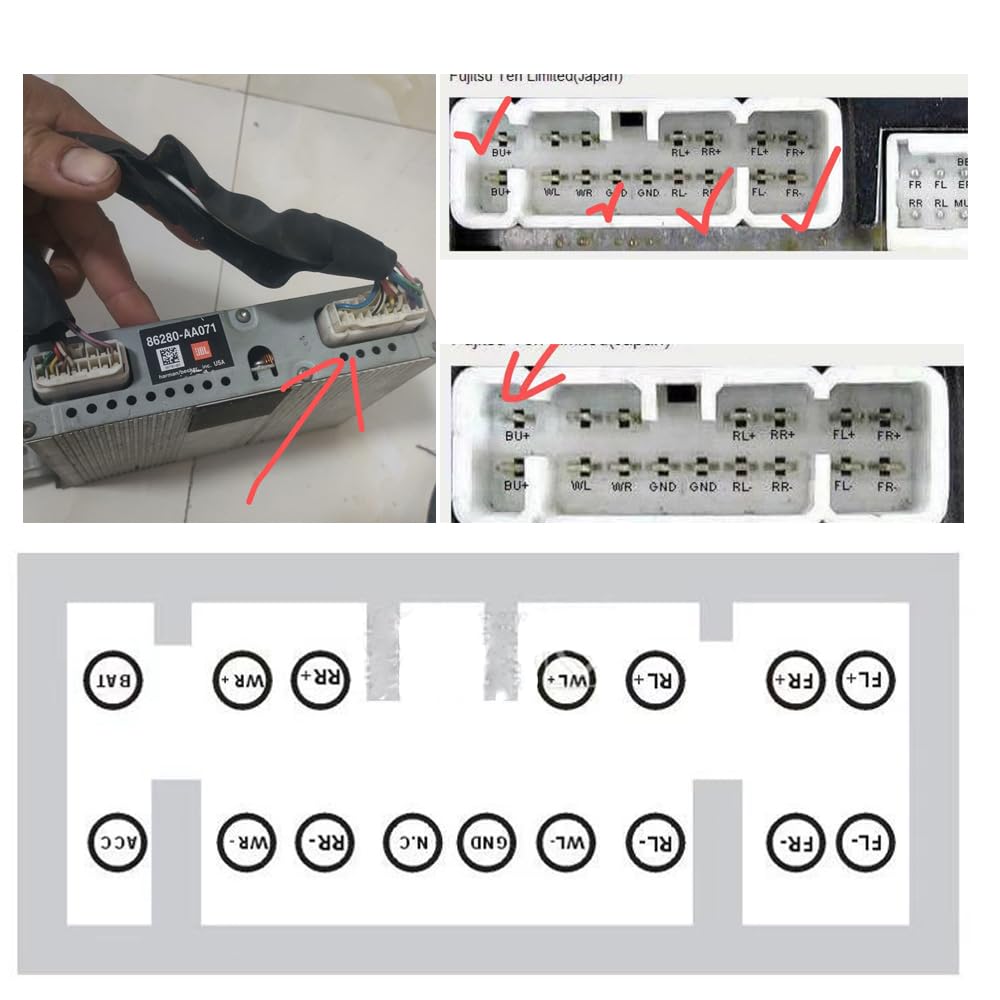

  • This wiring harness typically features positive and negative leads for all four speakers in the vehicle, though only a portion are marked in the diagram. The remaining unmarked colored wires correspond to the positive and negative terminals for the left-front and left-rear speakers
  • Its function is to serve as an adapter: one end connects to the original factory plug, and the other end extends all functional wires. It allows direct connection to the new head unit wiring without cutting or damaging the original vehicle wiring, making installation and removal quick and easy. Extra wires (such as constant power, ACC wire and illumination wire) are designed for third-party head units. Some original low-spec factory radios do not use these functional wires.
  • Connect the ground wire first, then the power wires: During installation, fasten the black ground wire to vehicle ground first, then connect the ACC and constant 1.power wires. This prevents static electricity or instantaneous current surge from burning out the head unit. Distinguish positive and negative polarity: Speaker wires have positive and negative terminals. Do not reverse the connection. Otherwise, incorrect speaker phase will result in weak bass and hollow vocal sound.
  • Prioritize non-destructive installation: Use plug-and-play adapter harnesses whenever possible. Do not cut the original factory plugs. This allows you to reinstall the stock radio later if needed and will not void the vehicle warranty. Check before powering on: After all wires are connected, do not install the head unit immediately. Test with a multimeter first. With the key off: The blue wire has 12V power, while the red wire has no power. With the key turned to ACC: The red wire also outputs 12V, and the resistance of the black ground wire to vehicle ground is close to 0Ω. Confirm all readings are correct before connecting the head unit to prevent equipment burnout

وصف

This wire harness amp bypass adapter is designed specifically for installing aftermarket radios in Lexus IS300 vehicles from 2001 to 2005. The adapter allows you to bypass the factory amplifier system, enabling seamless integration of your new stereo without cutting or splicing the vehicle's original wiring. The harness features color-coded wires that correspond to standard aftermarket radio connections, making installation straightforward even for those with limited automotive electrical experience. The plug-and-play design preserves your factory wiring integrity, which is especially valuable if you ever need to revert to the original stereo system or sell your vehicle. With multiple color-coded wires and a factory-style connector, this adapter eliminates the guesswork from your installation project. The harness provides all necessary connections for power, speakers, and accessories, ensuring your aftermarket radio functions properly with your Lexus IS300's electrical system. This is an essential component for anyone looking to upgrade their audio system while maintaining a clean, professional installation.
