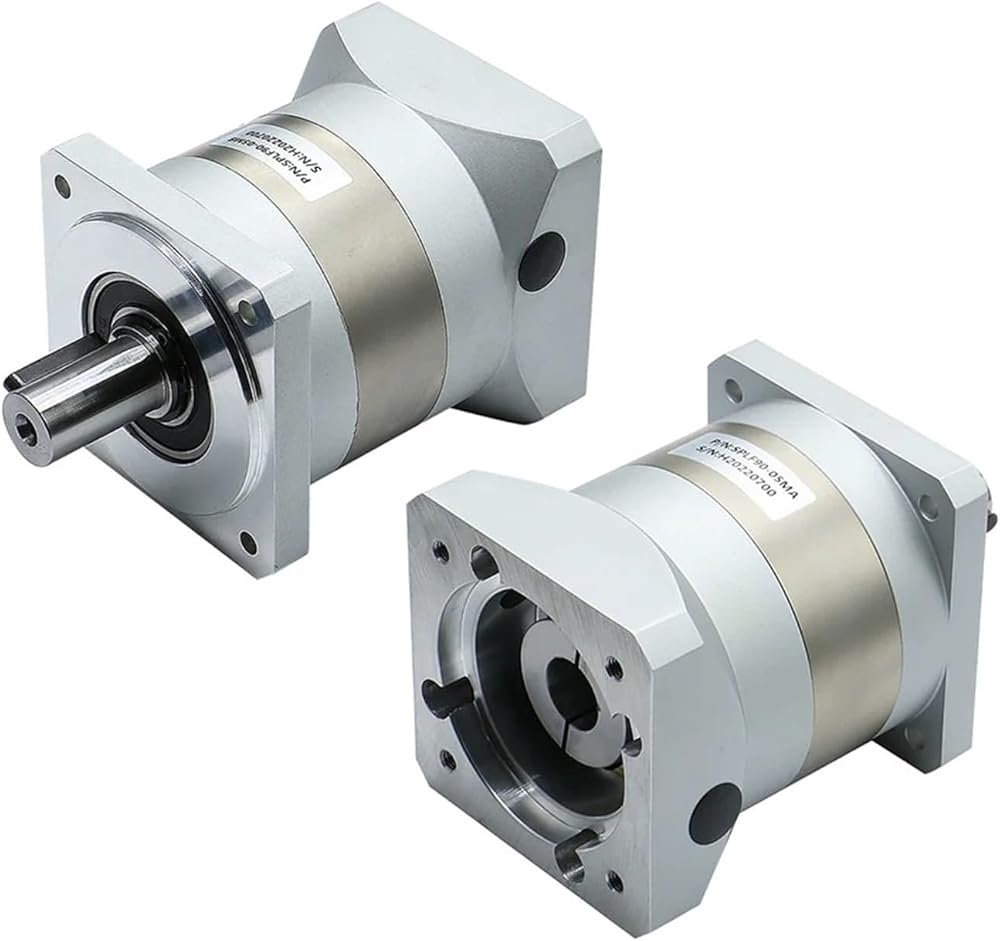

1 pcs High Precision Planetary Reducer
(SPLF90-MA / SPLF90-MB)
4 Pcs Mounting Bolts
1. Low Noise
2. High Precision
3. Servel Reduction Ratio
SPLF90-L1MB ( 4/5/7/10)
( Fit Nema34 86 Stepper Motor With 14mm Shaft )
SPLF90-L2MB ( 16/20/25/28/35/40/45/50/70)
( Fit Nema34 86 Stepper Motor With 14mm Shaft )
SPLF90-L1MA ( 4/5/7/10)
( Fit Nema32 80ST 750W Servo Motor With 19mm Shaft )
SPLF90-L2MA ( 16/20/25/28/35/40/45/50/70)
( Fit Nema32 80ST 750W Servo Motor With 19mm Shaft )
SPLF90-L1MA or SPLF90-L1MB
Reduction Ratio
i=(4/5/7/10):1
Backlash
10arcmin
Full Load Efficiency
96%
Noise
60dB
Rated Input Speed
3000min-1
Weight
3.1Kg
Max Input Speed
6000min-1
Protection Level
IP54
Average Lifespan
20000h
Lubrication Type
Long-term Lubrication
SPLF90-L2MA or SPLF90-L2MB
Reduction Ratio
i=(16/20/25/28/35/
40/45/50/70):1
Backlash
15arcmin
Full Load Efficiency
94%
Noise
60dB
Rated Input Speed
3000min-1
Weight
3.1Kg
Max Input Speed
6000min-1
Protection Level
IP54
Average Lifespan
20000h
Lubrication Type
Long-term Lubrication
