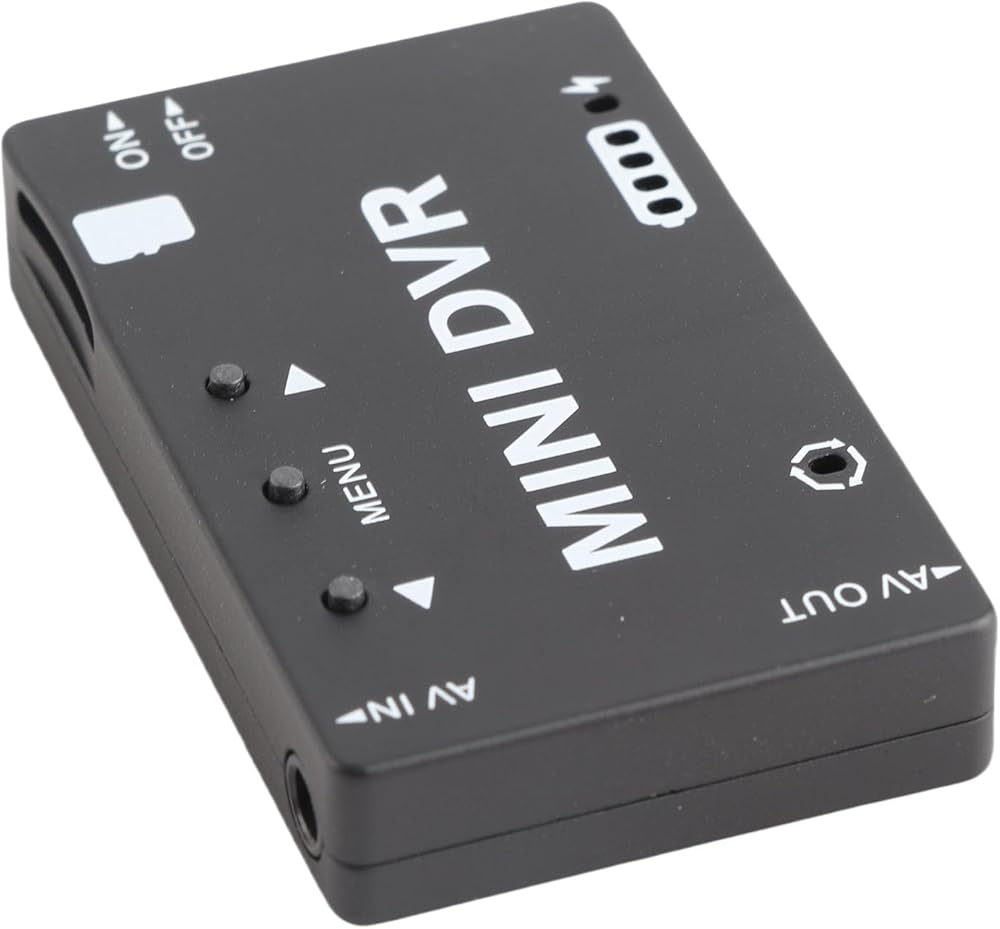

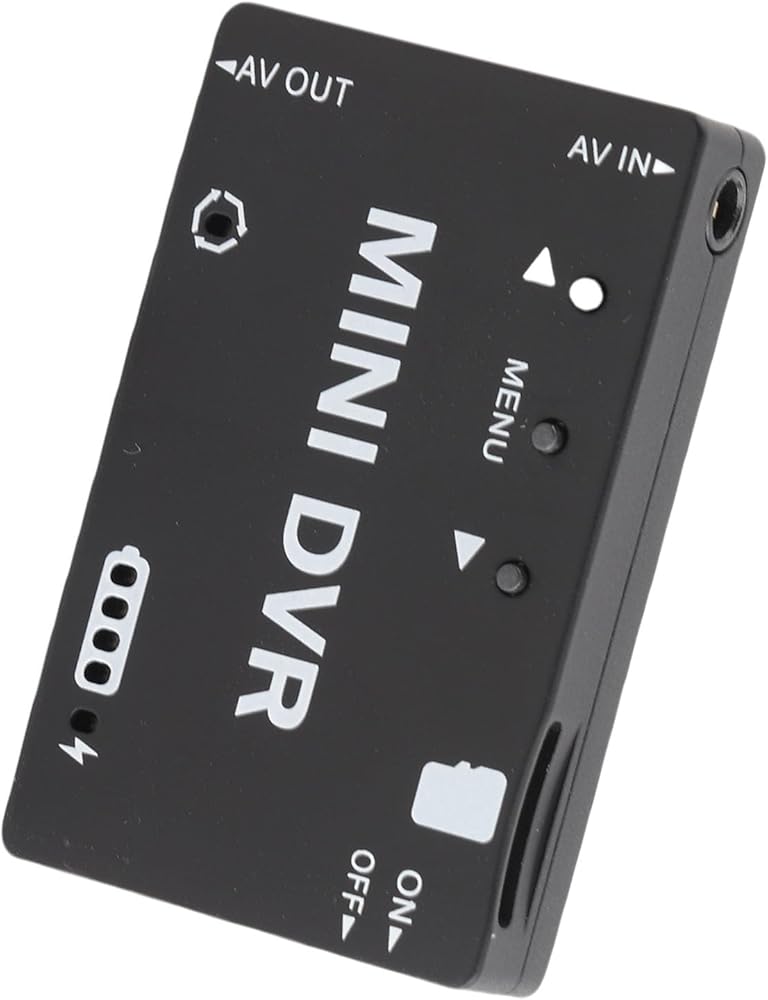

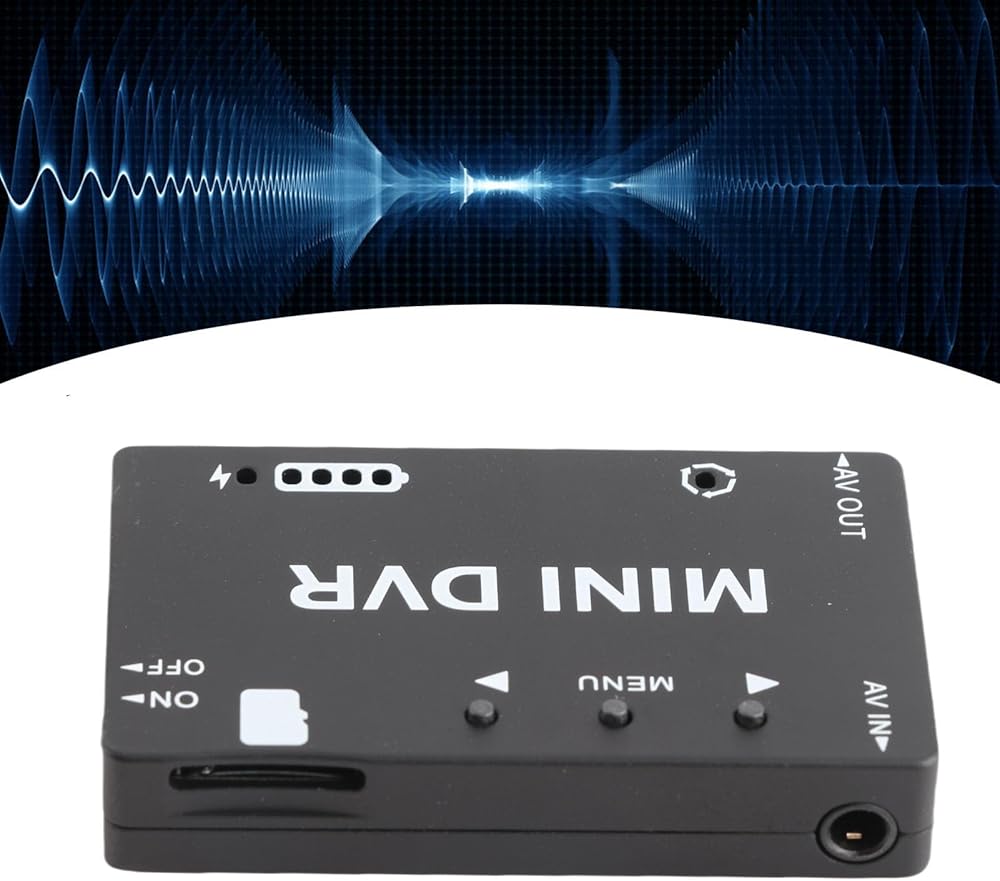

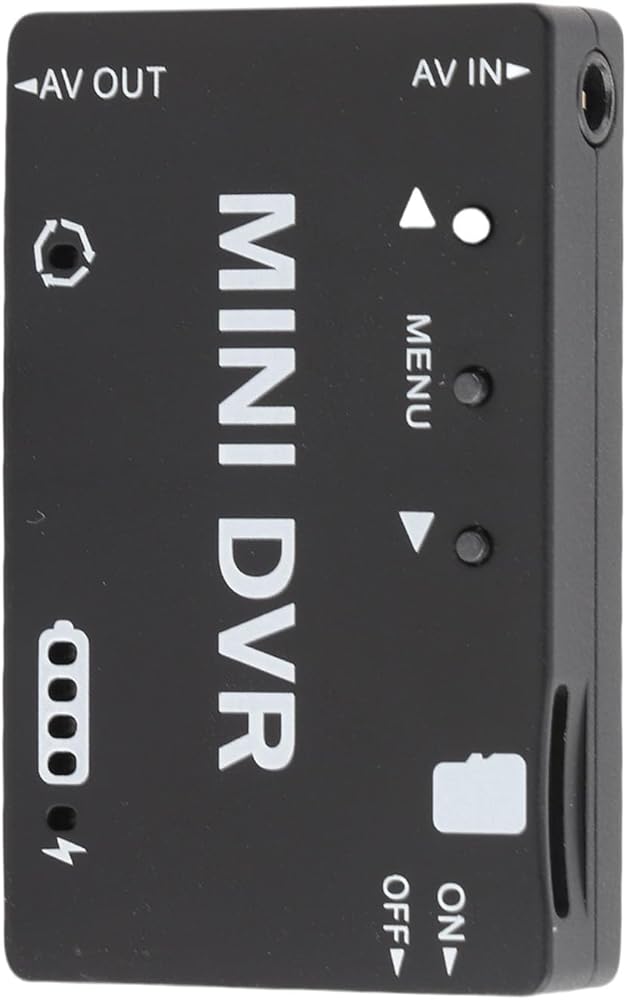

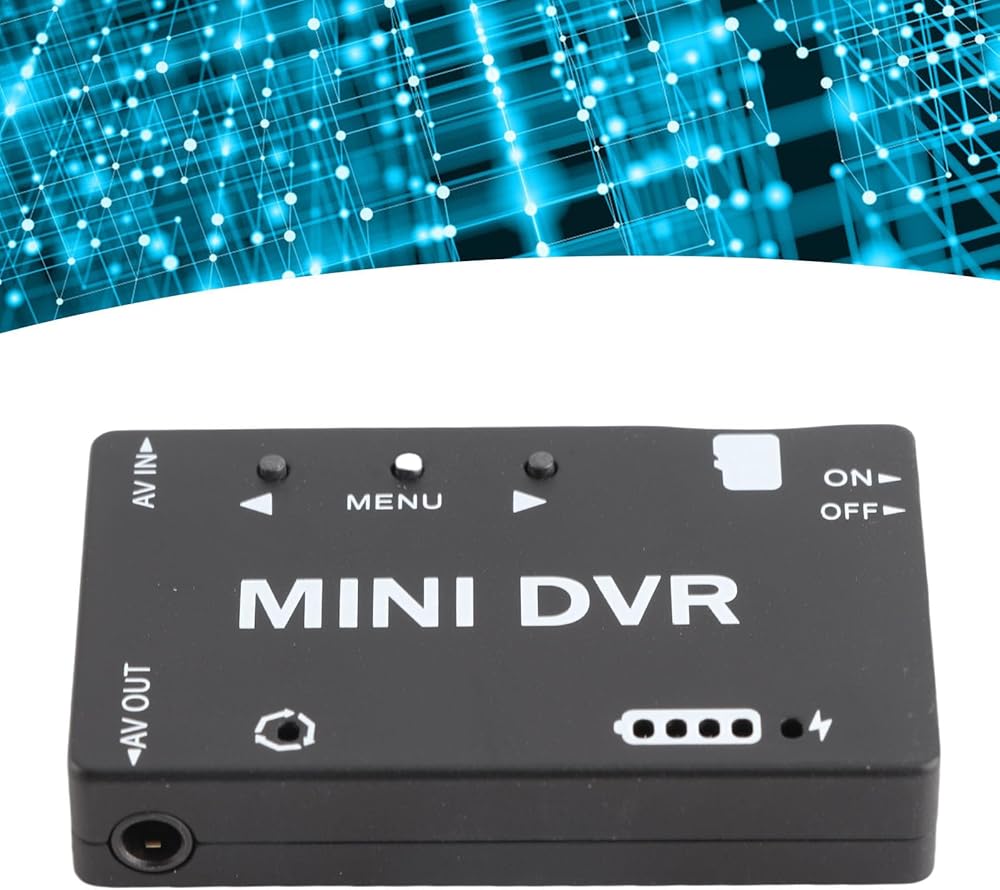

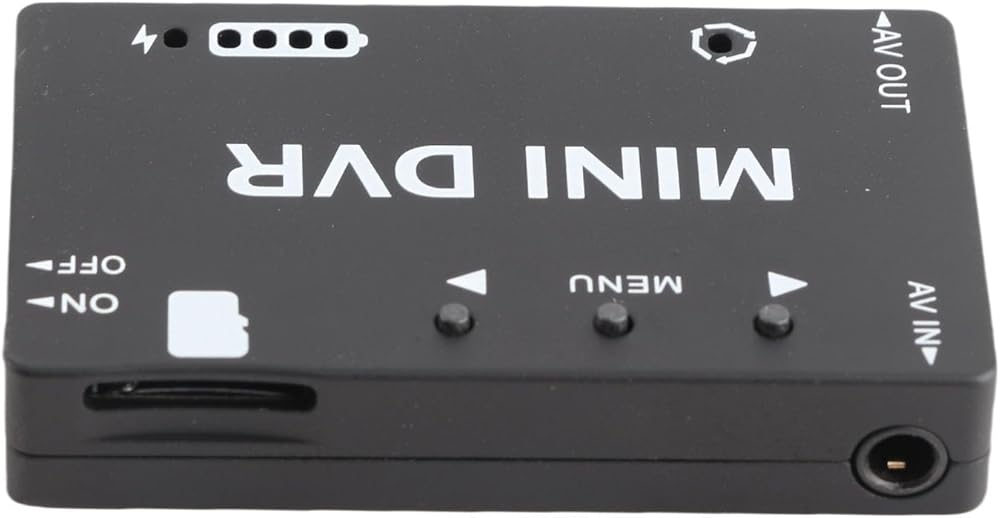

Item Type: Mini FPV DVR Module
Material: Aluminum Alloy, Electronic Components
Product Size: Approx. 53 x 33 x 9mm / 2 x 1.3 x 0.4in
Weight: Approx. 64g / 2.3oz
Color: Black
System Startup Time: 3 Seconds
Video Input Format: NTSC, PAL
Video Input Impedance: 75Ω Typ
Video Compression Format: MJPEG
Recording File Resolution: VGA(640x480), D1(720x480), HD(1280x720) Optional
Recording File Format: AVI
Recording Sound: On or Off Optional
Cycle Recording Time: 10min, 20min, 30min Optional
Frame Rate: 30 Frames
Memory Card: Small memory card supports up to 32GB (C10 recommended) (purchased separately)
Optical Frequency: 50Hz, 60Hz optional
Video Playback: CVBS Output (Connected To Display)
Audio Input Interface: 3.5mm AV Jack
Audio Output Interface: 3.5mm AV Jack

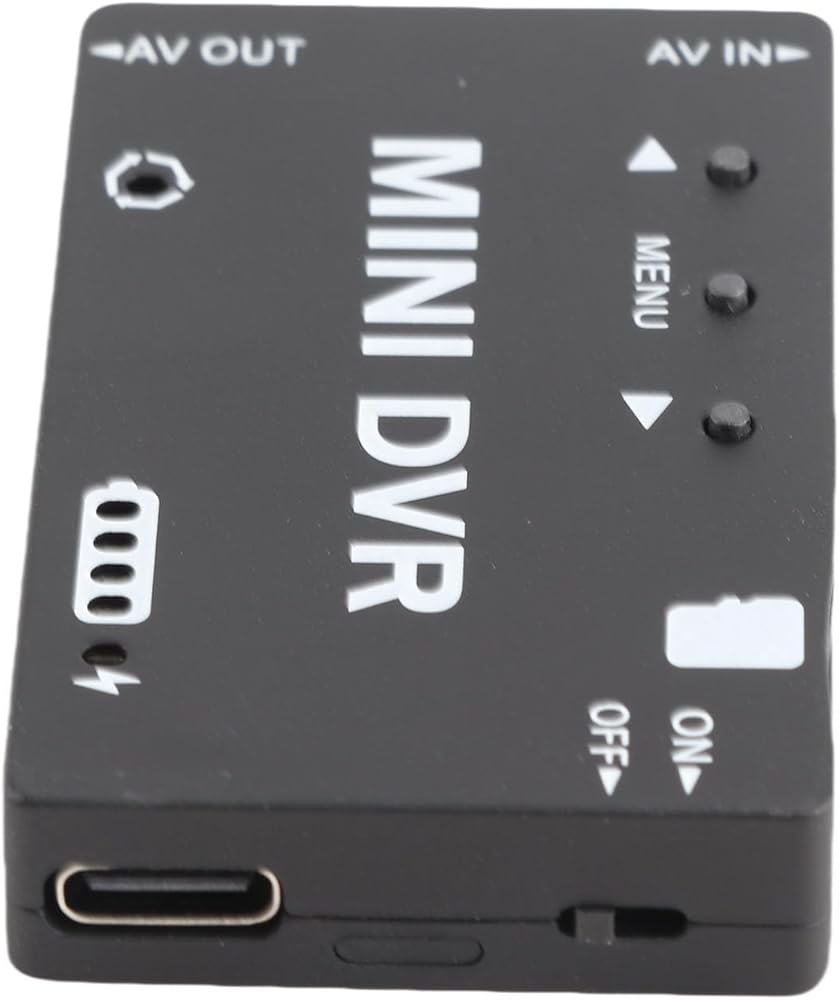

Charging Interface: Type C Interface
Charging Voltage: 5V DC
Charging Current: 500mA Maximum
Battery (Non Removable): 3.7V, 400mah Lithium Ion Polymer Battery (Built In)
Battery Life: 1.5 to 2 hours per working load.
Operating Temperature: -10 to 60°C
Working Humidity: 85% RH

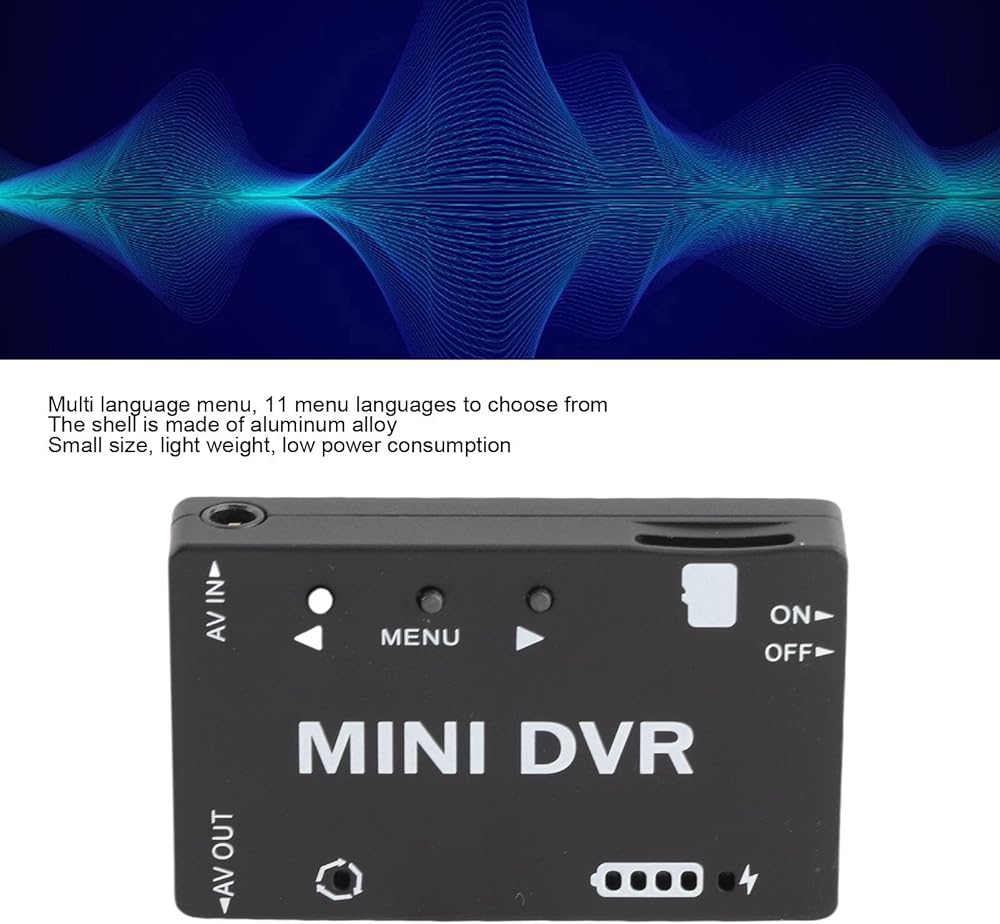

Menu Language: 11 Language Choices
Menu Language: English, French, German, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian And Korean.
Suitable: for FPV Drone, for RC Model Racing Car

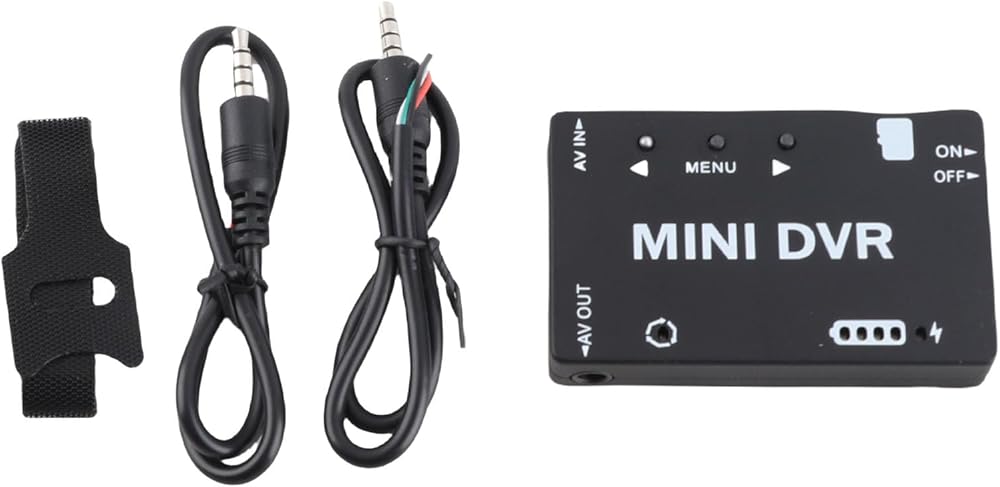

Package List：
1 x Mini FPV DVR Module2 x Single End AV Cable
1 x Hook and Loop
1 x Storage Box
1 x Manual

Note:
1. Manual measurement, please allow 1‑3mm error, thank you!
2. Due to the differences between different displays, the pictures may not reflect the actual color of the object.
3. (can be used with FPV glasses or screen without DVR function)
4. Please read the complete operation manual before operation to get familiar with the function of the product.
5. Please avoid damp or humid environment.
