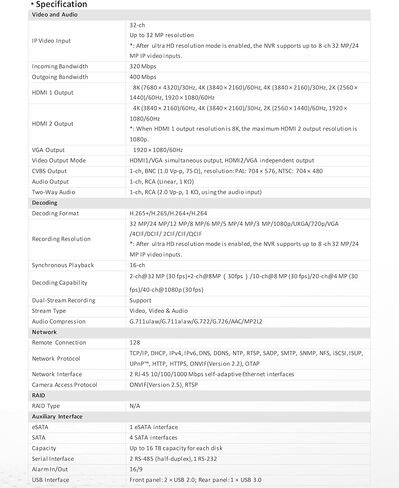

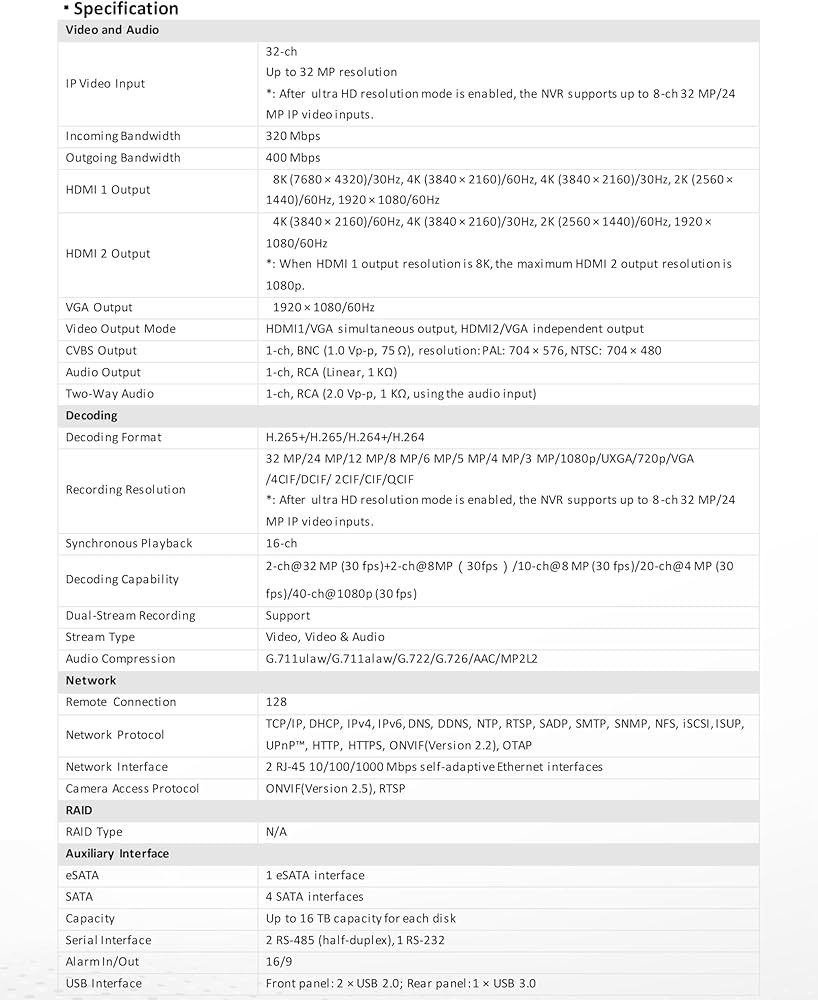

Video/Audio Input
IP video input: | 32-ch
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ)

Network
Incoming bandwidth: | 320Mbps
Outgoing bandwidth: | 400Mbps

Video/Audio Output
HDMI Output 1: | 1-ch, resolution: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI Output 2 : | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
Recording Resolution: |32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Decoding
Decoding Capability : | 2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30fps)/40-ch@1080p (30 fps)
SATA: | 4 SATA interfaces
Capacity: | Up to 16TB capacity for each HDD

External Interface
USB Interface: | 1, USB3.0
>
General
Power Supply: | 100 to 200 VAC
Consumption(without hard disk and POE): | ≤ 15 W
Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: | 10 % ~ 90 %
Chassis: | 19-inch rack-mounted 1.5U chassis

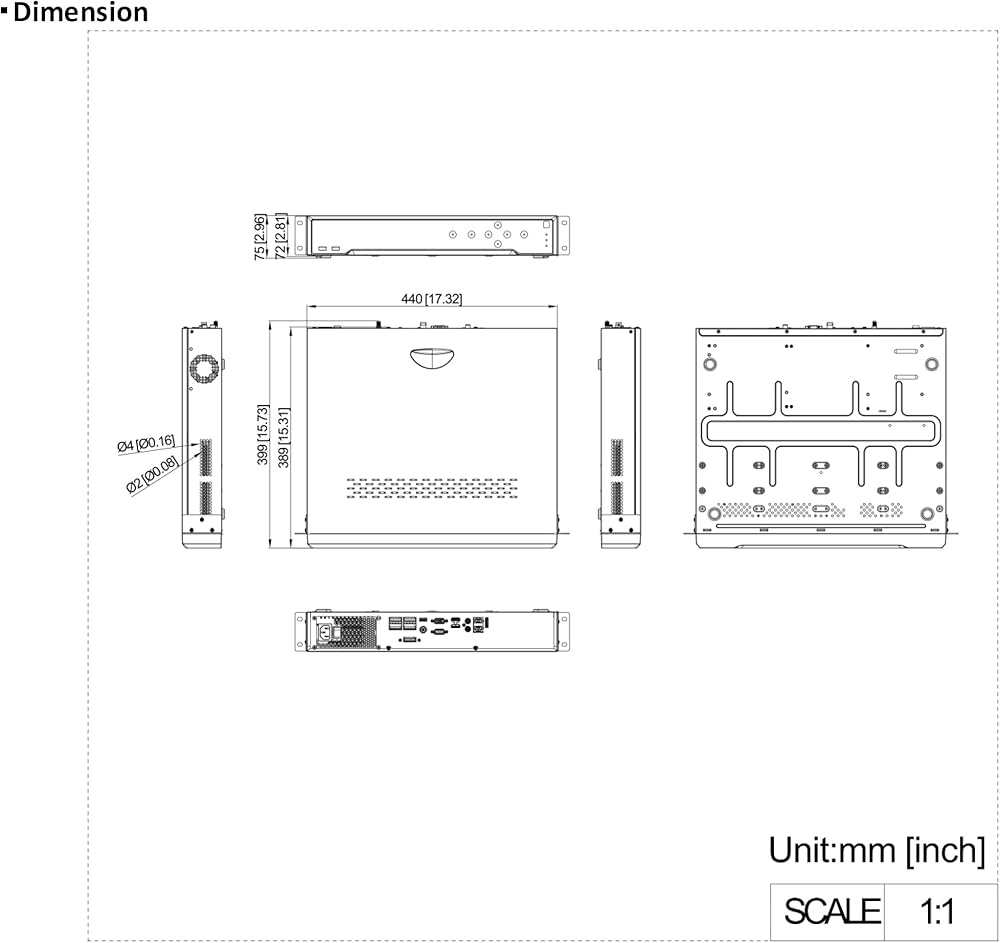

Dimensions: | 440 × 389 × 72 mm ( 17.3"× 15.3" × 2.8")
Weight(without HDD): | ≤ 5 kg (11 lb)
