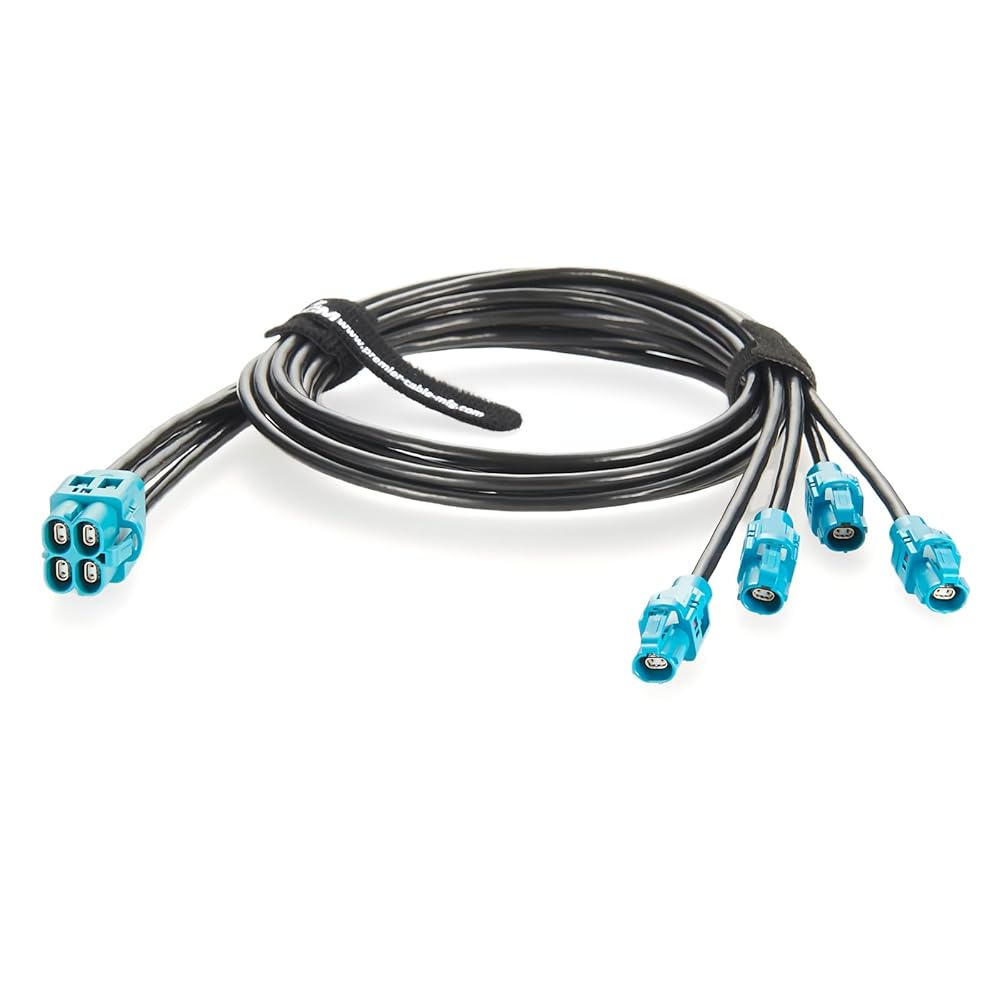

Rosenberger H-MTD كابل إيثرنت رباعي التجاويف إلى أربعة منافذ أحادية المنفذ 10 جيجابت في الثانية E6K10D-1CAZ5-Z إلى E6K10A-1CAZ5-Z H-MTD 4 في 1 لأنظمة ADAS وIVI وأنظمة الكاميرا (0.5M/1.64FT) in Kuwait

1 م/3.28 قدم

KWD 45
ماركة
Plinkwirekb
وزن
90 g
مقاس1 م/3.28 قدم
– 1 +

مميزات خاصة

  • ✔H-MTD Automotive Ethernet Cable – The H-MTD E6K10D-1CAZ5-Z to E6K10A-1CAZ5-Z Ethernet Cable, Equipped with Original Rosenberger E6K10D four-cavity to E6K10A single-port connector.
  • ✔10Gbps High Speed – The H-MTD 4 Cavity Female to 4 Port Female Ethernet Cable, Supports Transmission Rates of up to 10Gbps,enabling real-time data exchange and efficient communication between in-vehicle devices.
  • ✔Shielded Cable – The Vehicle Automotive Ethernet Harness utilizes the GG 2Speed 251 shielded cable,100Ω Impedance, effectively preventing external electromagnetic interference (EMI) and radio frequency interference (RFI).
  • ✔Supported Protocols – The H-MTD E6K10D to E6K10A Cable Supports 100BASE-T1, 1000BASE-T1, 2.5/5/10GBASE-T1, APIX, FPD-Link, GMSL, MIPI A-PHY, PCIe, USB, GVIF, HDBase-T, and ASA Motion Link, facilitating high-speed data transmission between different devices and systems.
  • ✔Application – Rosenberger H-MTD 10Gbps Ethernet Cable for ADAS Advanced Driver Assistance System,ECU,Autonomous Driving,In-Vehicle Infotainment Systems,Telematics,Navigation,High-Resolution Displays 4K,High-Speed Data (H-MTD) Switch,Enhanced Ethernet Switch H-MTD,100/1000BASE-T1 Media Converter and so on.
  • ✔Custom Cable – We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.

وصف

Specification:
Interface A: H-MTD Female Connector, Four-Cavity, E6K10D-1CAZ5-Z
Interface B: 4PCS X H-MTD Connector, Single Port, E6K10A-1CAZ5-Z
Coding: Z Coding (Universal)
Color / RAL: Water Blue / 5021
Cable Length: 0.5m, 1m, 2m
Transmission Rate: Up to 10 Gbps
Wire: GG 2Speed 251
Impedance: 100Ω
Frequency: DC to 10 GHz
Shielded: Yes
Temperature Range: -40 °C to +105 °C
