Features:
*Optimized for use with corrected optical systems featuring a 160mm tube length, for biological microscope applications.
*Adopts the industry-standard DIN 45mm focal length, with precisely coated optics for consistent, bright, and clear observations.
*Includes spring-loaded objectives at 40x, 60x, and 100x magnifications, offering effective protection against slide damage during specimen examination.
*The 100x objective is engineered with pine pitch to support the special design of the numerical aperture, enhancing fine detail resolution at high magnification.
*Engineered to minimize chromatic aberration, spherical aberration, and paraxial coma across two spectral bands for improved image accuracy and .

Specifications:

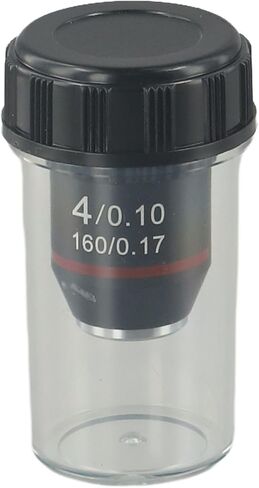

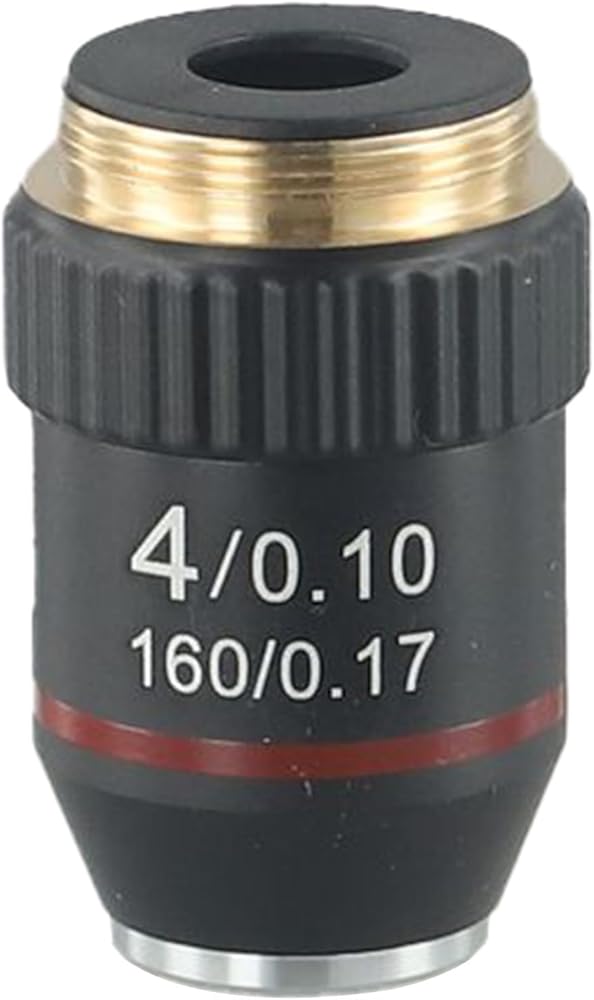

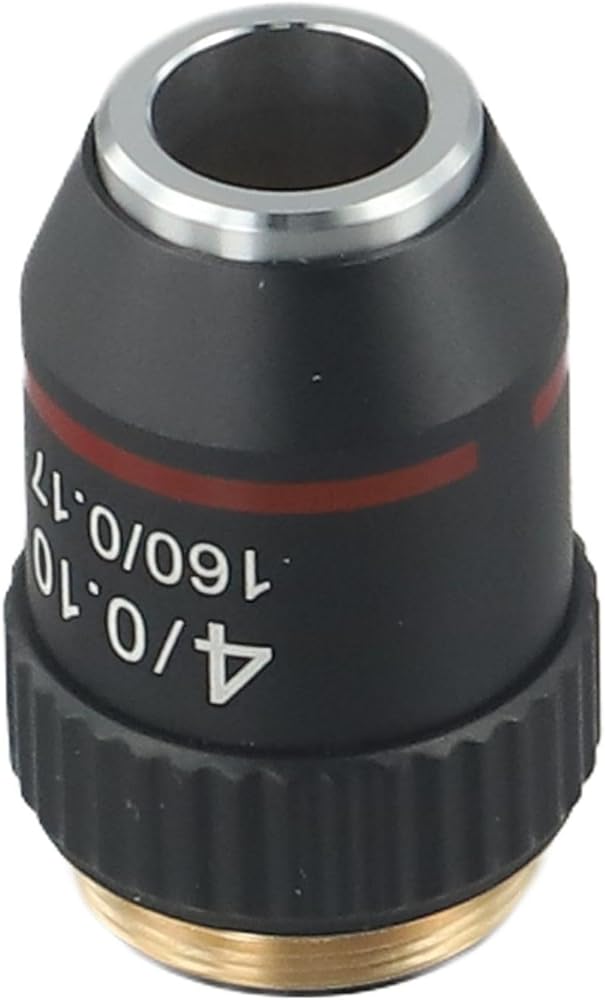

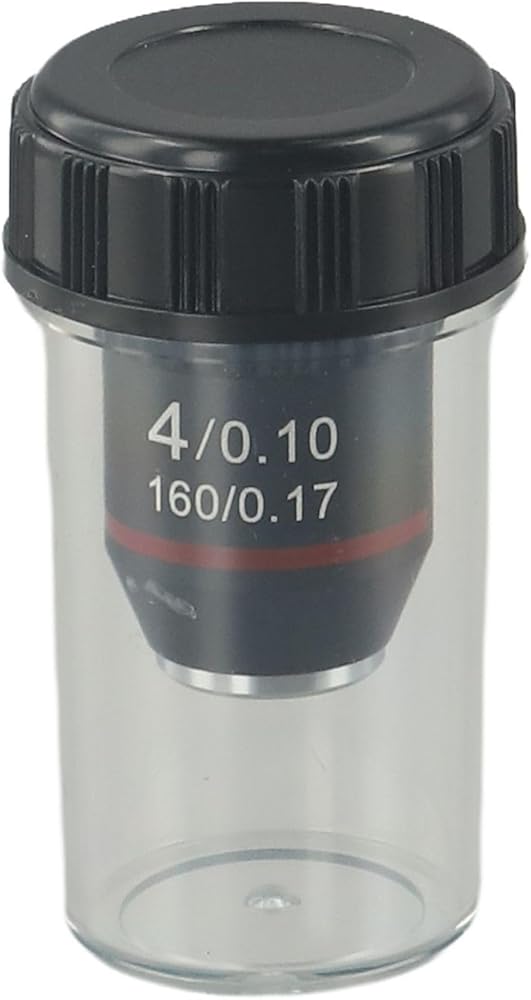

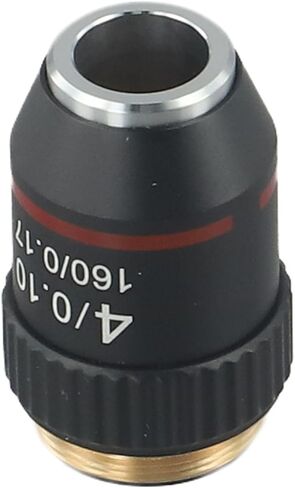

Part Name: Objective Lens
Material: Copper core

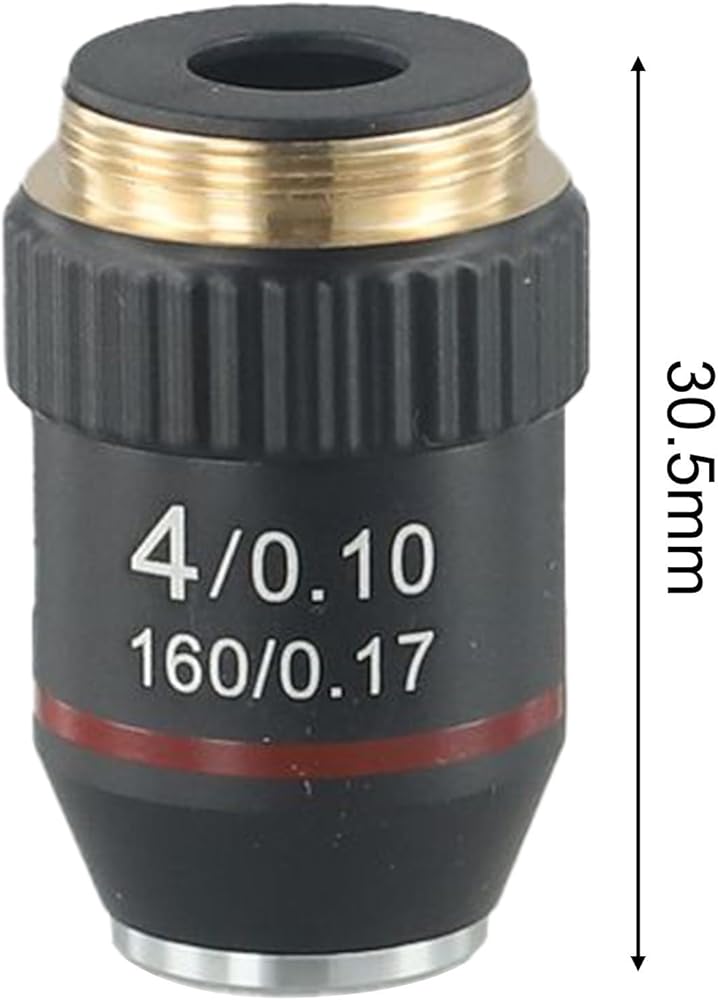

Size: As shown
Color: Black

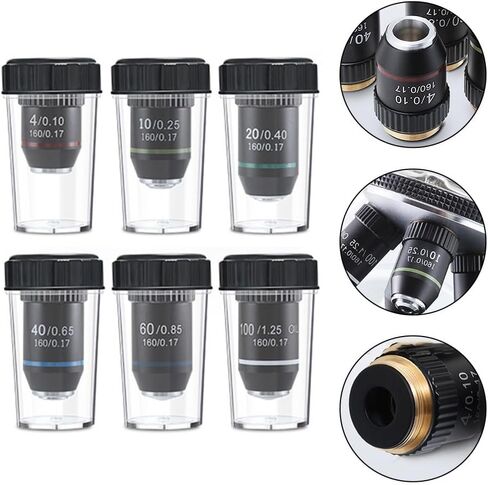

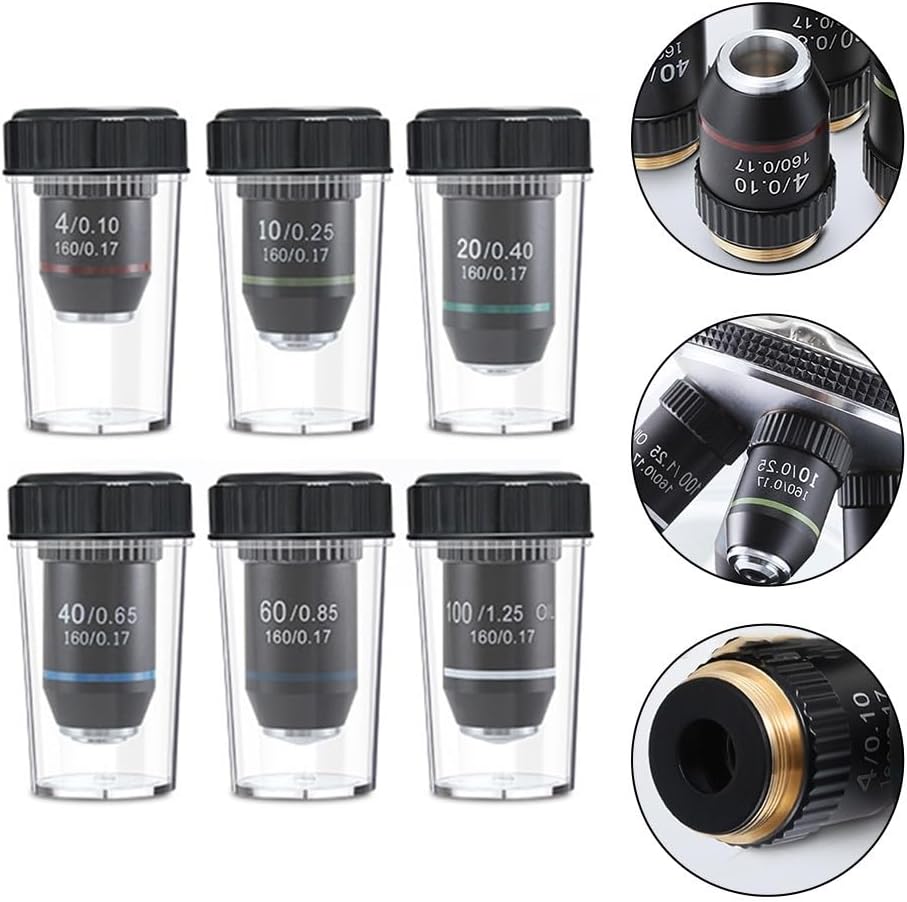

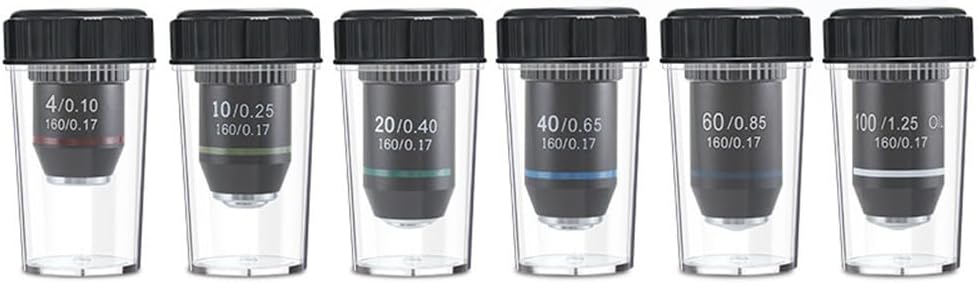

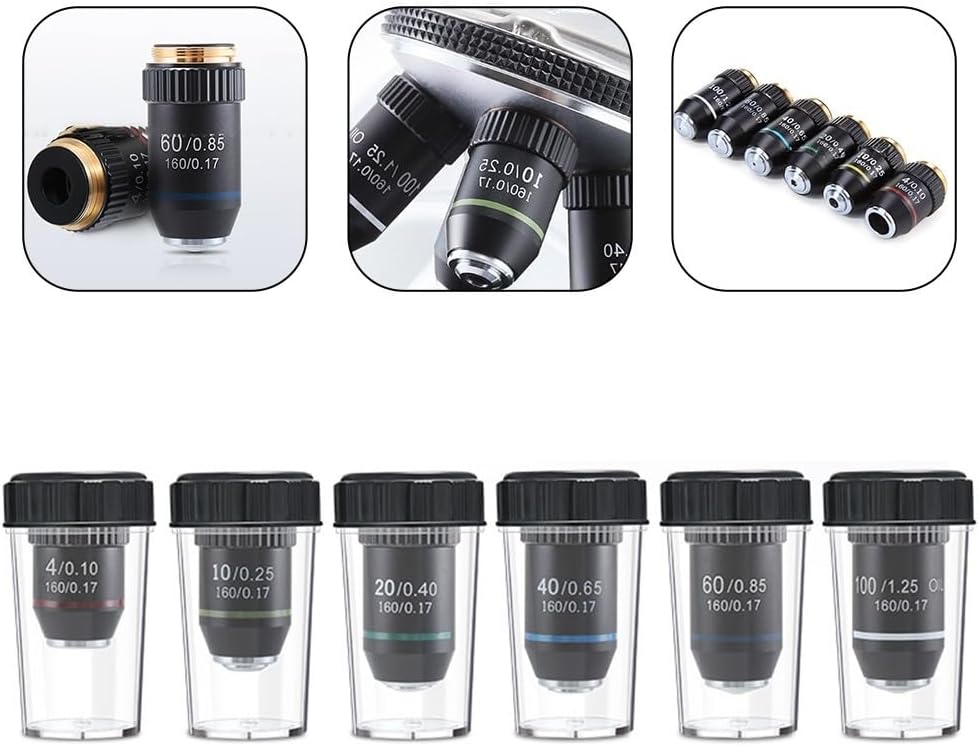

Magnification: 4X / 20X / 40X / 60X / 100X
Mounting Size: 20.2mm
Tube Length: 160mm
4X: Numerical aperture 0.1; Working distance 18mm
: Numerical aperture 0.25; Working distance 7mm
20X: Numerical aperture 0.4; Working distance 0.55mm
40X: Numerical aperture 0.65
60X: Numerical aperture 0.85; Working distance 0.18mm
100X: Numerical aperture 1.25; Working distance 0.13mm

Package Content:
1*Objective Lens
