Specification
Image Sensor 2 × 1/2.5" Progressive Scan CMOS
Max. Resolution 3632 × 1632
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100, 000 s
Angle Adjustment Pan: 0° to 30°, tilt: -75° to 75°
Lens
Lens Type Fixed focal lens, Dual lens: 2.8 mm

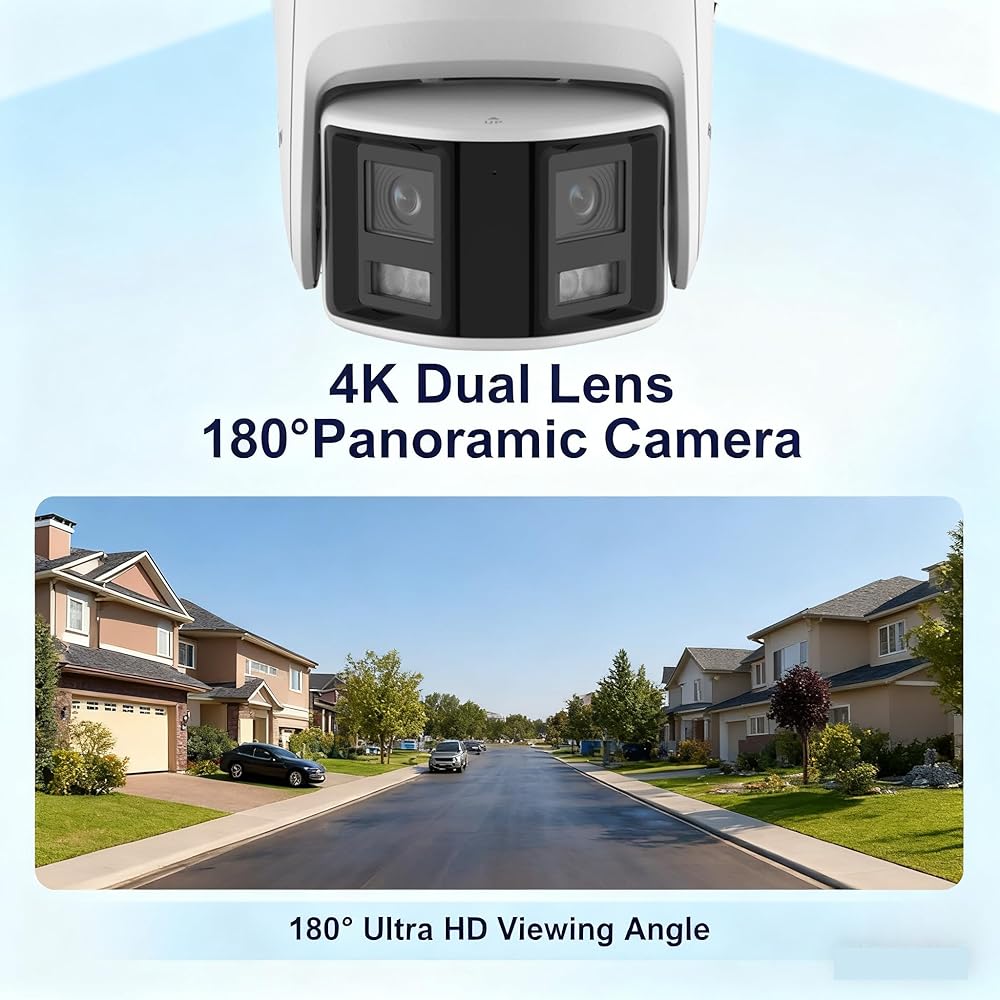

Focal Length & FOV Horizontal FOV: 180° ± 10° Vertical FOV: 81°
Lens Mount M12
Iris Type Fixed
Aperture F1.6;
DORI
DORI 2.8 mm, D: 42 m, O: 16.5 m, R: 8 m, I: 4 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Image Parameters Switch Yes
Image Settings saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
General
Power 12 VDC ± 25%, 0.79 A, max. 9.5 W, Ø 5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W
Material Base: metal, cover: metal
Dimension Ø140 mm × 145.6 mm (Ø5.5 × 5.7\")"
Package Dimension 230 mm × 230 mm × 230 mm (9" × 9" × 9")
Weight Approx. 1110 g (2.4 lb.)
With Package Weight Approx. 1900 g (4.2 lb.)
