Advanced Features
* Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)
* Waveform (RGB, YUV, Y)
* HDR
* Vector
* Histogram (RGB,Y )
* Embedded Audio
* Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
* False Colors (Normal, ARRI)
* Over Exposure (10IRE～100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)
* Image Flip (H Flip, V Flip, H_V Flip )
* Image Freeze
* Center Marker
* Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16)
* Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
* Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
* Marker Color (Red, Green, Blue, Black, White, Gray)
* Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from2~9)
* Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%)
* Pixel to Pixel
* Display Range( Auto, Limit, Full)
* EDID Settings(2.0,1.4)
* User Switch (1~4)
* OSD Time(Off, 15Sec, 30Sec, 45Sec)
* OSD Transparency (Off, 25%, 50%, 75%)
* The background color of screen when no signal (Red, Green, Blue, Black, White, Gray)
* Power Settings (Auto, Manual)
* Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255)

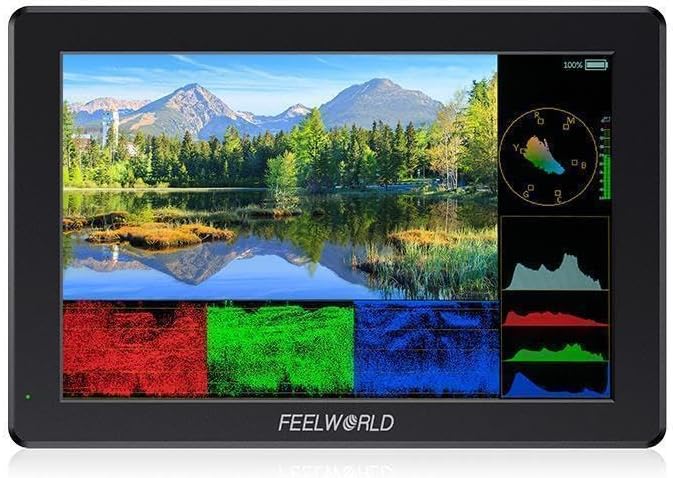

Model: T7 PRO
Screen Size: 7"IPS
Resolution: 1920X1200 pixels
Pixel Pitch: 0.07875(W) x 0.07875 (H) (mm)
Color Depth: 8bit
Aspect Ratio: 16:10
Brightness: 2000cd/m²
Contrast Ratio: 1200:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

Input
1 X HDMI: HDMI 2.0
1 X USB: Mini USB (LUT file import and Firmware update)

Output
1 X HDMI: HDMI2.0

Audio
Audio: 3.5mm Stereo Headphone

HDMI Input and Output Support Format
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K 3840×2160p (60/50/30/29.97/25/24/23.98)
4K 4096×2160p(60/50/30/29.97/25/24/23.98)

General
Power Connector: DC IN
Input Voltage: DC7～24V
Power Consumption: ≤18W
Working Temperature: -20°C~55°C
Storage Temperature: -30°C~65°C
Install Way: 1/4"-20 Thread Point (bottom)
Unit Size: 182.8x122.8x24 (mm)
Unit Weight: 336g
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
