Cautions:
1. Please correctly connect the battery's positive and negative terminals to prevent drone damage.
2. PNP versions does NOT include the VTX system and must be purchased separately.

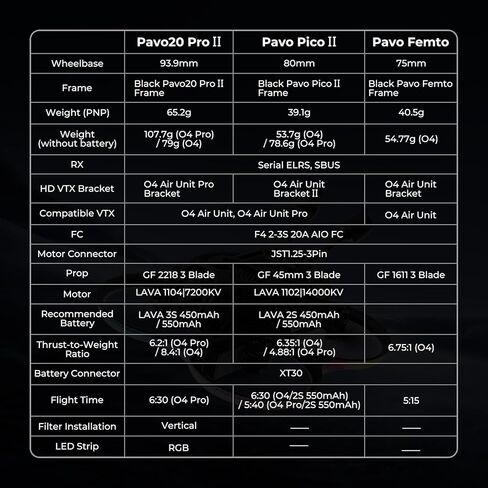

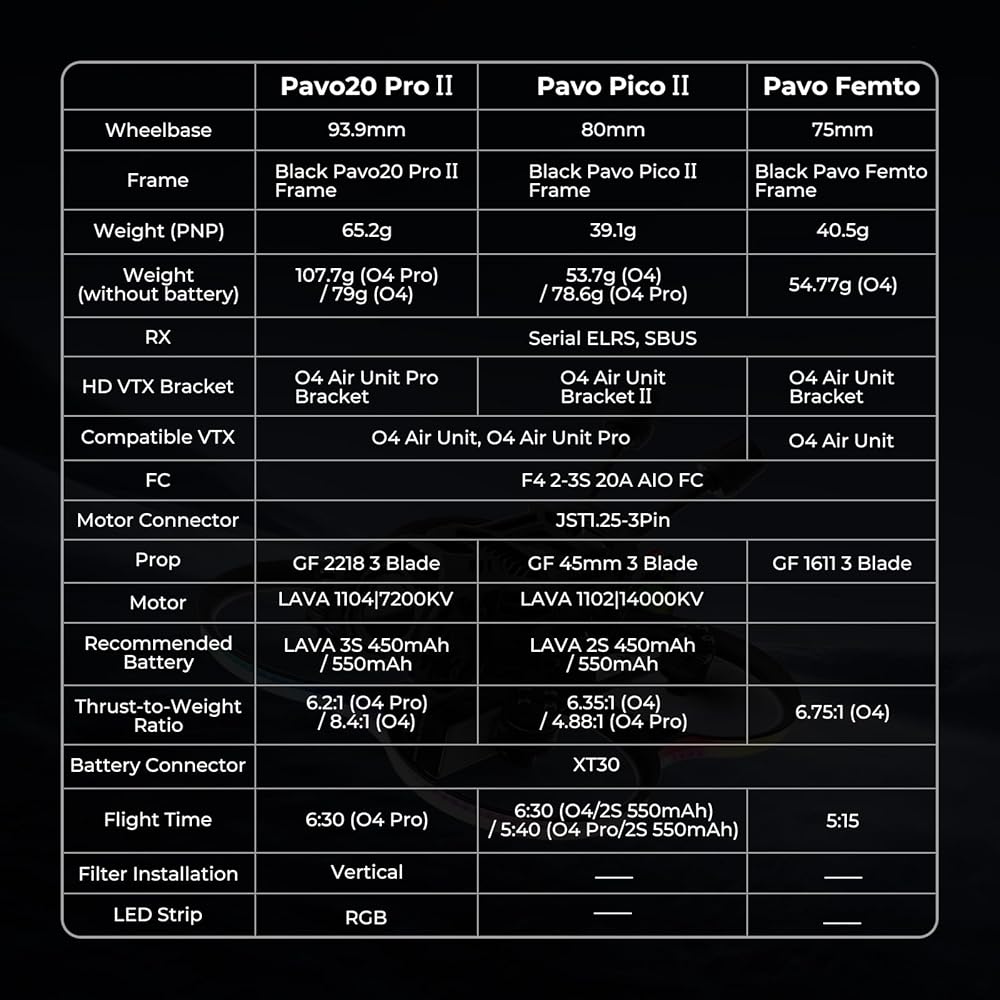

Specification

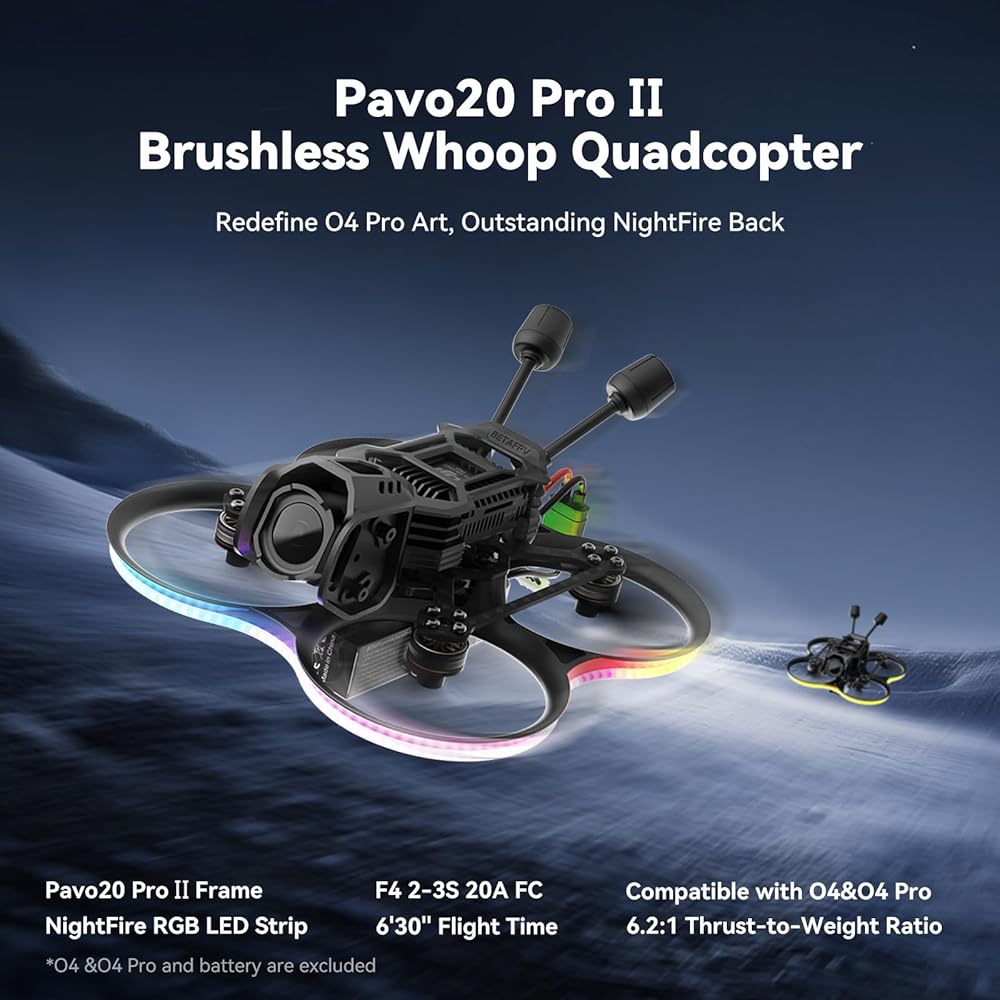

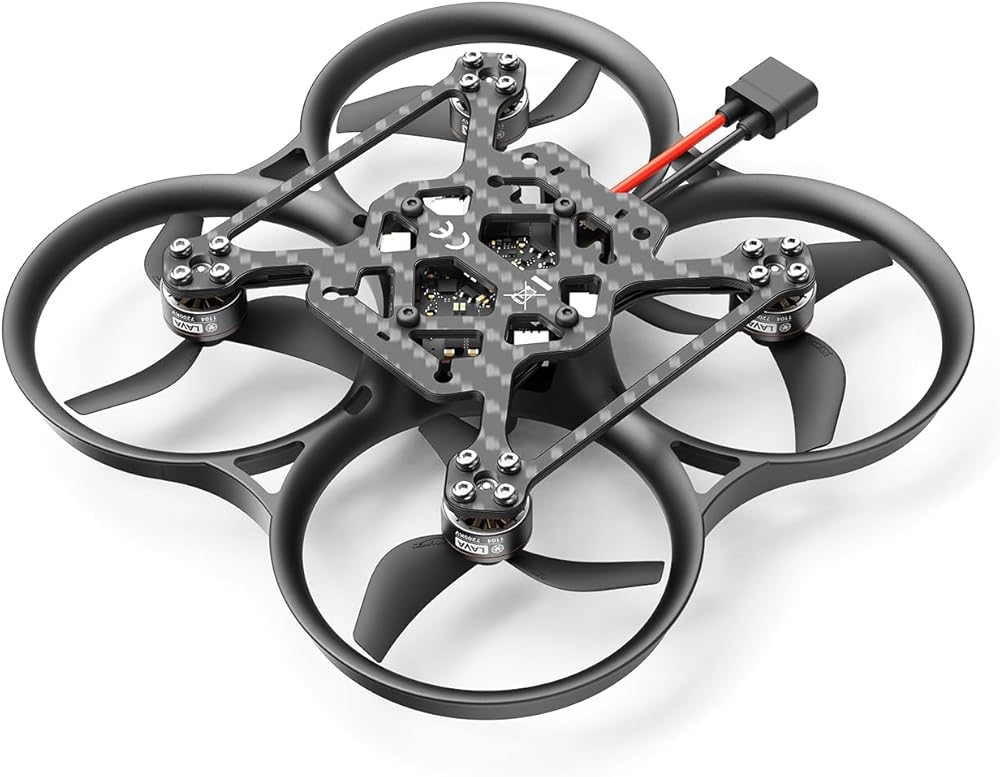

Item: Pavo20 Pro II Brushless Whoop Quadcopter PNP Version
Wheelbase: 93.9mm

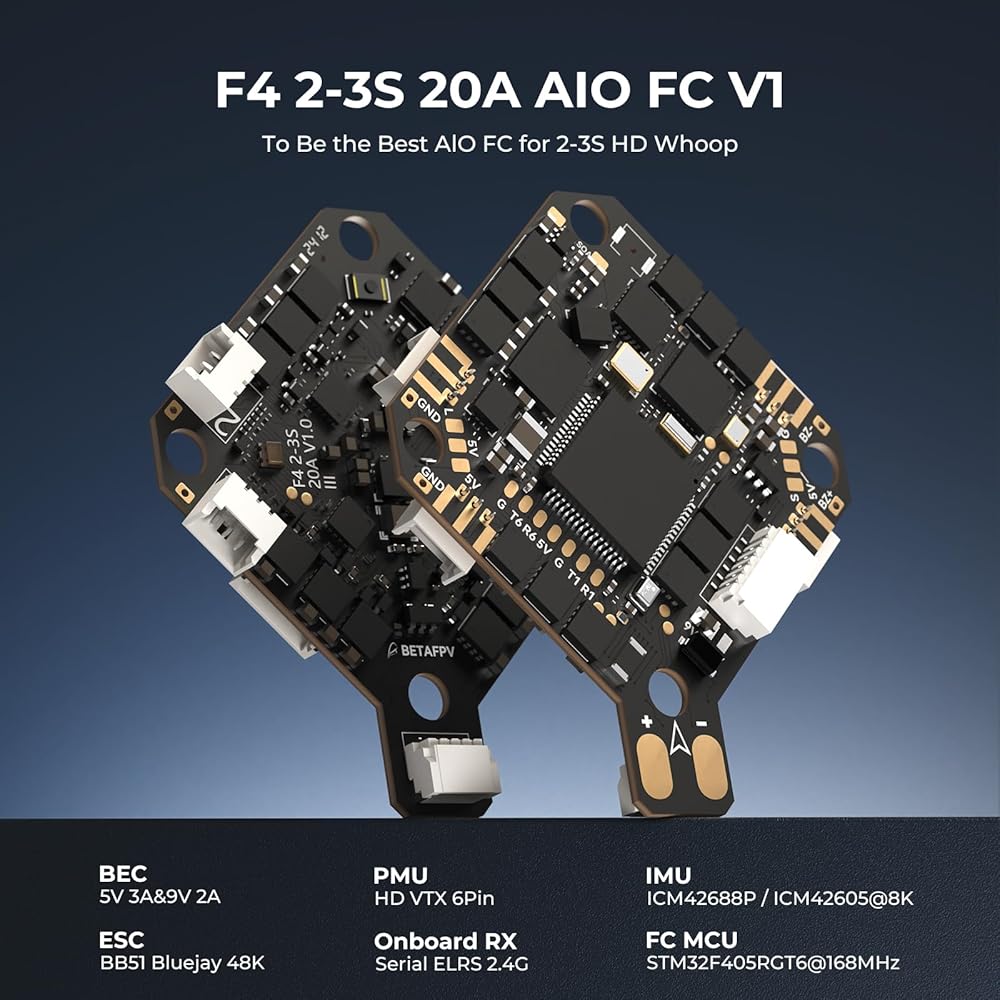

FC: F4 2-3S 20A AIO FC V1

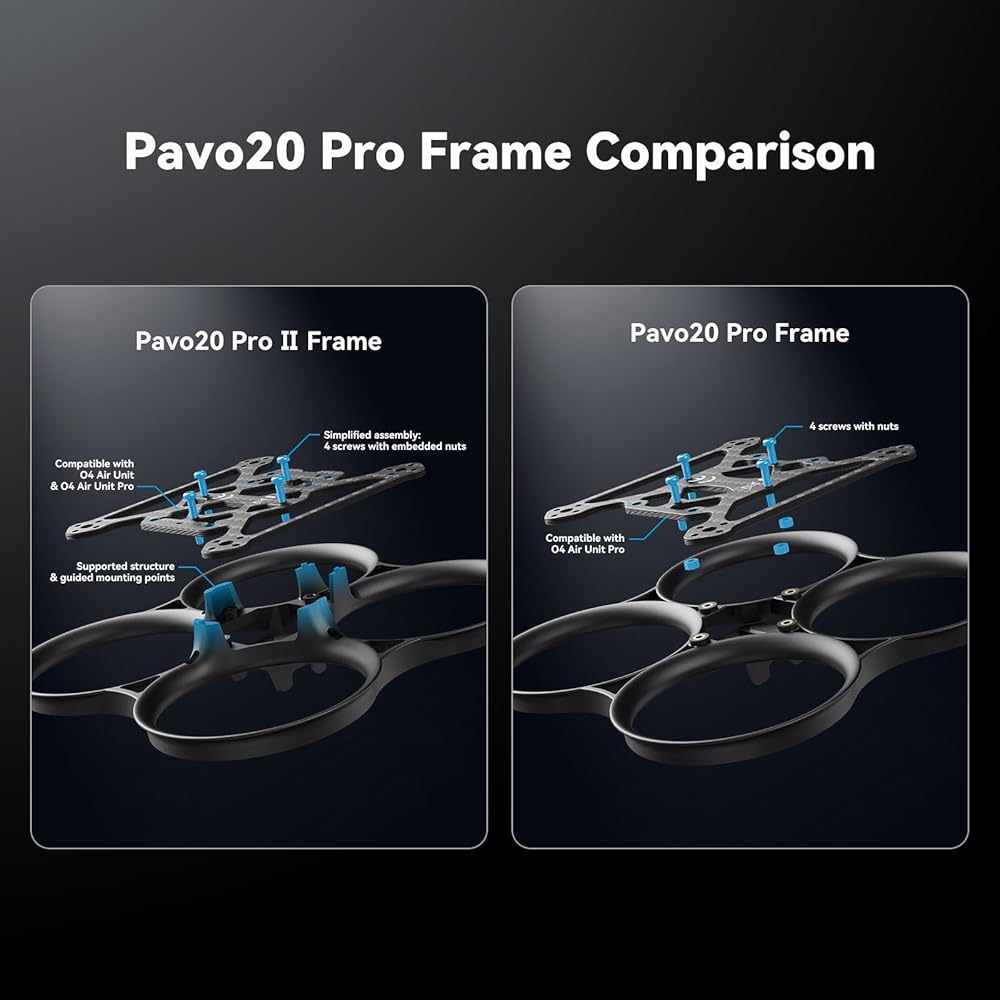

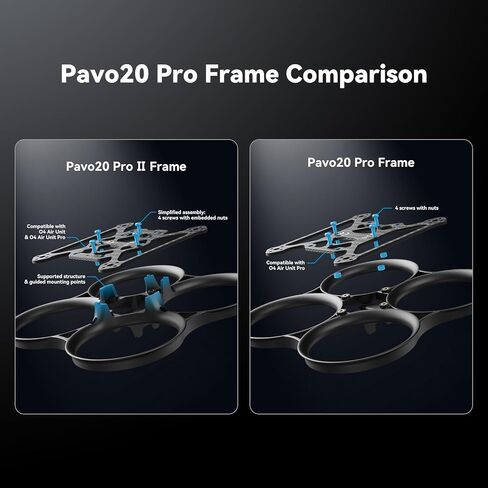

Frame: Pavo20 Pro II Brushless Frame

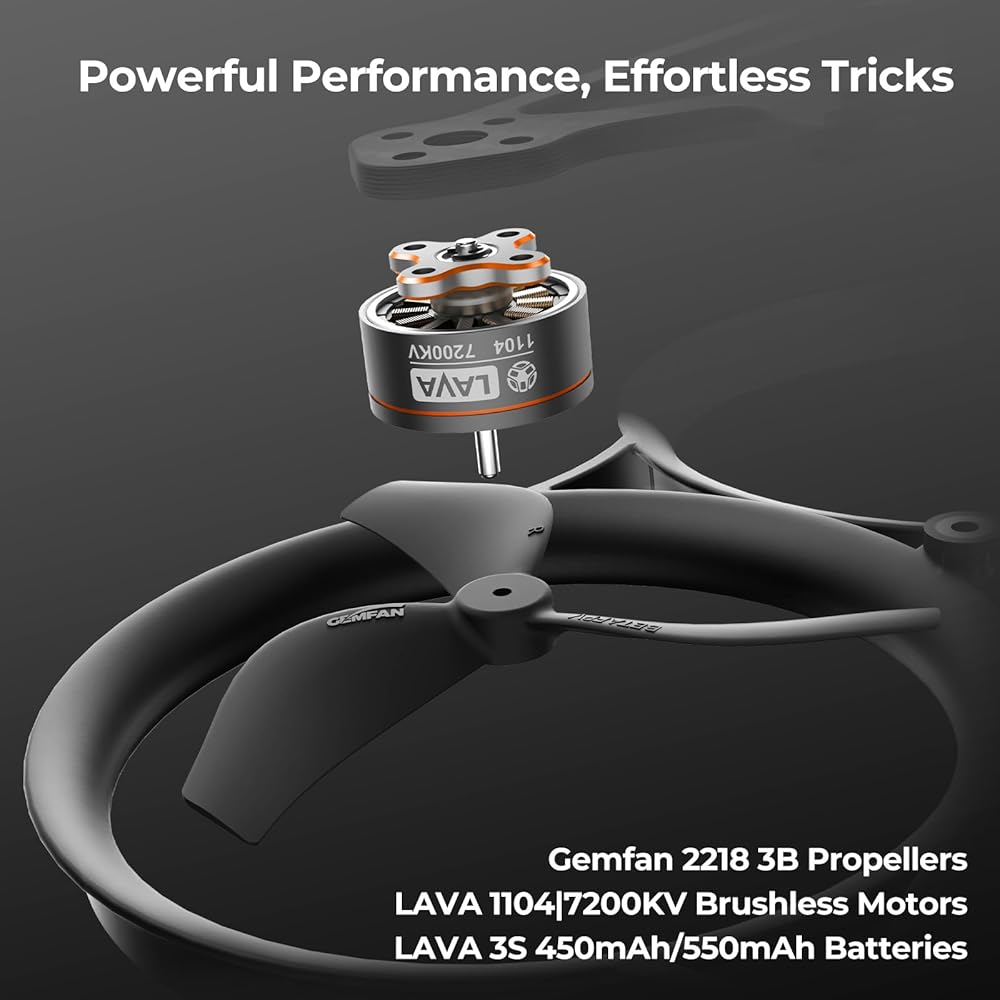

Motor: LAVA Series 1104 | 7200KV Brushless Motors
Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
Flight Time: 6'30'' (with LAVA 3S 550mAh Battery, battery not included)
RX Version: Serial ELRS
HD VTX Bracket: Bracket for O4 Air Unit Pro, Bracket II for O4 Air Unit

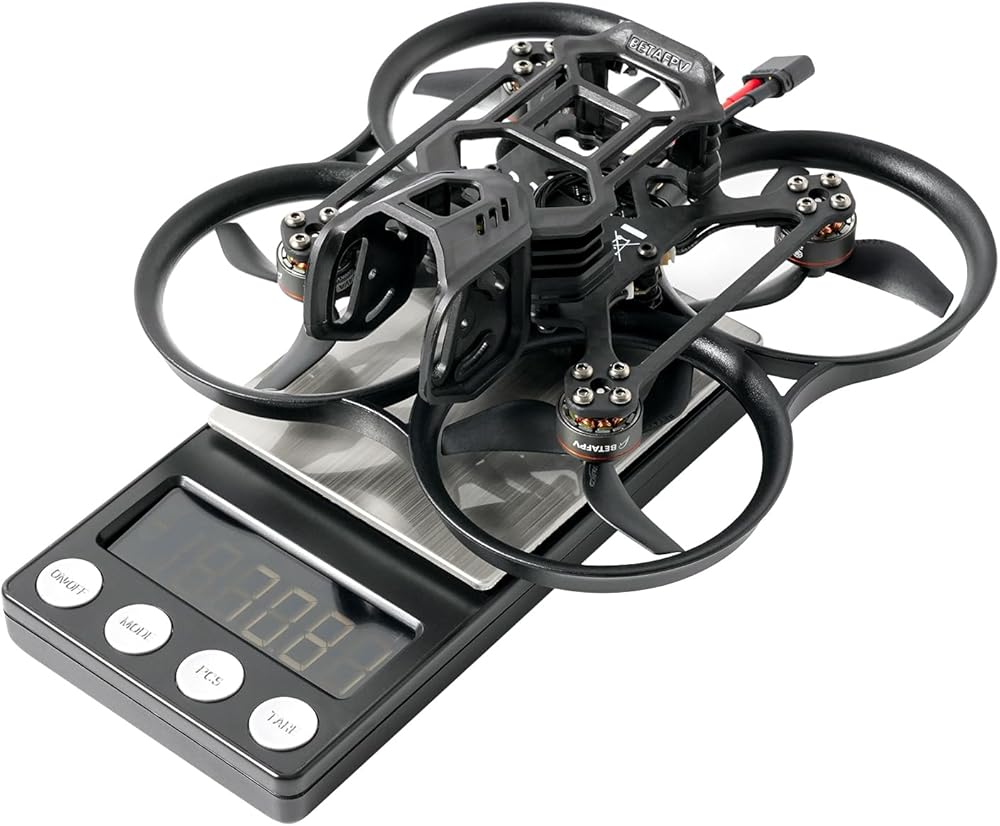

Weight: 65.2g (PNP Version)
Battery Connector: XT30
Battery Slot: 20mm * unlimited height
Strip: NightFire RGB LED Strip

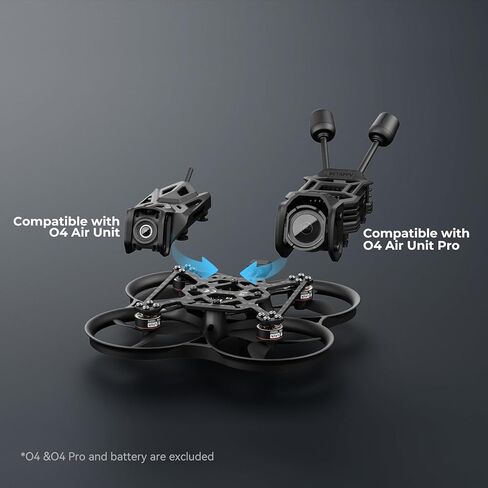

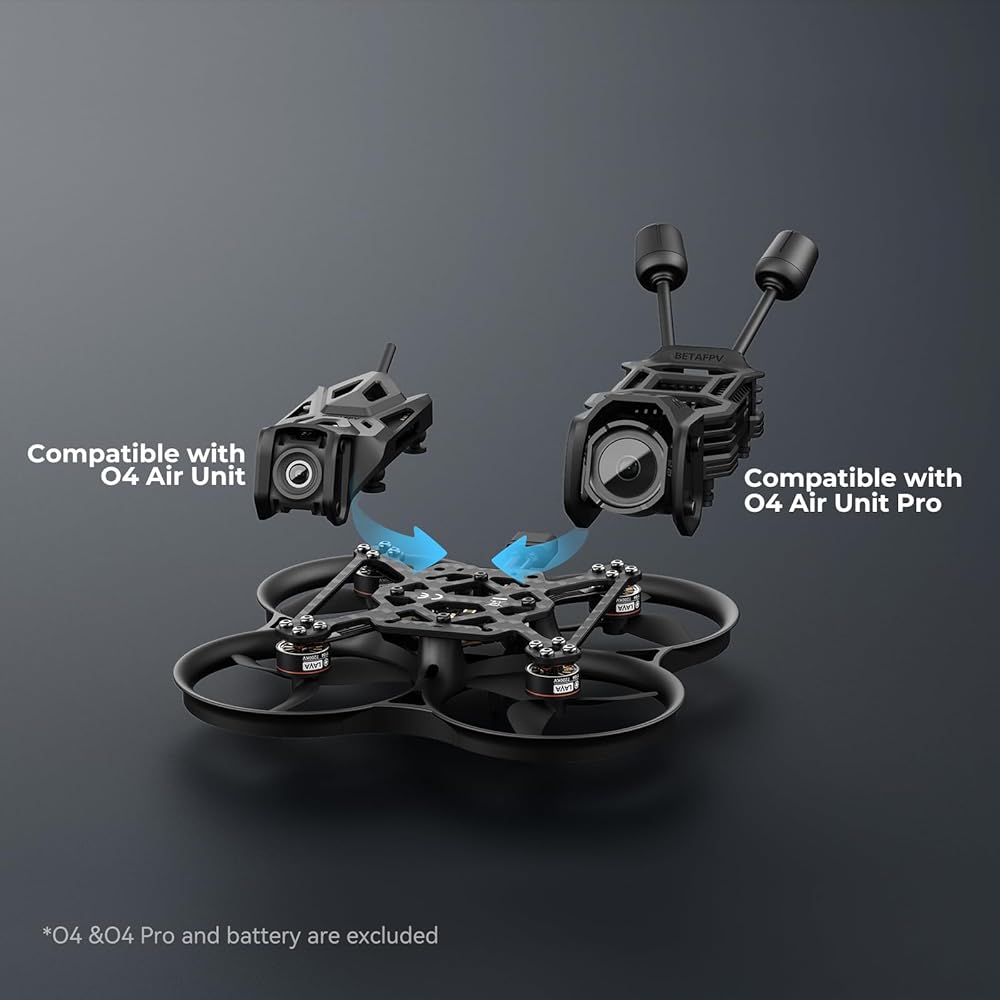

Supported VTX: O4 Air Unit Pro, O4 Air Unit (VTX not included)
Camera Filter Installation: Vertical
Recommended Filter: ND Filter for O4 Pro Camera
Recommended Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery (Battery not included)

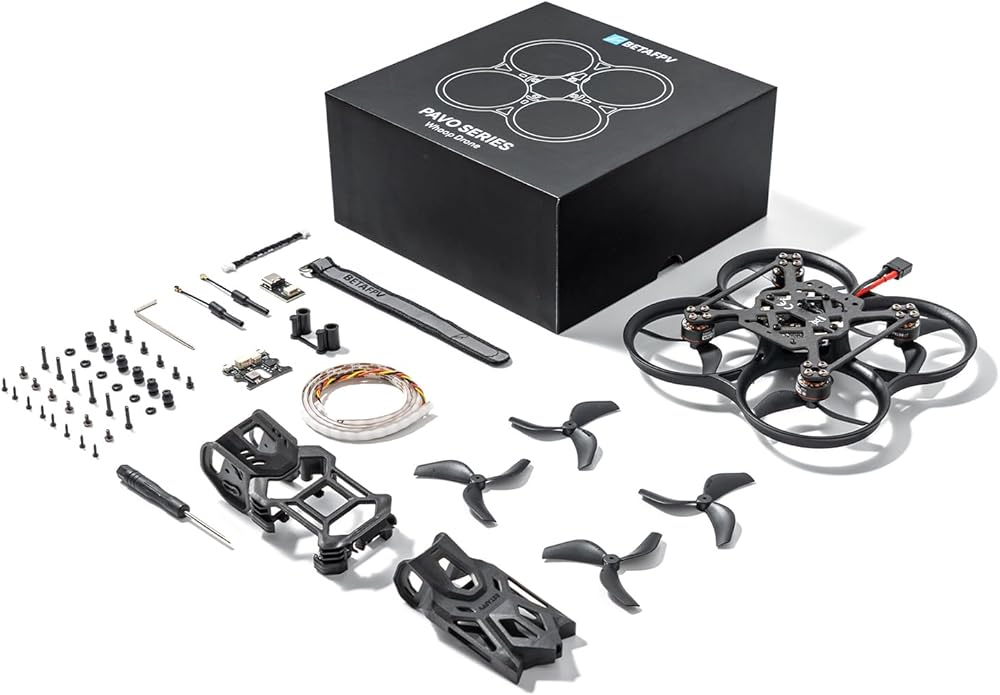

Package
1 * Pavo20 Pro II Brushless Whoop Quadcopter (PNP)
1 * Top Plate for Bracket II for O4 Air Unit
1 * Bottom Plate for Bracket II for O4 Air Unit
1 * HD VTX Bracket for O4 Air Unit Pro
4 * Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
1 * Type-C to SH1.0 Adapter
1 * SH1.0-4Pin Adapter Cable
1 * RGB LED Strip (500mm)
1 * RGB Board
6 * Shock-absorbing Balls for Bracket for O4 Air Unit Pro(6.6mm)
6 * Shock-absorbing Balls for Bracket II for O4 Air Unit(8.8mm)
6 * Shock-absorbing Pads for Bracket II for O4 Air Unit(1.5mm)
6 * M2*10 Cylindrical Socket Head Cap Screws
6 * M2*4 Button Head Socket Cap Screws
6 * M2*4 Socket Head Cap Self Tapping Screws
8 * M1.4*6 Phillips Flat Washer Head Tapping Screws
2 * 5.8G VTX Antenna
1 * 5.8G VTX Antenna Mount
1 * Phillips Screwdriver
1 * H1.5 Hex Screwdriver
