مميزات خاصة

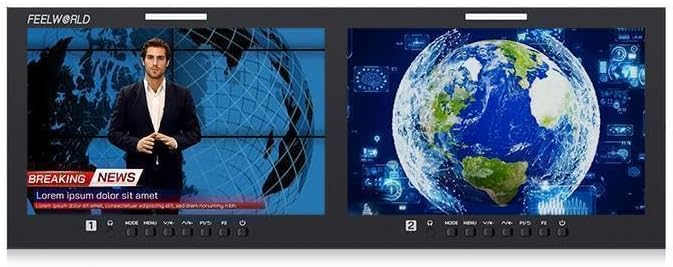

D101 PLUS is equipped with dual independently 10.1-inch high resolution IPS panel，160° wide field of view, 8bit color depth with 16.7M colors display. The front of each screen including tally light,displayed in red, green or yellow to signify on air, preview or recording, built-in up to 11 languages.
D101 PLUS include Ethernet so you can connect them to your network and centrally control all your monitors from a single computer. It easy to install in video wall or broadcast truck thanks to its 4RU form factor. You can use them for broadcast, post production, on set monitoring, flyaway kits, broadcast trucks and more.
Suitable for 19 inch width cabinet installation with 4RU mounting height and slim metal design,occupying only a small part of volume，ideal for installation in equipment racks and monitor walls. Can Use for desktop, just put down the two metal stripes the rear of monitor.
The monitor supports time code display under SDI signal, including LTC and VITC types，synchronization with the camera. Through the time code, you can quickly and accurately find a specific frame in the video It is particularly convenient to identify specific frame rates in filming and television post production and video production.
Supports to load 32 custom LUTs, Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode.
D101 PLUS is design for broadcast work and post-production, each panel with 3G-SDI, 4K HDMI and CVBS signal inputs and outputs. Plus, it also have L/R audio. Comes with DC 12V socket（suitable for 5.5*2.1mm power plug) and 4 pin XLR connector

وصف

Advanced Features
* Waveform (RGB、YUV、Y)
* Vectorscope
* Histogram (RGB1、RGB2、Y)
* Custom LUTs (up to 32)
* Focus Assist(Red, Green, Blue)
* Check Field (Red,Green,Blue,Mono)
* Embedded Audio
* Over Exposure
* Pixel to Pixel
* Center Marker (Red, Green, Blue, Black, White, Gray)
* Ratio Marker (4:3、13:9、14:9、15:9、16:9、1.85:1、2.35:1)
* Image Flip (H, V, H/V)
* Image Freeze
* Zoom Mode (2X、4X、9X、16X、User)
* False Color
* Scan Mode(Under Scan, Over Scan)
* Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
* Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
* Custom Color Temperature
* Built-in LED tally indicators (Red, Green, Yellow)

Model: D101 PLUS
Screen Size: 10.1"×2 IPS
Resolution: 1920×1200 pixels
Dot pitch: 0.1128(H)×0.1128 (W) mm
Aspect Ratio: 16:10
Brightness: 500cd/m²
Contrast Ratio: 1500:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

Input (Each LCD)
1 X BNC: 3G-SDI
1 X HDMI: HDMI
1 X BNC: Video
2 X RCA: Audio(L/R)

Output (Each LCD)
1 X BNC: 3G-SDI
1 X HDMI: HDMI
1 X BNC: Video

Audio (Each LCD)
Audio Out: Stereo Headphone × 1

SDI Support Format
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K 3840×2160p (60/50/30/29.97/25/24/23.98)
4K 4096×2160p (60/50/30/29.97/25/24/23.98)

CVBS (Video) Support Format
PAL/NTSC auto recognize

General
Input Voltage: DC9～24V
Power Consumption: ≤24W
Power Connector: DC/ 4-pin XLR
Working Temperature: -10°C~60°C
Storage Temperature: -30°C~70°C
Install Way: Rack Mount
Unit Size: 482x177x25 mm
Unit Weight: 2048g
