مميزات خاصة

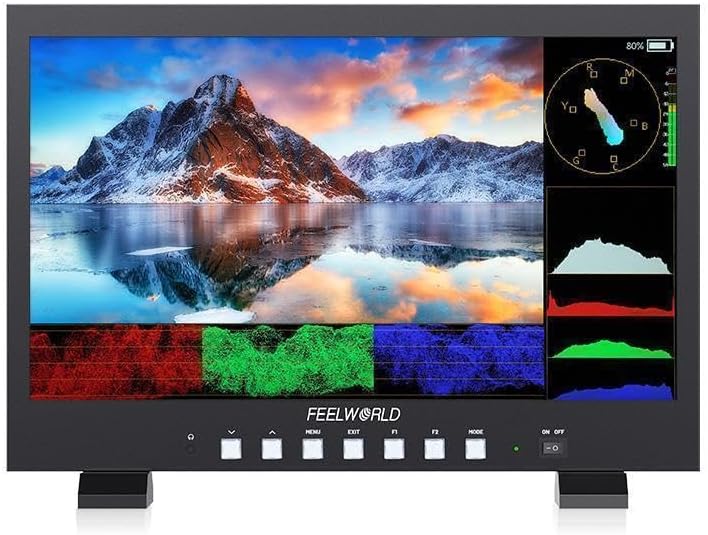

FEELWORLD FVM215-1000 is equipped with 21.5-inch full HD large screen, rich colors present high quality image. 178°(H/V) wide viewing angle large screen with professional calMan software calibration, almost no color difference at any angle. Support to load 32 custom LUTs.
FVM215-1000 is equipped with a 3G-SDI input and output and two HDMI 2.0 inputs and outputs support up to 4K 60Hz, compatible with professional camcorder and various cameras. Plus, it also has stereo headphone jack and speaker.
High brightness 1000nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need. FVM215-1000 adopts new UI menu, take the software functions are iconized. it is more convenient and quickly to operate the function，greatly improves your working efficiency.
FVM215-1000 built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals., comes with 100x100mm VESA mount position, can be mounted on wall through a VESA mount points in addition to a desktop stand. 11 languages supporting.
Multiple power supply modes, including XLR, DC IN power input and V-mount battery plate so you can use it with battery or plug it into DC power, support DC 12/5A power adapter to adapt to the shooting needs of different scenes.

وصف

Model: FVM215-1000
Screen Size: 21.5"IPS
Resolution: 1920x1080 pixels
Pixel Pitch: 0.24795 (H) x 0.24795 (V) (mm)
Color Depth: 8bit
Color Gamut: 72% NTSC
Aspect Ratio: 16:9
Brightness: 1000cd/m²
Contrast Ratio: 1000:1
Backlight: LED
Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)

Input
1 X SDI: 3G-SDI
2 X HDMI: HDMI 2.0
1 X USB: USB-A (LUT file import and Firmware update)

Output
1 X SDI: 3G-SDI
2 X HDMI: HDMI2.0

Audio
Audio: 3.5mm Stereo Headphone

3G-SDI Input and Output Support Format
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)

HDMI Input and Output Support Format
720p (60/59.94/50/30/29.97/25/24)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98)
4K 3840×2160p (60/50/30/29.97/25/24/23.98)
4K 4096×2160p(24/23.98)

General
Power Connector: DC IN, XLR
Input Voltage: DC12～24V
Power Consumption: ≤52W
Working Temperature: 0°C~50°C
Storage Temperature: -20°C~60°C
Battey Plate: V-mount battery plate
VESA Size: 100x100mm
Unit Size: 511.6x345x21.8(mm)
Unit Weight: 4.275kg
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
