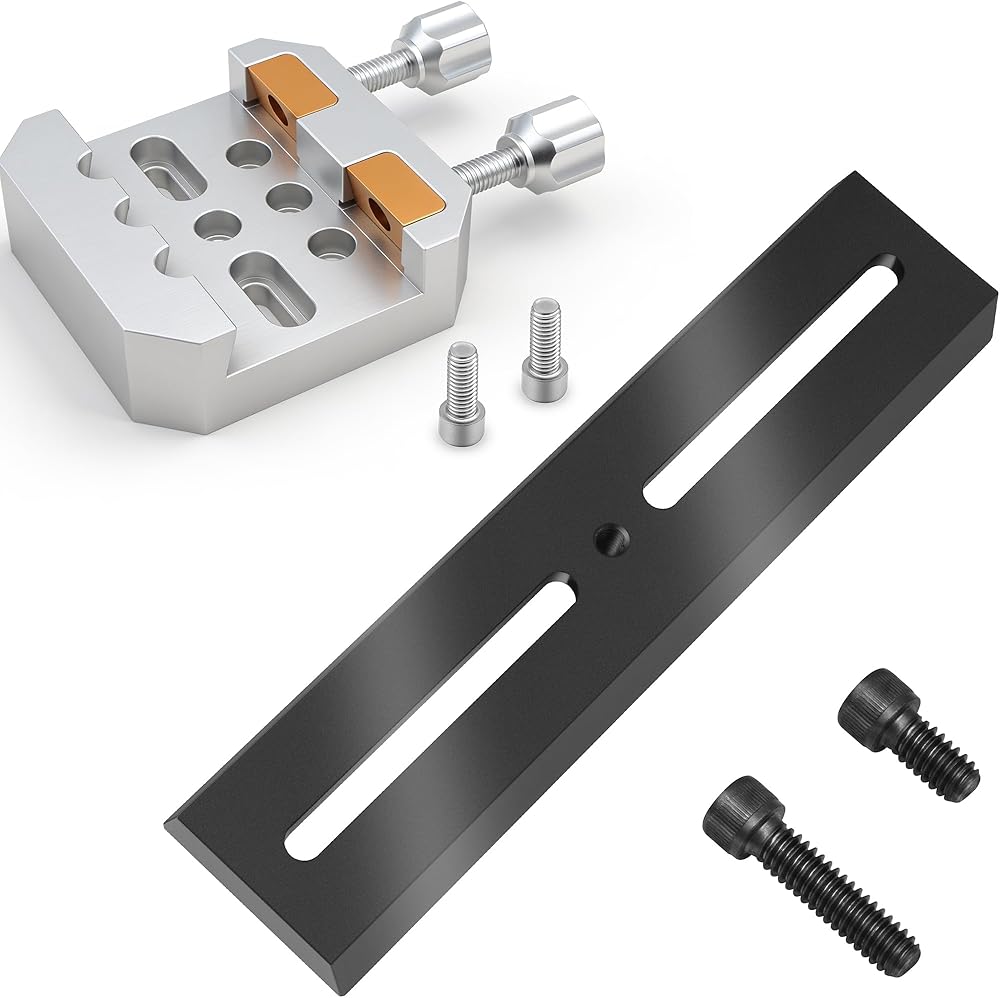

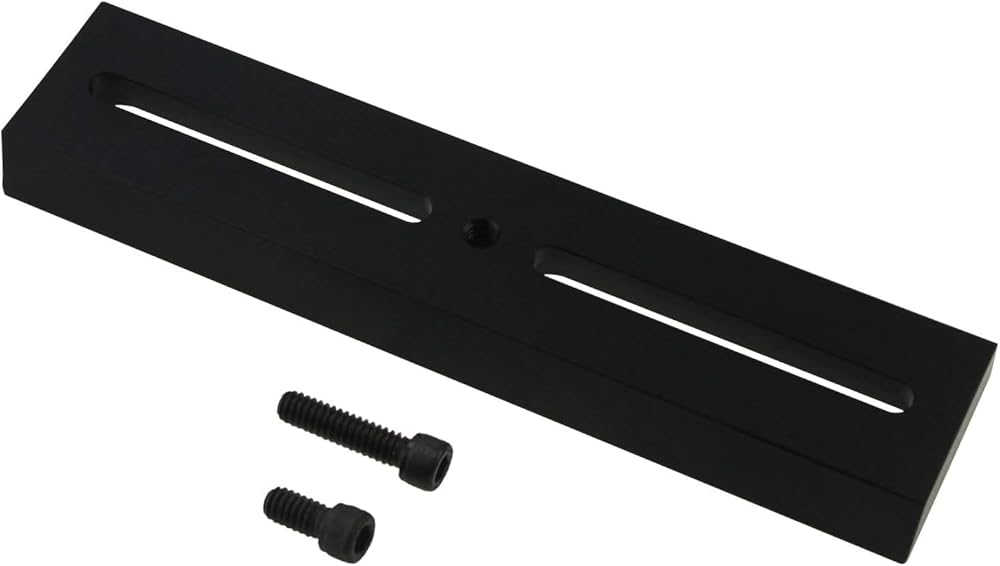

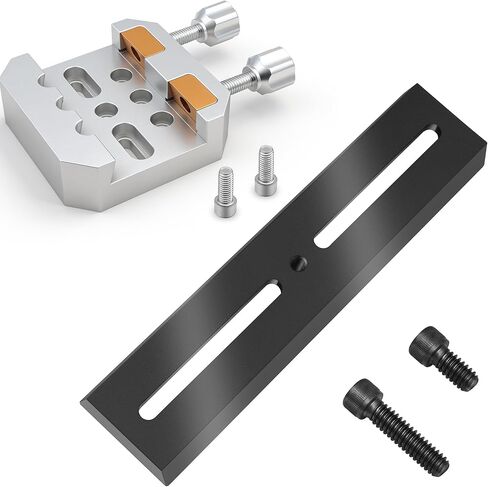

Solid dovetail bar with slotted holes and 1/4 inch photo thread; Connects cameras to astronomical mounts with Vixen GP style quick release system

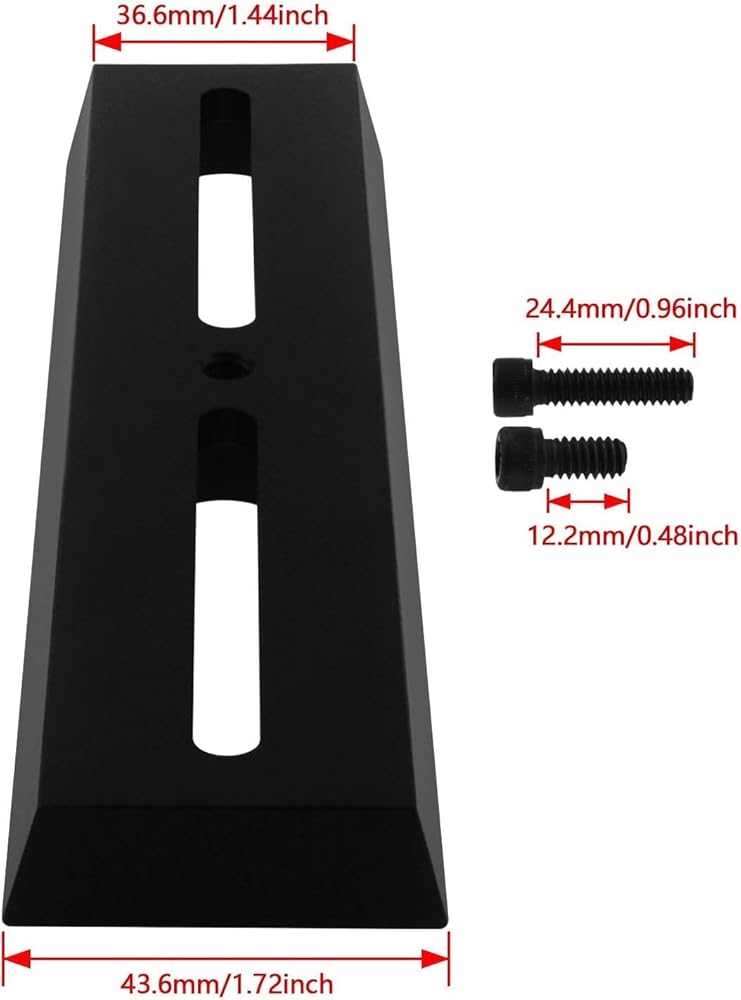

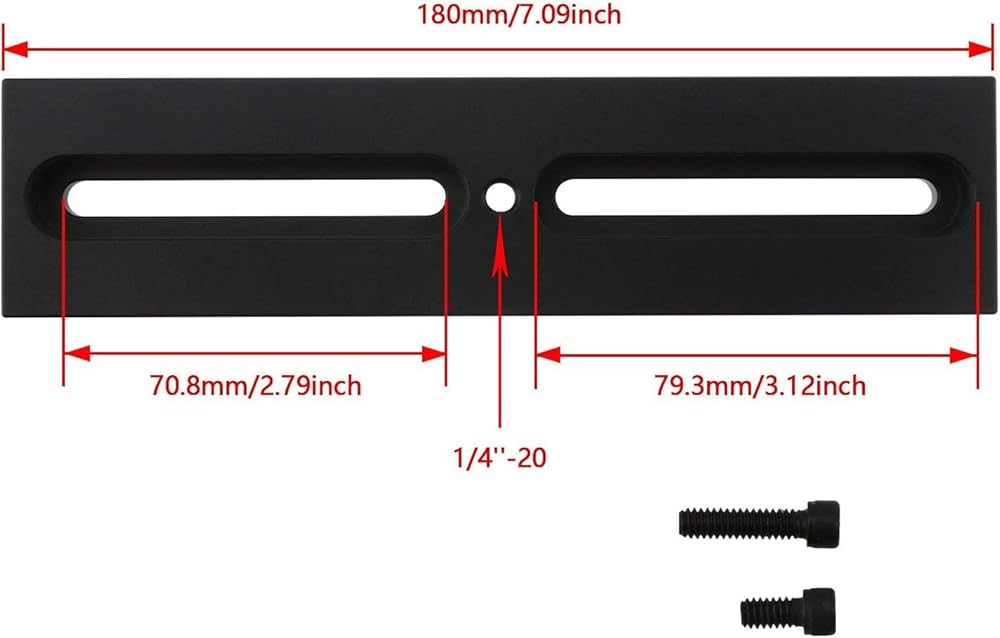

Female 1/4 inch thread in the middle of the dovetail bar.Two slotted holes suitable for M6 and 1/4 inch / 20 socket screws; each 79.3 mm long; depth 10 mm
It allows you to attach a variety of accessories including telescope rings; spotting scopes and cameras; Can also be used for attaching telescopes with a tripod adaptation

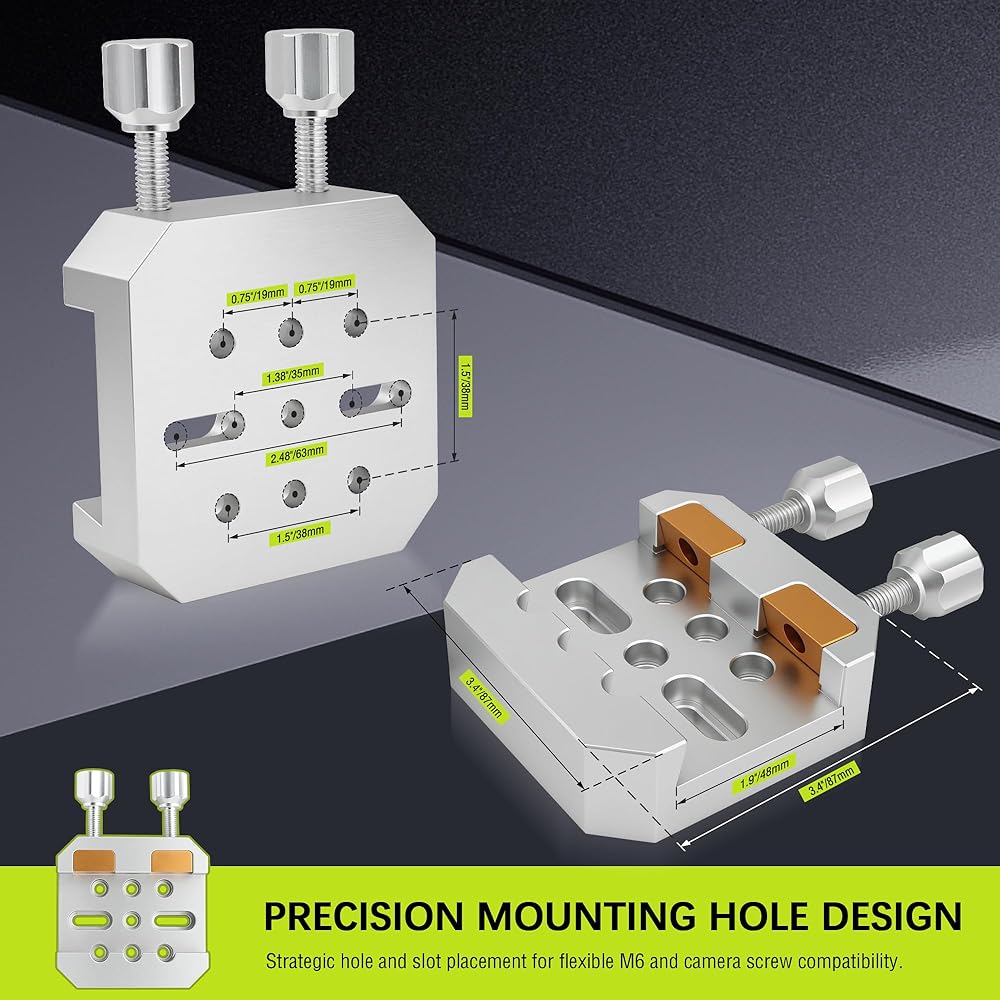

Extremly flexible through 9 countersunk bores: three M6 bores at 38 mm distance square on both sides; one in the middle with two drilled but not threaded to accommodate screws up to 6 mm in diameter center to center screw hole spacing is from 35 to 63 mm
Dimensions: 87 mm x 87 mm approx; 116 mm with screw; 9 bores allow connecting to almost all surfaces
