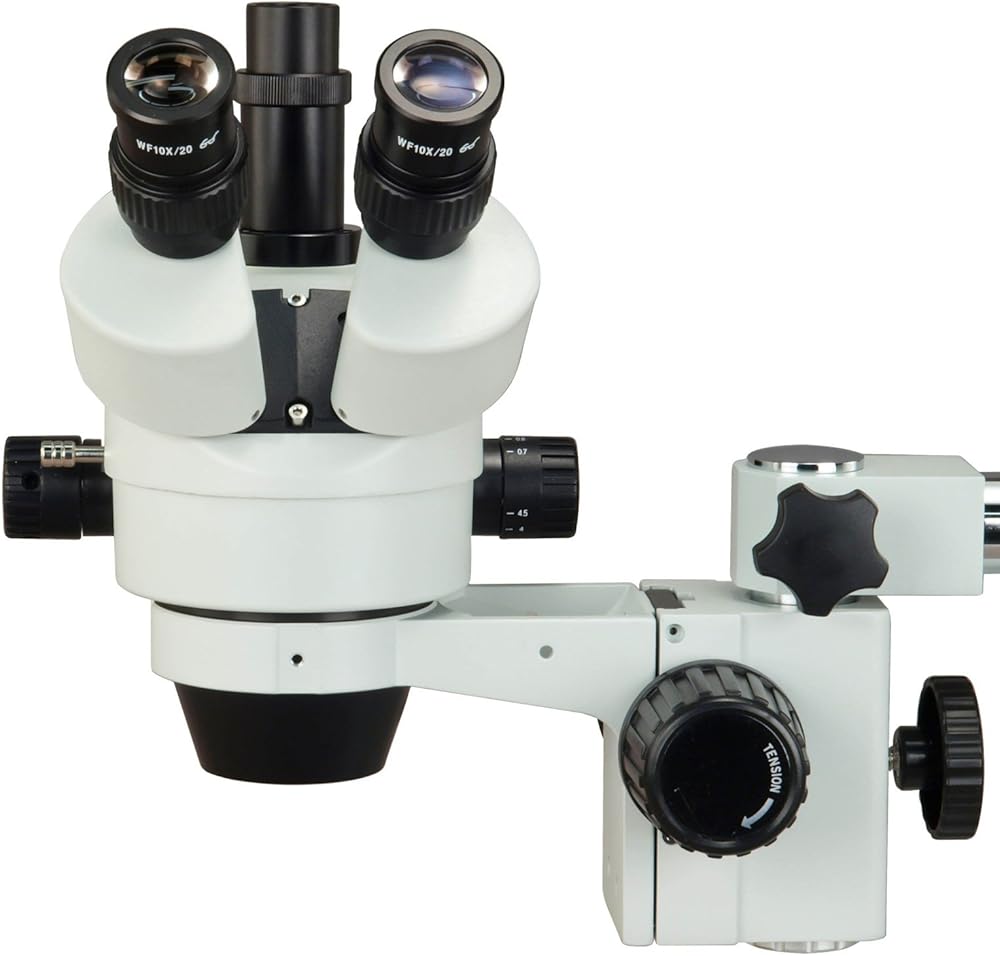

Total zoom range: 7X-45X; Eyepieces: high eyepoint widefield WF10X/20; Objectives: zoom 0.7X-4.5X; 45 degrees inclined 360 degrees rotatable trinocular head; Ocular diopter adjustment on both eyepiece tubes; Adjustable interpupillary distance: 1-3/4inch ~ 2-3/4inch(47~73mm)
Total zoom range: 7X-45X; Eyepieces: high eyepoint widefield WF10X/20; Objectives: zoom 0.7X-4.5X; 45 degrees inclined 360 degrees rotatable trinocular head; Ocular diopter adjustment on both eyepiece tubes; Adjustable interpupillary distance: 1-3/4inch ~ 2-3/4inch(47~73mm)
Total zoom range: 7X-45X; Eyepieces: high eyepoint widefield WF10X/20; Objectives: zoom 0.7X-4.5X; 45 degrees inclined 360 degrees rotatable trinocular head; Ocular diopter adjustment on both eyepiece tubes; Adjustable interpupillary distance: 1-3/4inch ~ 2-3/4inch(47~73mm)
Adjustable photo tube; Light path selection lever to switch between photo tube and left ocular tube; Auxiliary objective mount: 48mm female thread; Working distance: 100mm (3-15/16inch); Field of view: max 30mm (1-3/16inch)
Illumination: 144-LED ring light with intensity control; Focusing rack vertical stroke: 50mm (2inch); Metal rack and pinion focusing mechanism
Boom stand length: 22-7/8inch (58cm); Height of boom stand: 16-3/4inch (42.5 cm); Boom horizontal travel stroke: 9-1/4inch (23.4cm); Boom vertical travel stroke: 7-1/2inch (19cm); Base dimensions: 9inch x 9inch (23 cm x 23 cm)
5-year warranty against manufacturing defects
Description

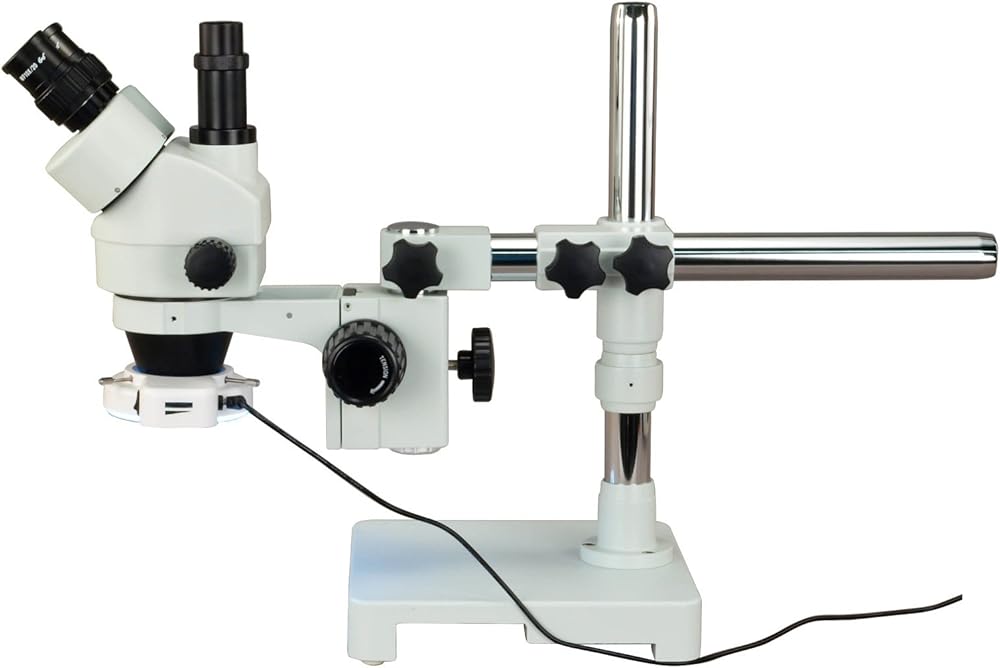

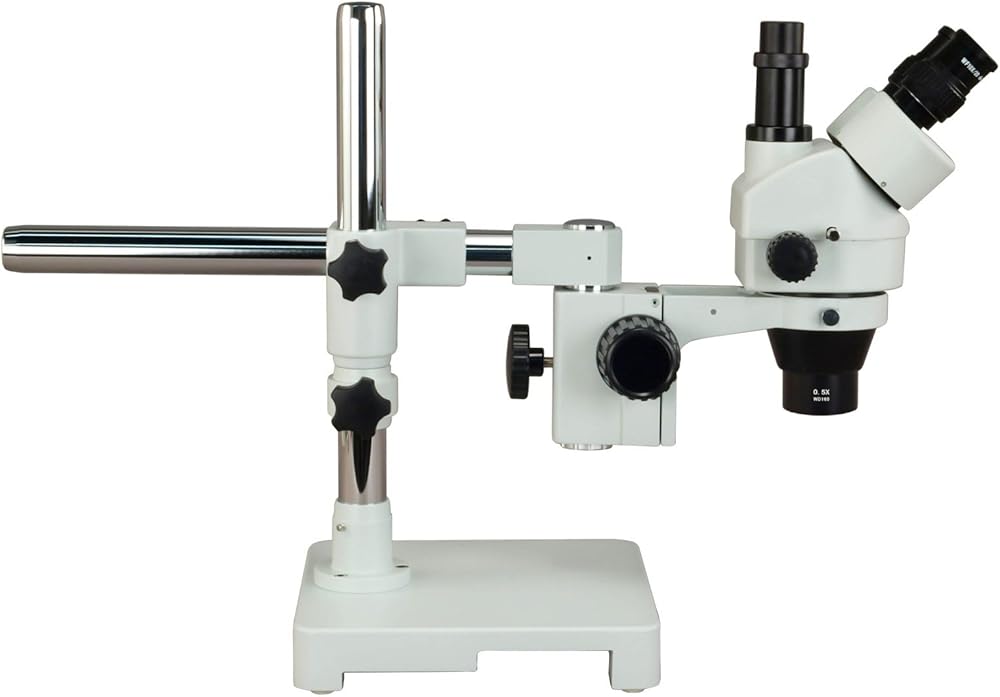

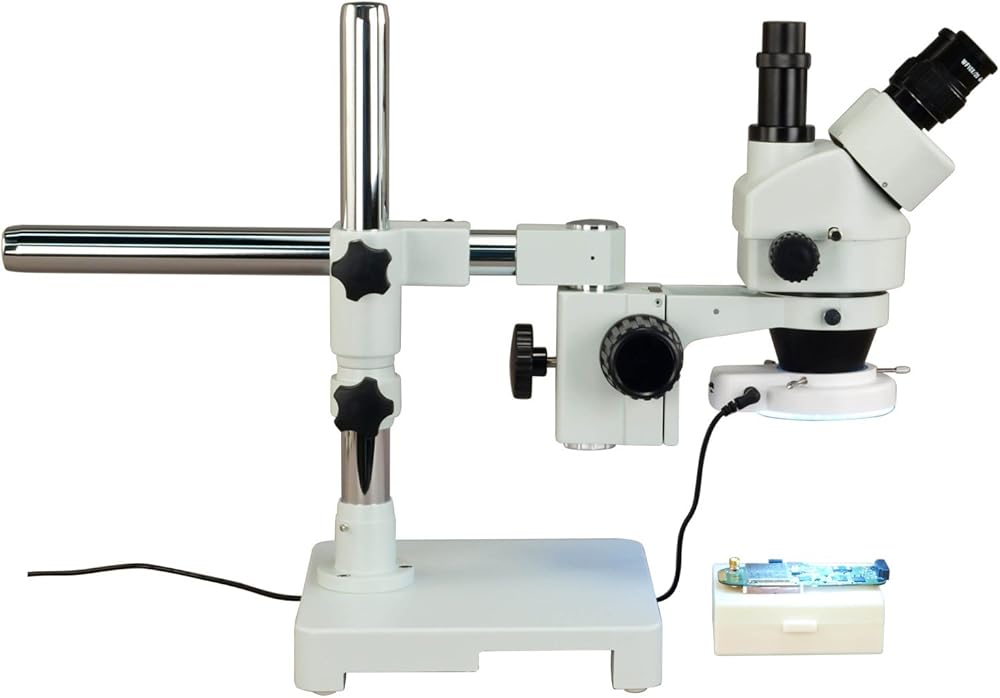

This trinocular 7X-45X zoom stereo microscope on a single-arm boom stand utilizes a fully coated optical system. It comes with a trinocular head with super widefield optics, a bright 144-LED ring light, and a sturdy single-arm boom stand. The trinocular port makes it easy to add photographic or video capability to the microscope. Its 45 degree inclined trinocular oculars and high-eyepoint optical design ensures a comfortable observation for all kinds of users including eyeglass wearers. The 144-LED ring light provides bright, shadowless illumination across the field of view and has a light intensity control dial located on the ring light. The single-arm boom stand allows to turn the microscope head around two different axes, letting you point microscope head in various directions. This microscope offers high resolution, super widefield of view, large 6.4:1 magnifying zoom range and a 100mm (3-15/16") long working distance. It is an ideal instrument for researchers, gemologists, engravers, and anyone in semiconductor or electronics industries.
