Motor Drives

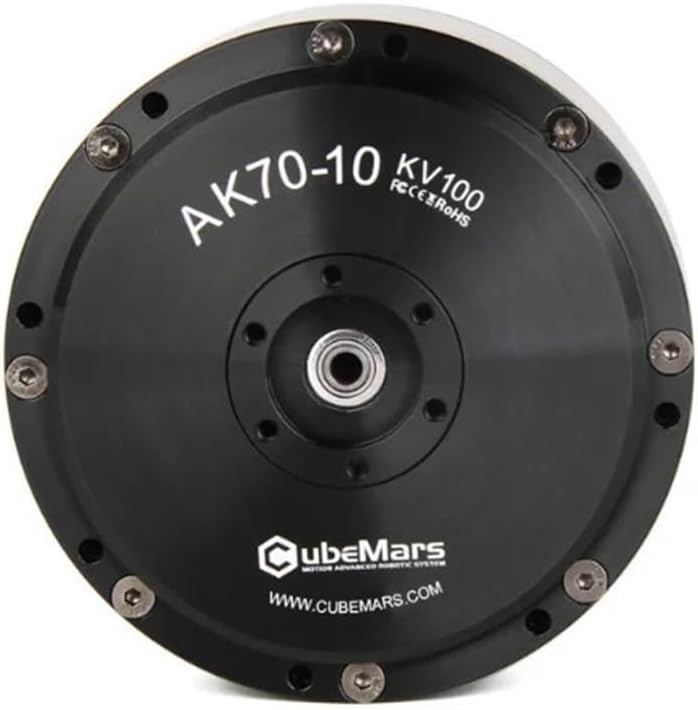

The AK70-10 actuator integrates a high-performance brushless DC motor, a self-developed planetary reducer, an encoder, and an integrated drive, enabling smooth operation with high .Utilizing a portable drive solution, the AK70-10 Power Module supports both servo and MIT modes. It breaks away from conventions by achieving synchronized control of position, velocity, and acceleration, adapting to PID settings automatically and eliminating complexity to the target efficiently.
==========
Color : black
Output Power : 74.6-735(include735)
: 8.3nm
Model Number : AK70-10 KV100
Continuous Current(A) : 7.2A
Construction : Permanent Magnet
Type : Servo Motor
Commutation : Brushless
Output Voltage : 24/48V
Use : Home Appliance
Voltage : 24/48V
Rated : 8.3NM
Peak : 24.8NM
Rated Speed : 233RPM
Rated Power : 230W
Driving Way : FOC
Weight (g) : 521
Commutation : Brushless
Driver Board : Yes
Use : Legged Robot/Exoskeleton/Cobot Arm
