maXpeedingrods 5HP Air Compressor Electric Motor, 184TZ Frame 3450RPM, 230V 24.9Amps Voltage, 7/8" Keyed Shaft, CCW-SE Rotation, 2.25" Shaft Length for Single Phase Air Compressors

KWD 113.500
Weight
24.9 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • [Versatile & Powerful]: Designed specifically for air compressors, the 5HP output and 3450RPM speed ensure efficient operation of pneumatic tools and other equipment. Its high-quality steel construction protects internal components, providing long-lasting performance in workshops or industrial settings

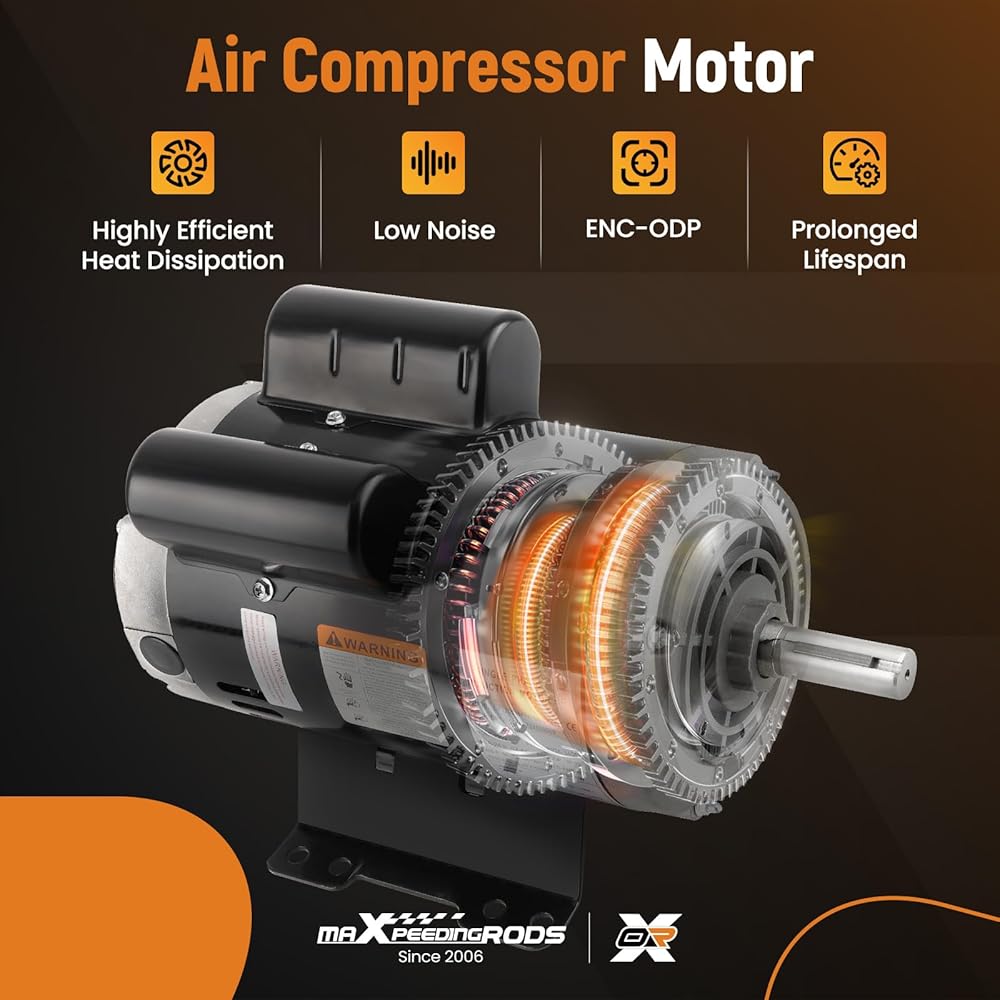

  • [Built to Last]: The Open Drip Proof enclosure prevents liquid ingress, safeguarding internal parts from damage. Combined with precision-balanced windings and durable materials, this motor offers extended service life even under frequent start-stop cycles typical of compressor applications
  • [Complete Specifications]: Voltage: 230V / 60Hz | Horsepower: 5HP | Speed: 3450 RPM | Frame: 184TZ | Current: 24.9A | Shaft: 2.25" length, 7/8" diameter with keyway | Rotation: CCW-SE | Certification: CSA. This motor is engineered to deliver reliable power for your air compressor and general equipment needs
  • [Easy Installation]: Standard 184TZ frame and 7/8" keyed shaft (2.25" length) ensure compatibility with most compressor pumps. Clearly marked CCW rotation simplifies setup, while the 24.9A rated current matches common 230V circuits for straightforward wiring
  • [Certified & Recommended]: CSA certification guarantees compliance, giving you peace of mind. For optimal performance, install in clean, dry indoor environments. This motor is an ideal replacement or upgrade for your compressor system

Description

OE/Part number
54421193, P09988A, CC1021885, 23378805, 23220064, 56283138

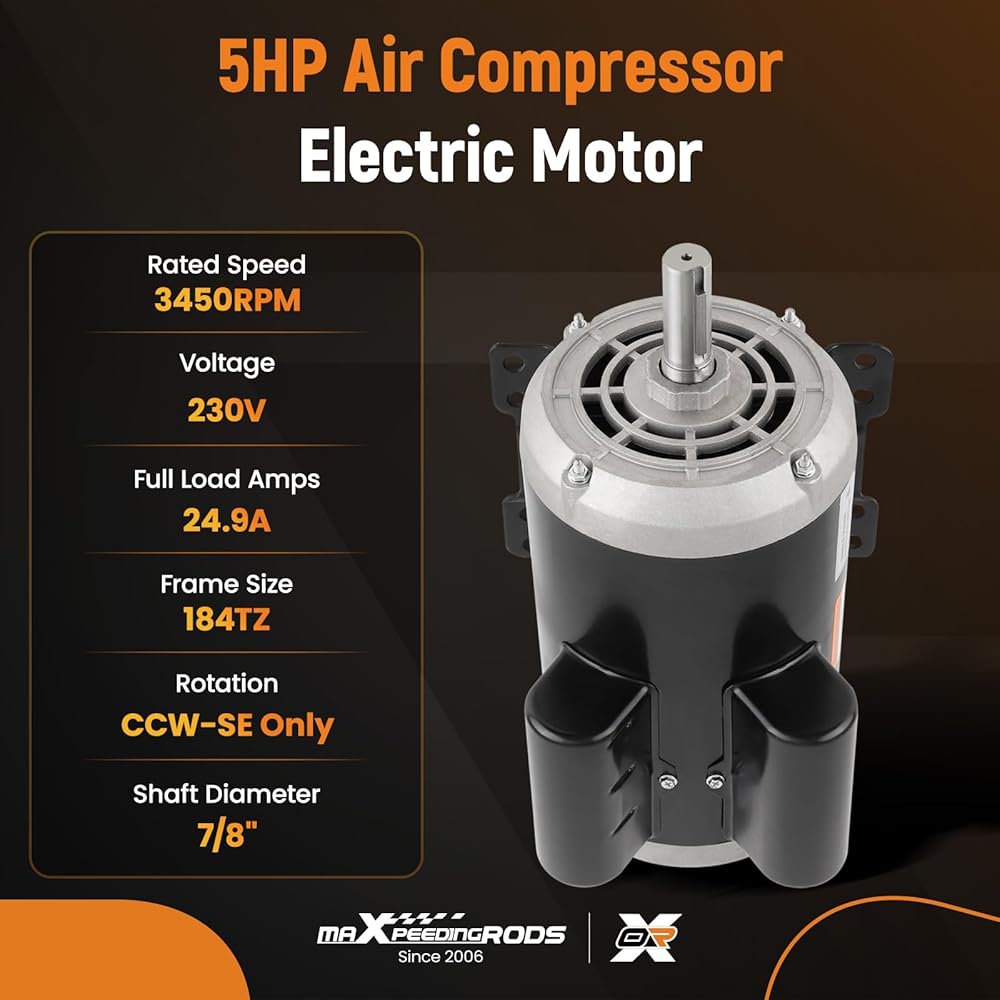

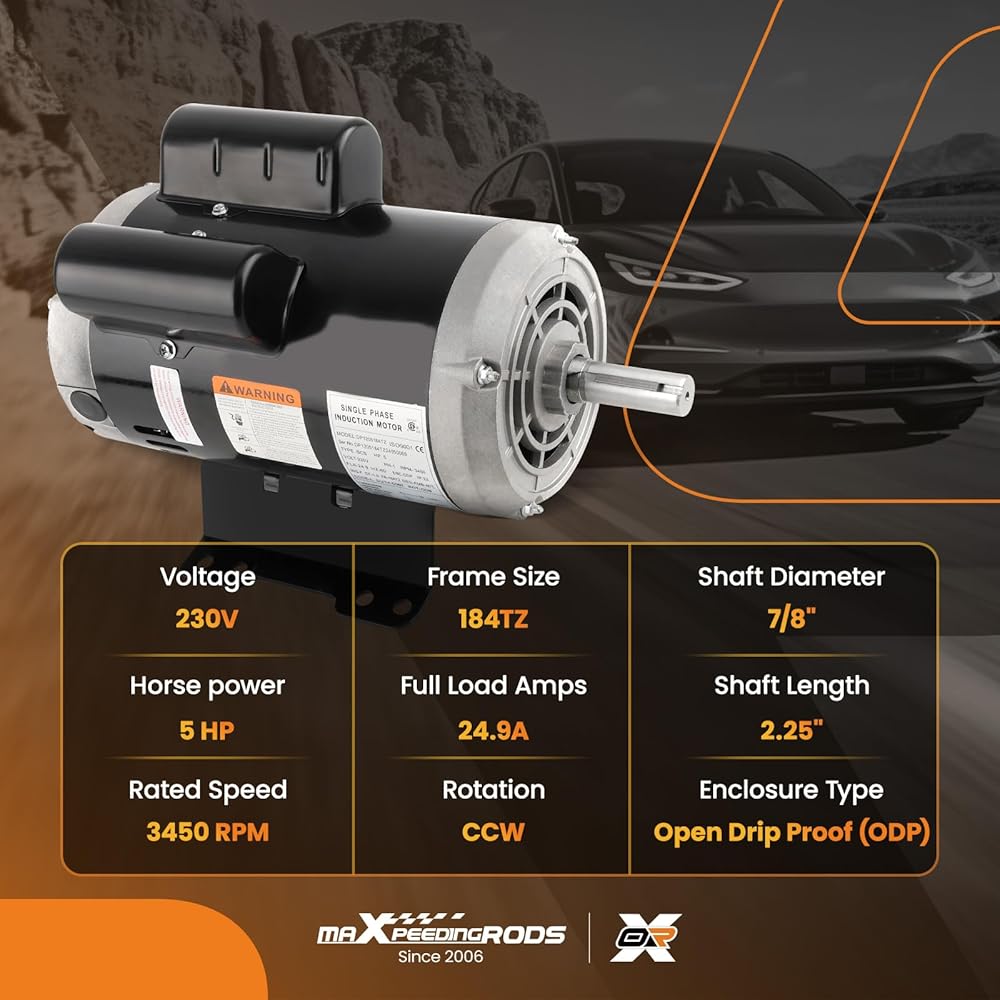

Specification
Horsepower: 5HP

Frame Size: 184TZ

Amperage：24.9A

Frequency: 60 HZ

Phase: One/ Single Phase

Voltage: 230V

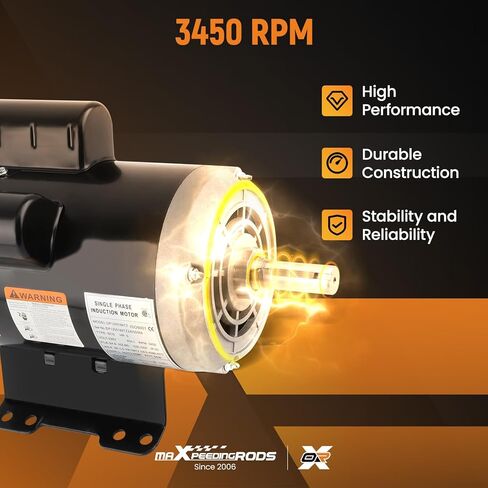

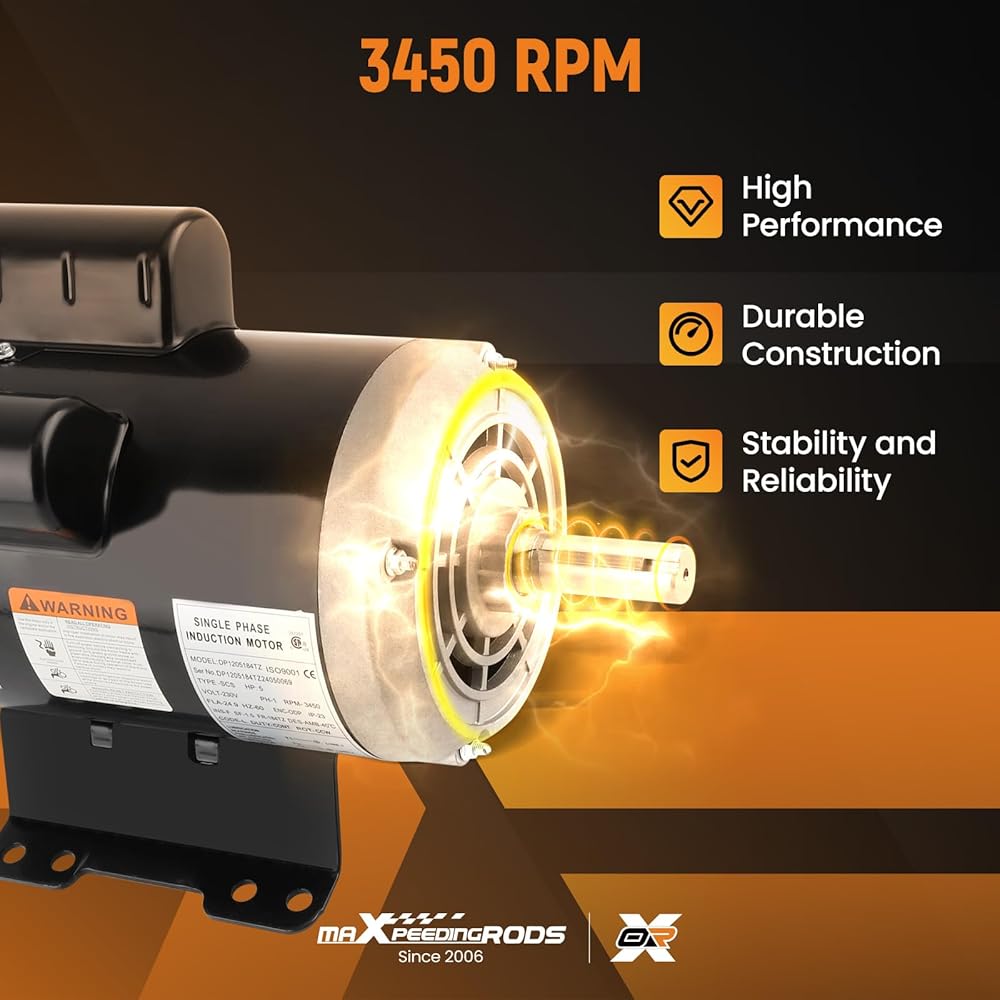

Rated Speed: 3450 RPM

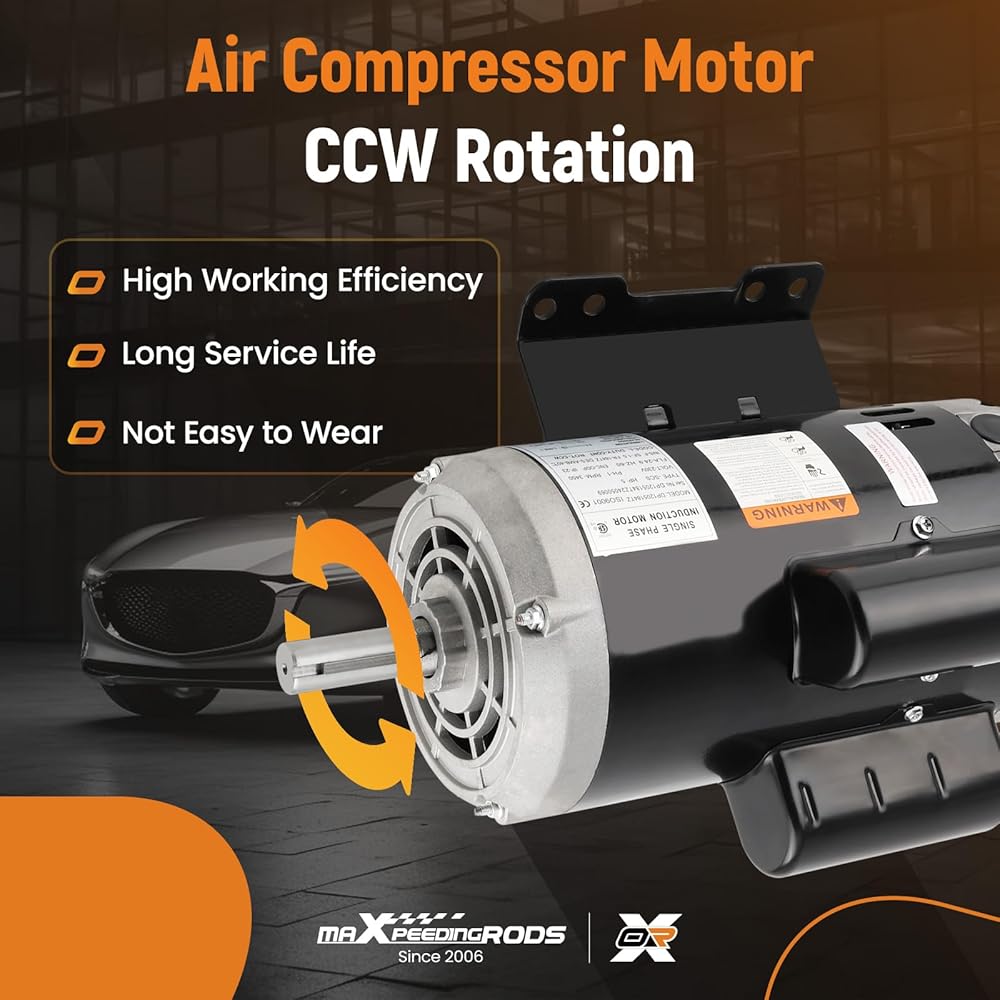

Rotation: CCW-SE only

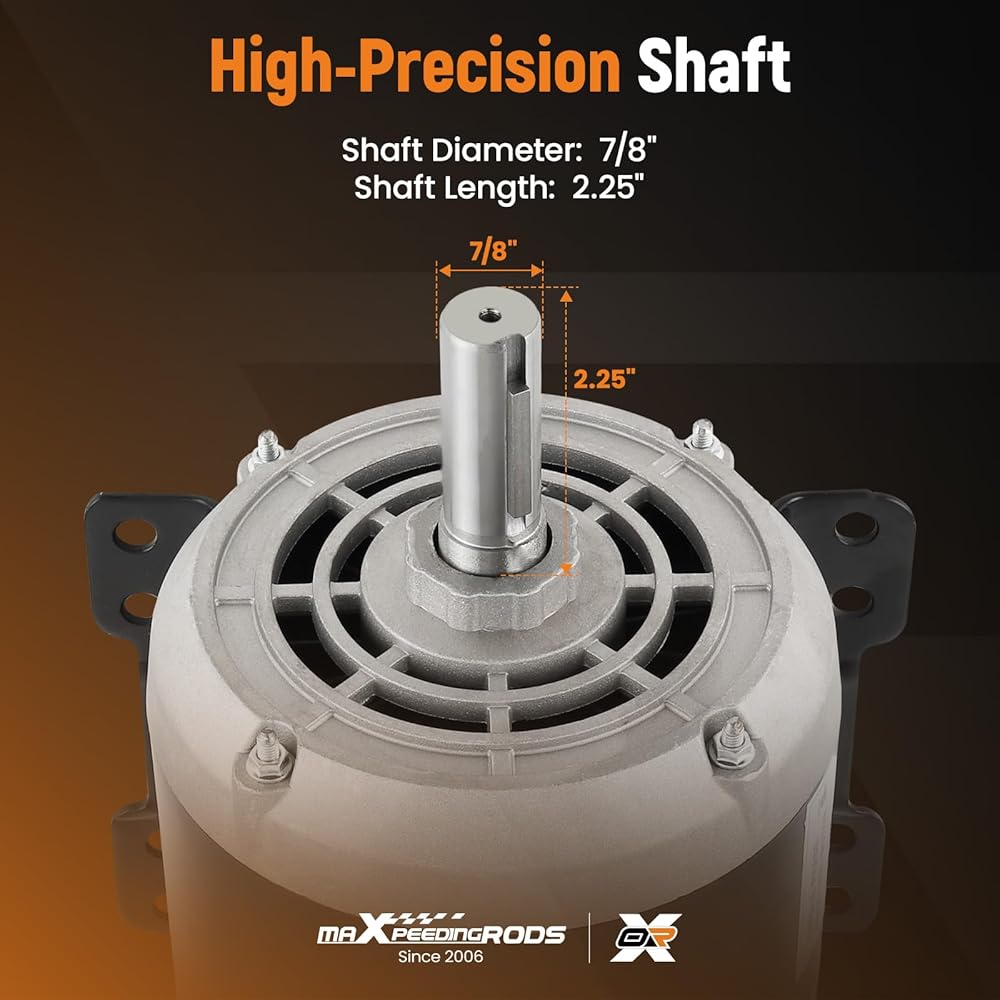

Shaft Length: 2.25”

Shaft Diameter: 7/8” Keyed shaft

Insulation Class: F

Overload Protection with Manual Reset
Note
Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
