Specification:

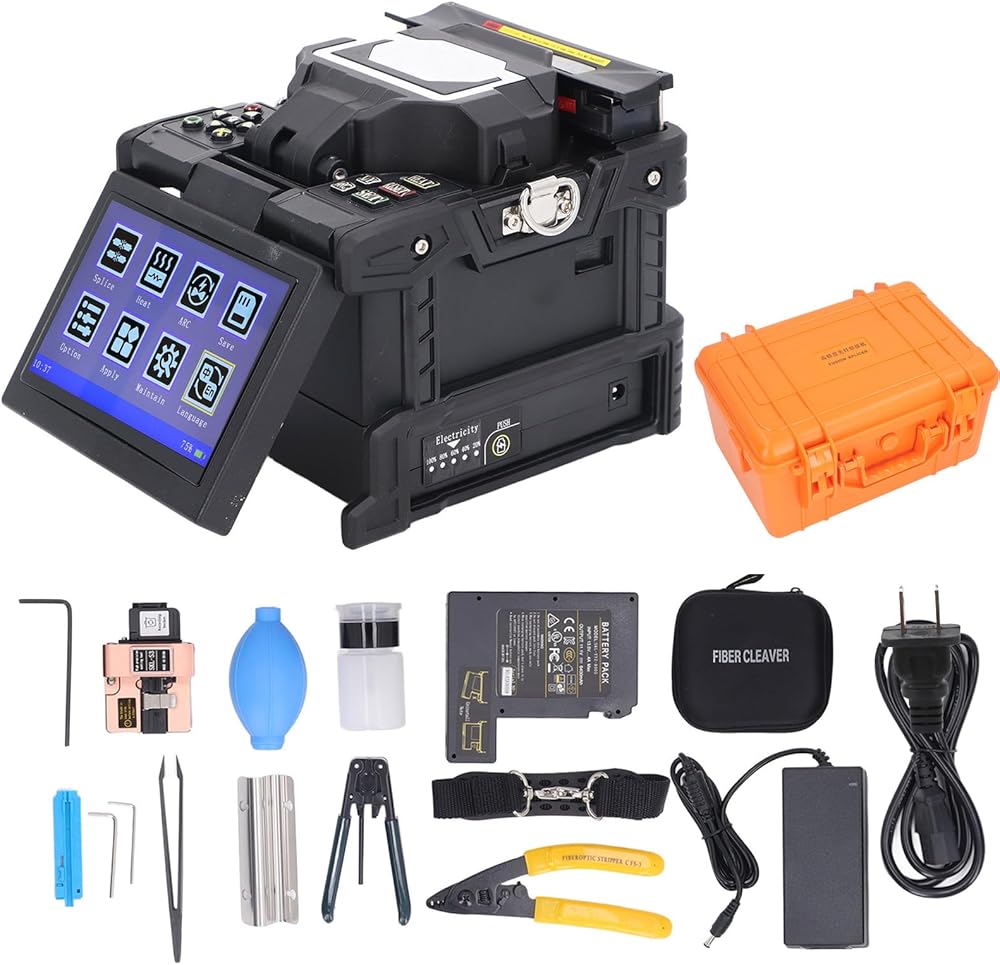

Item Type: Fiber Splicer
Material: Aluminum Alloy, ABS
Applicable Fiber: (G.652 and G.657), MM(G.651), DS(G.653), NZDS(G.655) and custom fiber types
Connection Loss: 0.02dB (), 0.01dB (MM) 0.04dB (DS/NZDS)
Return Loss: Better than 60dB
Typical Connection Time: 9 seconds
Typical Heating Time: 26 seconds (heating time can be set, heating temperature can be adjusted)
Fiber Alignment: Fine alignment, core alignment, cladding alignment
Fiber Diameter: Cladding diameter 80 to 150μm, coating layer diameter 100 to 1000μm
Cutting Length:
Coating Layer below 250μm: Approx. 8 to 16mm / 0.31 to 0.63in
Coating Layer 250 to 1000um: Approx. 16mm / 0.63in
Tension Test: Standard 2N
Optical Fiber Jig: Multifunctional jig, applicable to bare fiber, pigtail, jumper, leather wire; The replacement fixture can be applied to SC and other connectors for various FTTx fiber optic cables
Magnification: 400x (X or Y axes)
Heat Shrink Bushing: 60mm, 40mm and a series of miniature bushing
Display: 5.0 inch TFT color LCD display with reversible contents for easy two way operating
External
