مميزات خاصة

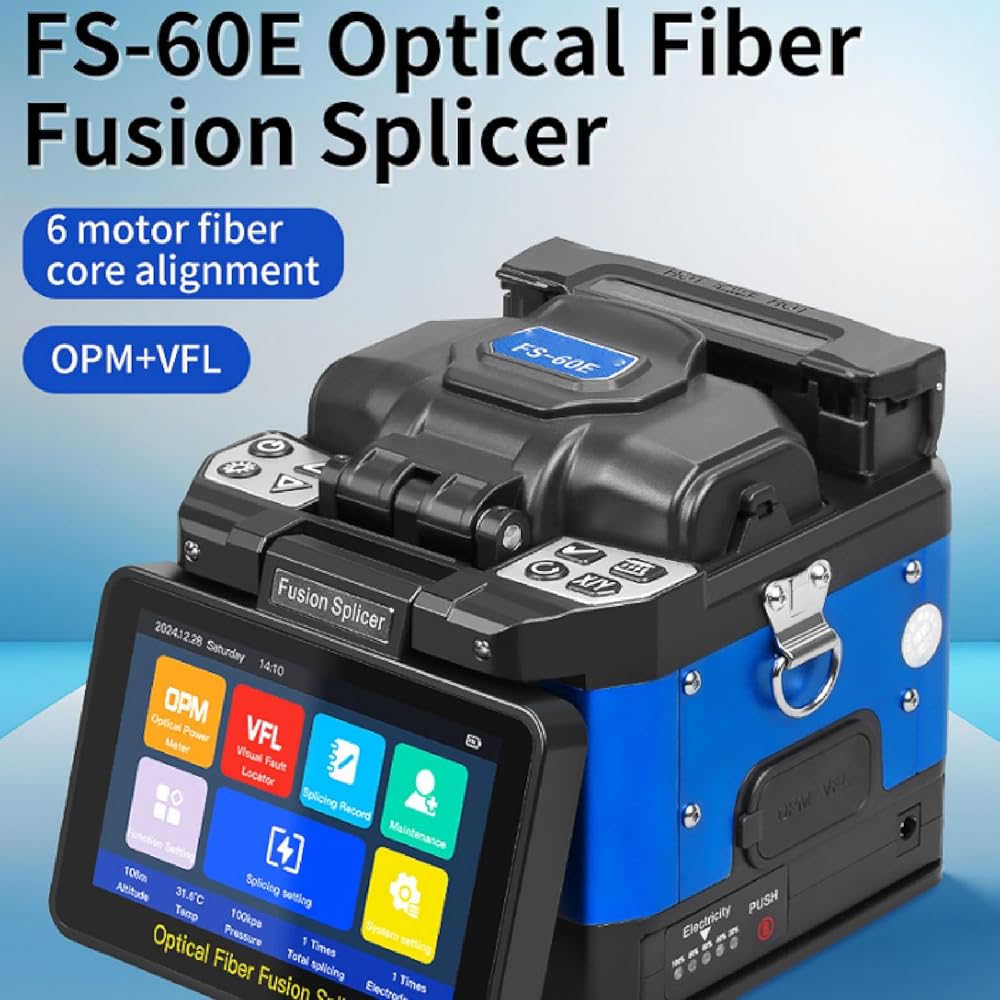

[Precision Alignment Technology] Utilizing cutting coring alignment technology and automated six motor focusing, this splicer achieves exceptional accuracy with minimal splicing loss. the system effectively measures connection quality, ensuring reliable and high performance results every time. for applications requiring utmost precision and low loss connectivity.

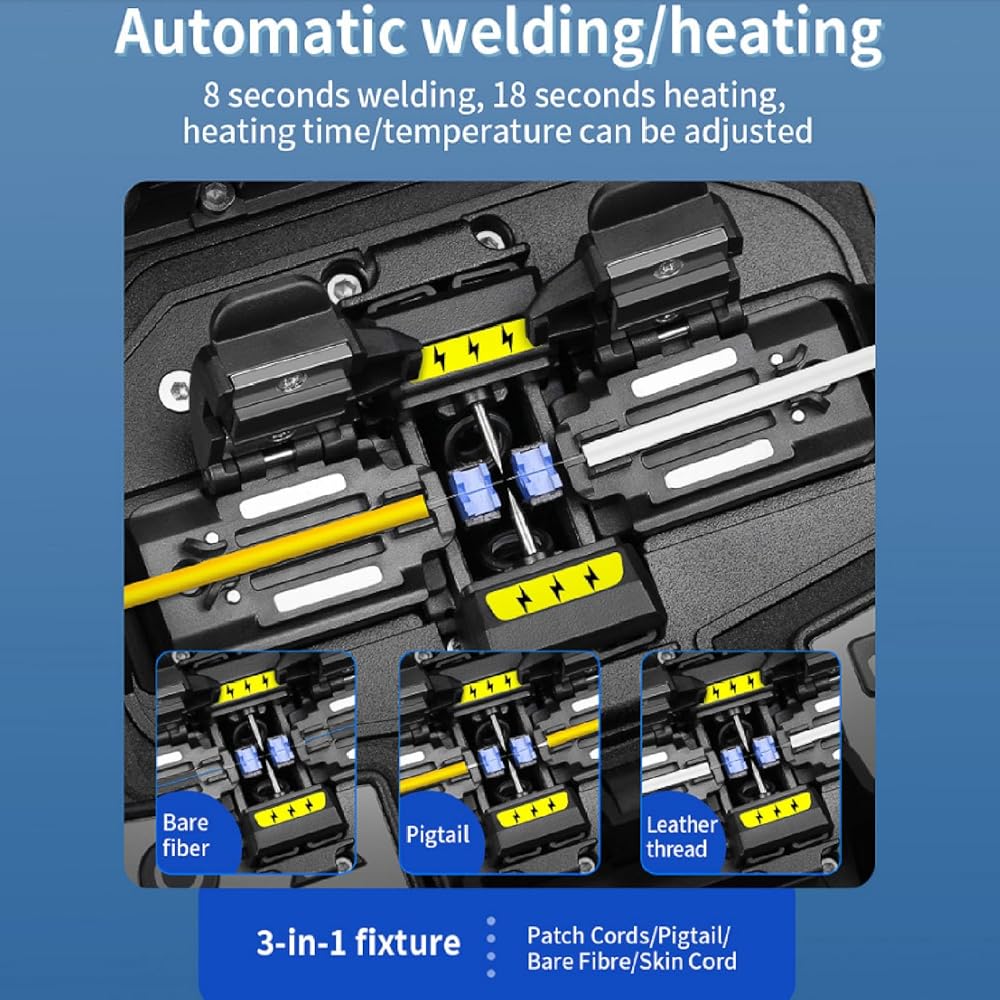

[Versatile Fiber Compatibility] The three in one fiber holder supports a wide range of fiber types including , mm, ds, and nzds, with splicing losses as low as 0.01db. this versatility makes it suitable for custom and diverse applications, providing flexibility for various professional needs. whether for standard or fibers, this splicer delivers consistent and superior performance.
[High Speed Performance] Equipped with six powerful high speed motors, this optical fiber splicer delivers an impressive 8 second splicing time and 18 second heating cycle. with the ability to perform approximately 200 continuous cycles, it ensures efficient and uninterrupted workflow . the advanced motor system guarantees consistent performance, making it ideal for high demand projects.

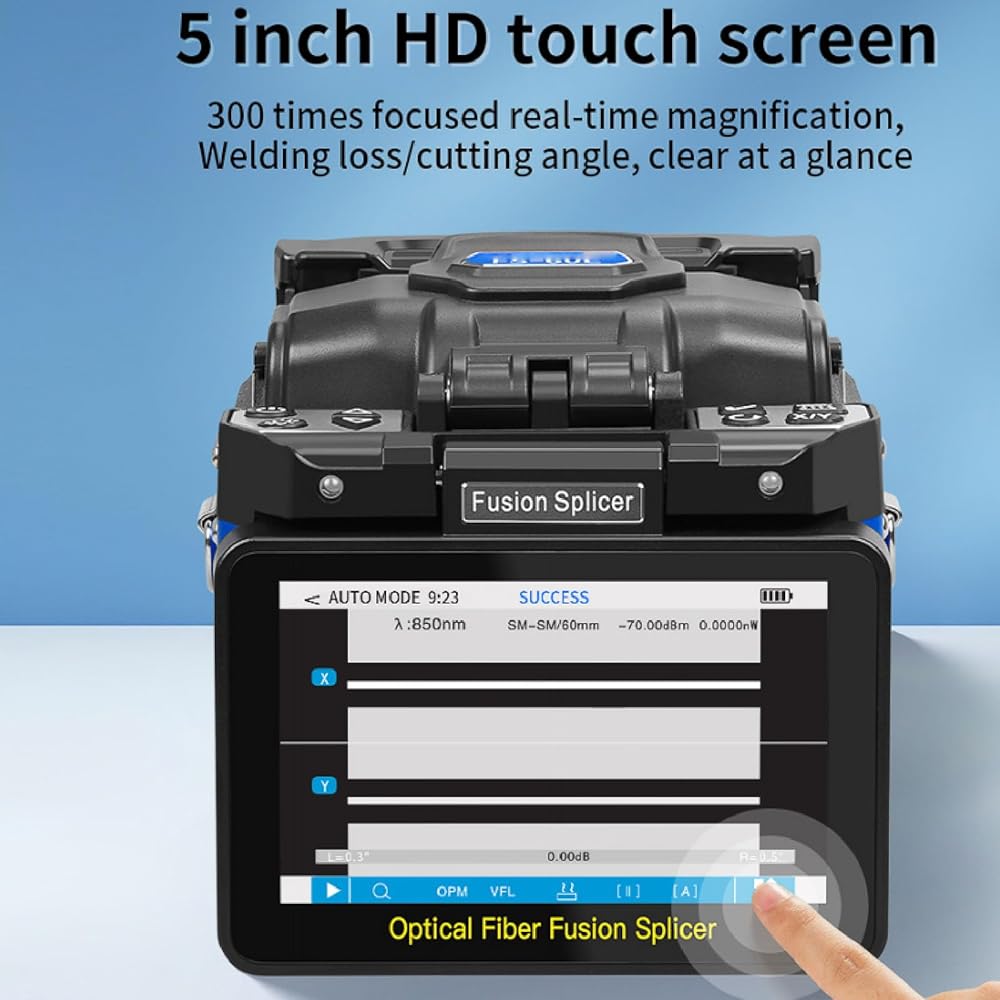

[User Friendly Interface] Featuring a 5 inch high resolution capacitive touchscreen with 300x magnification, this splicer offers an intuitive and easy to use interface. the built in 6700mah battery provides approximately 200 continuous splicing cycles on a single charge, ensuring long lasting operation in the field. the clear display and responsive controls enhance user experience and productivity.

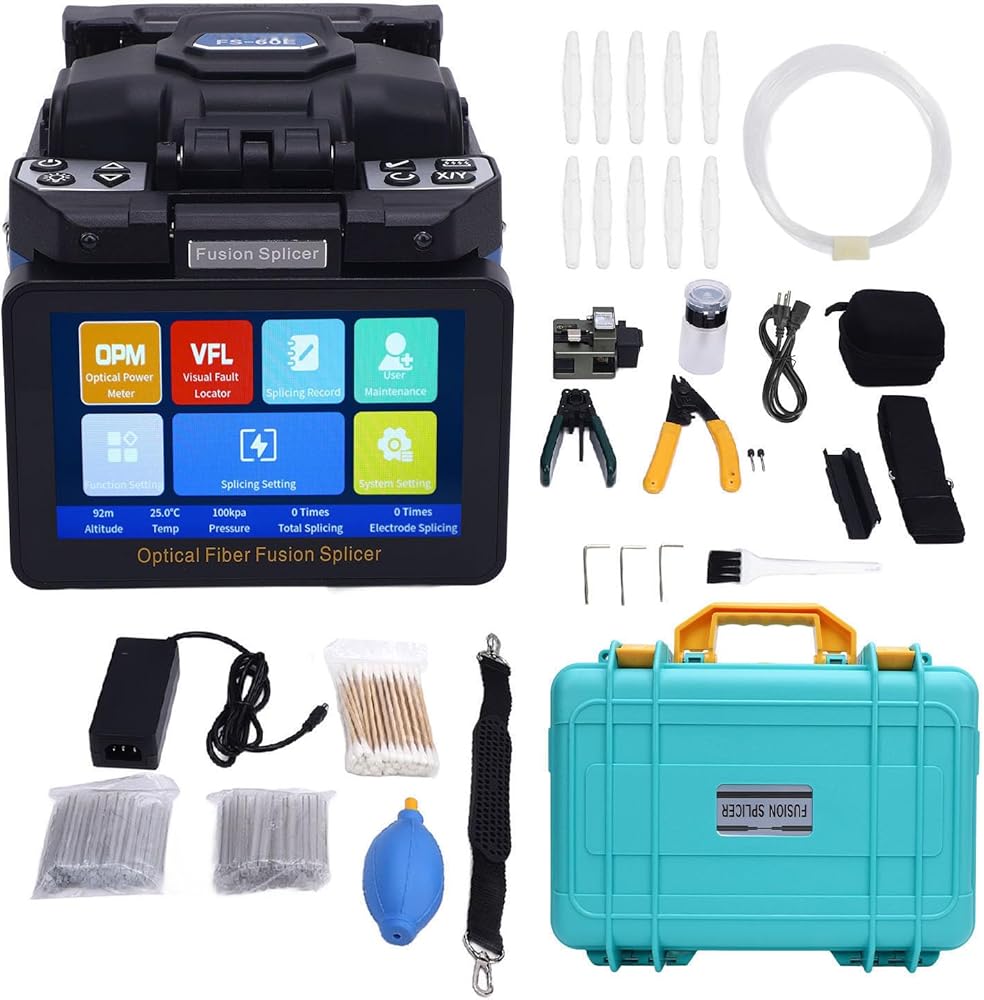

[Fiber Cutter] Included with the splicer is a fully automatic rebounding fiber cutter equipped with strong silicone pads. designed for efficiency, it boasts a cutting lifespan of about 48,000 uses, making it a reliable tool for various fiber types. the cutter's durability and precision ensure clean and consistent cuts, essential for splicing results.

وصف

Specification:
Material: ABS, Aluminum Alloy, Tungsten Steel
Fiber Type: (G.652 and G.657), MM (G.651), DS (G.653), NZDS (G.655) and Types
Fiber Diameter: Cladding Diameter 80-150μm, Coating Diameter 100-1000μm
Continuous Loss: 0.02dB (SMF), 0.01dB (MMF), 0.04dB ( NZDs) measured using ITU I shear method
Alignment Method: Coring, Cladding
Focusing Method: 6 Motor Auto Focusing
Method: Full Auto, Semi Auto, Manual
Time: 8s (SMF typical value)
Tension Test: 1.96N-2.1N

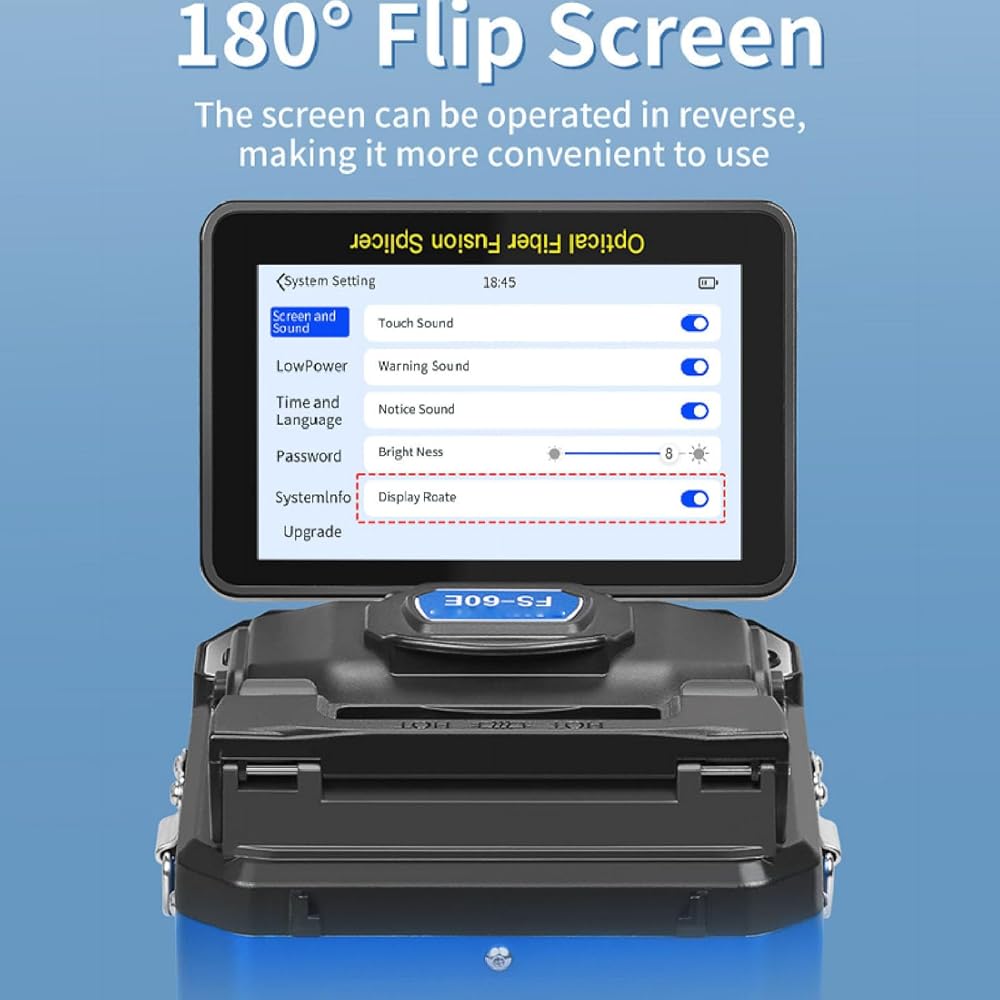

Image Display: 5 inch HD Capacitive Touch Screen, Button Touch 2 Use, Content Can Rotate in Two Directions
Magnification: 300x (X Y axes)
Record: 1000 sets
Typical Heating Time: 18s
Heating Mode: Heating Time, Temperature Adjustable, Supports Auto or Manual Heating
Safety Tube Sleeve: Approx. 20 to 60mm / 0.79 to 2.36in

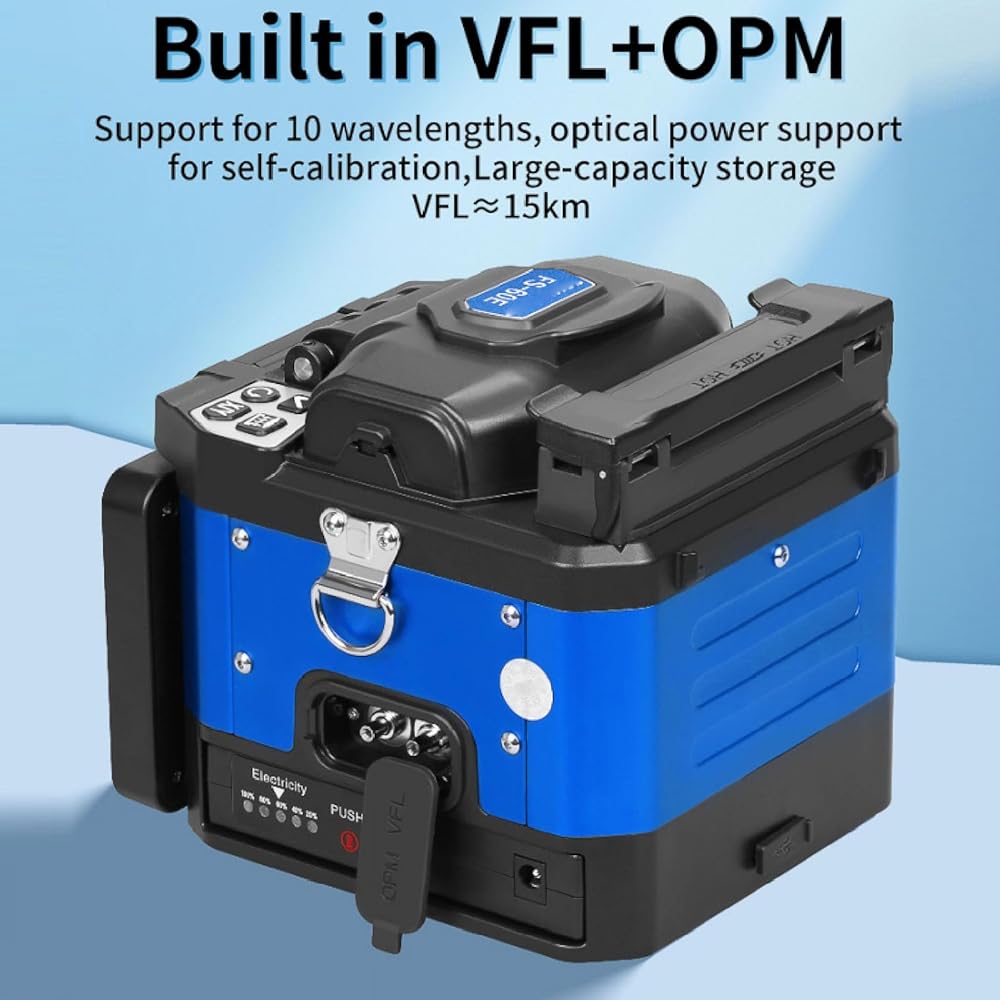

OPM:
Range (dBm): -70 to +10dBm
Wavelength: 850-1650nm (10 Wavelength Bands)
VFL: ≥15km
Operating Interface: GUI Graphic User Interface
System Upgrade: USB (Data Export, Function Upgrade, Power Output)

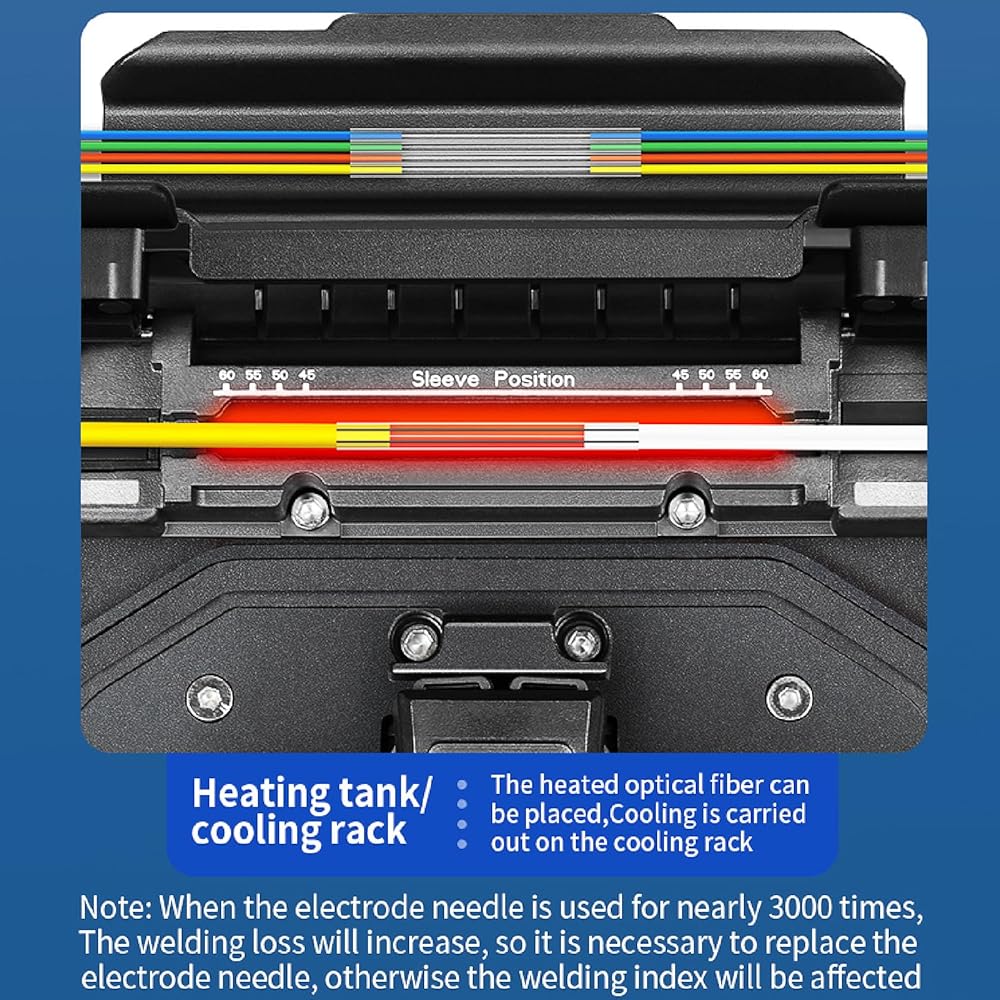

Electrode Life: 3000 times
Lighting Method: LED

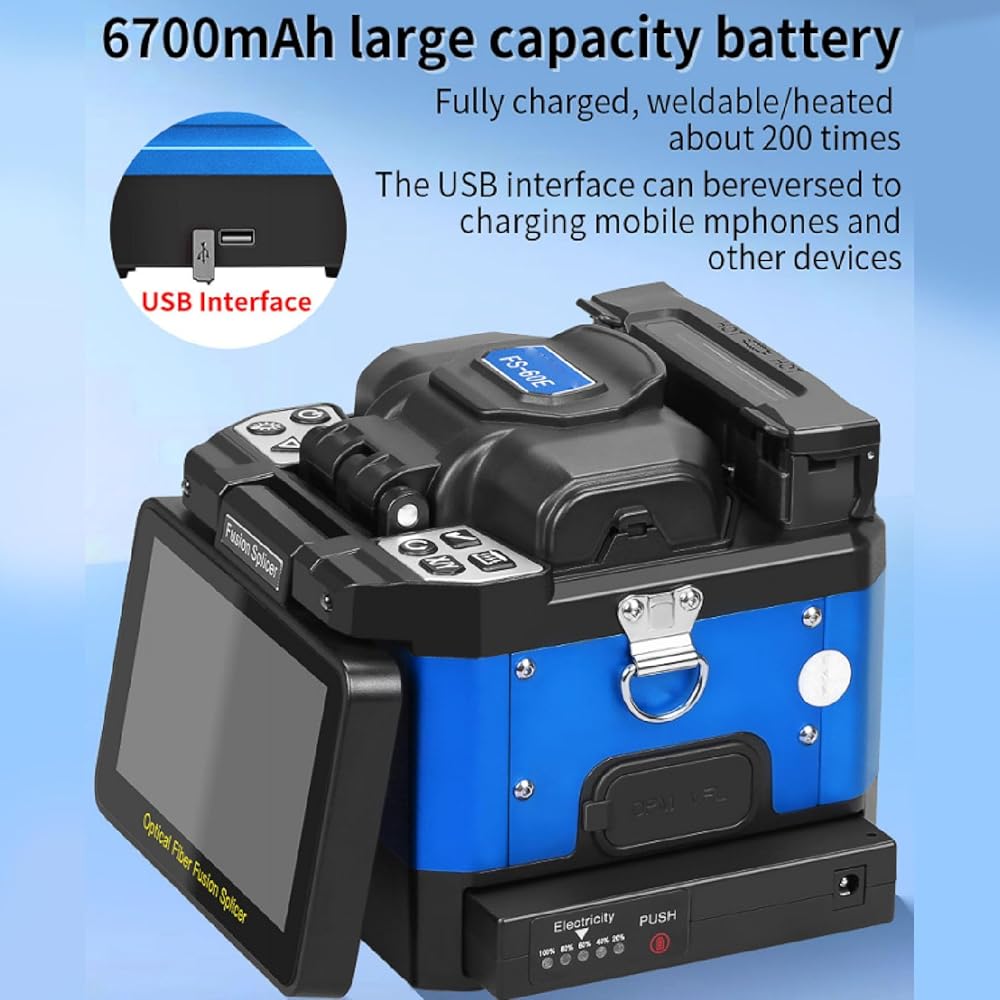

Battery Capacity: Built in 6700mAh (200 times of and Heating Typical Use)
Power Supply: 11.8V Li Battery x1 (Built in Battery Included) Charging Time Approx. 3.5 hours
Language Support: Chinese, English, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, Arabic
Operating Environment:
Temperature: -15-+50℃
Humidity: ≤90%RH (Non condensing)
Altitude: 0-5000m/Wind
Speed: ≤15m/m
