Spec:

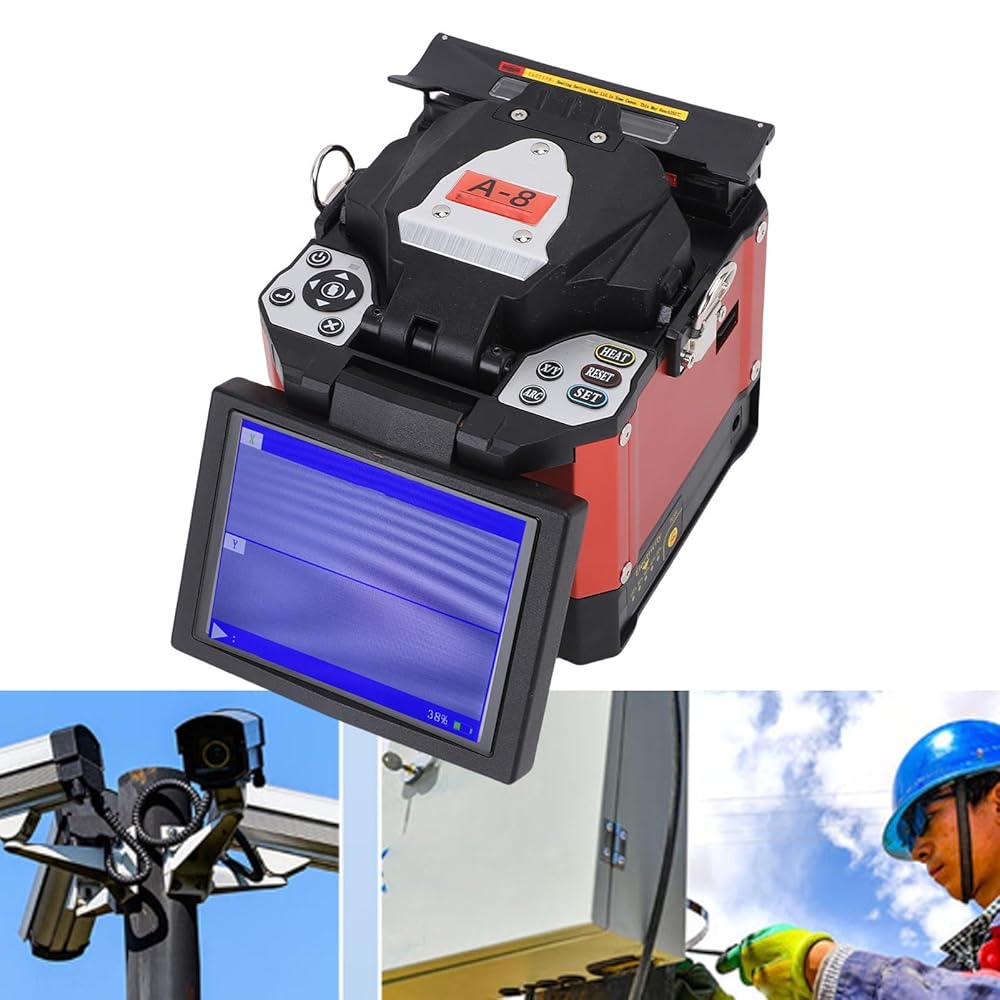

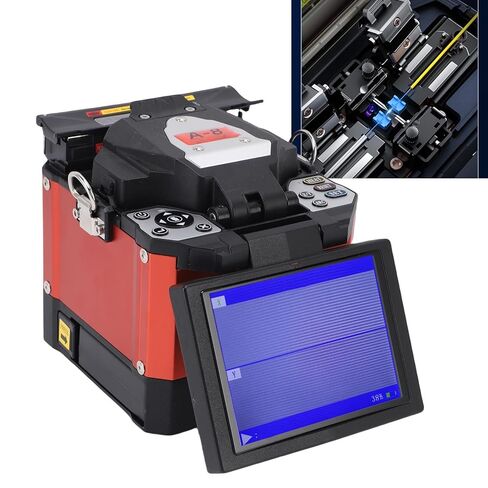

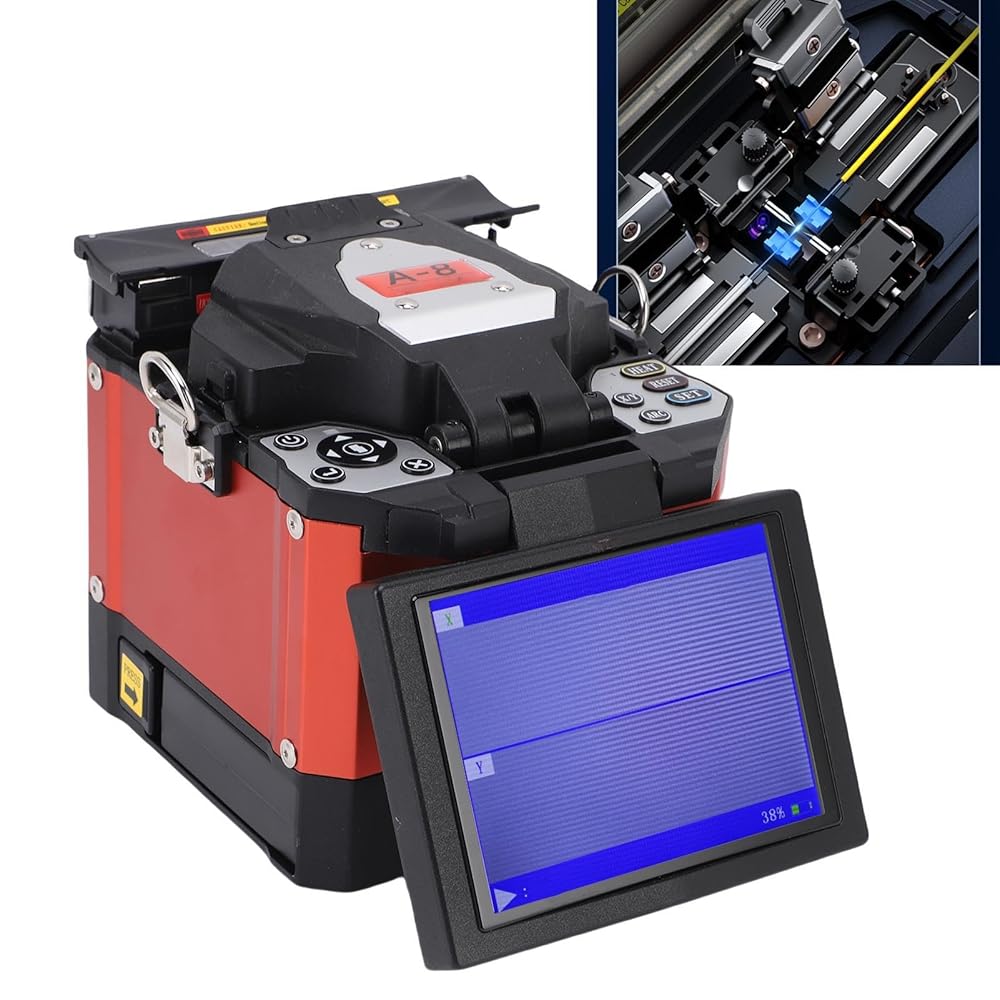

Item Type: Optical Fiber Splicer
Material: ABS
Applicable Optical Fiber: SM (G.652 and G.657), MM (G.651), DS (G.653), NZDS (G.655)
Battery: 1 x 5200mAh lithium cell (built in)
Splicing Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)
Return Loss: Better than 60dB

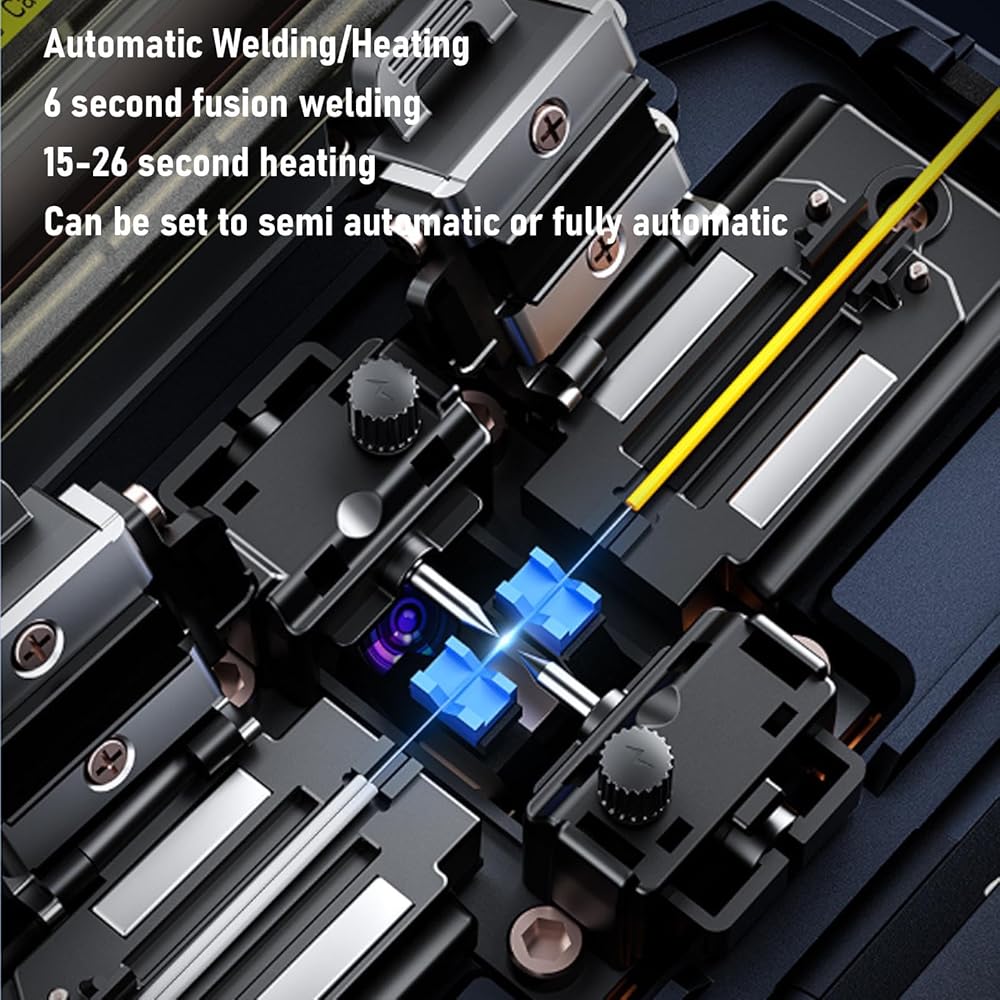

Typical Splicing Time: 6 seconds

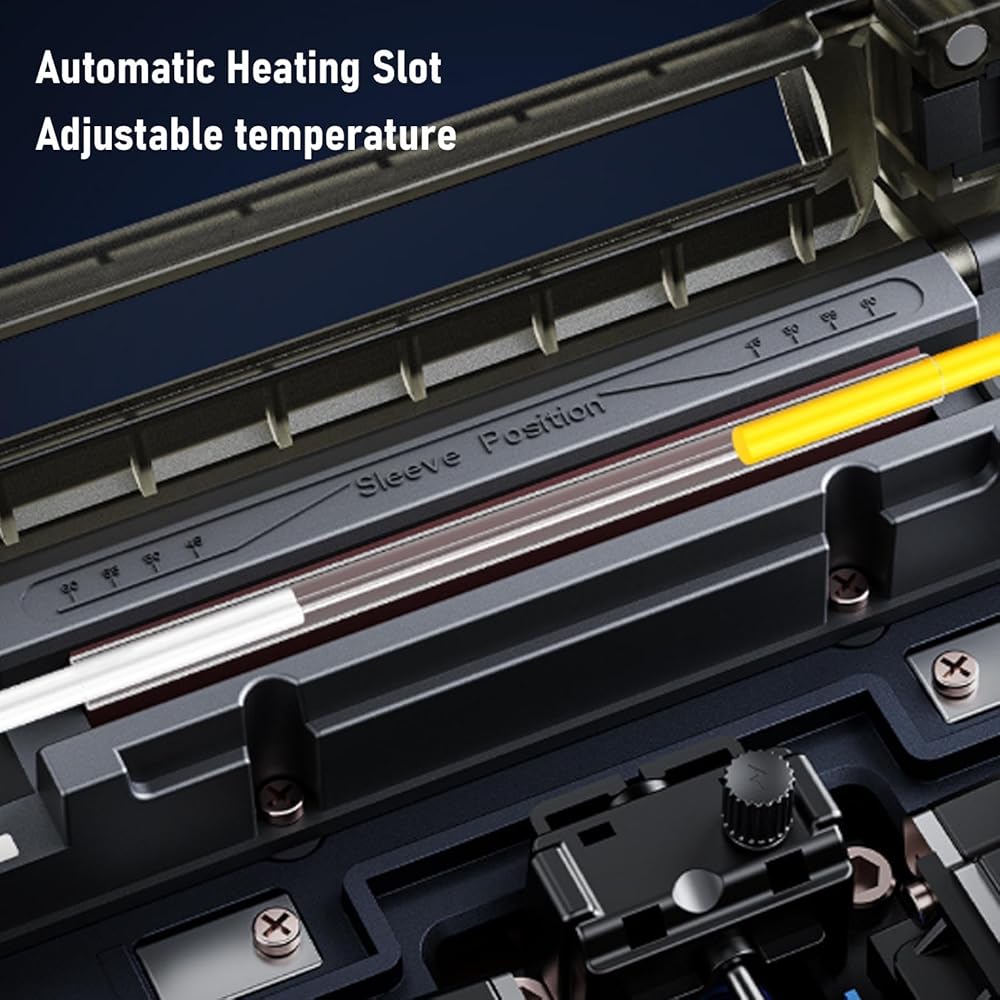

Typical Heating Time: 15-26 seconds (heating time can be set, heating temperature can be adjusted)

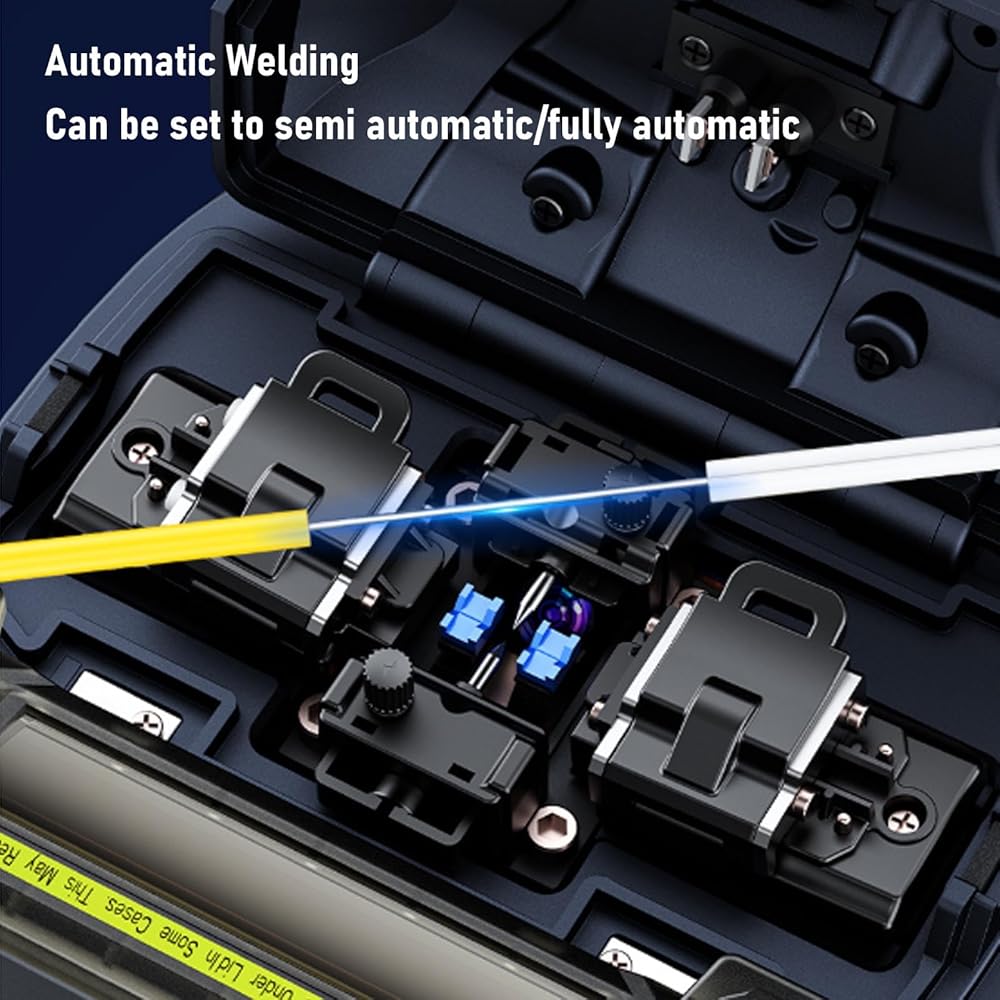

Fiber Alignment: Fine alignment, cores alignment, cladding alignment
Fiber Diameter: Cladding diameter 80-150μm, coating diameter 100-1000μm
Cutting Length: Coating layer below 250μm: 8-16mm, coating layer 250-1000μm: 16mm
Tension Test: Standard 2N (optional)

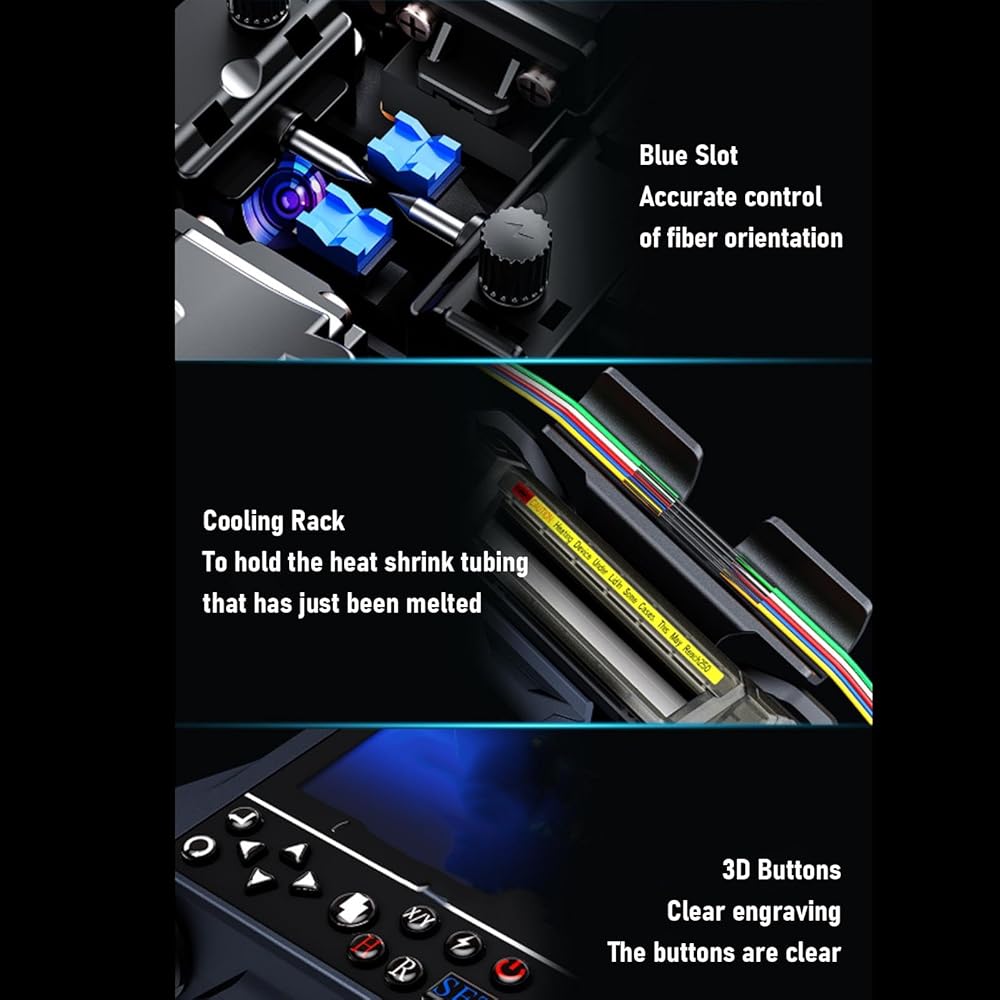

Fiber Optic Fixture: Multi functional fixture, suitable for silver fiber optic, tail fiber, jumper wire, insulated wire. Replace the fixture can be used for SC and other connectors for various FTTx fiber optic cables

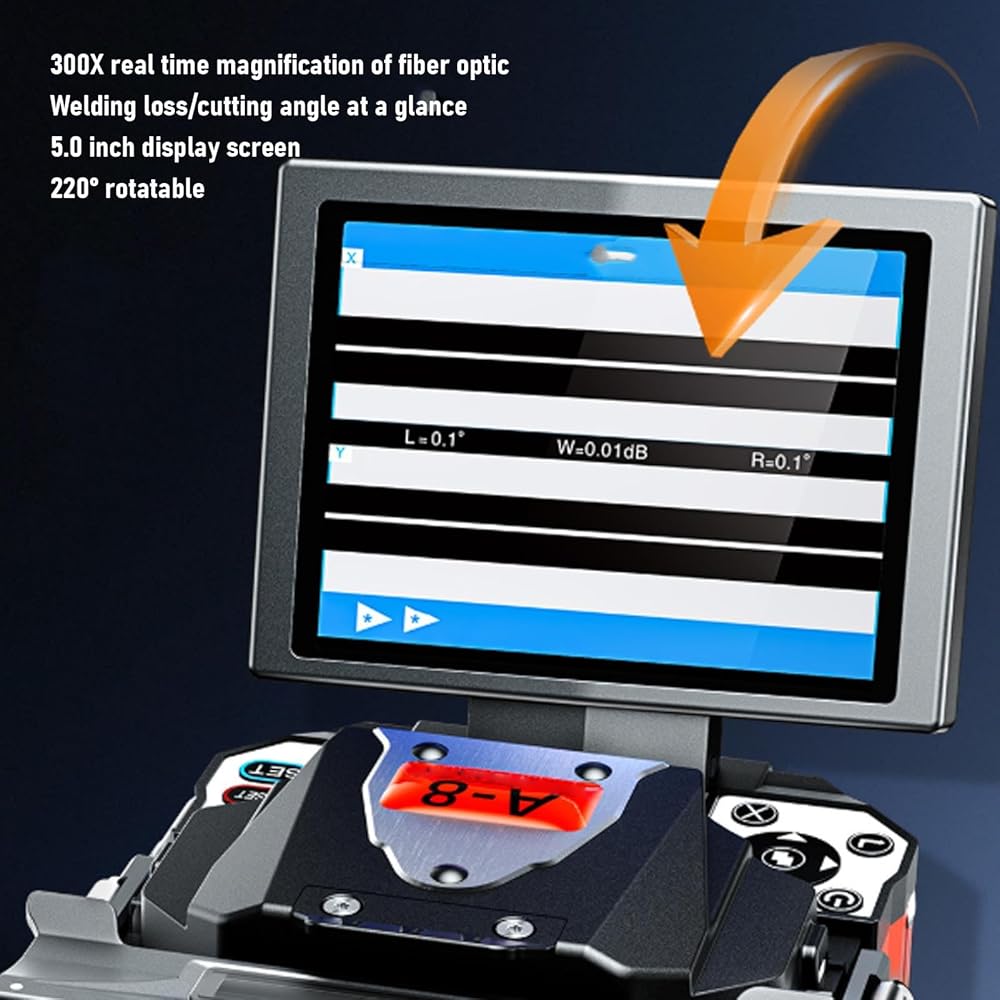

Magnification: 300X (X or Y axes)
Heat Shrink Tubing: 60mm, 40mm, and a range of miniature tubing
Display: 5.0 inch TFT color LCD display screen
External Interface: USB interface, convenient for data download and software updates
Splicing Mode: 17 groups of usage modes
Heating Mode: 9 groups of usage modes

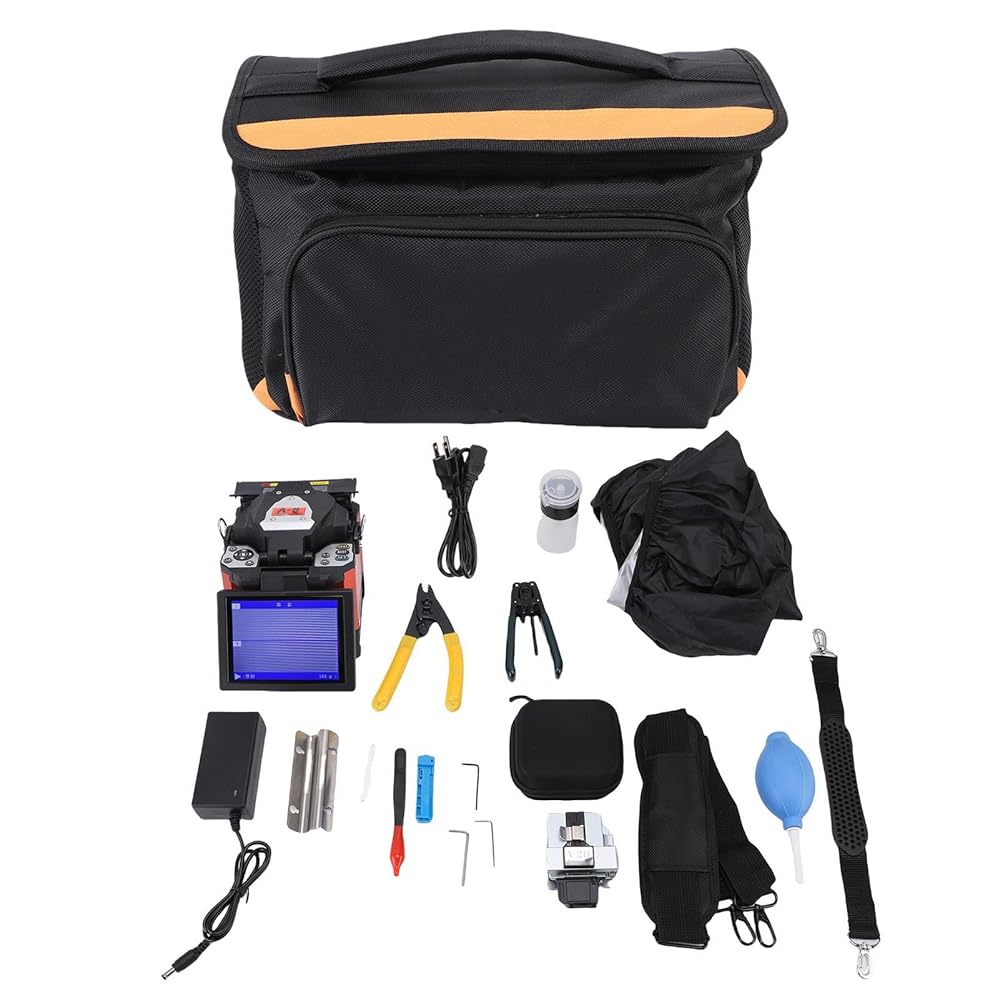

PackageList:
1 x Optical Fiber Splicer
1 x Splicer Bag
1 x Fiber Cleaver
1 x Wire Stripping Tool
1 x CFS-3 Fiber Stripping Pliers
1 x Cleaver Bag
1 x Adapter
1 x Supply Cord Plug
1 x Alcohol Bottle 60ML
2 x Shoulder Strap
1 x Fiber Hanging Tray
1 x Wire Length Fixer
3 x Wrench
1 x Tweezer
1 x Brush
1 x Cleaning Tool
2 x User Manual
