Multi Testers
Specification:
Color: Black
Display:
Backlight: YES
Material: Flame Retardant ABS
Type: EU / US / UK (Optional)
Voltage: 48V-250V 45-65Hz
RCD Test: >30mA (EU/UK )
RCD Working Voltage: 220V±20V
GFCI Test: >5mA (US )
GFCI Working Voltage: 110V±20V
Voltage Measurement: 48V-250V / 45-65Hz
Accuracy: ±(2.0%+2)
Working Environment: 0 - 40, 20% -75%RH
Storage Environment: -10 - 50, 20% -80%RH
National :
Malaysia and Singapore Choose UK
Thailand and Philippines Choose US
Vietnam and Indonesia Choose EU
Safety Level: EN61010-1-2-030, EN61326-1, II 300V

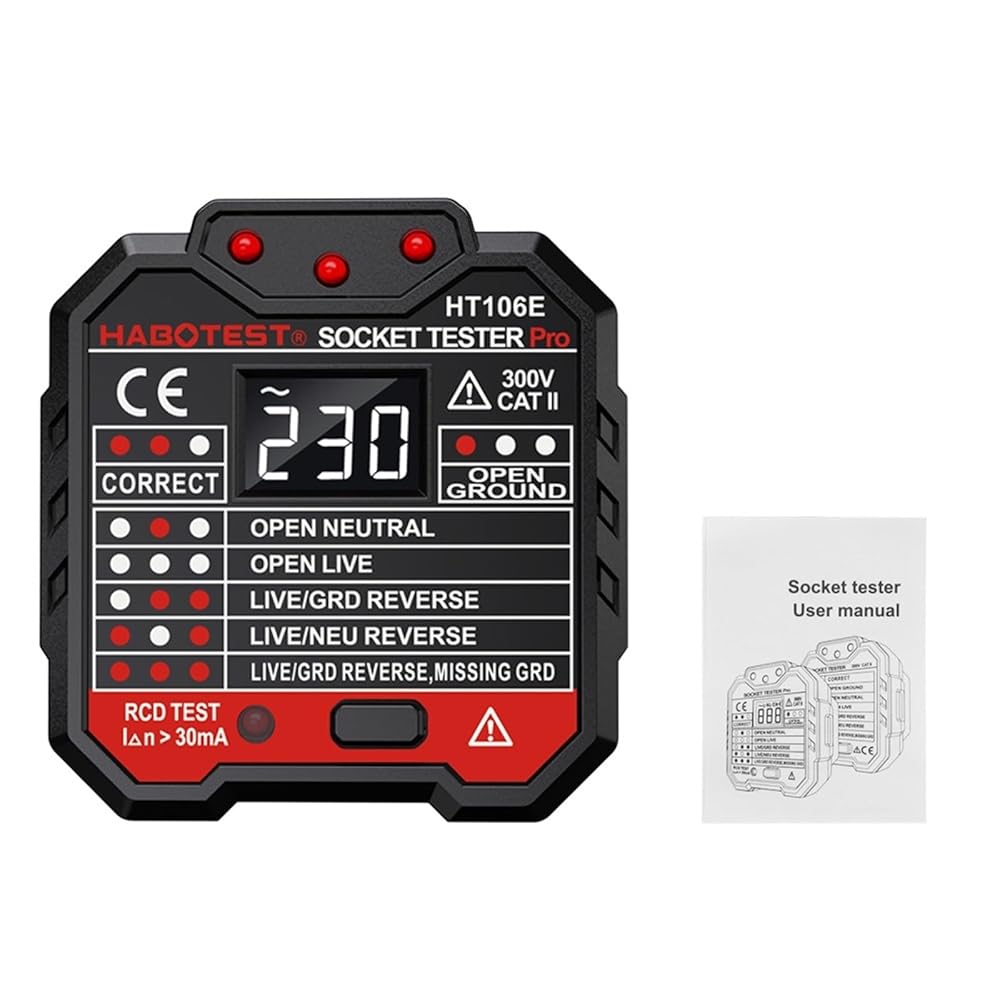

Package List: 1 x socket tester ,1 x English manual
Features:
Electric Socket Tester - Advanced socket tester for rapidly detecting whether the socket's wire connection is correct or not.
Design with RCD/GFCI Test Button - Power outlet socket for correct wiring and RCD/GFCI trip function. It can test the protection system to ensure the household electrical safety. Perfect for protect your security against the risk of electric shock.
Easy to Use - Detect whether neutral, live and earth wire is connected correctly and to indicate which wire is missing with clear light patterns.
Bright LED Light & 3 Test Indicators The light patterns are well labeled on the surface of the socket tester The tester adopts a builtin light so it can also be used in the dark Easy and fast to read the test result.
7 LED Light Patterns - With 7 easy to read indicators to indicate the state of the socket, easy to judge: Correct, Open Ground, Open Neutral, Live/Neutral Reverse, Live/Ground Reverse, Open Live & Live Neutral Reverse
Wide Application Widely used for electric maintenance testing office sockets testing power strips testing and wall sockets testing in school, laboratory, and other social field. It saves you lots of time in testing problems with sockets.
Portable Design - Compact size, light weight and convenient to use. With voltage backlight display for testing voltage.
Socket Wiring Detection:
1. The Wiring is Correct: the Left and Middle Indicator Lights are on.
2. Missing Ground Wire: the Indicator on the left is on.
3. Missing Null Line: the Middle Indicator Light is on.
4. Missing Live Wire: All Lights are Off.
5. The live wire and the ground wire are reversely connected, the middle and right indicator lights are on.
6. The live wire and the null line are reversely connected, the left and right indicator lights are on.
7. The ground wire is missing or may be the ground wire connected to the neutral wire,3 indicator are all on.
==========
is_customized : Yes
Model Number : HT106
